DIYmall STS3215 7.4V 19KG Magnetic Encoder Servo Metal Gear Dual Axis TTL Serial Bus Servo 360 Degree String Servos for Arduino Robotic Arm Smart Robot

• STS3215 7.4V 19kg.cm serial bus TTL control smart servo, with 12 bit high precision magnetic coding sensor
• 360 degree continuous rotation while still offering position control over an effective range of 360 degree
• Operating Voltage Range: 6V-7.4V; No load speed: 0.238sec/60°@6V; Running current(at no load) : 150 mA@6V; Peak stall torque: 19.5kg.cm@6V; Rated torque: 6.5kg.cm@6V; Stall current: 2000mA@6V; Command signal: Digital Packet

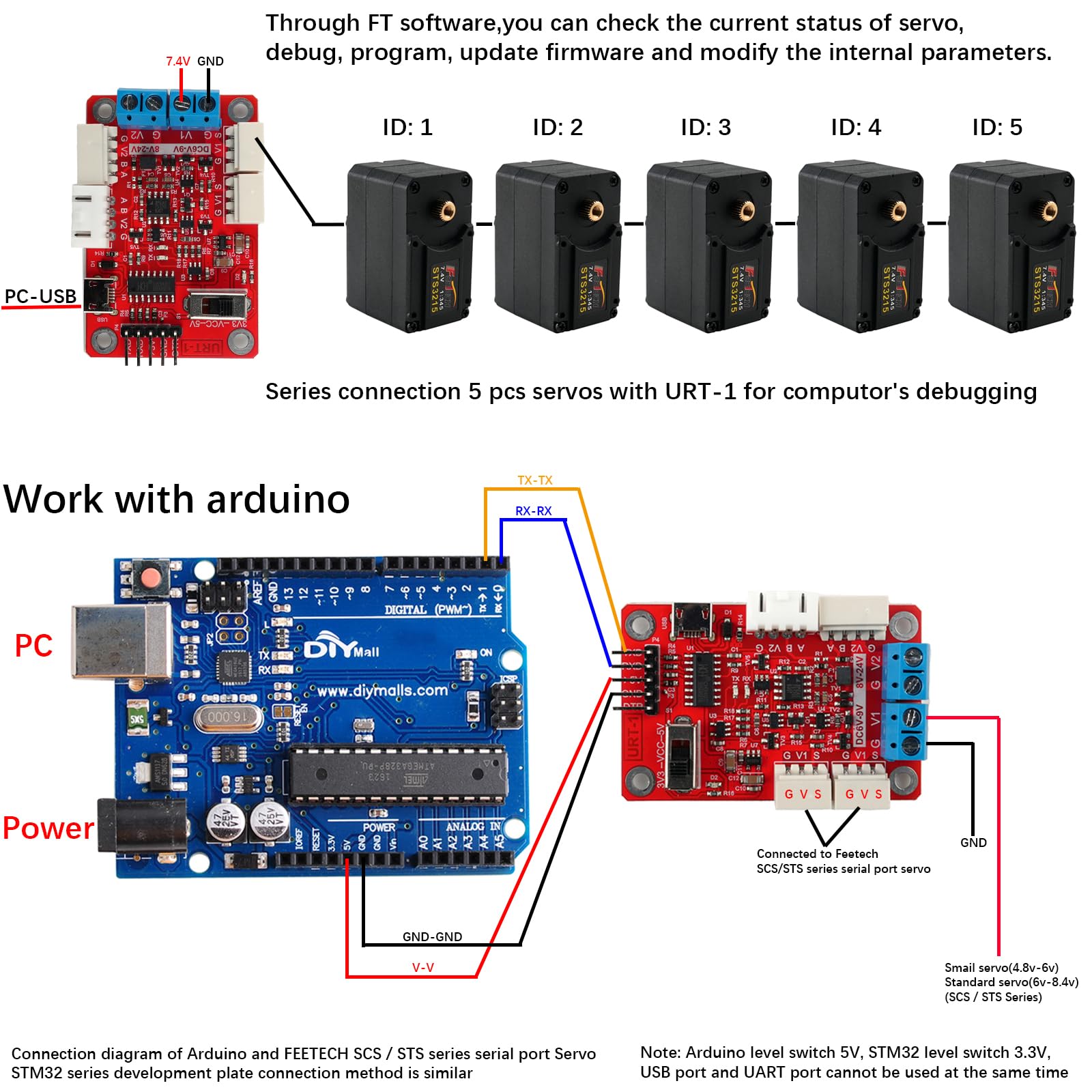

• Multiple servos can be daisy-chained on the same serial bus. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios
• What you will get: 1 x STS3215 7.4V 19KG Magnetic Encoder Servo

Product description Model: STS3215 Product Name: 7.4V 19KG. Dual axis TTL string servo Storage Temperature Range: -30℃～80℃ Operating Temperature Range: -20℃～70℃ Size: A：45.2mm B：24.7mm C：35mm Weight: 55± 1g Gear type: Copper Limit angle: NO limit Bearing: Ball bearings Horn gear spline: 25T Horn type: Plastic, POM Case: PA+GF Connector wire: 150mm ±5 mm Motor: Core motor Operating Voltage Range: 6-7.4V No load speed: 0.238sec/60°@6V Running current(at no load) : 150 mA@6V Peak stall torque: 19.5kg.cm@6V Rated torque: 6.5kg.cm@6V Stall current: 2000mA@6V Command signal: Digital Packet Protocol Type: Half Duplex Asynchronous Serial Communication ID range: 0-253 Communication Speed: 38400bps ~ 1 Mbps Running degree: 360° (when 0~4096) Feedback: Load, Position, Speed, Input Voltage, Current Package includes: 1 x STS3215 7.4V 19KG Magnetic Encoder Servo Safety Warning No
