DIYmall STS3215 12V 30KG Magnetic Encoder Servo Metal Gear Dual Axis TTL Serial Bus Servo 360 Degree + Metal Bracket for Robotic Arm Smart Robot

• STS3215 12V 30kg serial bus TTL control smart servo, with 12 bit high precision magnetic coding sensor
• 360 degree continuous rotation while still offering position control over an effective range of 360 degree
• Operating Voltage Range: 4-14V; No load speed: 0.222sec/60°@12V; Running current(at no load) : 180 mA@12V; Peak stall torque: 30kg.cm@12V; Rated torque: 10kg.cm@12V; Stall current: 2.7A@12V; Command signal: Digital Packet
• Multiple servos can be daisy-chained on the same serial bus. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios

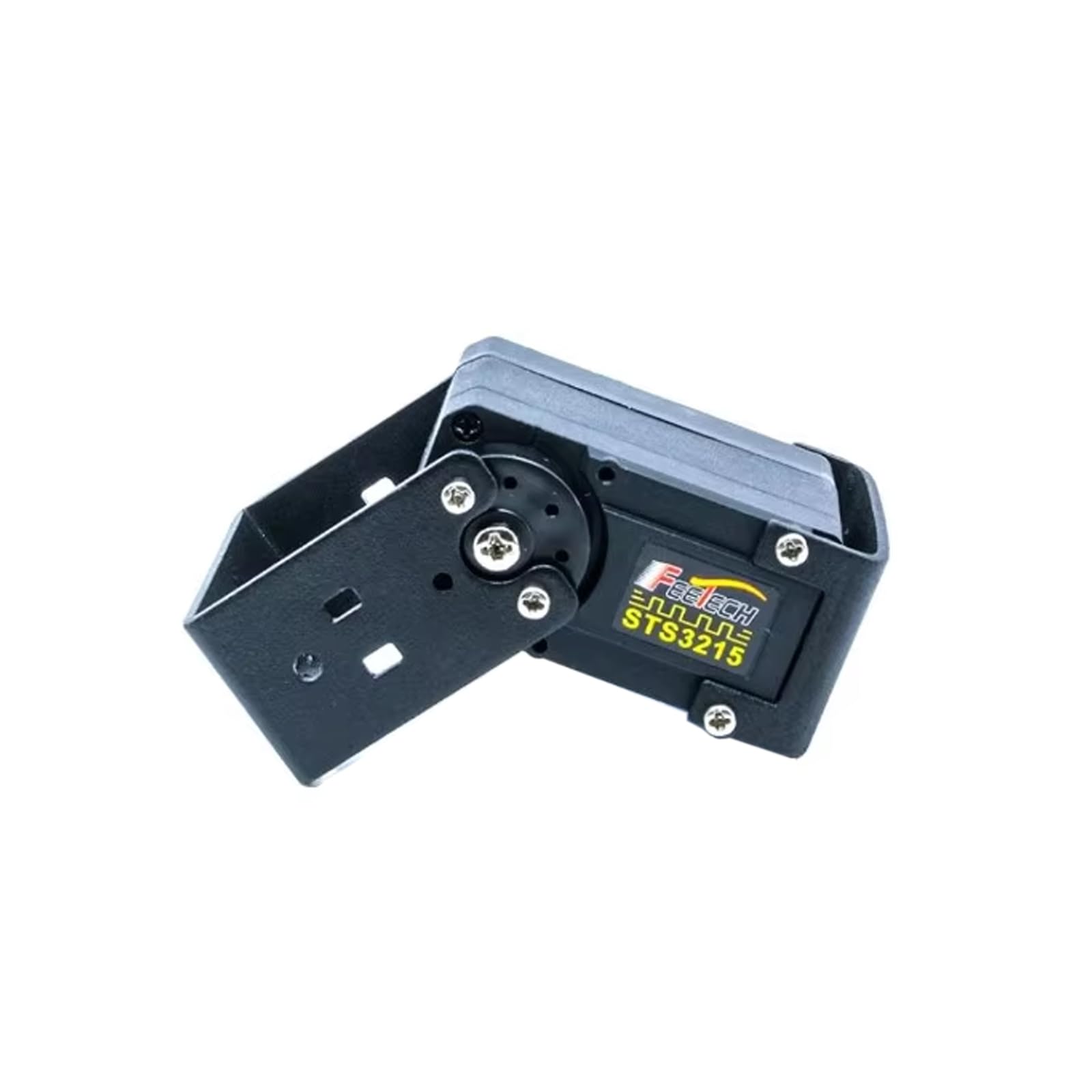

• What you will get: 1 x STS3215 12V 30KG Magnetic Encoder Servo + 1 Set Metal Bracket for STS3215 servo

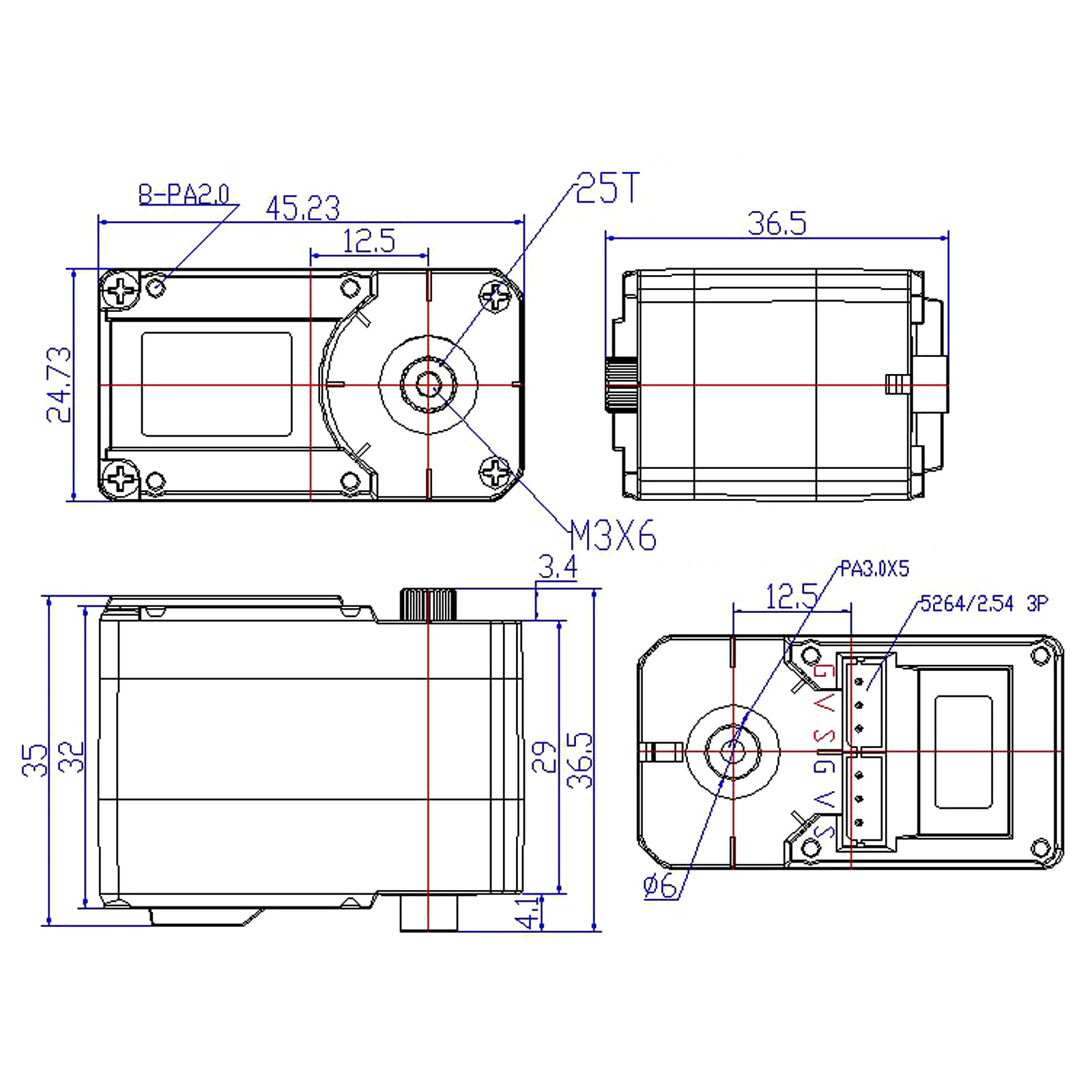

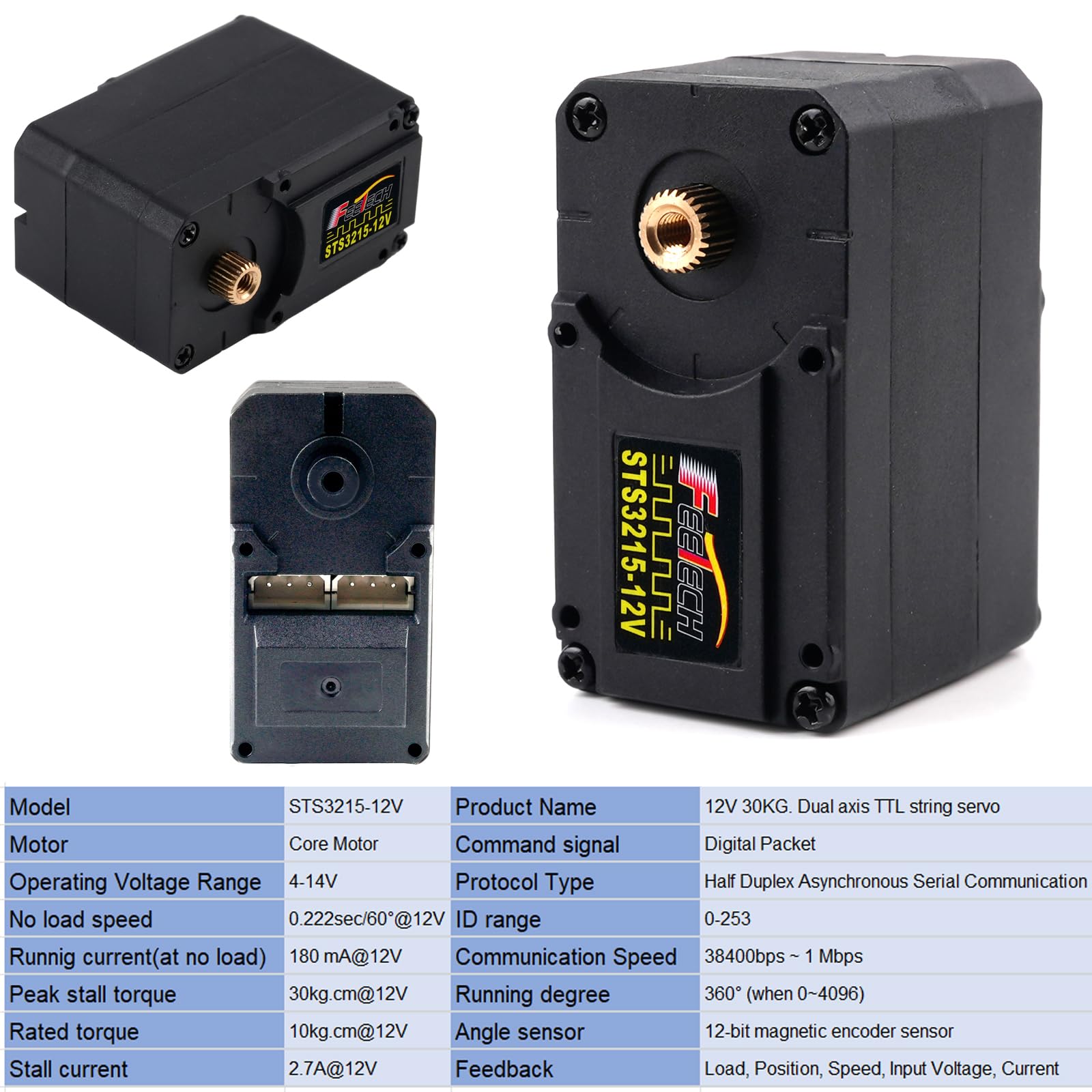

Product description Model: STS3215-12V(ST-3215-C018) Product Name: 12V 30KG. Dual axis TTL string servo Storage Temperature Range: -30℃～80℃ Operating Temperature Range: -20℃～60℃ Size: A：45.2mm B：24.7mm C：35mm Weight: 55± 1g Gear type: Copper Limit angle: NO limit Bearing: Ball bearings Horn gear spline: 25T/OD5.9mm Horn type: Plastic, POM Case: PA+GF Connector wire: 15CM Motor: Core Motor Operating Voltage Range: 4-14V No load speed: 0.222sec/60°@12V Running current(at no load) : 180 mA@12V Peak stall torque: 30kg.cm@12V Rated torque: 10kg.cm@12V Stall current: 2.7A@12V Command signal: Digital Packet Protocol Type: Half Duplex Asynchronous Serial Communication ID range: 0-253 Communication Speed: 38400bps ~ 1 Mbps Running degree: 360° (when 0~4096) Feedback: Load, Position, Speed, Input Voltage, Current Package includes: 1 x STS3215 12V 30KG Magnetic Encoder Servo 1 Set Metal Bracket for STS3215 servo Safety Warning No
