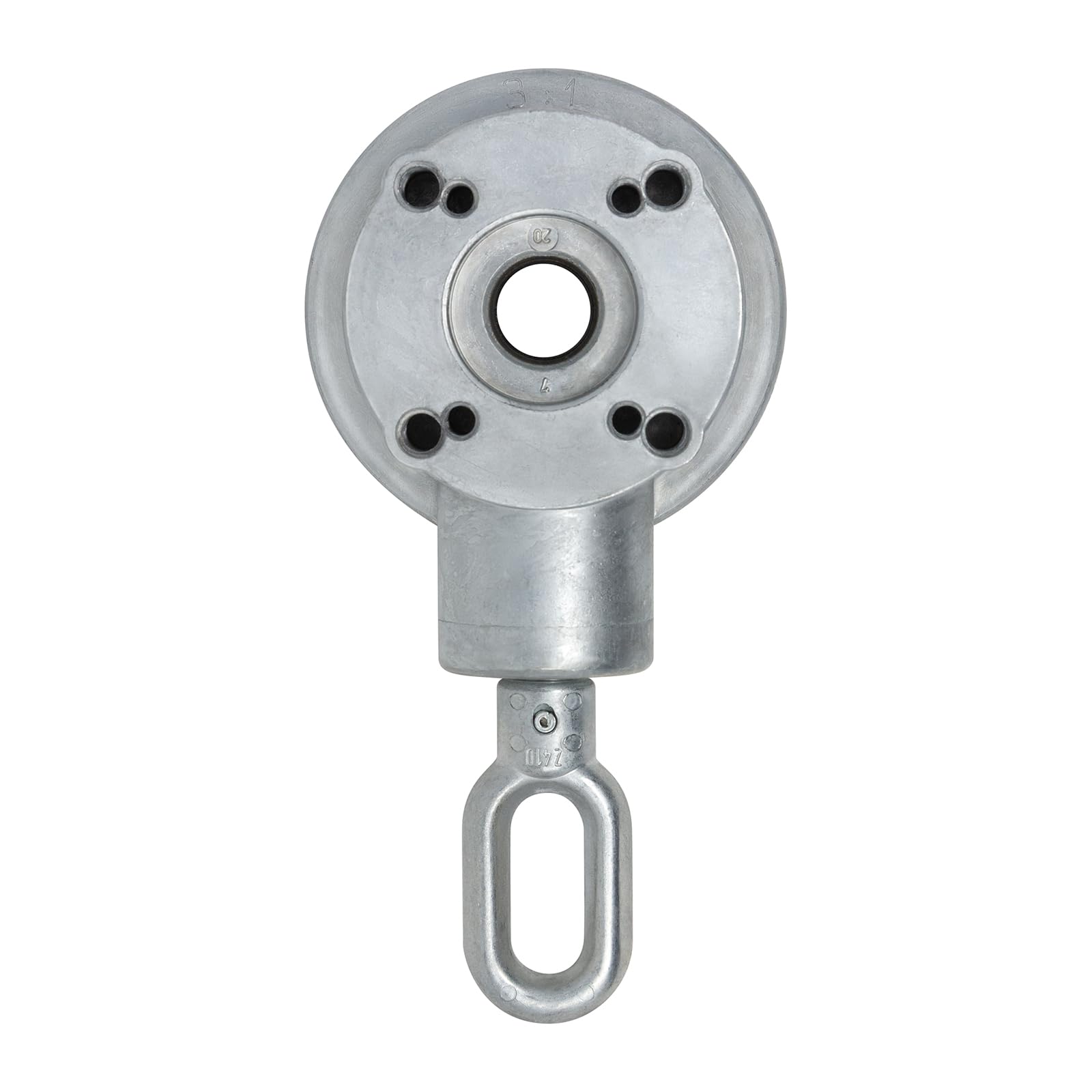

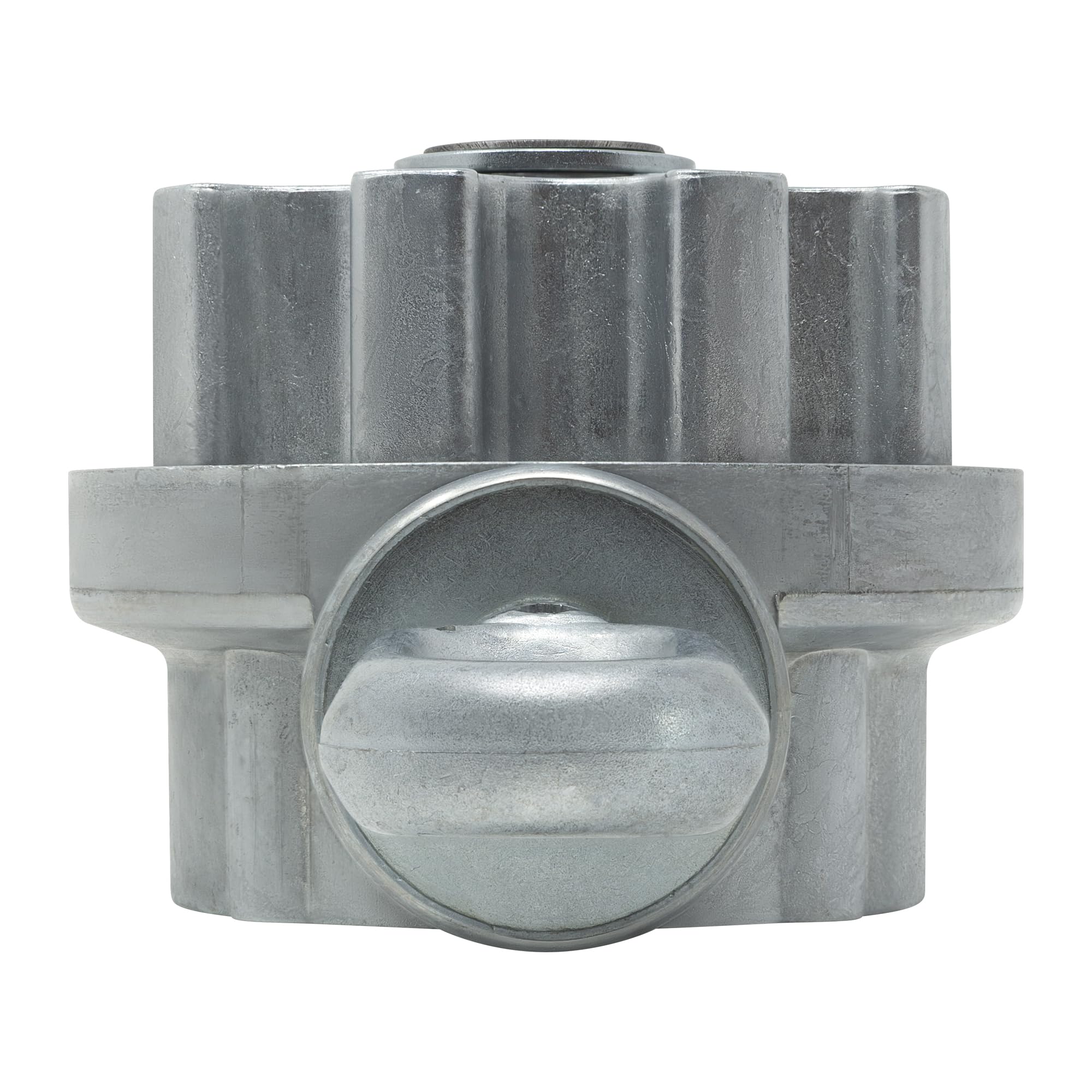

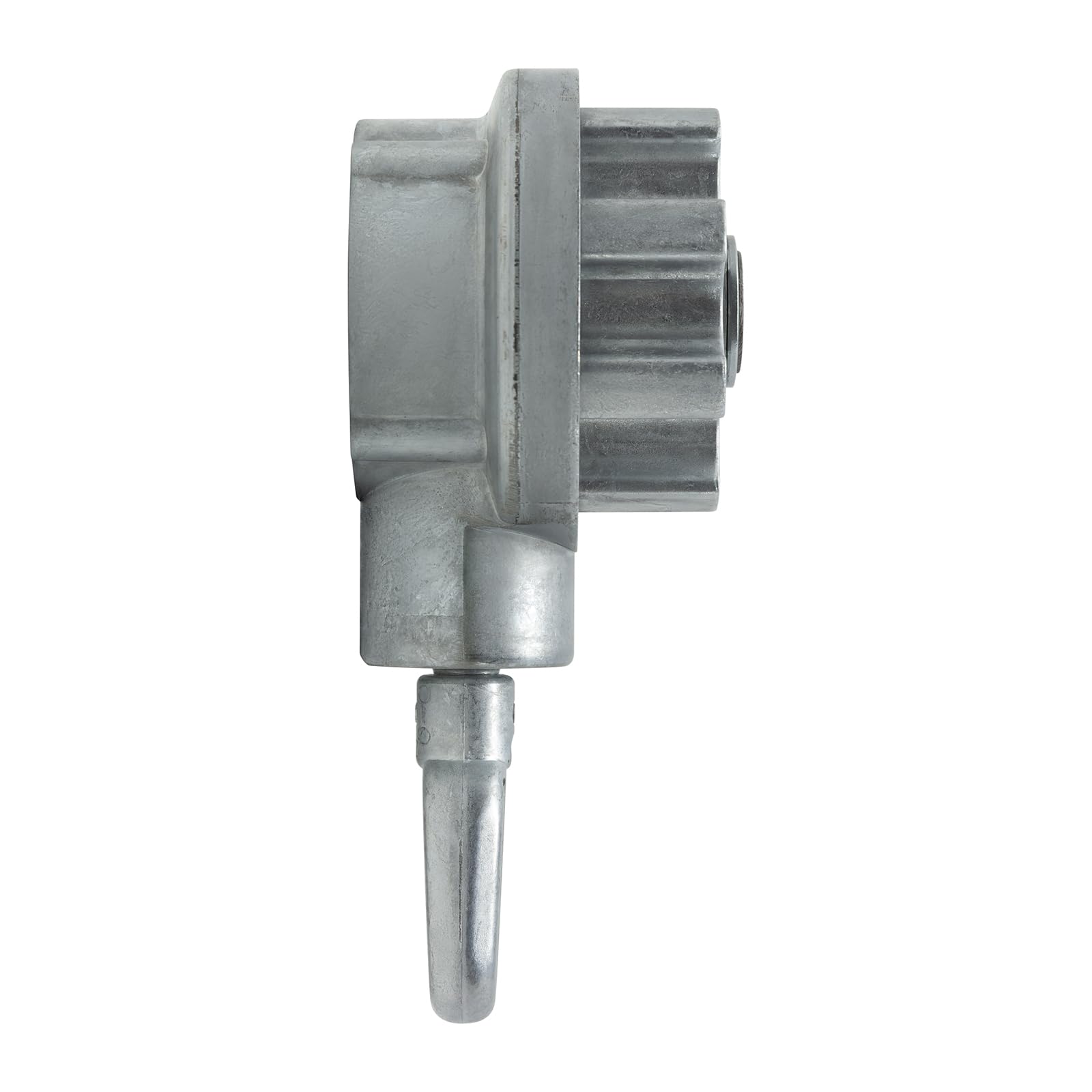

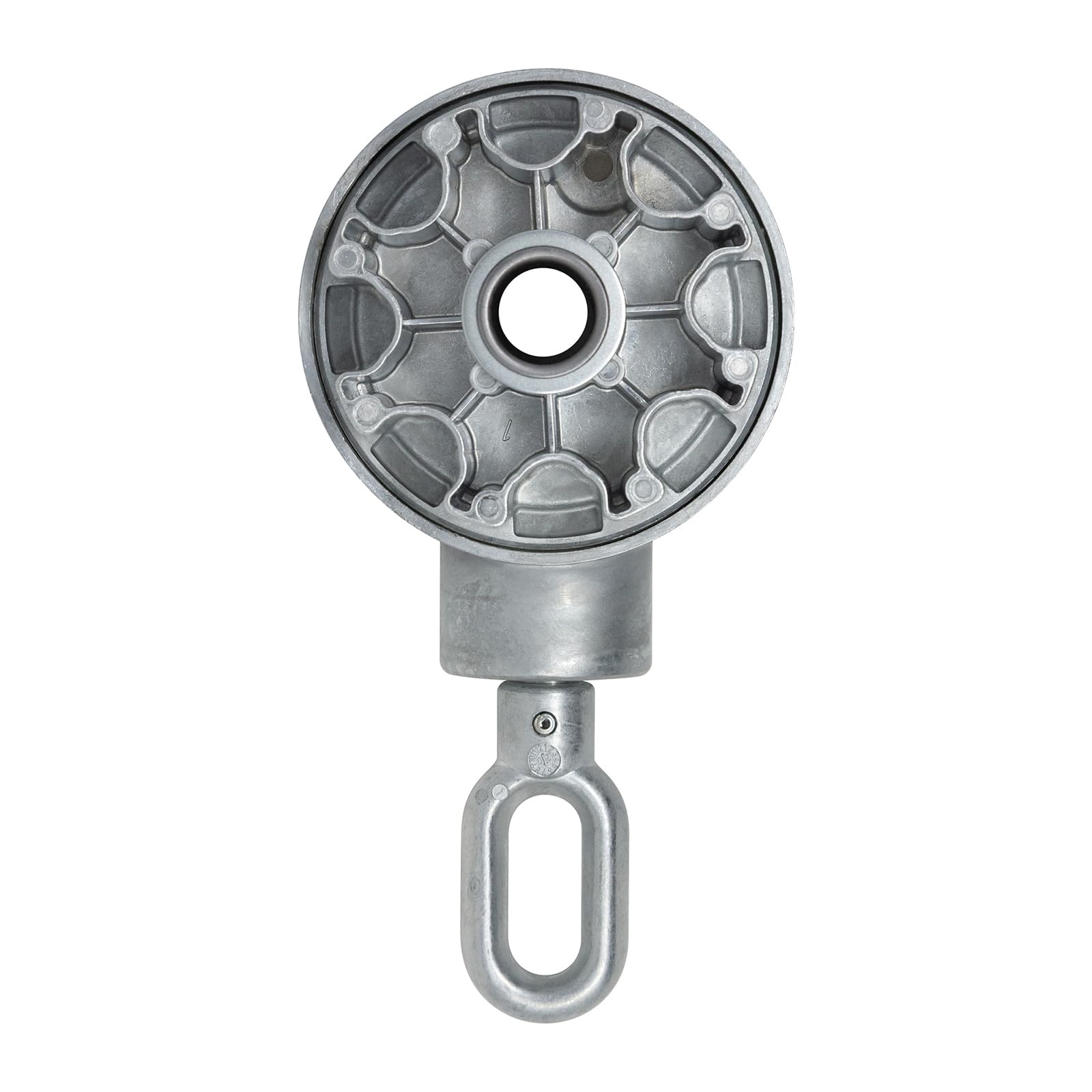

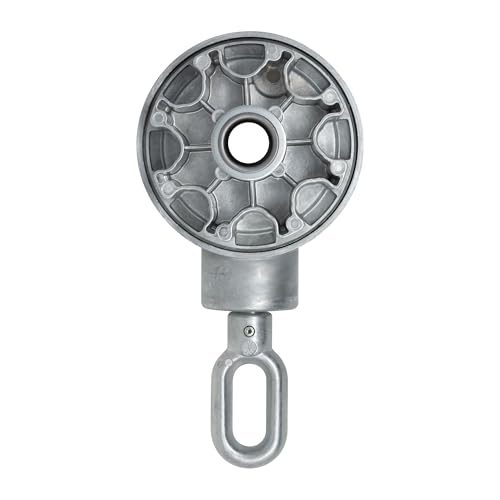

DIWARO.® Taper wheel gear for awnings, 3:1, with end stop, for 78 mm groove tube, awning gearbox

• The bevel wheel gearbox 410F008 with a reduction of 3:1 with groove tube adapter can be used for articulated arm awnings. The low reduction ensures quick operation, but the effort is higher than with greater reduction.
• Thanks to the lift limiter, the cloth is also well protected at all times. After a maximum of 14 revolutions of the cloth shaft, the gear is locked and thus prevents incorrect winding.

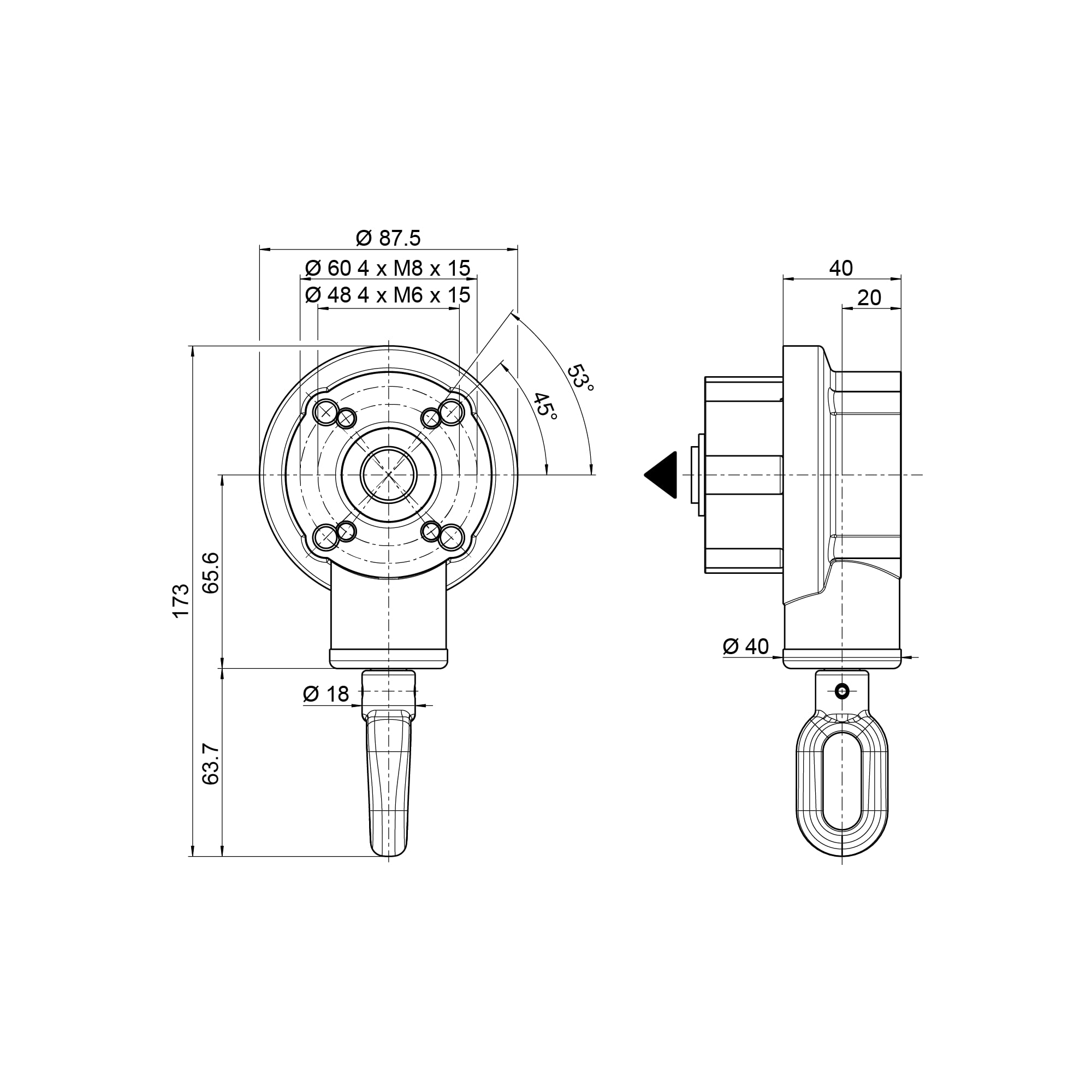

• reduction 3:1 | maximum output torque 12 Nm | efficiency 0.66 | end stop (AB) after maximum 14 revolutions | pitch circle 48 mm | attachment M6 thread | drive eyelet oval | output 75.5 mm (for 78 groove tube) | blank colour (uncoated)
