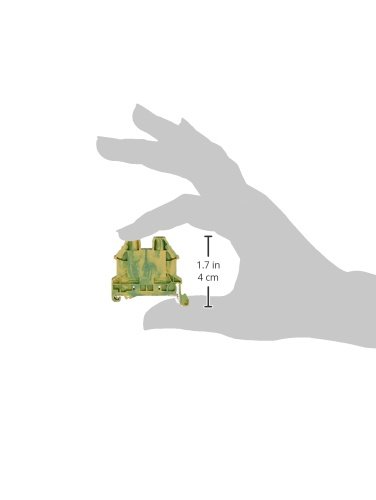

Dinkle DK4N-PE DIN Rail Grounding Terminal Block Screw Type Green Yellow IEC 630V UL 30A 10-28AWG, Pack of 100

• IEC 630V
• UL 10-28AWG
• UL 30A

Dinkle DK4N-PE grounding terminal block has strong clamps to ensure tight fixation on DIN rails to achieve the grounding function. It is a high conductivity and low resistance conductor. High reliability and robust design adapts to vibration and harsh thermal variation to prevent terminal connection fault. Rated voltage: IEC 630V. Rated current: UL 30A, IEC 32A. Conductor cross-section, solid(AWG/mm2): UL 28-10, IEC 0.5-4. Conductor cross-section, flexible(AWG/mm2): UL 28-10, IEC 0.5-4. Rated impulse withstand voltage: 6KV. Torque(N-m): 0.6. Screw: M3. Wire strip length: 8-10mm. Insulating material: PA. T x H x W(mm): 6.1 x 40.7 x 45.4. End cover DK2.5NC-PE. Marking label TM27W.
