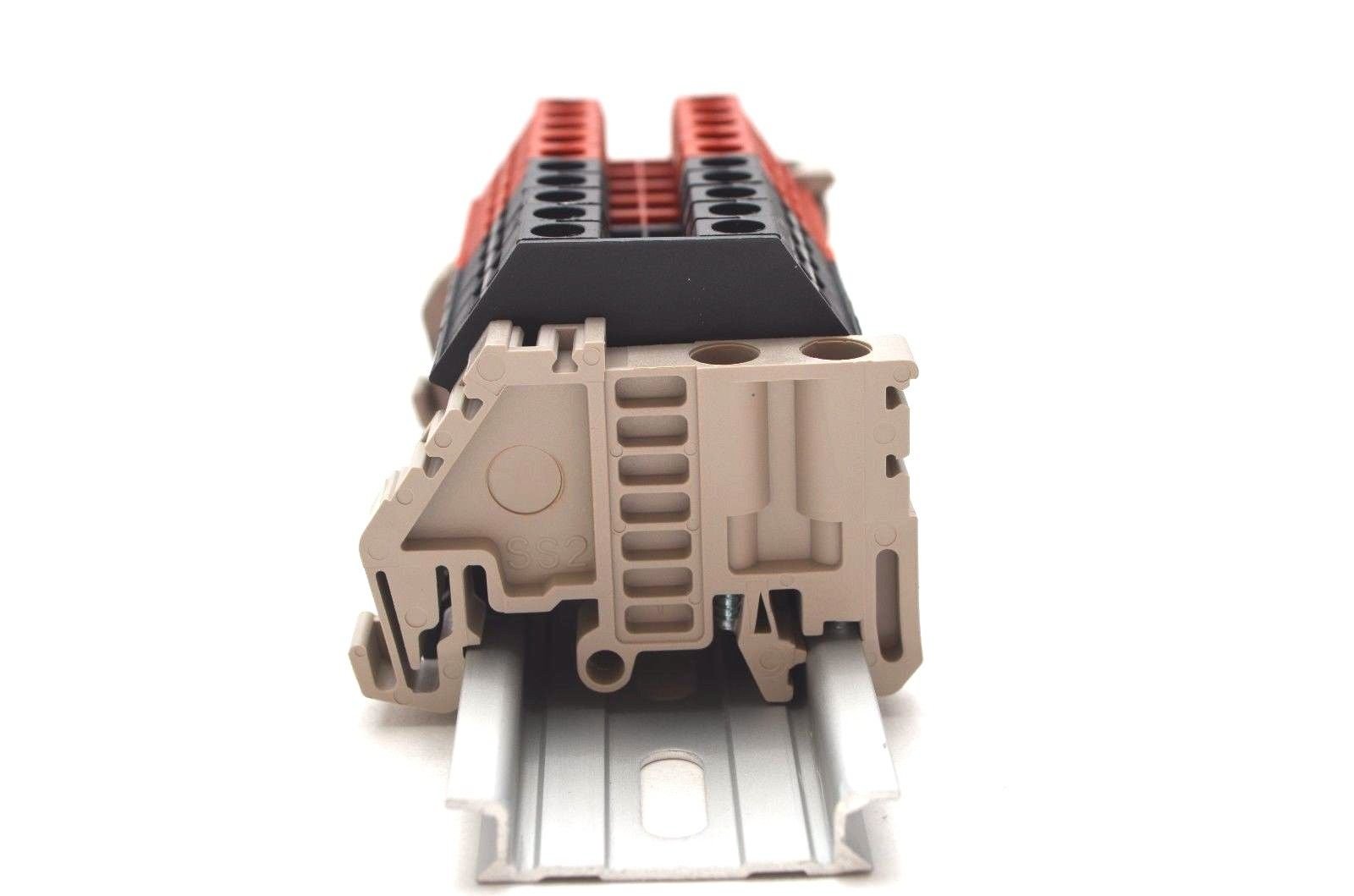

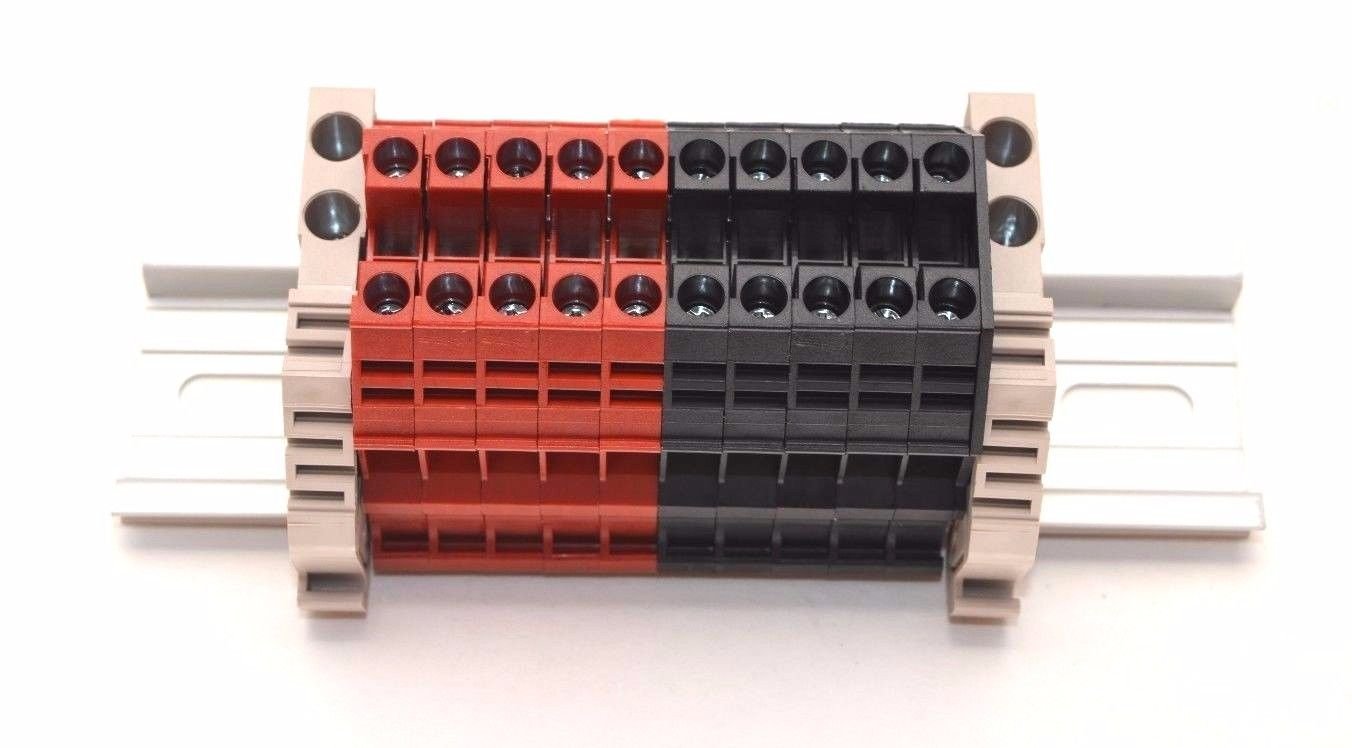

Dinkle Assembly DK4N Red/Black 10 Gang DIN Rail Terminal Blocks, 10-22 AWG, 30 Amp, 600 Volt
About this item
- Assembly for Solar Combiner or Power Distribution
- UL 600V Rating
- UL 10-22 AWG Rating
- UL 30A Rating
- All separate terminals
Product description
Technical Data (UL) Rated Voltage: 600V Rate Current: 30A Conductor Cross-section, Solid (AWG): 22-10 Conductor Cross-section, Flexible (AWG): 22-10 Rated Impulse Withstand Voltage: 6KV Torque (N-m): 0.6 Screw: M3 Wire Strip Length: 9-11mm Insulating Material: PA TxHxW (mm): 6.1 x 39.6 x 40.35 (Individual Blocks) DIN Rail (mm): 35, 32 Jumper/Bridge: Press-fit/Insertion. This assembly includes 5 DK4N-BK Dinkle terminal blocks, 5 DK4N-RD Dinkle terminal blocks, 2 SS2 end brackets, and 1 DK4NC-BK end cover, all mounted on a 5" piece of aluminum RoHS rail. These are 10 separate circuits.
