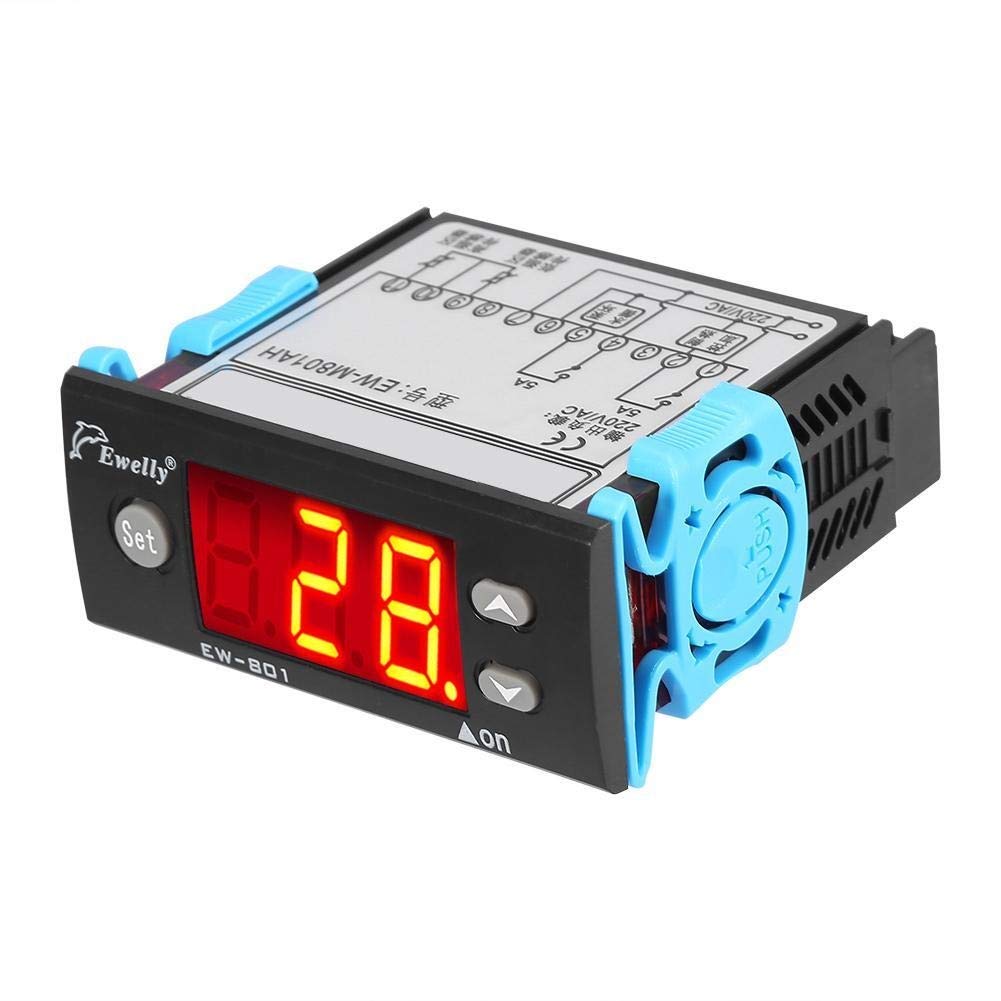

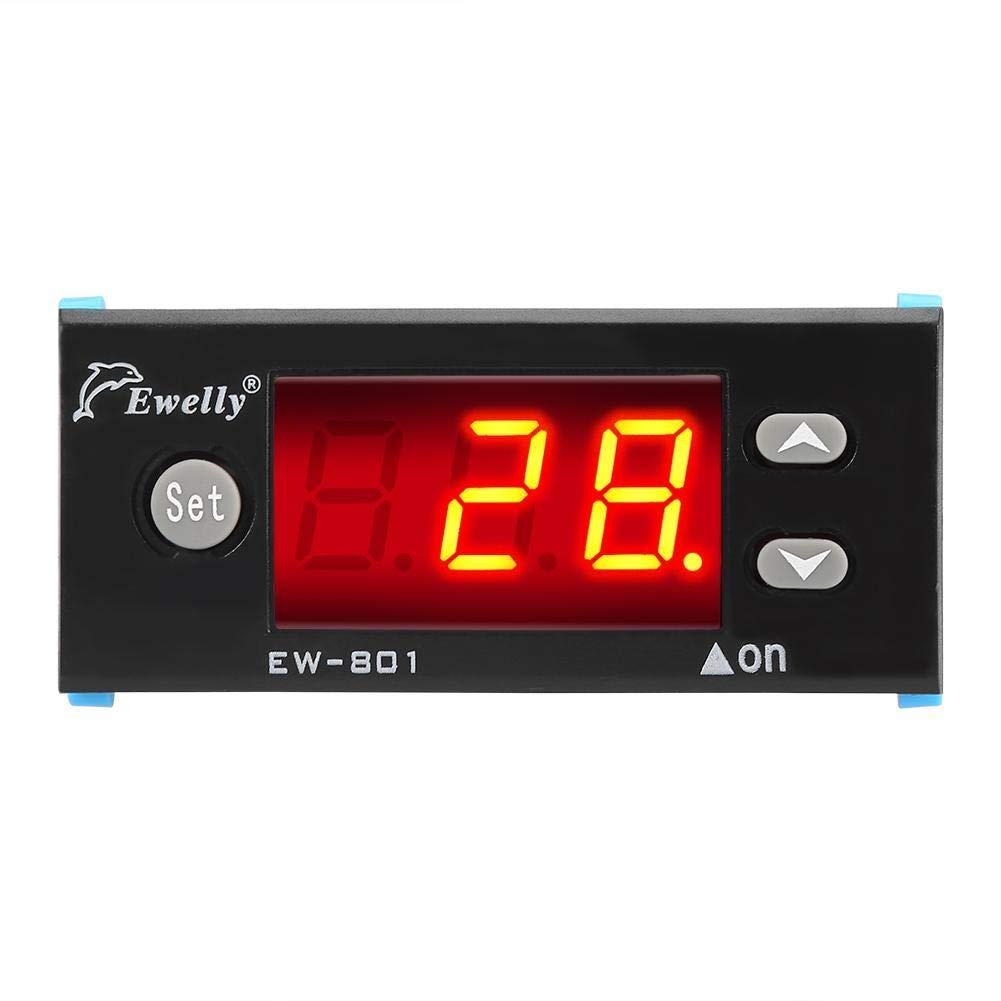

Dingln digital display thermostat solar water heater thermostat thermostat with sensor digital display

• It controls the heating system and automatically keeps the water temperature within the temperature difference range, temperature calibration, cooling control output delay protection

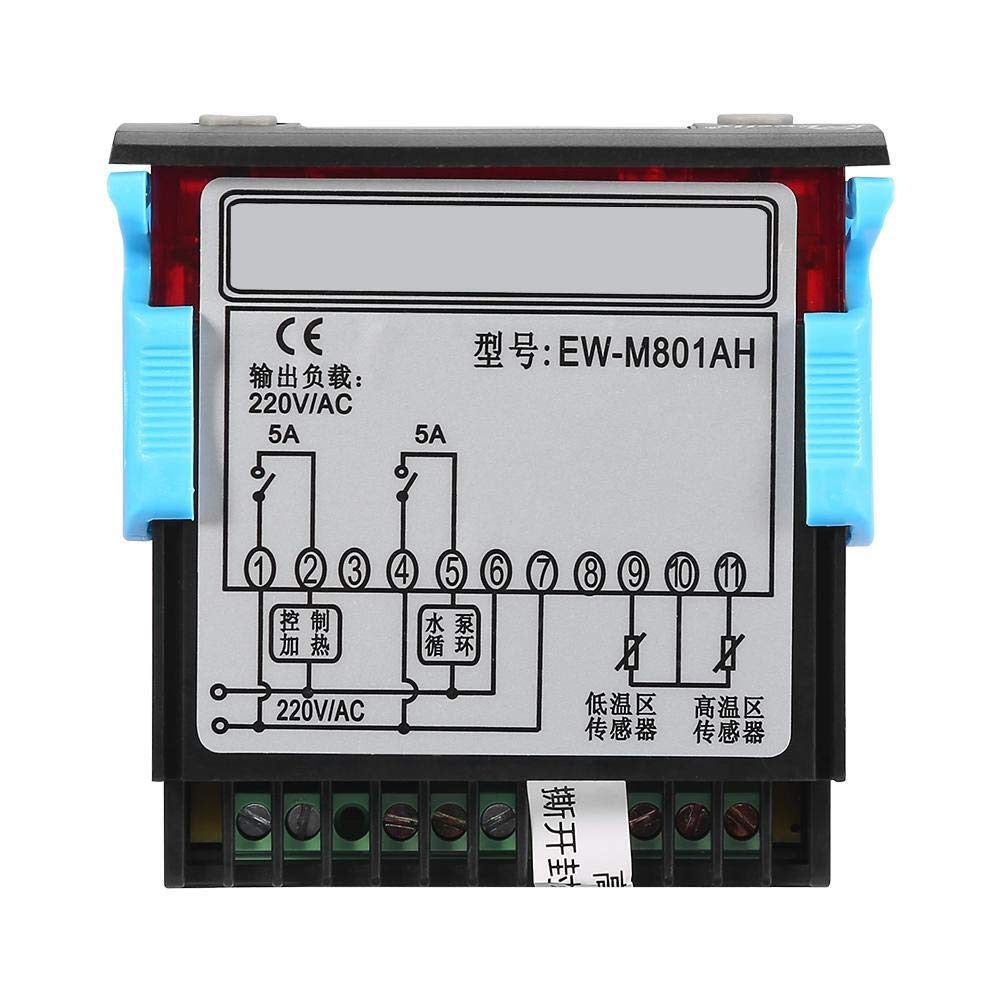

• Equipped with two-way output control, temperature difference control between two temperature zones, automatic switching of cooling and heating modes, and optional Fahrenheit and Celsius display
• When the temperature reaches the set value, the circulation of the water pump automatically starts the balance between the two temperatures.
• When the solar heating does not reach the set temperature, the electric heating system automatically starts heating to the set temperature.
• Application: It can be used for Peltier water cooling device, cooling fan, car 12v battery, 12v chest cooler, heater, etc.

Features: The products are used in solar water heater, the temperature difference and temperature to control the output. It is provided with two output control, temperature difference control two temperature zone. When the temperature reaches the set value, it automatically runs the water pump circulation and makes the two temperature zone temperature equilibrium. The other channel controls electric heating, when the solar heating failed to reach the set temperature, the electric heating system can automatically start and heat to the set temperature. It will control heating system and automatically makes water temperature stay in temperature deference range. Specifications: Working Voltage: AC220V ±10%(50Hz/60Hz) Output Load: 5A/220V/AC Power Consumption: ≤3W Heating Control Range: 2℃~99℃ Temp. Difference Start Control: 3℃~50℃ Resolution: 1℃ Precision: ±1℃ Input Signal: 2-channel sensor, 20KX1.5MX2 Size: 76*76*35mm/2.99*2.99*1.37in Operating Temperature: -10℃~50℃ Operating Humidity: RH≤90% Light Function Setting Range Default Unit #1 temperature difference start stop pump temperature difference +1~50 5 ℃ #1, #2 stop pump temperature difference 1~temperature difference start-1 2 ℃ #2 temperature return difference 1~20 5 ℃ #3 high temperature correction -10~10 ℃ #4 low temperature correction -10~10 ℃ Package Includes: 1 x Temperature Controller 2 x Sensor Probes
