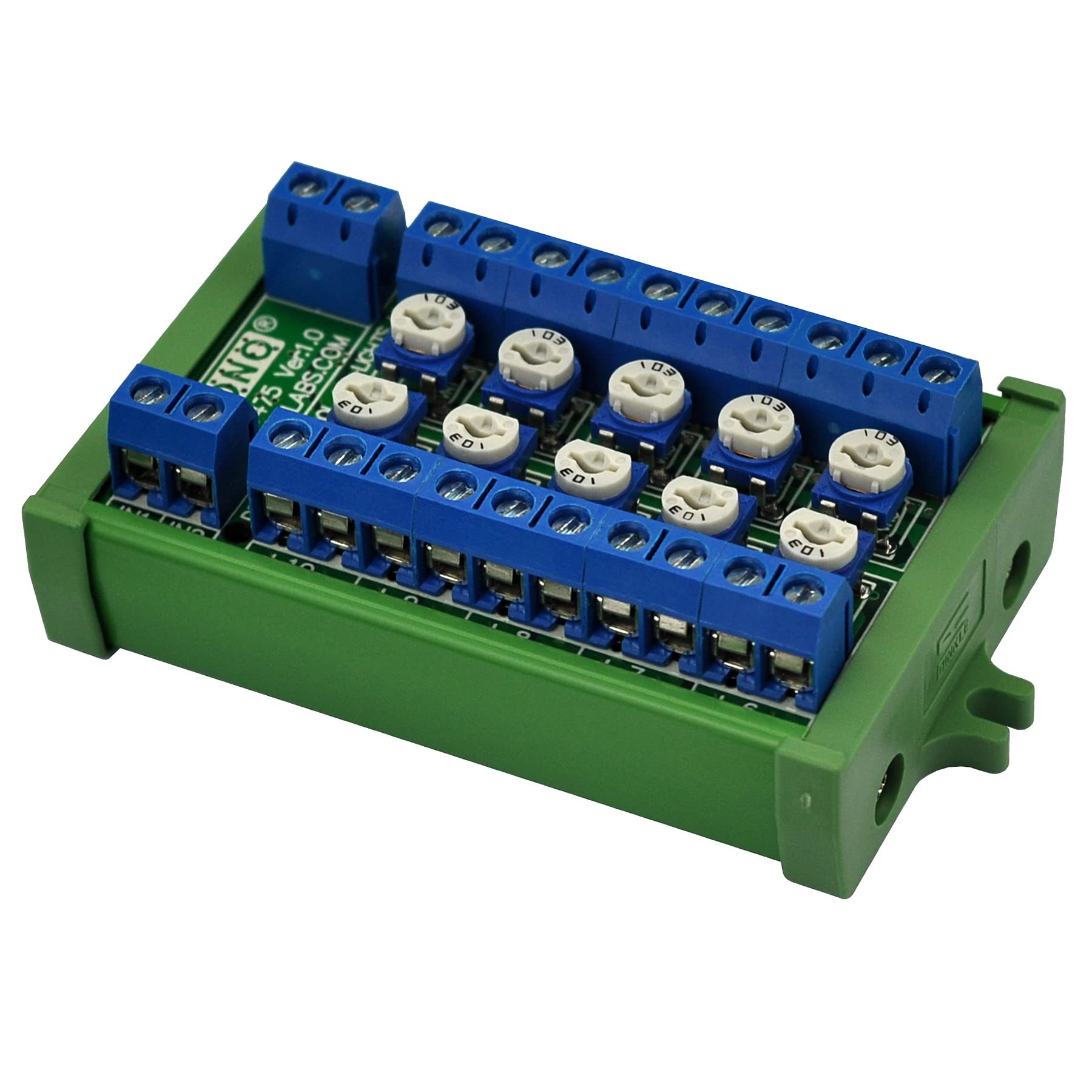

Dimmer Control 10-Lights LED Hub Distribution Module, AC/DC 5 to 24V Input, for HO/N/O Train Model

• Dimmer Control 10-Lights LED Hub Distribution Module, AC/DC 5 to 24V Input, for HO / N / O Train Model.
• 10 channels dimming output, each channel can be independently adjusted and controlled. All channel can support direct-connected LEDs, or LEDs with resistors in series. Using linear current control circuit, there is no stroboscopic problem of switching circuit to protect your eyesight.
• Support AC or DC power supply input, AC 5-18V or DC 5-24V. Each channel adjustable maximum current output 30mA(DC24V) / 20mA(DC18V) / 12mA(DC12V), minimum current 0mA(LED goes out completely).

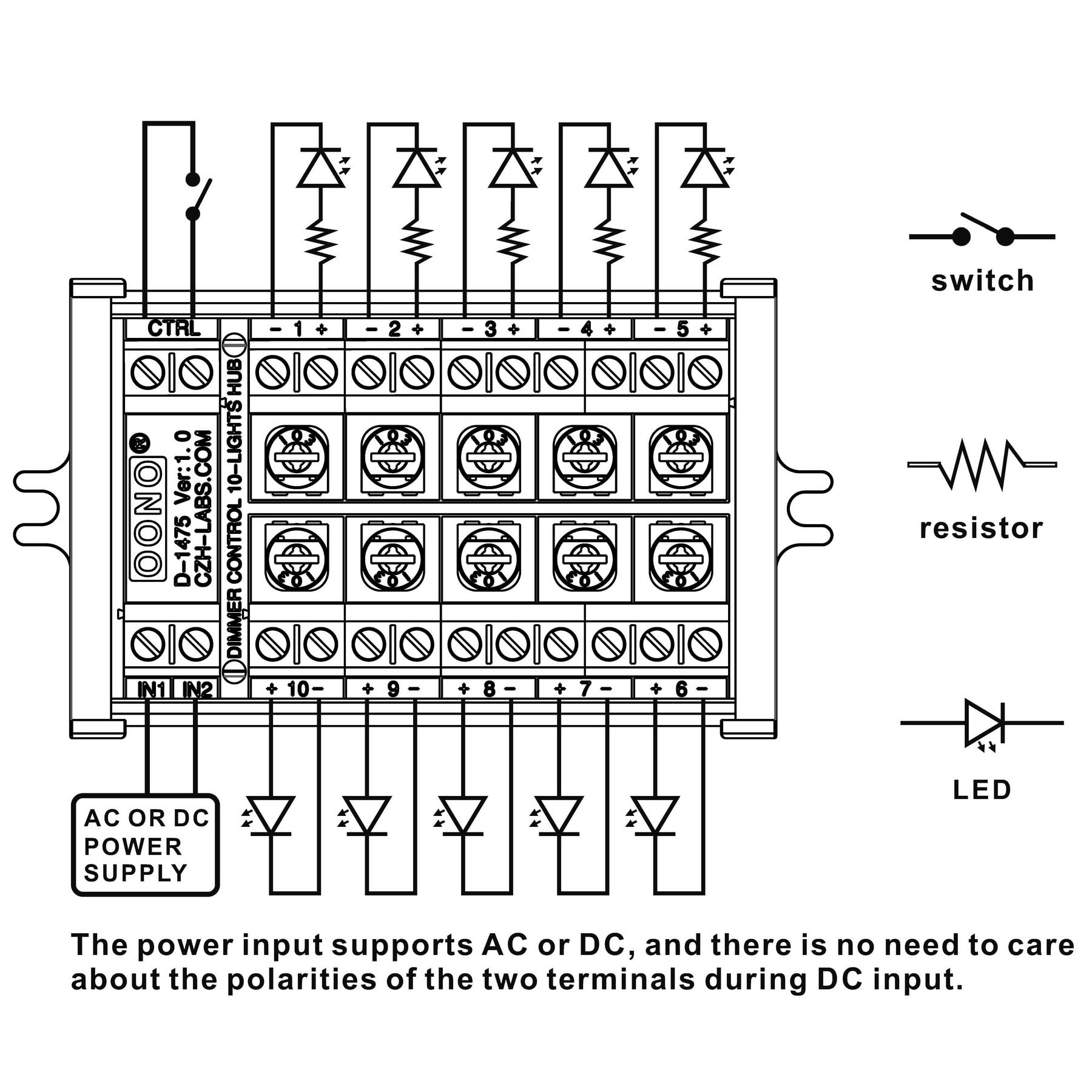

• Support external switch to control the on/off of all channels of this module, of course, you can also use it directly by short-circuit (the short-circuit cable is attached at the factory).

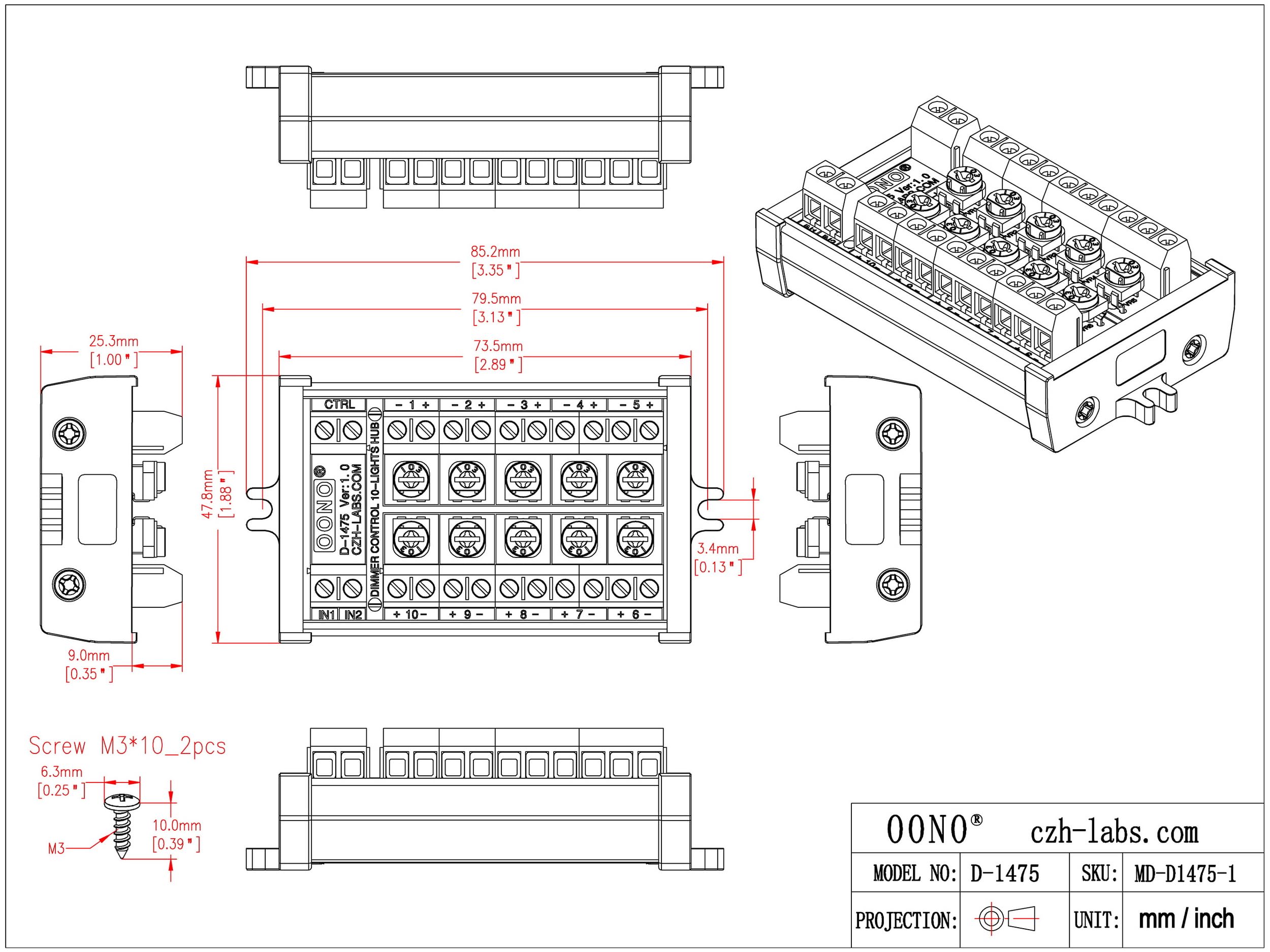

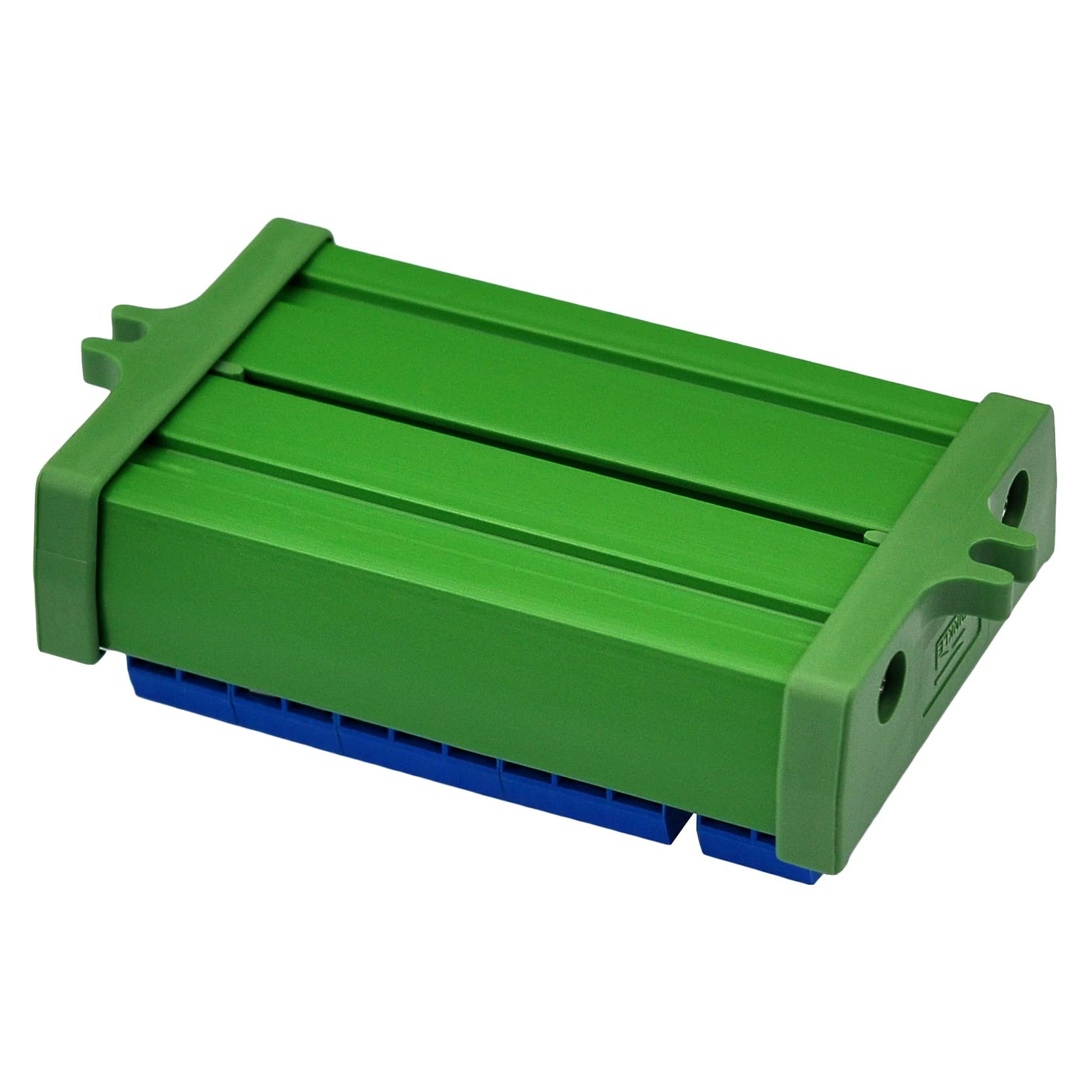

• High quality fireproof nylon material mount carrier, included two M3 x 10mm wood screws, you can easily mount it on a wooden board.

1, Dimmer Control 10-Lights LED Hub Distribution Module, AC/DC 5 to 24V Input, for HO / N / O Train Model. 2, 10 channels dimming output, each channel can be independently adjusted and controlled. All channel can support direct-connected LEDs, or LEDs with resistors in series. Using linear current control circuit, there is no stroboscopic problem of switching circuit to protect your eyesight. 3, Support AC or DC power supply input, AC 5-18V or DC 5-24V. Each channel adjustable maximum current output 30mA(DC24V) / 20mA(DC18V) / 12mA(DC12V), minimum current 0mA(LED goes out completely). 4, Support external switch to control the on/off of all channels of this module, of course, you can also use it directly by short-circuit (the short-circuit cable is attached at the factory). 5, High quality fireproof nylon material mount carrier, included two M3 x 10mm wood screws, you can easily mount it on a wooden board.
