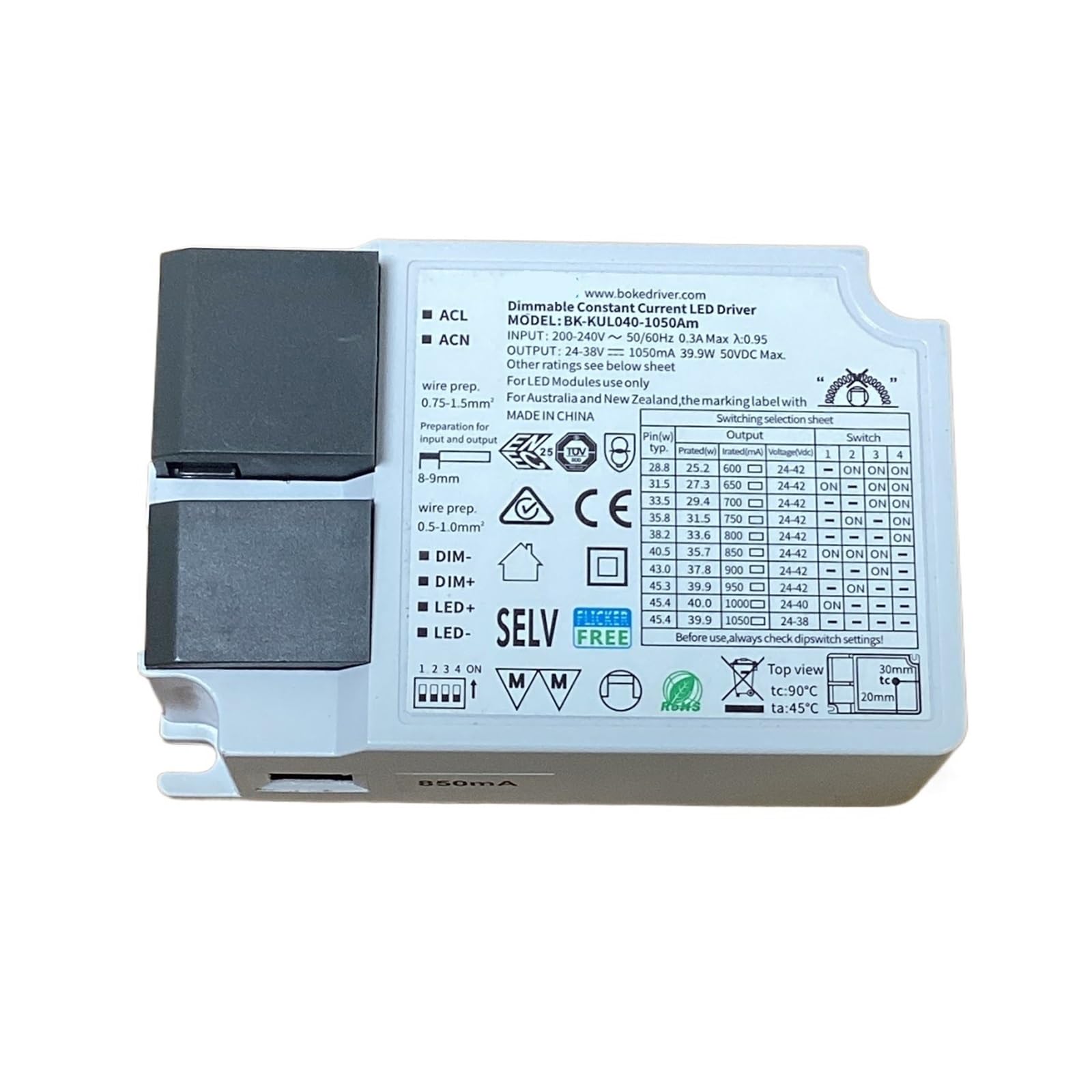

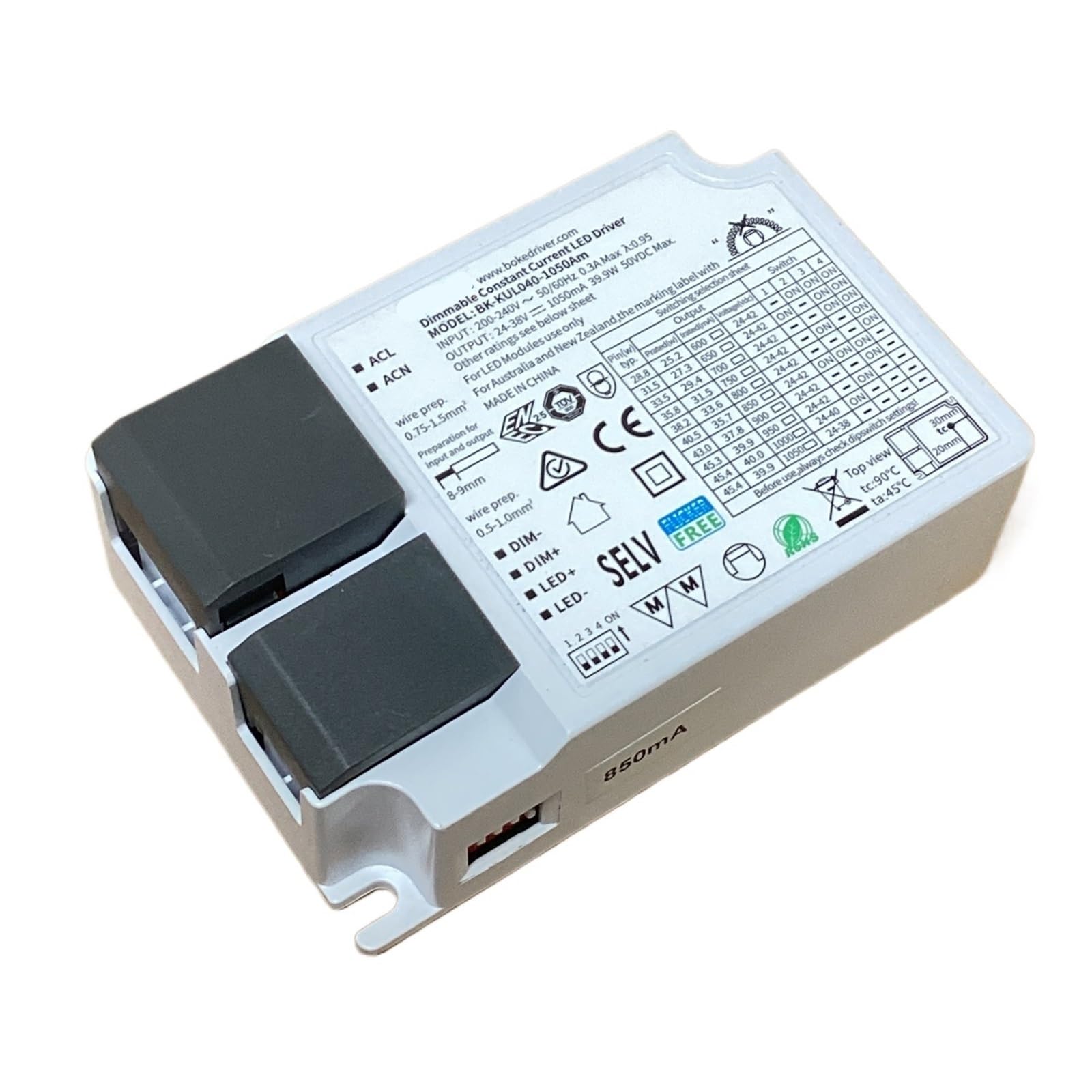

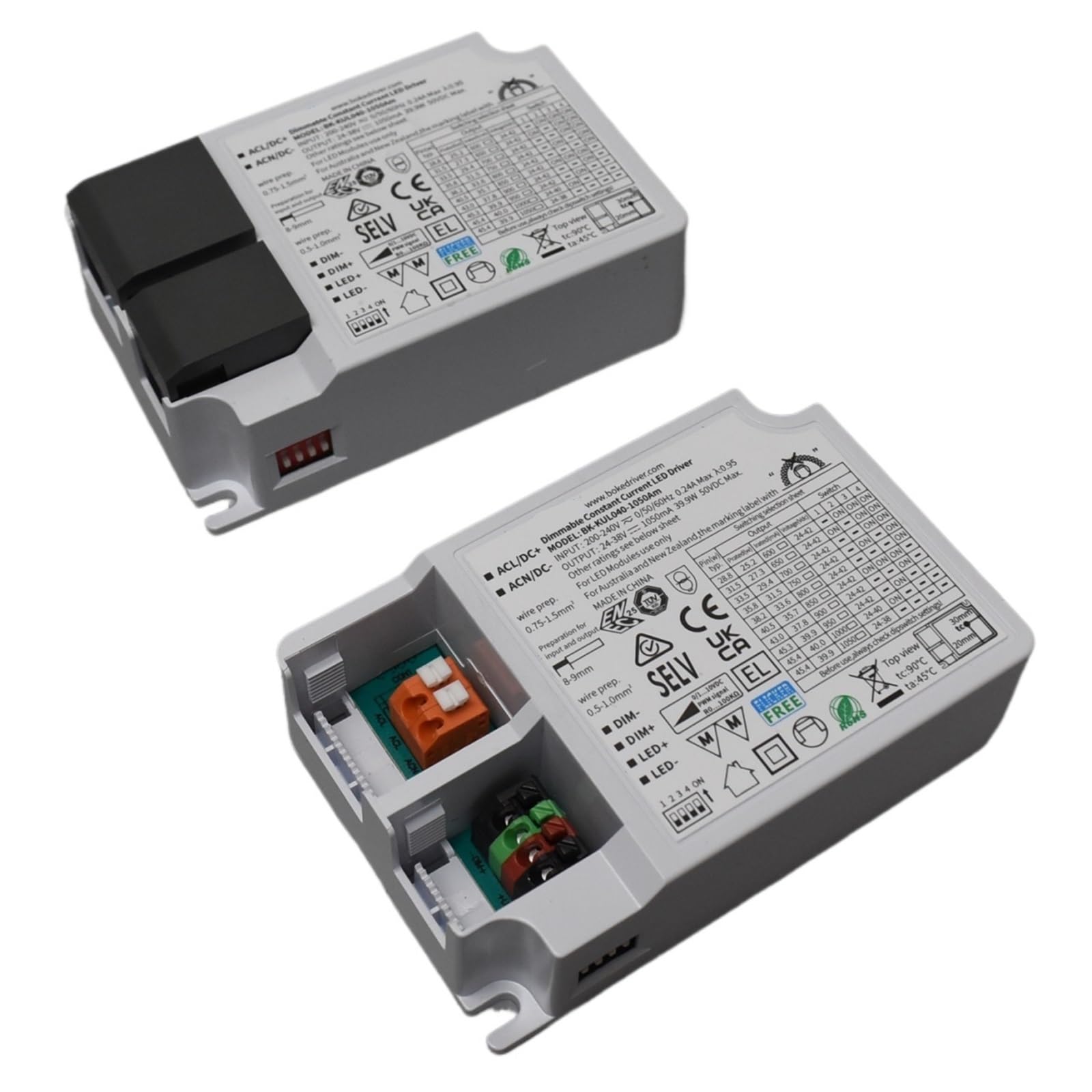

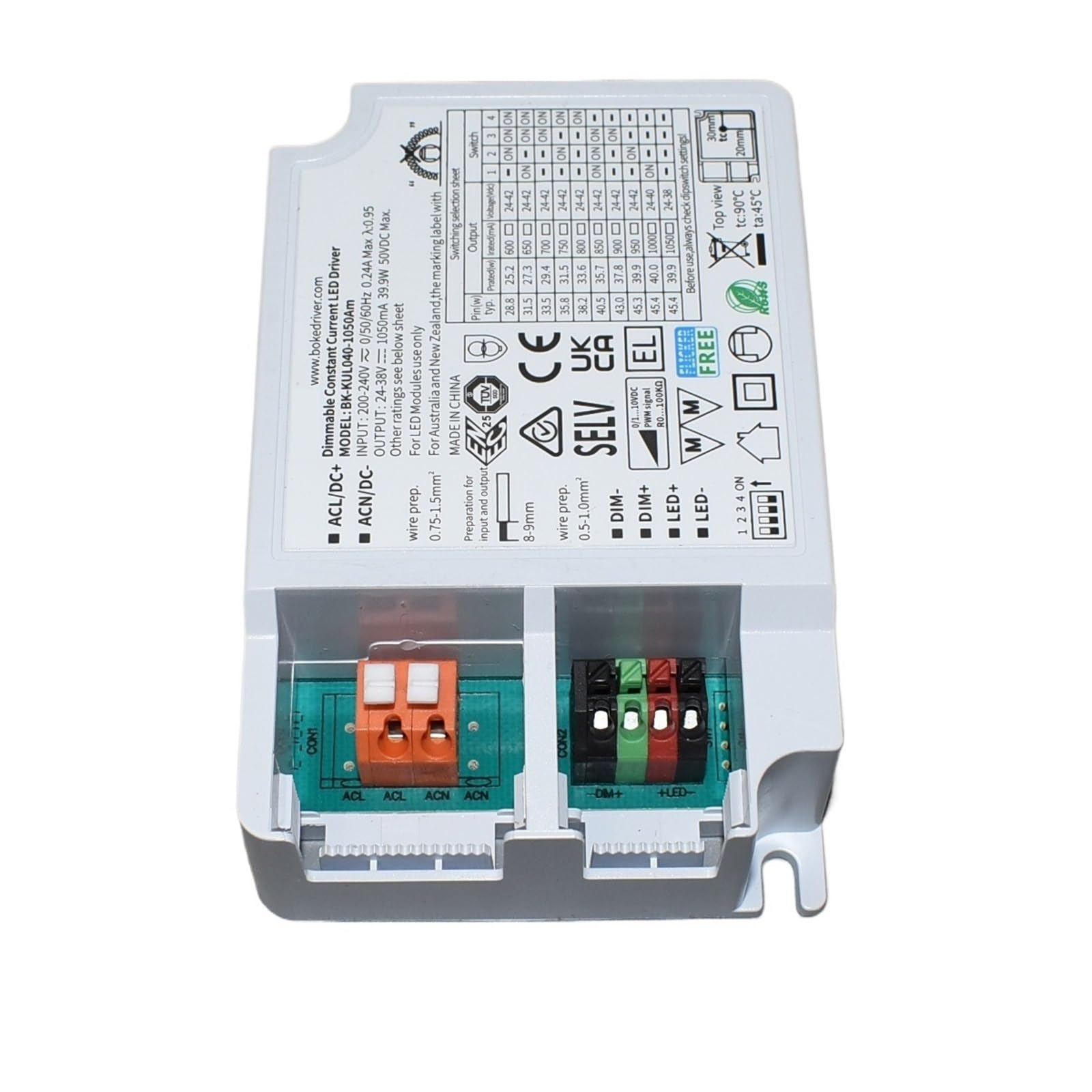

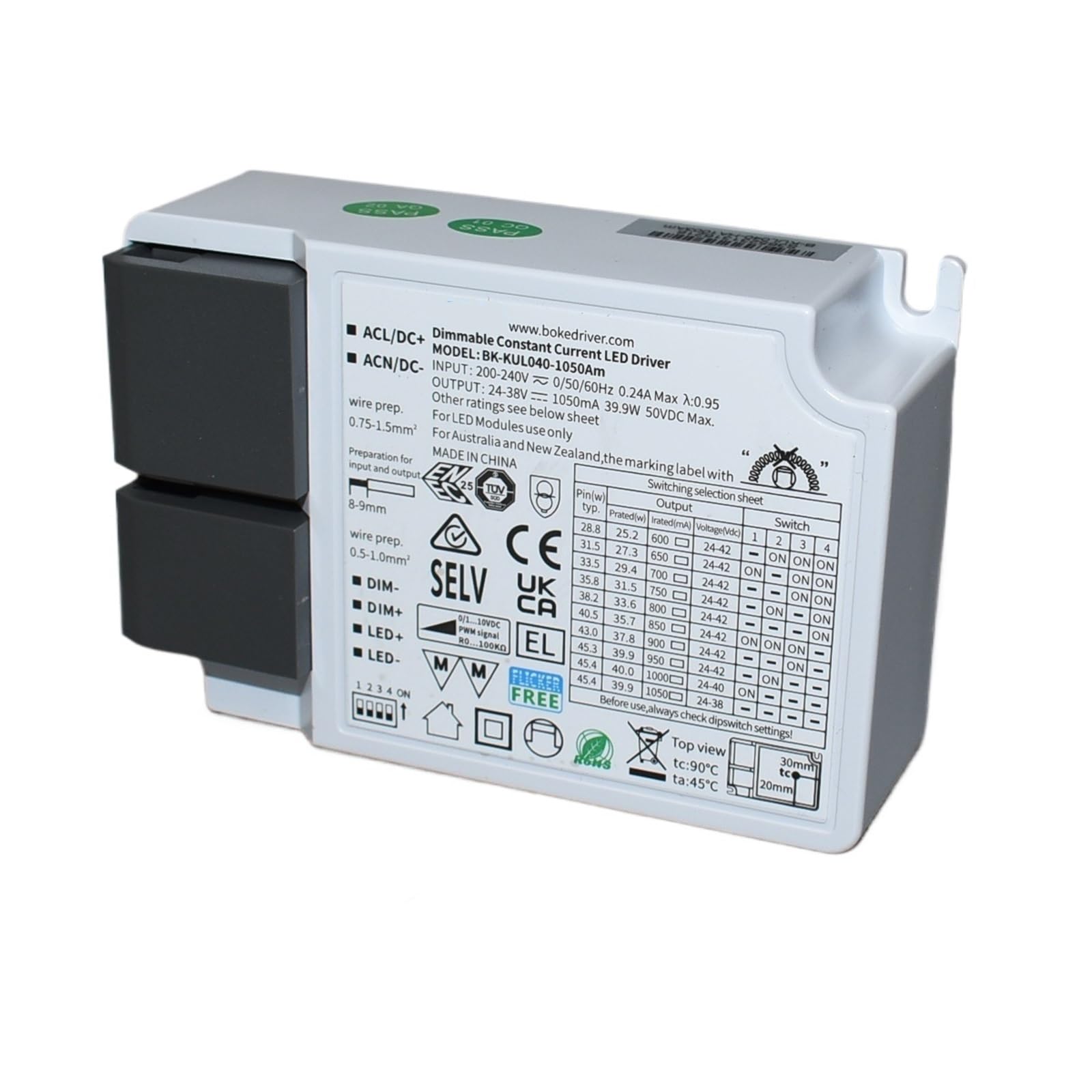

Dimmable 40W LED Driver PWM Dimming Tranformer(Constant Current 600mA-1050mA, Output Voltage 24-42V, 1-10V Dimming,DIP Switch)

• Low-Voltage Transformers
• Dimmable 40W LED Driver PWM Dimming Tranformer(Constant Current 600mA-1050mA, Output Voltage 24-42V, 1-10V Dimming,DIP Switch)

Low-Voltage Transformers Feature: Dimmable with 1-10V/ 10VPWM/ Rxdimming interface 10-level current output can be realized through external DIP-switch, easier to adjust the luminaire power Soft dimming and flicker-free at any brightness, meets the requirements of ErP certification Using HPC patented technology at any dimming level, The brightness of the lights is the same <;0.5W, meets the ErP requirements of certification Screw-free and pressing type strain relief, easier install Supports 0.75-1.5mm2 input wires, stronger wiring SELV and Class II design, suitable for use side of the light Passed ,ENEC,RCM,CCC,UKCA and other certifications IP20 protection grade, indoor use Nominal life-time up to 100,000 hours Noiseless Dimming This driver series are ideal for work lighting such as led panel light. They do not flicker and produce a diffuse light that evenly illuminates the room. Good lighting contributes to concentration and energy levels. With the 1-10V dimmable driver, LED panels can be dimmed silently without flickering. This also extends the lifespan of the LED panels. It is suitable for panels,Spotlights, downlights with a maximum capacity of power range from 30w TO 60w. Specification: Input voltage range: 200-240VAC Frequency range: 50-60Hz Power factor: 0.95 Efficiency: 87% Protection: Over current and over voltage/ Short circuit Material: PC() Wiring: Terminal connection Dimming mode: 1-10V, PWM and Rs Dimming range: 5-100% Voltage output: 24V-42V Constant current precision: ±5% Working temp. -20 - +45 Case temperature: Tc=90 IP rating: IP20 Approved: CE/TUV/RoHS/SAA Place of origin: Shenzhen Regulation method: Constant current Output current adjustable: DIP switch ( 10 levels) ========== Hign-concerned Chemical : None Type : None Features : 1-10V, 10V PWM,Rx dimming Weight : 165g Model Number : BK-KUL040-1050Am Output Signal : 1-10V,PWM & Resistance Input Signal : AC Output Voltage : 24-42V dc Input Voltage : 200-240V Certification : ,SAA,LVD,EMC Warranty : 5 years Material : PC Origin : Mainland Item Type : Lighting Product property : Active PFC, high PF, Low THD, Dimming interface : 1-10V, 10V PWM,Rx dimming
