M.2 NVME to PCIe Adapter, Adapter Card NVME M.2 to PCIE X16 4 Ports 32Gbps Expansion Card Computer Accessories with Enhanced Cooling Fan

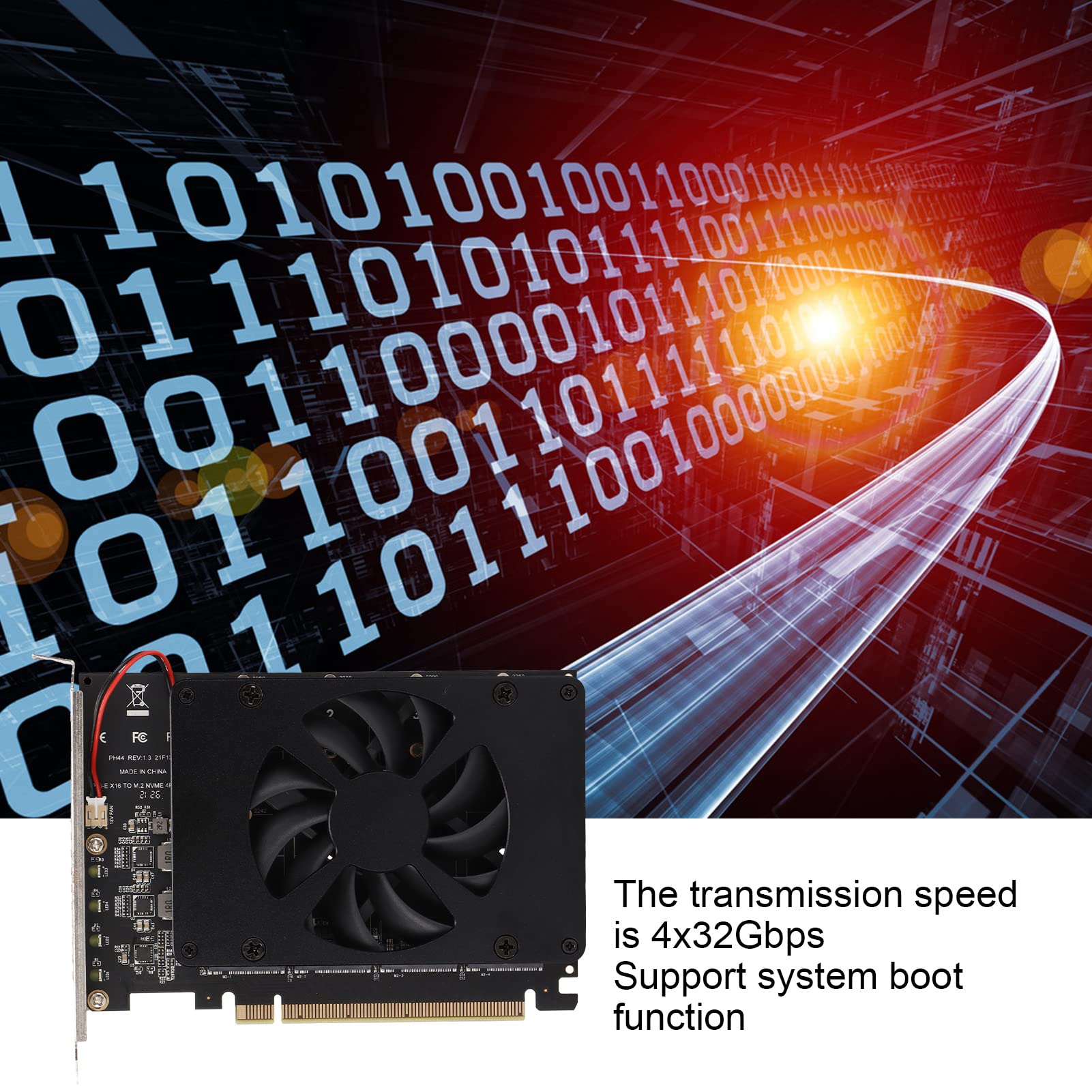

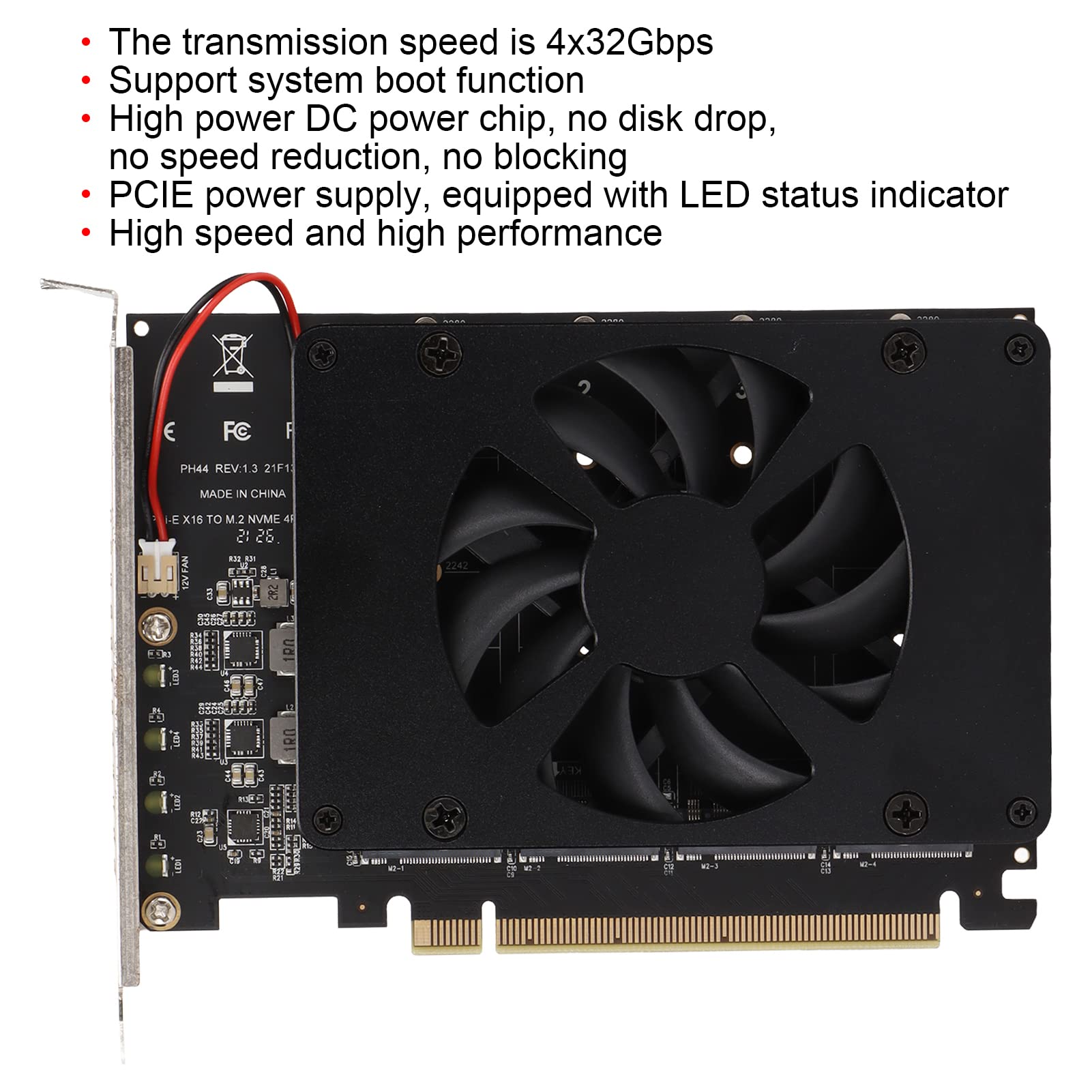

• Transmission Speed: Supports 4 NVME PCIE protocol SSD, the transmission speed is 4x32Gbps, and the service life is long.

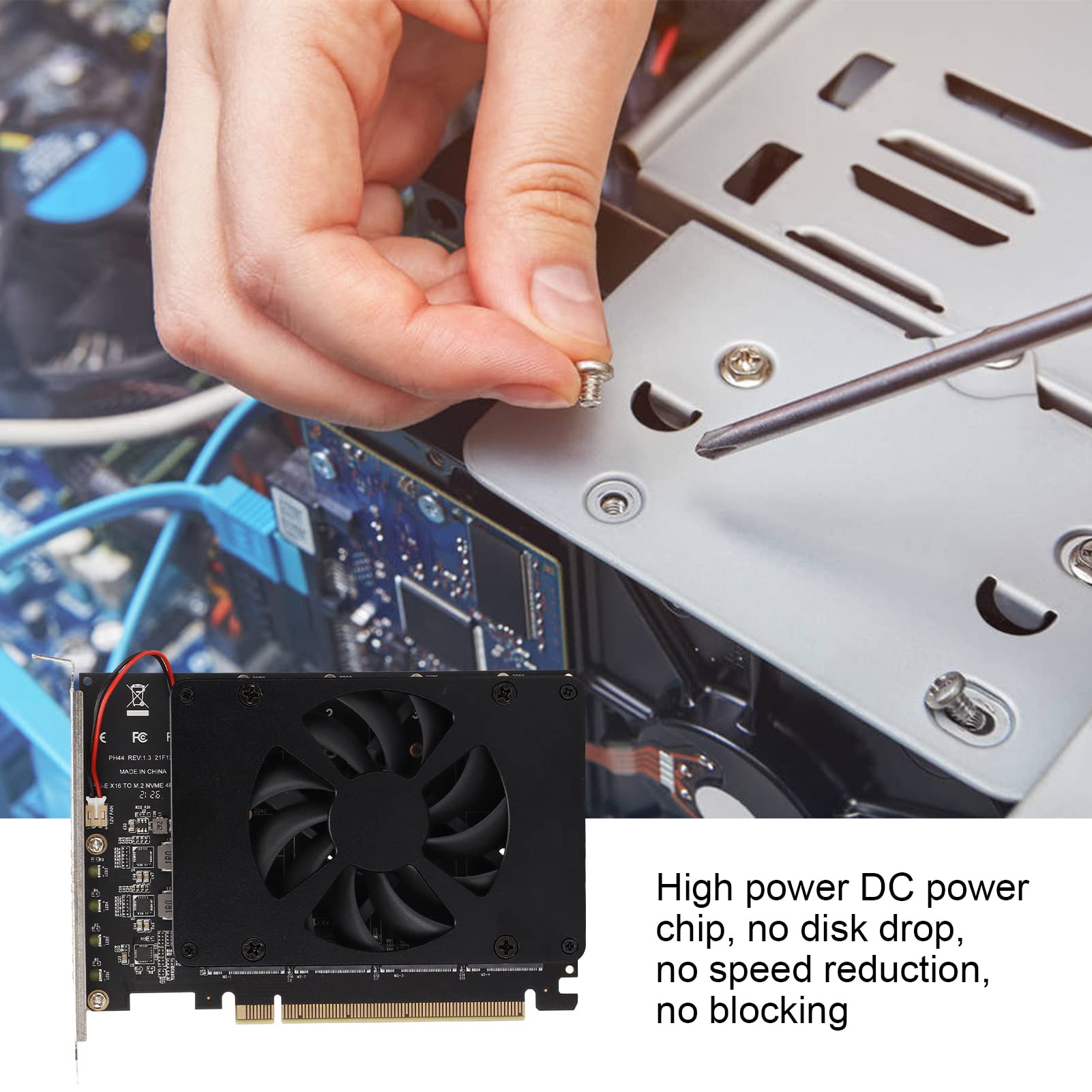

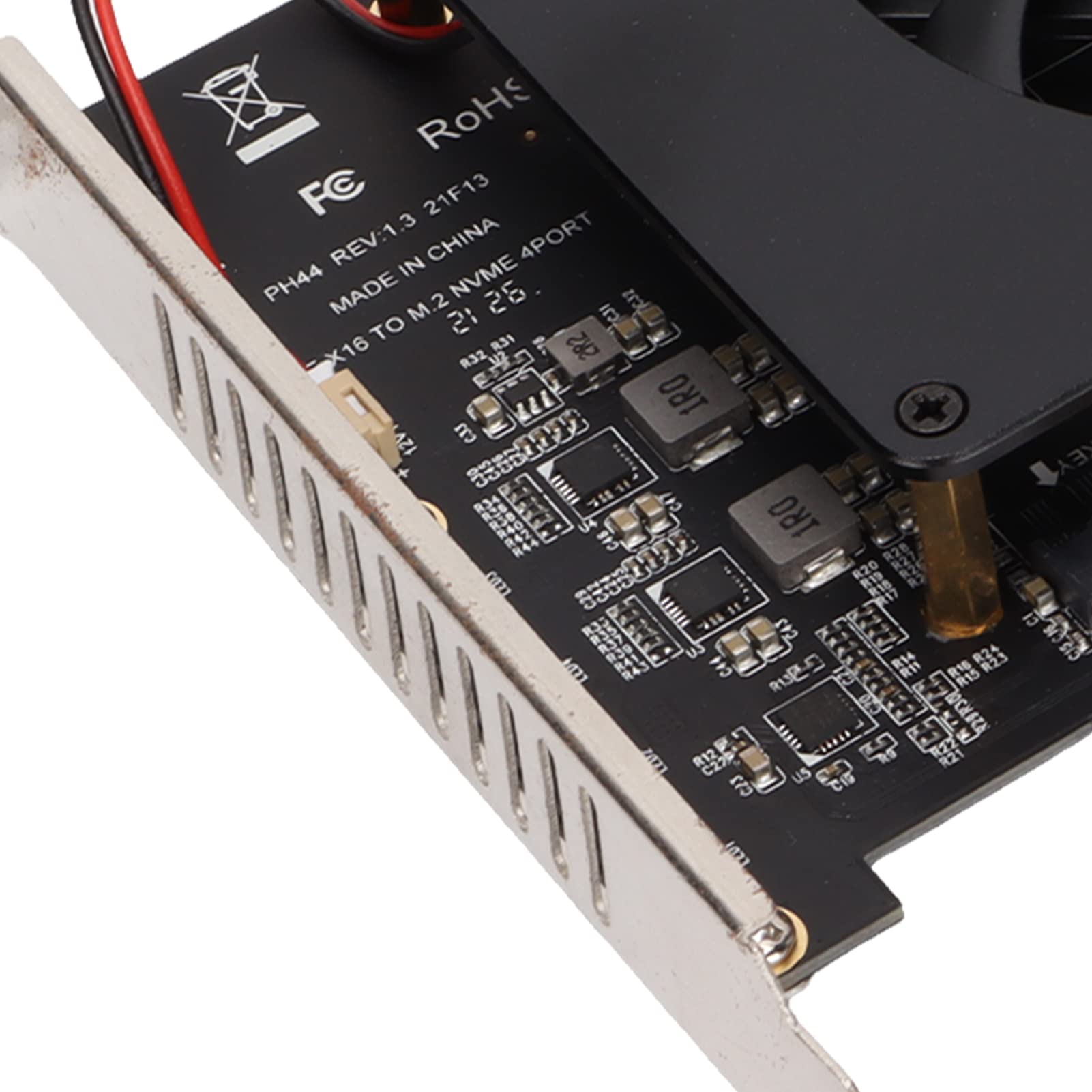

• DC Power Chip: Equipped with high power DC power chip, no disk drop, no speed reduction, and no blocking.
• System Boot Function: Supports the system boot function, and the motherboard BIOS needs to support PCIE boot.

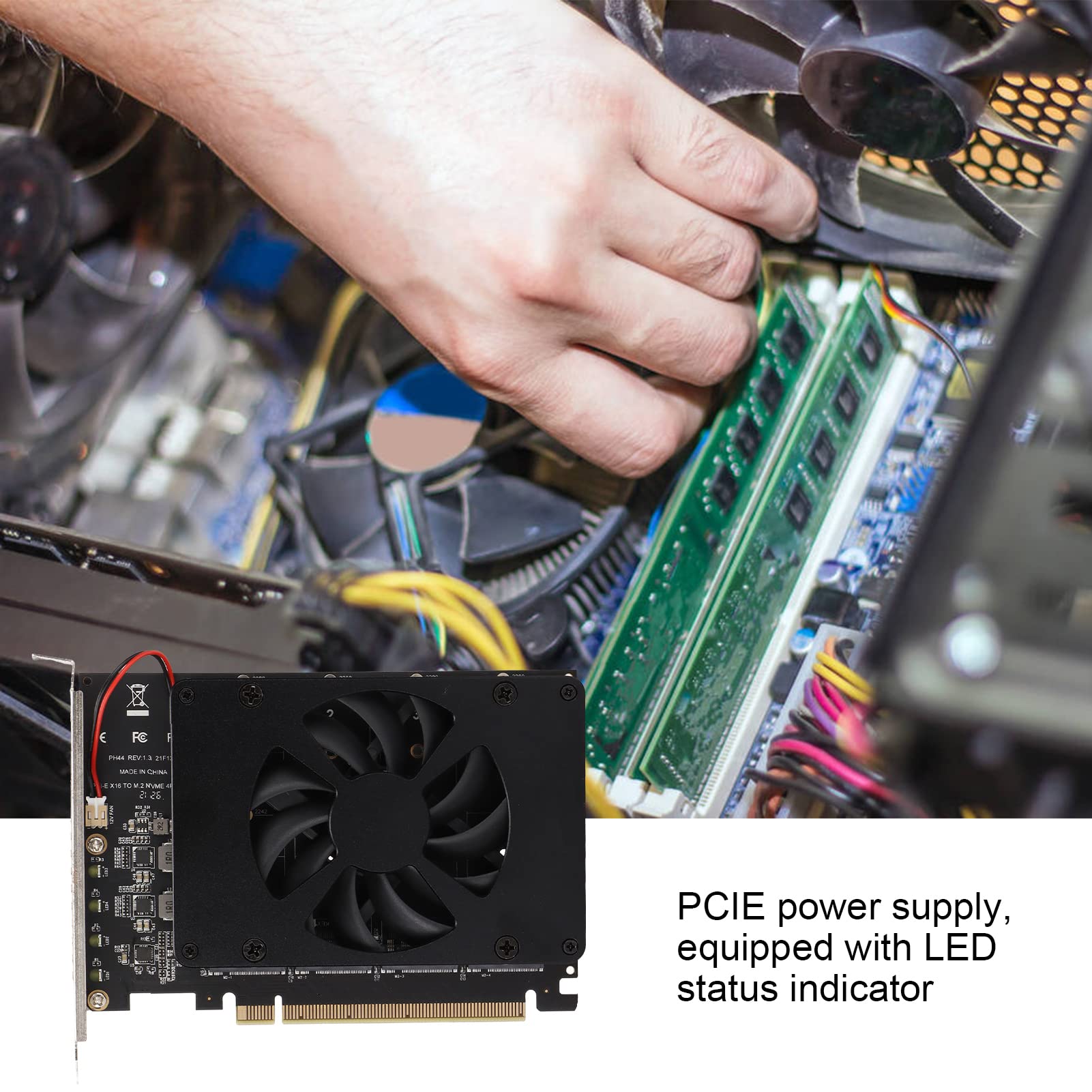

• PCIE Power Supply: PCIE power supply, with a soft light LED status indicator, the SSD is connected to the light, and the SSD flashes when reading and writing.

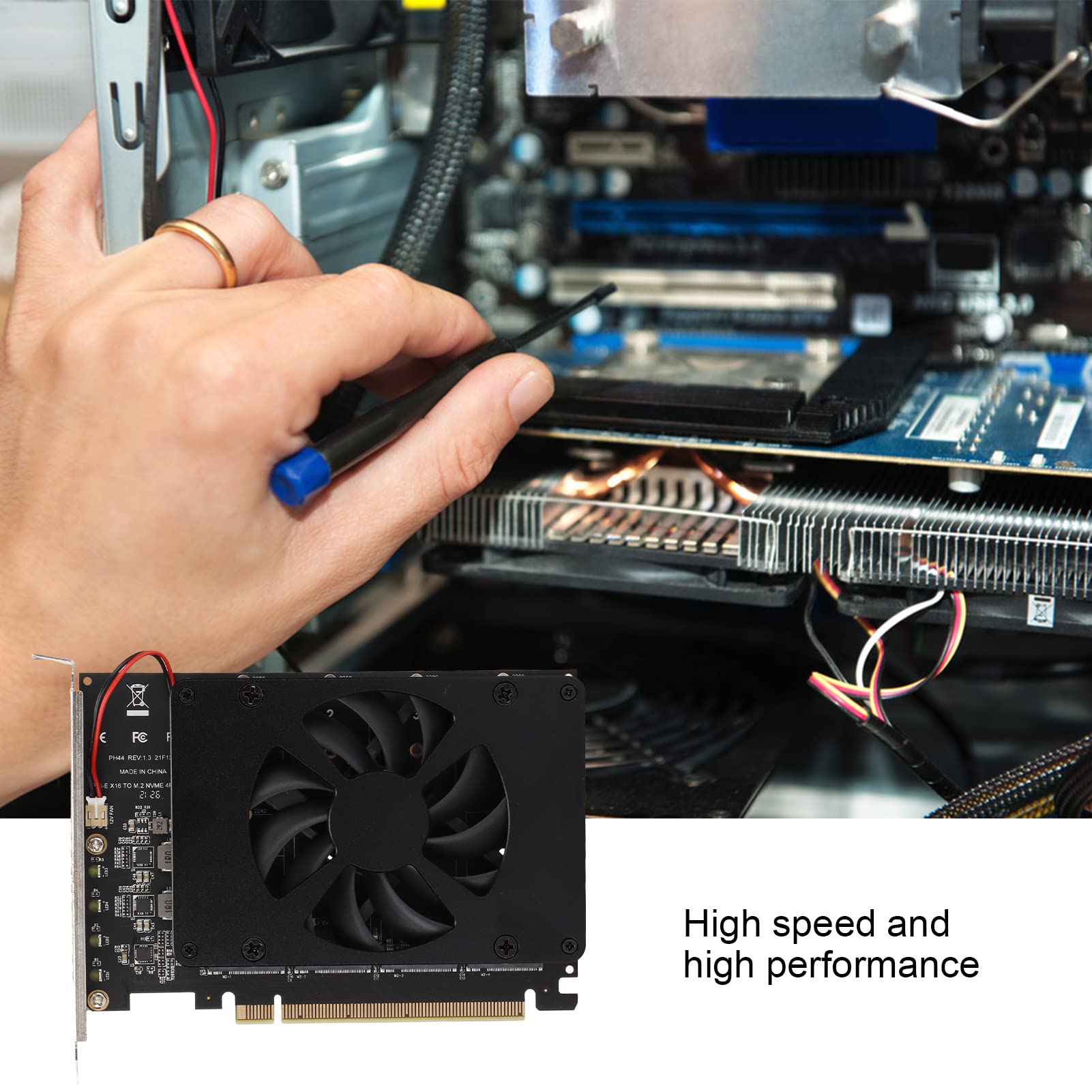

• High Speed: Using sophisticated production technology, the adapter card has high speed and high performance.

Specification: Item Type: Adapter Card Material: PCB, Aluminum Alloy Model: for PA14 Anwintek Hard Drive Support: M.2 NVME SSD Protocol, M.2 Equipment PCIe Transmission speed: 4x32 GBPS SSD support: approx. 2230 mm/87.8 inches, approx. 2242 mm/88.3 inches, approx. 2260 mm/89.0 inches, approx. 2280 mm/89.8 inches. Reminder: for Win 8 10 System has only its own driver, for win 10 can realize the software RAID (other systems need to install the driver) Package contents: 1 x Adapter Card 7 x screws. 4 x nuts 1 x screwdriver. How to use: The motherboard must support PCIE splitting function and be able to set PCIE X4X4X4 or 4X4 mode. The motherboard supports PCIE RAID function. ASUS motherboards support the function of HyperM.2X16 expansion cards; different motherboards have different PCIE split channels. Some PCIE RAID motherboards are X8+X4+X4. This 4-bit M.2 motherboard can only support 3 M.2 SSDs. Or equipment, a 2-bit M.2 card can only support a single SSD or M.2 equipment. If you need to use this product normally, please select the correct motherboard. Many motherboards share the PCIE channel. It is confirmed that the motherboard can support PCIE splitting function, but cannot recognize as many SSD or M.2 devices. Please remove other PCIE devices or replace slots, such as graphics cards, expansion cards, built-in NVME SSD and so on. Many X299 and X399 motherboards have splitting function.
