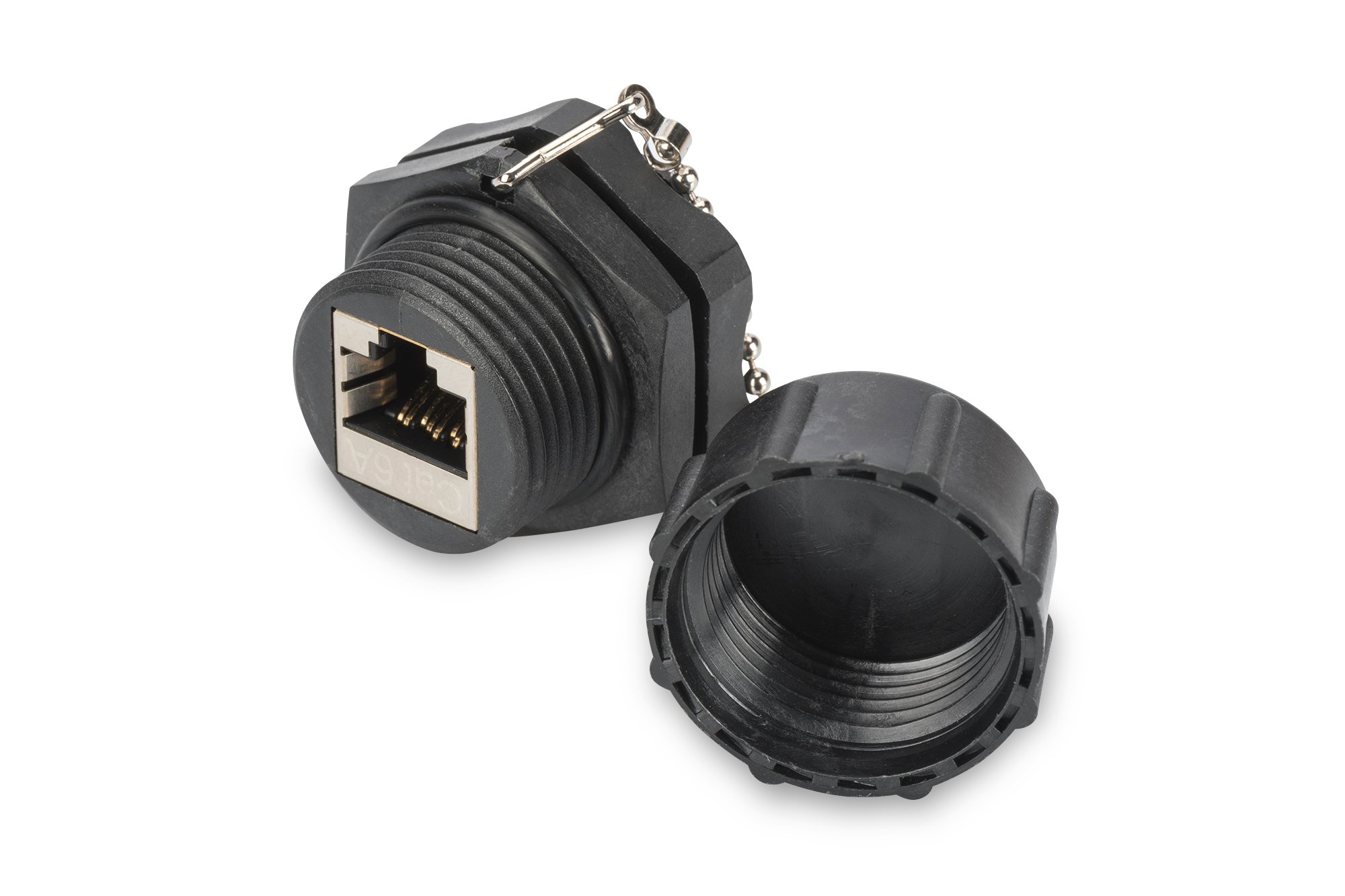

DIGITUS Industrial Coupling Cat-6 Shielded - 2x RJ45 Socket - IP67 Dustproof Waterproof - 250 MHz 1GBase-T Class E Black

• The Cat.6 keystone module with 2 RJ-45 sockets and 360° shielding supports speeds of up to 1 Gbps & 250 MHz in conjunction with Cat6 or higher network cables
• Together with the surface mounted housing DN-IND-BOX, the DN-IND-KIT screw nozzle and a suitable Ethernet cable, you can create individual, outdoor network components with IP67 protection
• The contacts of the network coupling have a 1:1 pin assignment and can be closed on the outside with the screwable dust protection cap
• For the housing material of the keystone jack, the plastics ABS and PBT + GF are used, which correspond to UL94V-0 and thus have a fire retardant effect
• Fittings: 3/4" - Storage temperature: -40 °C to +68 °C - Operating temperature: -10 °C to +60 °C - Contacts: gold plated - Plug cycles: 750 - Insulation resistance: 500 MΩ

Description Product description: CAT 6 STP industrial coupling, IP67 with dust cap. Excellent performance and connection quality for your network. Ideal for industrial applications. Features: • IP67 (dustproof; protection against temporary immersion) • Includes removable cap Technical details: • Housing and protective cap: PBT + GF, UL94V-0 • Shielded casing: nickel-plated • Coupling housing: ABS, UL94V-0 • Module contacts: phosphor bronze, 50 µ gold plated • Plug-in cycle: 750 plugs. Cycles with FCC compatible 8P plug. Contact resistance: 100 g with FCC compatible 8P plug. Holding power plug: 11 LBF min. • Rising temperature range: -10°C to +60°C • Storage temperature range: -40°C to +68°C • Humidity: 10%~90% RH • Insulation resistance: 500MΩ • Dielectric resistance: 1000V AC • DC 1.5Amps • DC resistance: 0.1 Ω • Contact resistance: 20 m Ω
