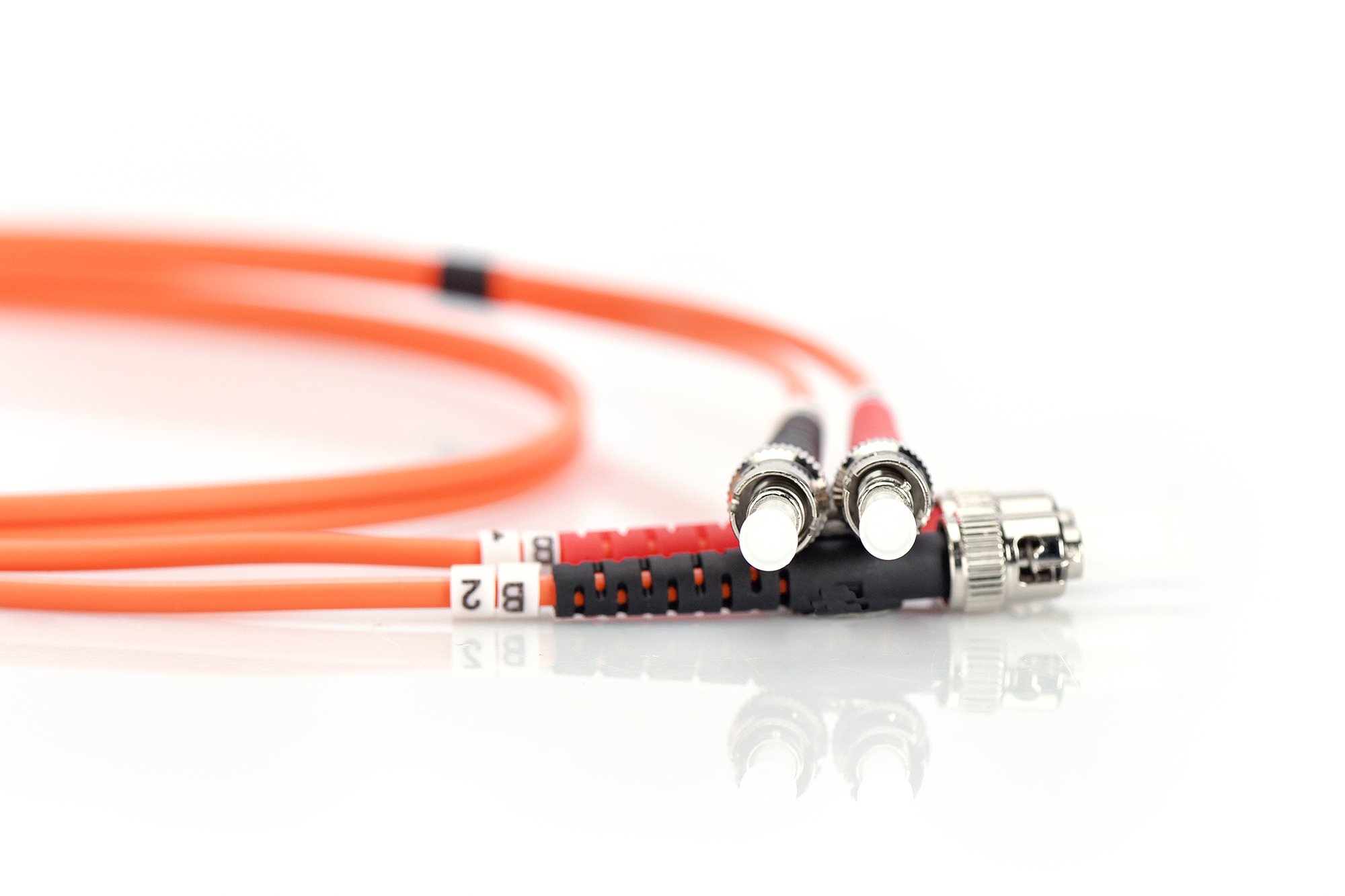

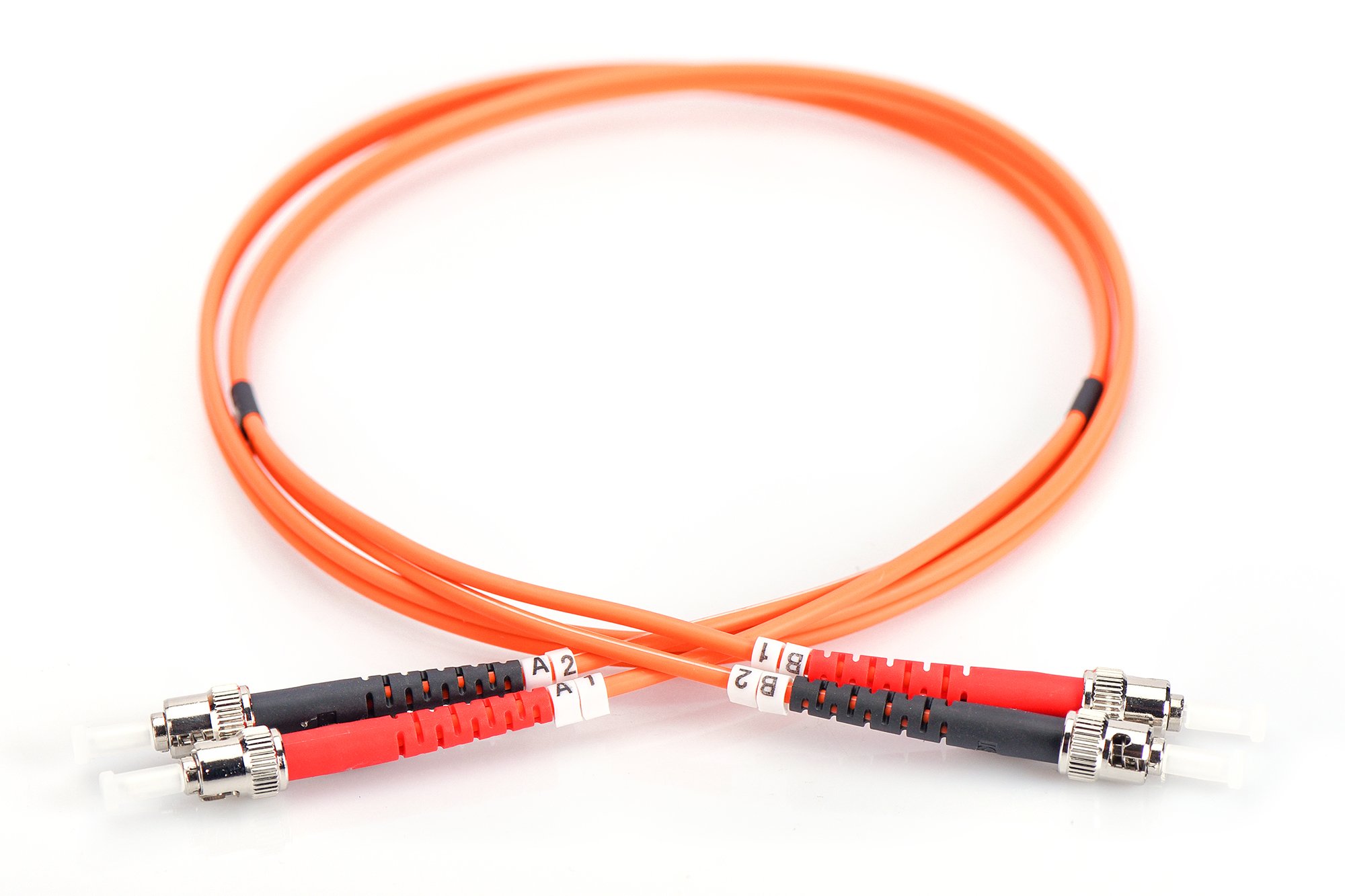

DIGITUS LWL patch cable OM2-5 m ST to ST fiber optic cable - LSZH - Duplex Multimode 50/125µ - 10 GBit/s - Orange

• The fiber optic network cables from DIGITUS are available in all common fiber classes and connector combinations - each cable is packed individually and including a measurement protocol.

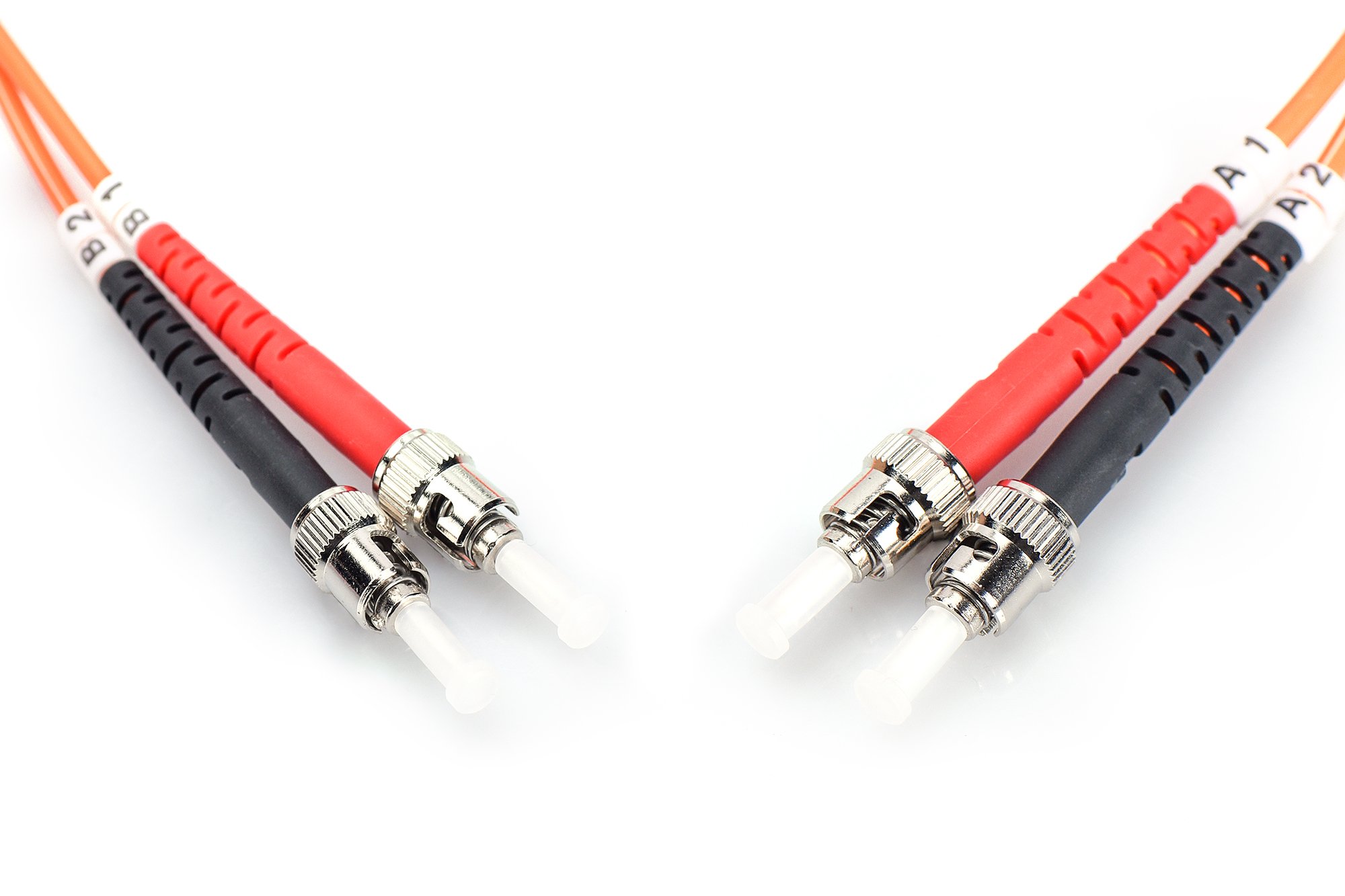

• Each patch cable contains a fiber for the forward and backward channel as well as plugs with ceramic ferrule and two-color anti-kink sleeves for unambiguous fiber identification.
• Ethernet LAN cables are available with LC, SC or ST connectors as standard - no adapters are required due to the different connector combinations.
• Bifiber optical data links of the OM2 category achieve bandwidths of up to 10 Gigabits per second if the total line length does not exceed 82 meters.
• To achieve the full bandwidth, all components of the overall line (SFP modules, switches, ...) must support the bandwidth and be installed in a technically flawless manner.

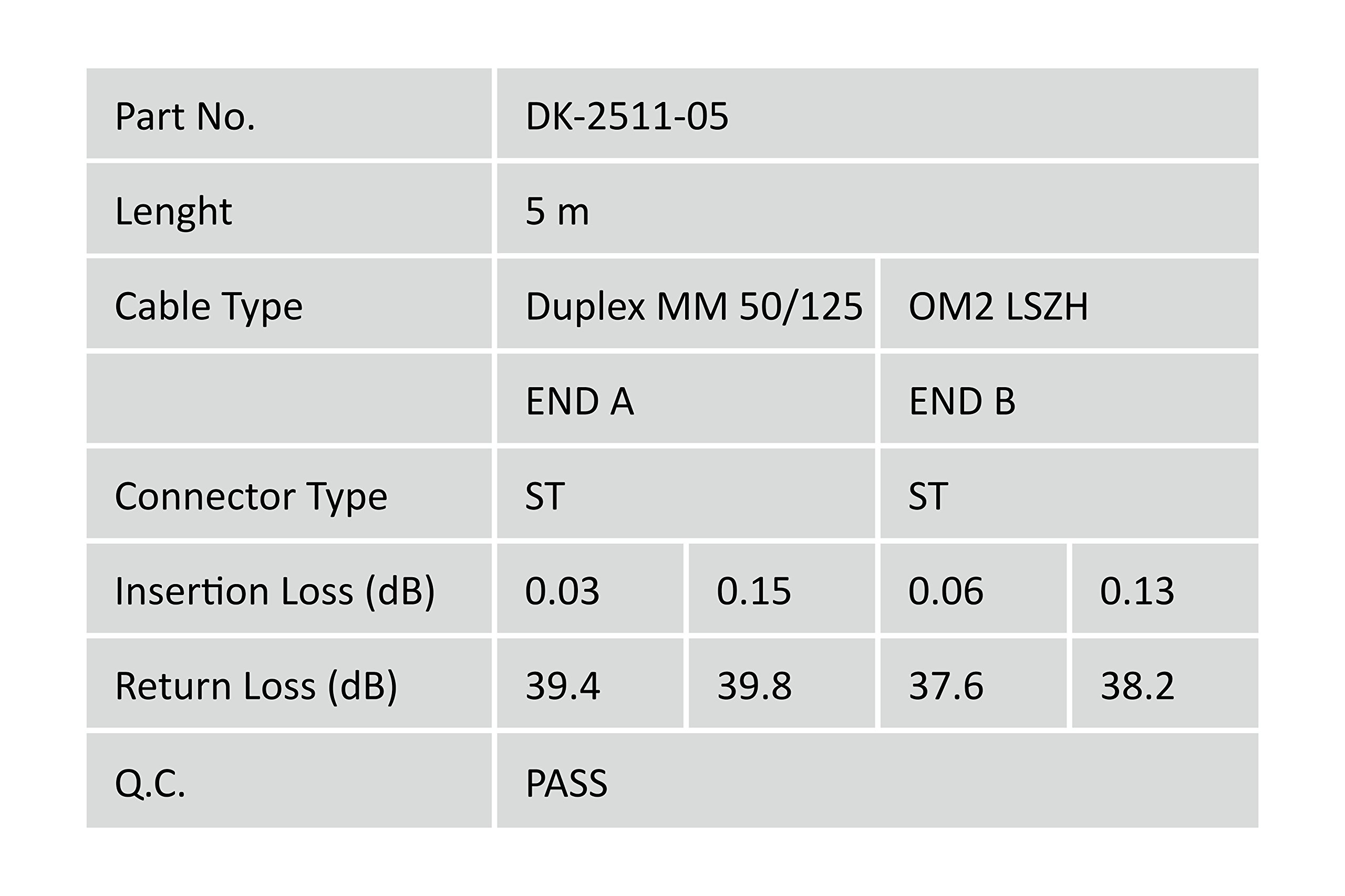

DIGITUS LWL patch cable OM2 – fibre optic cable – LSZH – Duplex Multimode 50/125µ – 10 GBit/s – Orange The fibreglass patch cables are available in various fibre classes, from OS2 to OM1 to OM5, and plug combinations to meet all the requirements of a trend-setting IT infrastructure. Each cable is individually packed in a polybag and comes with a test report. DIGITUS optical fibres ensure the best performance characteristics in different application scenarios, such as telecommunications technology, network cabling in server rooms and data centres, sensor technology or in industrial environments. Features: The plugs are made with ceramic ferrule. Each cable is individually packed with an individual measurement protocol. By default, the fibre-optic cables are available with LC, SC or ST connectors. Technical specifications: Cable type: Duplex Halogen-free according to EN 50267-2-3: yes (LSZH = Low Smoke Zero Halogen) Flame retardant according to IEC/EN 60332-1-2: yes Cable diameter: 3 mm Fibre type: Multimode 50/125µ Fibre category: OM2 Number of fibres: 2. APC version: no Coat colour: Orange. Kink protection sleeve: attached Insertion loss: ≤ 0.30 dB Return loss: ≥ 30 dB (UPC) Storage and operating temperature range: -40°C to +85°C Length tolerance ≤ 10 m: +100 mm/-0 mm Length tolerance > 11 m: +50 mm/-0 mm
