DIGITUS Cat. 6A connection module - 500 MHz - 10 GBase-T - shielded - coupling for field applications - LSA Cat connector

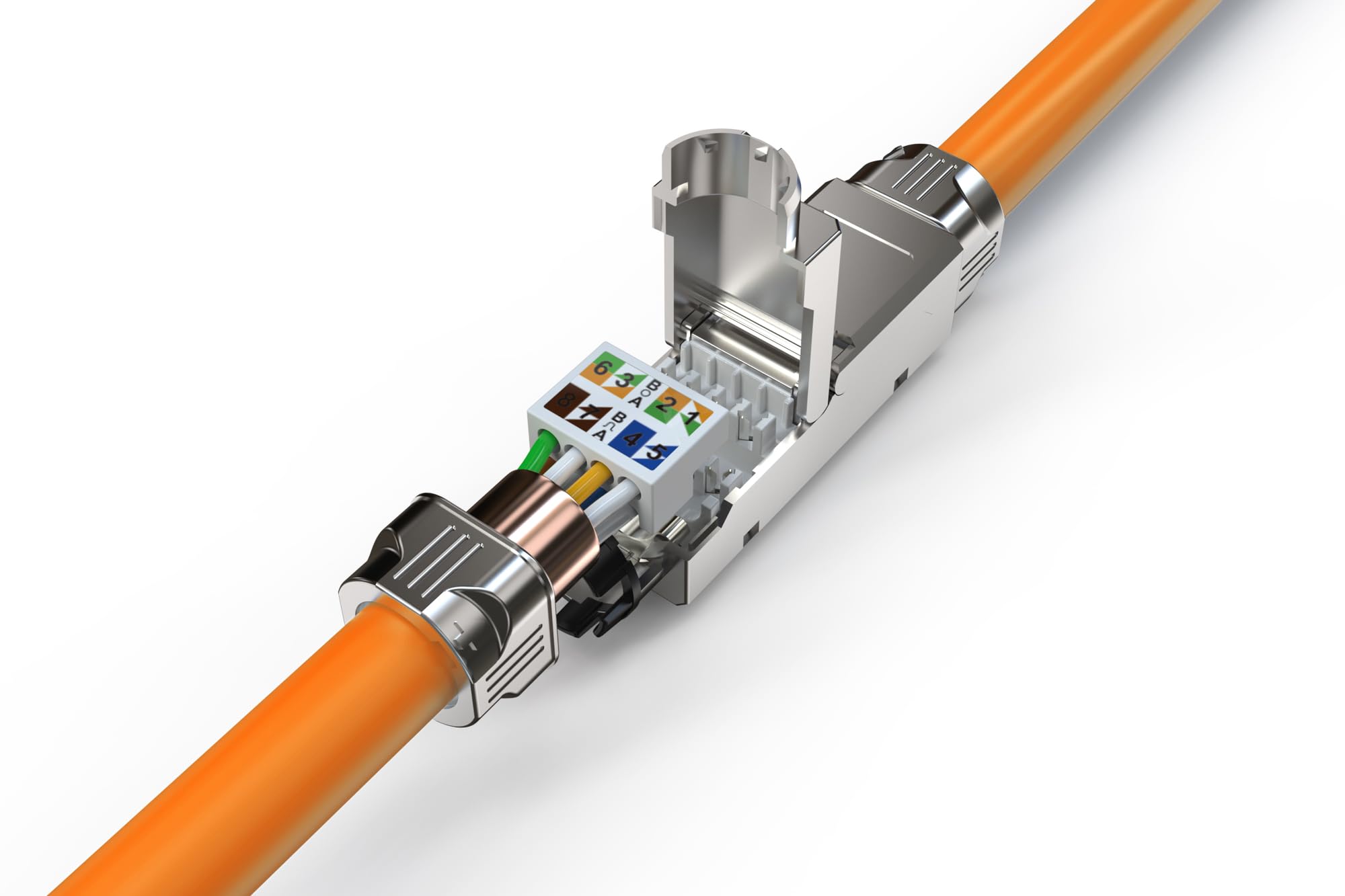

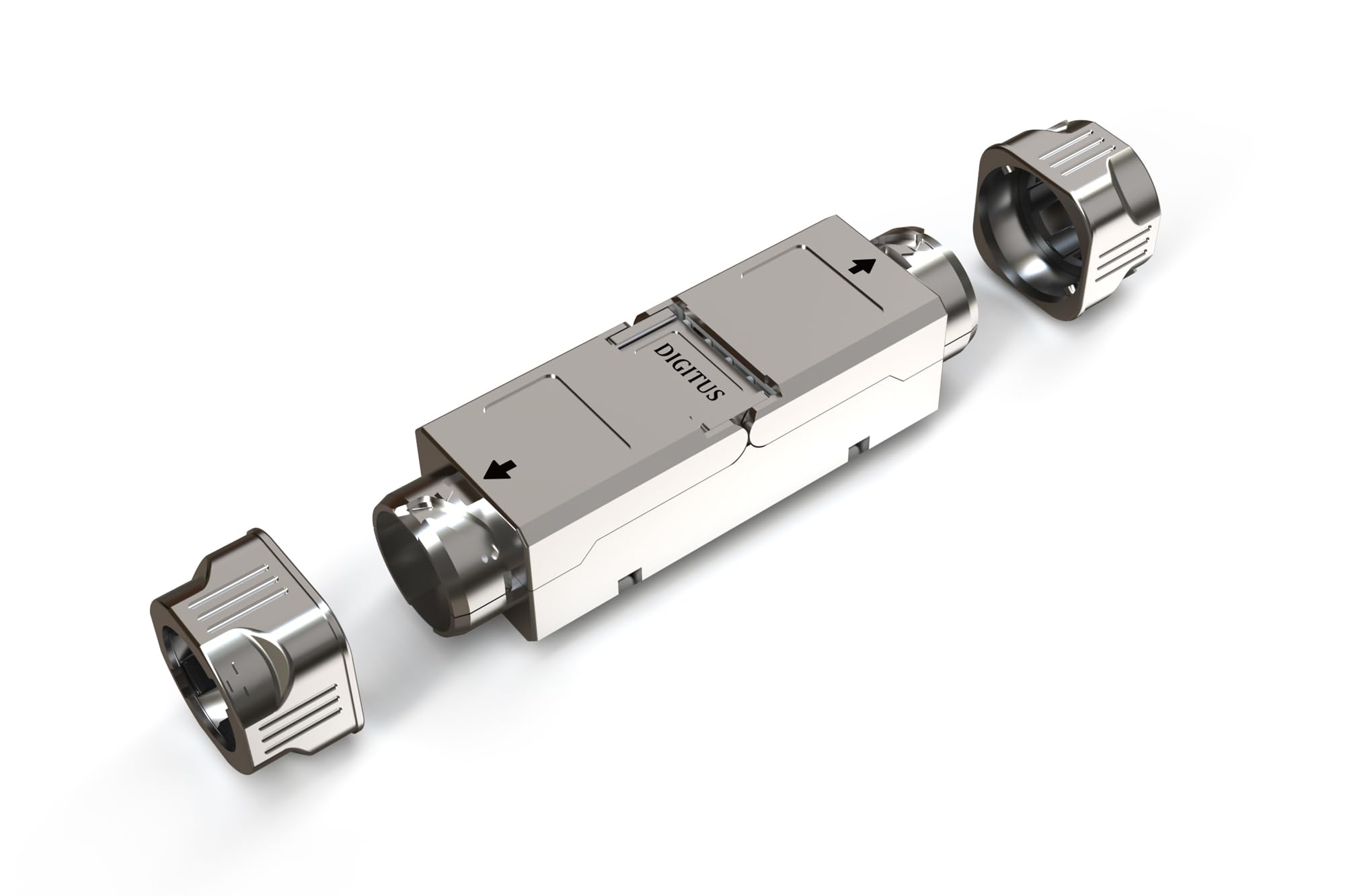

• The Cat. 6A LSA coupling for installation cables consists of a metal case with metal screw cap, 360 ° shield contact, and integrated cable fixation and cable grip
• The connection module supports PoE in the standards PoE, PoE+ and 4PPoE or PoE++ (IEEE 802.3af; 3at; 3bt) and makes transmission properties of 10GBase-T and 500 MHz possible

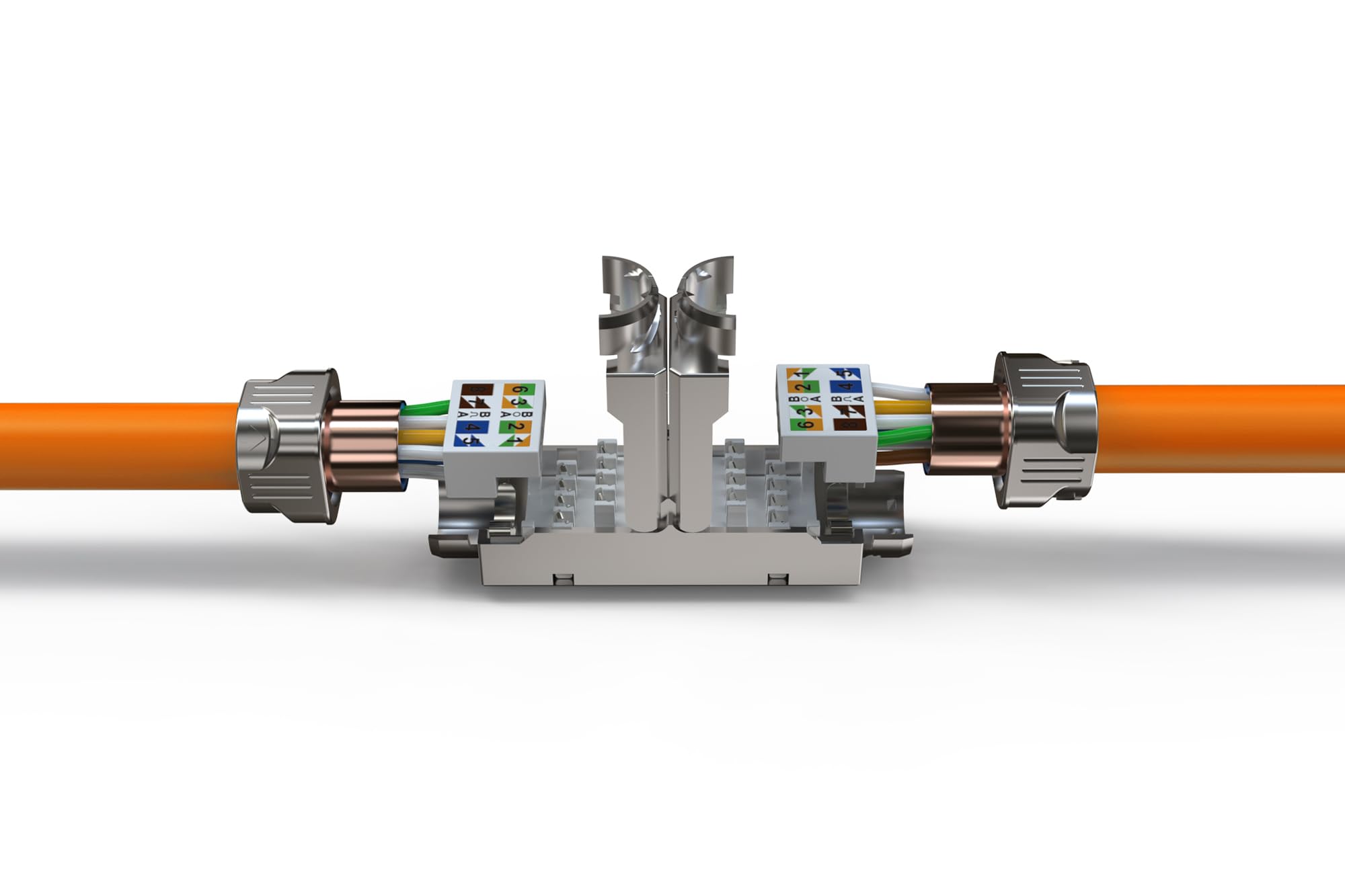

• In addition to solid conductors in installation cables, it also supports stranded conductors, e.g. rough patch cords - installation is tool-free with a conductor manager and an insulation-displacement connector in accordance with EIA/TIA 568 A & B
• The Cat. 6 A connector case is suitable for cable conductors with AWG 26/7 to 22/1 - network cables for all cabling applications can be found in the DIGITUS range
• Extensive application scenarios - repair of a patch cable, field installation on a construction site or in a server room, extension of existing Ethernet cables during renovations

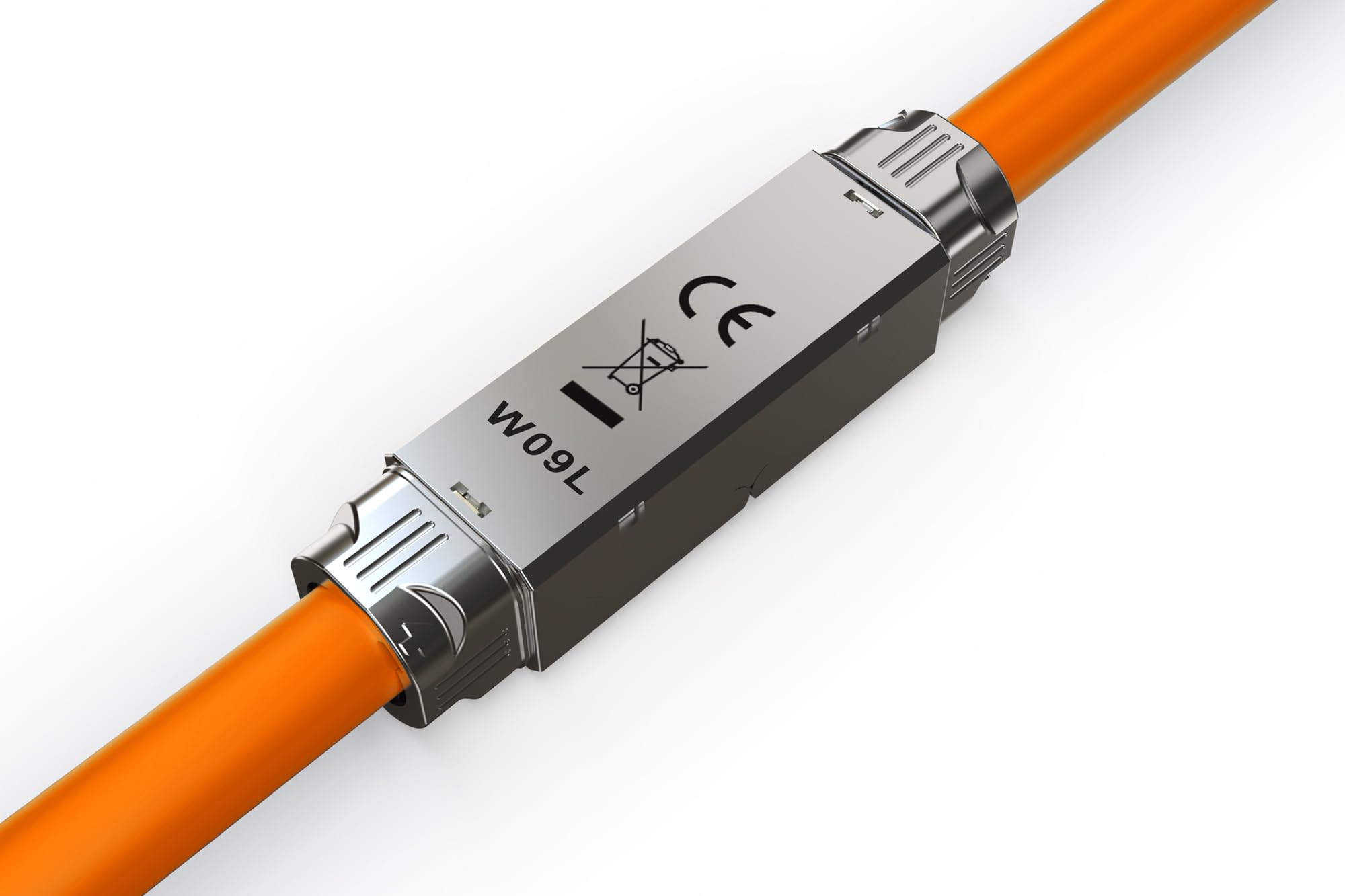

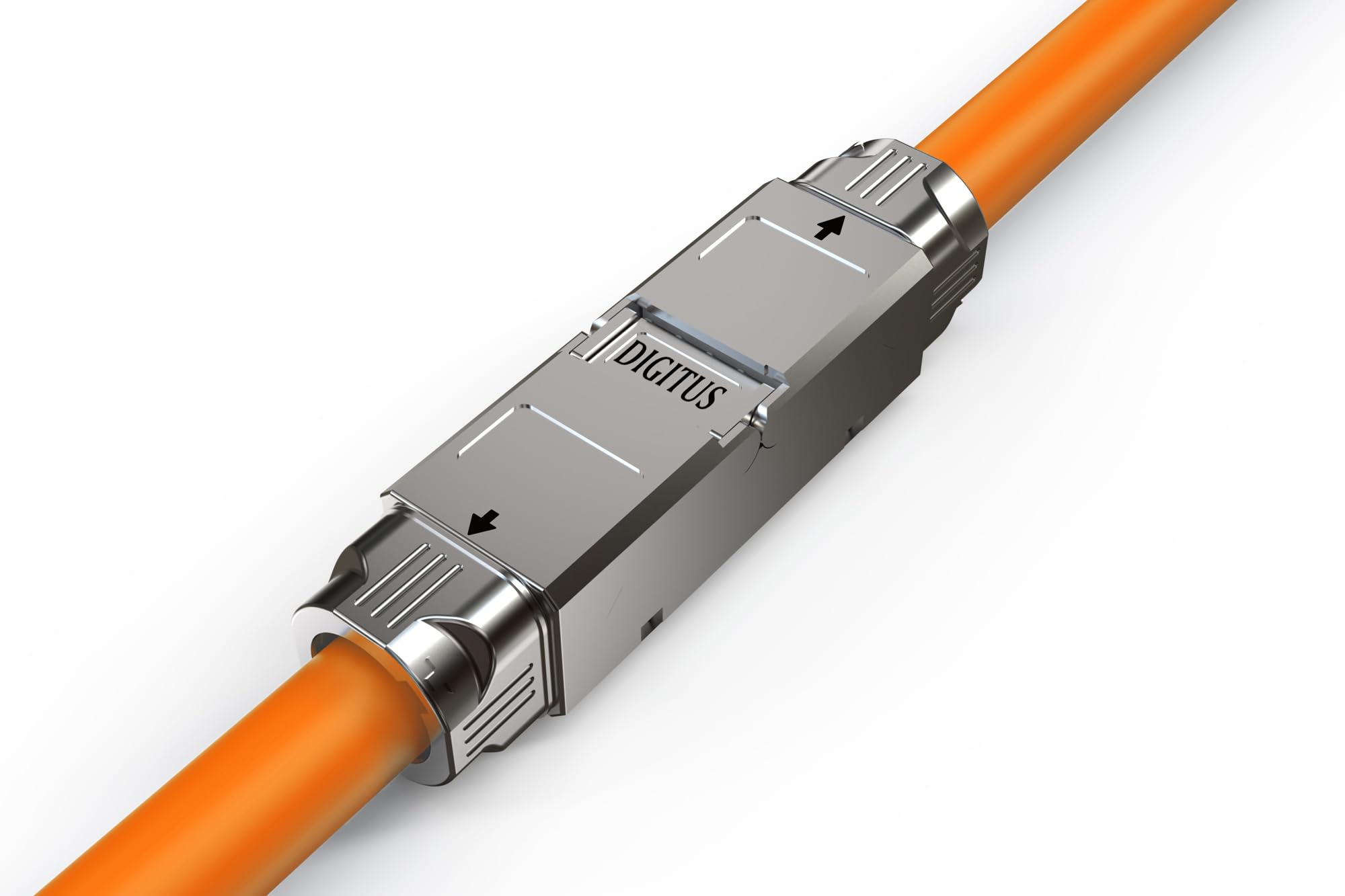

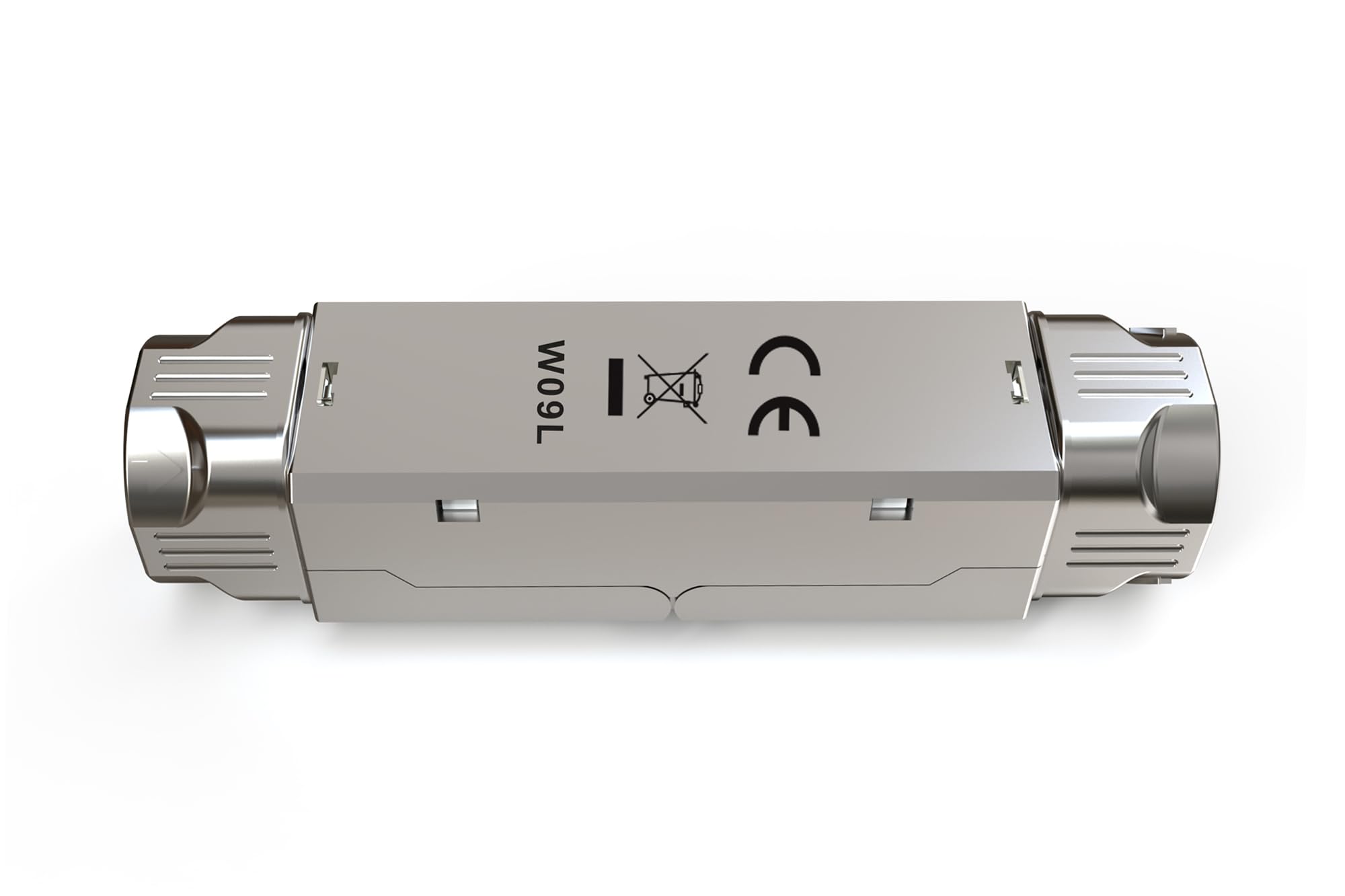

The DIGITUS® CAT connector for field applications serves to connect or extend Twisted Pair cables. Robust metal case for durable, stable connection. This connector is the perfect choice when it comes to quick installation or the repair of existing cables. Assembly is possible completely without special tools and the color-coded LSA insulation-displacement connector means that wiring is easy.
