DIGITEN LCD Digital 0-99999 Counter 5 Digit Plus UP Gauge + Proximity Switch Sensor with Magnetic

• 5 Digits LCD accurate digital counter, Come with proximity switch and magnetic.
• Power supply:a AA 1.5V battery. Easy to install.
• Measuring range: 0-99999, counting frequency: 20HZ
• Built in RESET key and PAUSE on panel.
• Widely use in Automatic Conveyor Belting System,Winding Machine,packaging machinery,textile machinery,milling machine,ect.

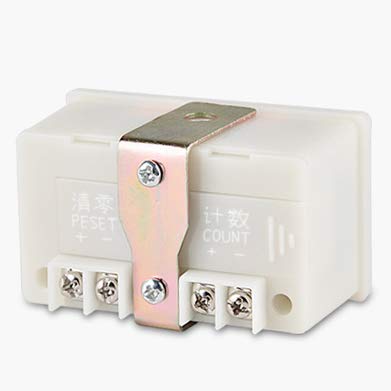

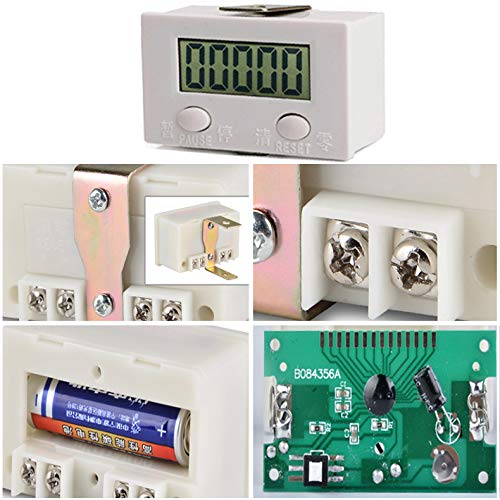

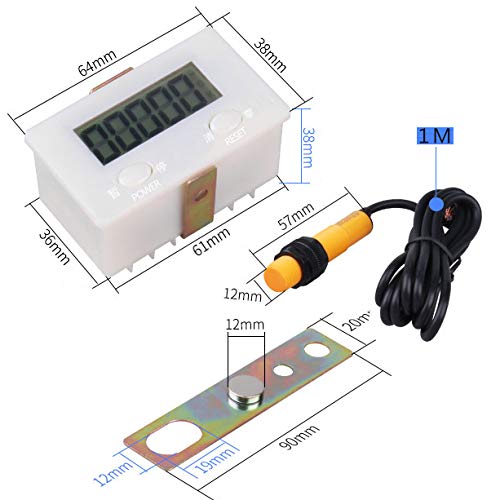

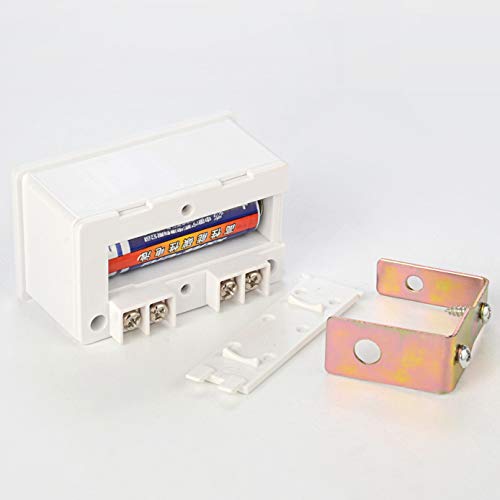

Feature 5 digit large lcd screen , display of large and clear Use the common AA 1.5V batteries, without external power supply, and the replacement of the battery is convenient Press the PAUSE key, Counting pause , then press PAUSE key, and restore counting Input using ordinary contact signal, selecting the sensor is simple and convenient, accurate and reliable count Resetable zero: panel / external dual use Seismic design, effectively prevent data loss No mechanical abrasion, reliable work, long service life Specification Power: 1.5v AA cell(battery included) Count range: 0----99999 Reset minimum pulse width: 0.1s Reset method: manual panel/ external Count the highest frequency: 20hz, or 20 times/s Use environment temperature: - 5C--40C Count the minimum pulse width: 10ms Promixity switch sensor: 2 wires, Length: 110mm, come with magnet Detecting distance: 3-10mm Size: 63 x 38 x 30 mm Hole size: 61 x 36 mm Contact on maximum resistance: 10k Open contact minimum resistance: 500K¸ Net Weight: 0.05kg Package include 1 x Digital 5 Digit LCD Punch Counter 1 x Counter bracket 1 x proximity switch 1 x switch bracket 1 x strong magnet
