Digitalkey PN532 NFC Reading/Writing Module - RFID V3 with 2 Tags and 2 USB-TTL - Compatible with Arduino Raspberry Pi and Other IOT projects (Original)

• Support for RFID reading and writing, P2P communication with identical devices, NFC with Android phone.
• It supports I2C, SPI and HSU (High Speed UART) interface, easy to change between modes, thanks to the two switches present.
• The RFID module supports cards: Mifare 1k, 4k, srix4k, Ultralight, and DesFire, ISO / IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX), Innovision Jewel cards such as IRT5001, FeliCa cards such as RCS_860 and RCS_854
• Reading distance up to 5 cm ~ 7 cm, small and easy to insert into your project.
• Guaranteed invoice and support - 10 years of Italian experience by Digitalkey.it

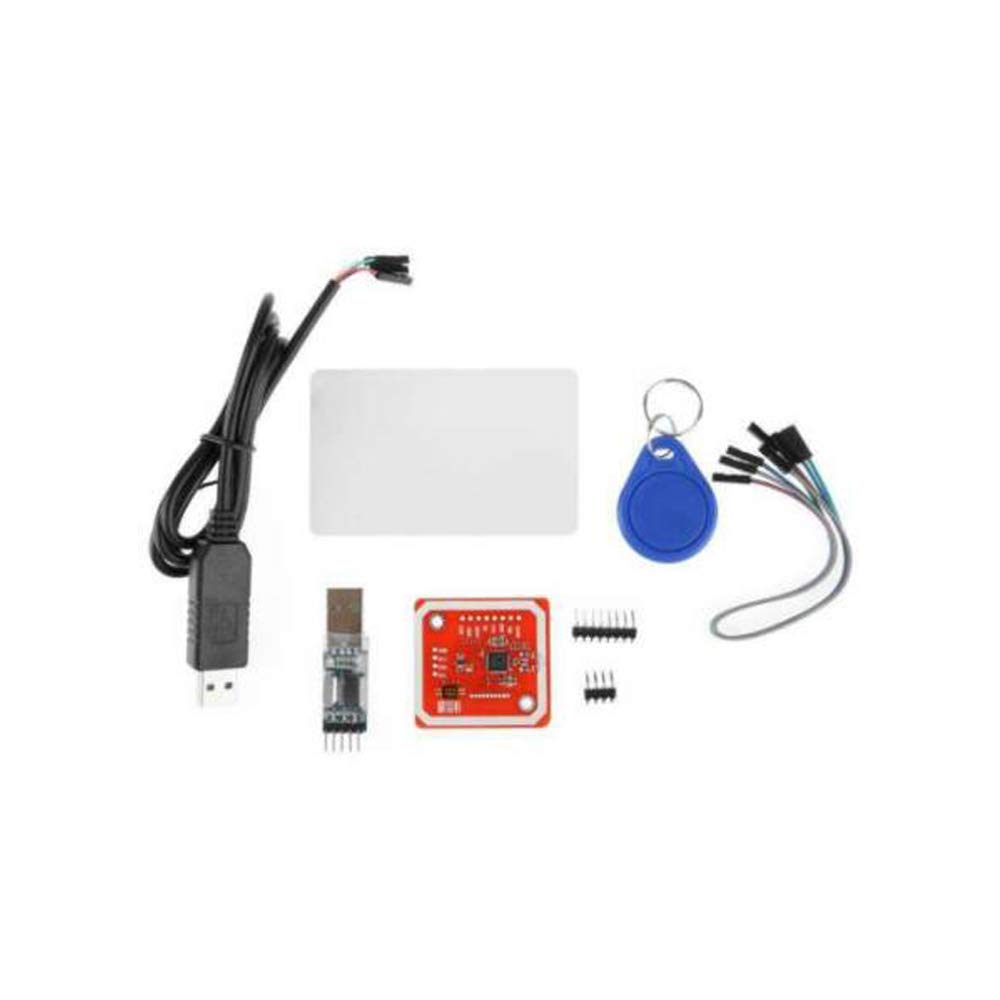

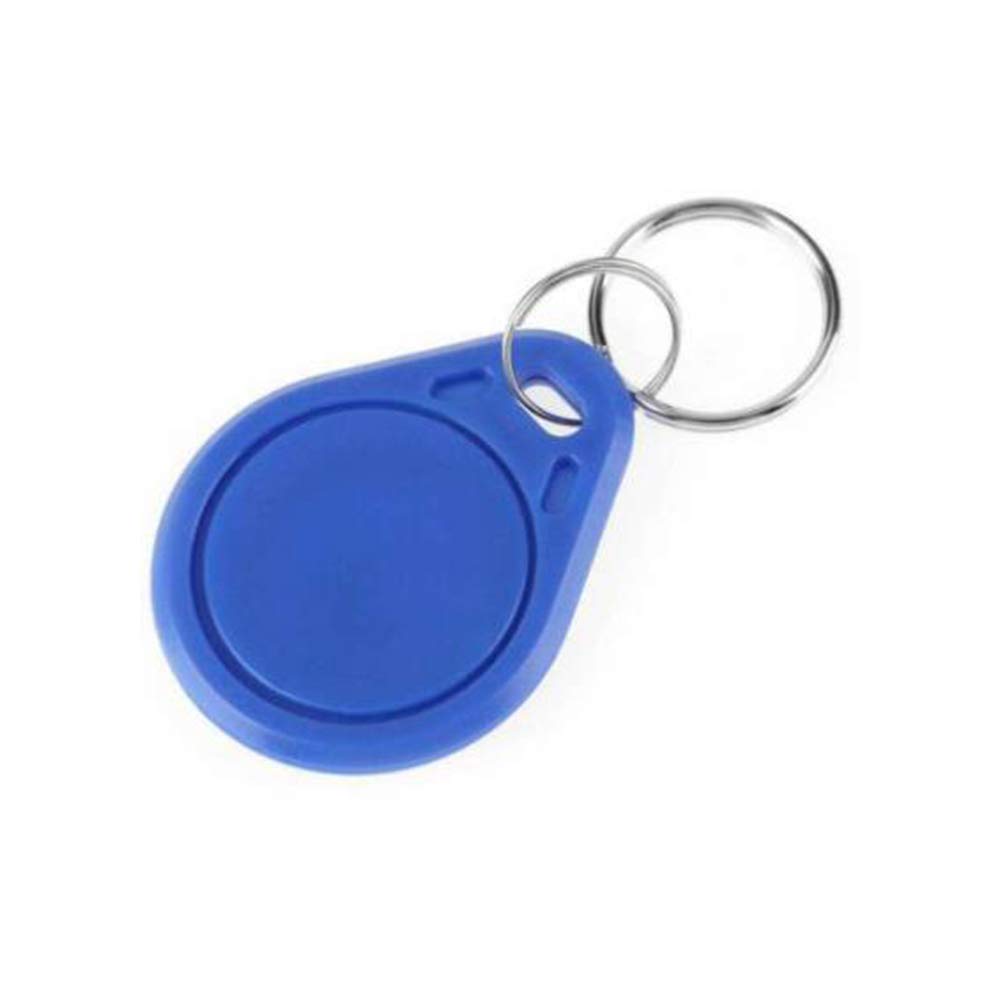

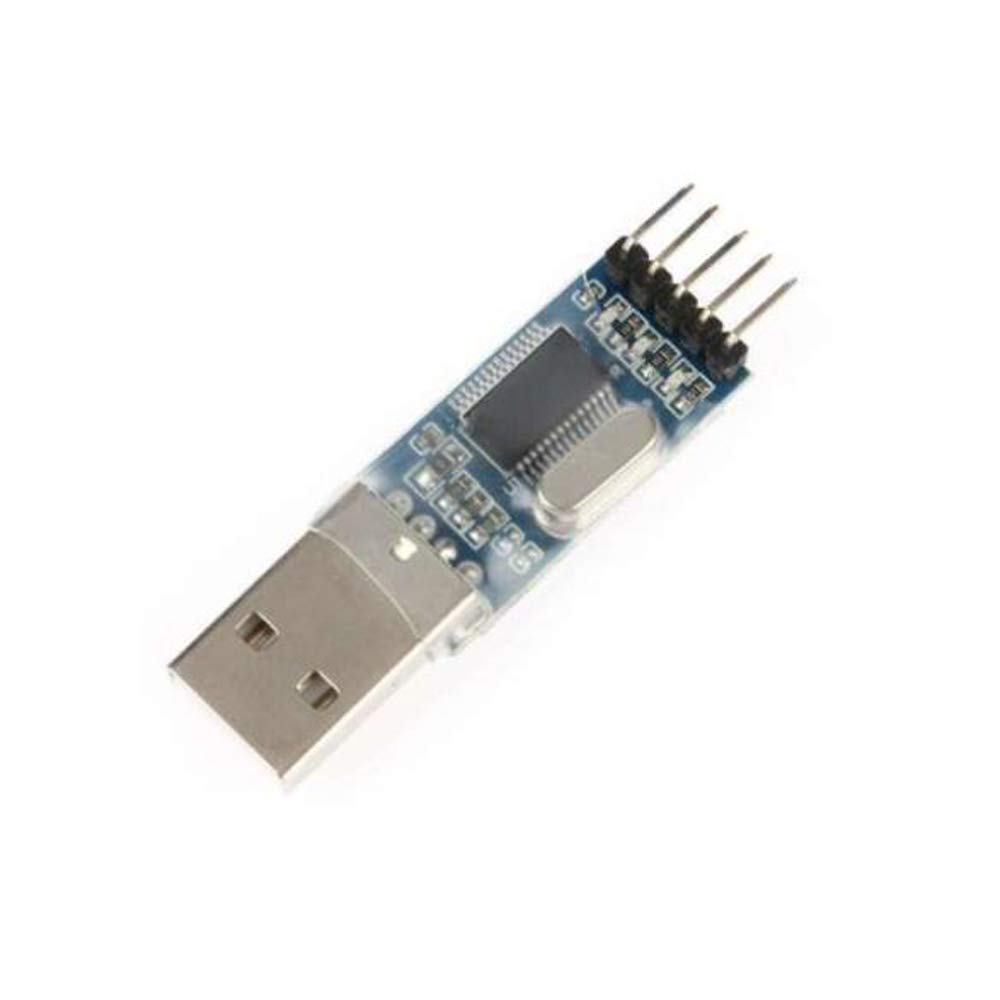

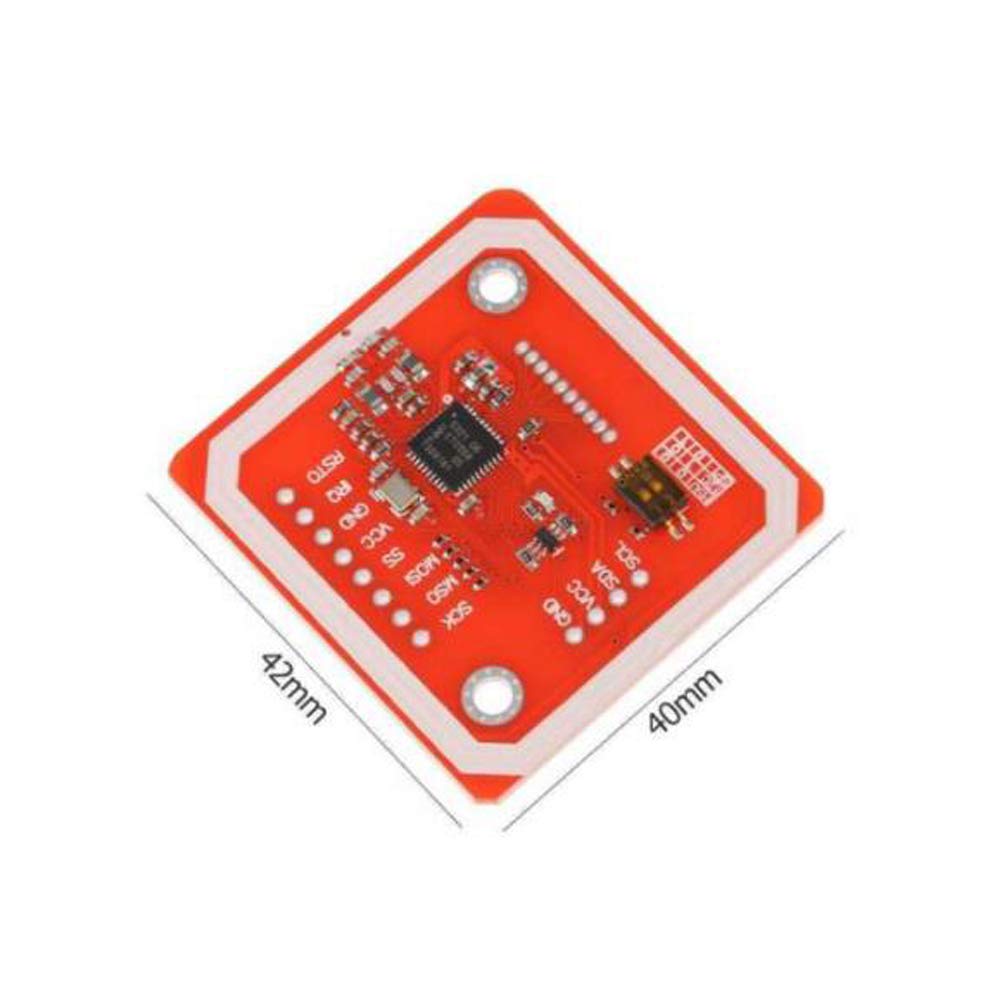

Digitalkey PN532 Tag Reader NFC - NFC Module V3 Through this reader it will be possible to read and write NFC tags of different types, the reader can also communicate with another reader or with a smartphone equipped with NFC. Supported Tags: - 1K, 4K, Ultralight and DesFire cards - ISO / IEC 14443-4 card, such as CD97BX, CD lamp, Desfire, P5CN072 (SMX). - Innovision Jewel card, like IRT5001 card. - FeliCa cards, like RCS_860 and RCS_854. Driver PL2303HX Windows 10: https://bit.ly/339cGKh If, after installing the drivers, the device is still not correctly recognized, it will be necessary to select the driver version dated 10/27/2008 using the Windows 10 guided procedure. Pinout cable PL2303HX: Black cable - GND Green Cable - TXD White Cable - RXD Red Cable ------ VCC The package includes: 1 x PN532 NFC RFID module. 4 x colored jumpers (length: 20 cm). 1 x white NFC card. 1 x NFC key card. 1 x USB-TTL card PL2303HX 1 x PL2303HX USB-TTL cable 1 x support with 4 curved pins. 1 x support with 8 curved pins.
