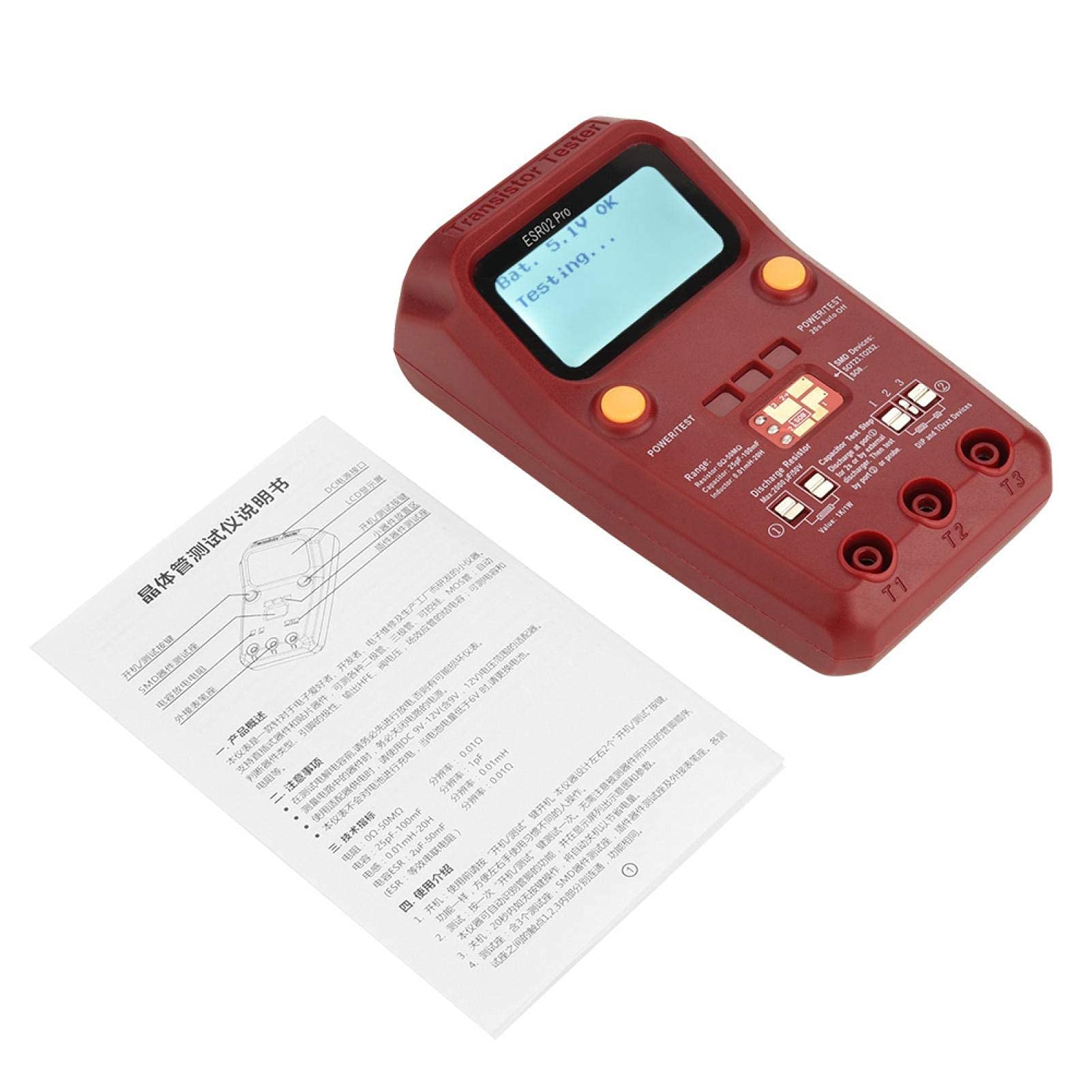

Digital Transitor SMD Conponents Tester, Pro LCD Capacitor Tester Inductance Meter, Transistor Tester for Measuring SMD Components, etc

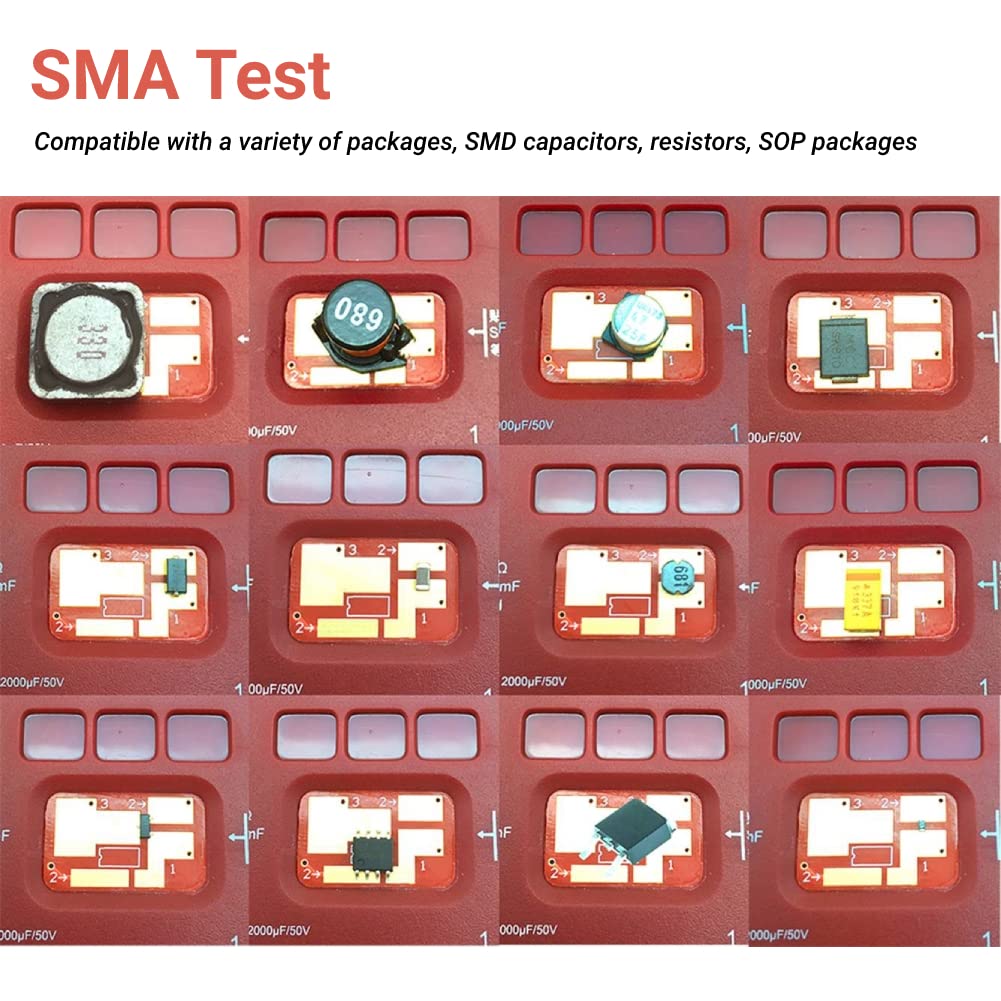

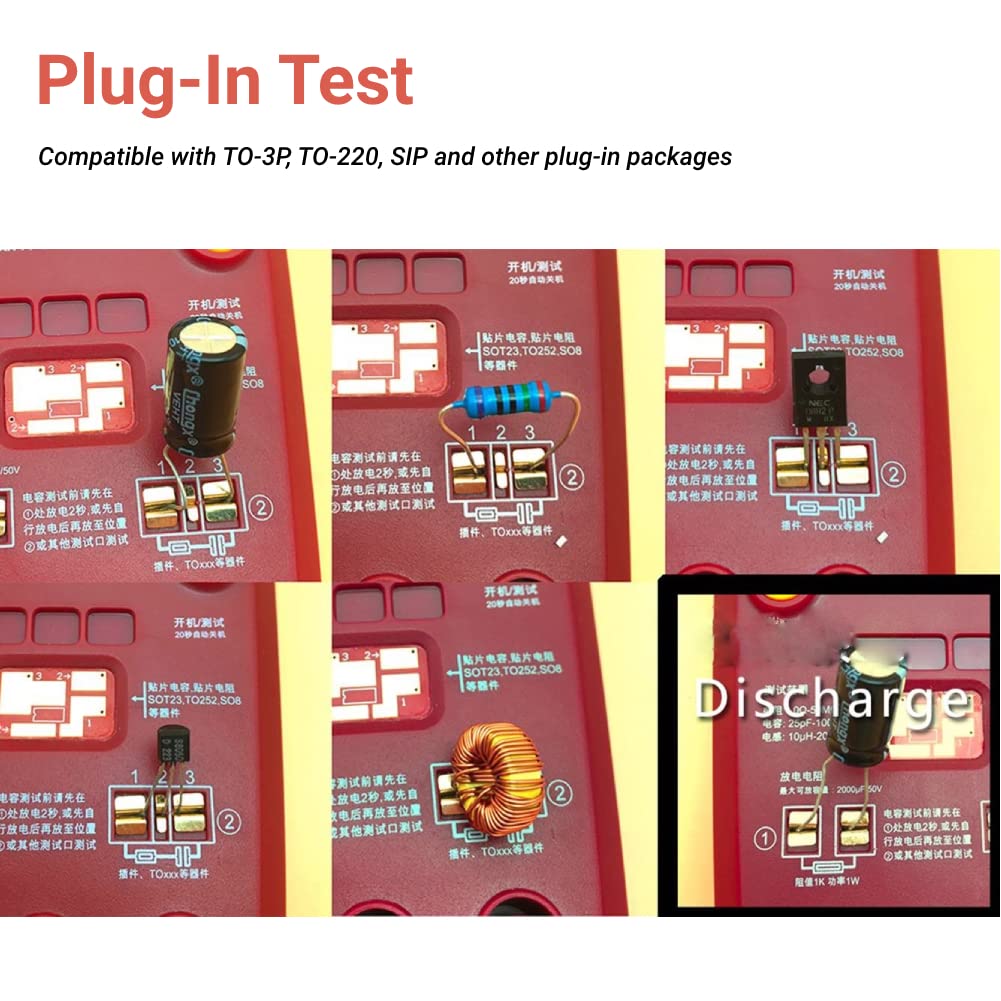

• Brief introduction - This transitor meter is a small tool for the engineer, electronic maintenance and factory. It is very easy to test plug-in and SMD devices, also can test different kinds of diodes, triodes, thyristors, MOSFET, enable to analysis the device type, the polarity of the pin, the output HFE, the valve voltage, the junction capacitance of the FET.

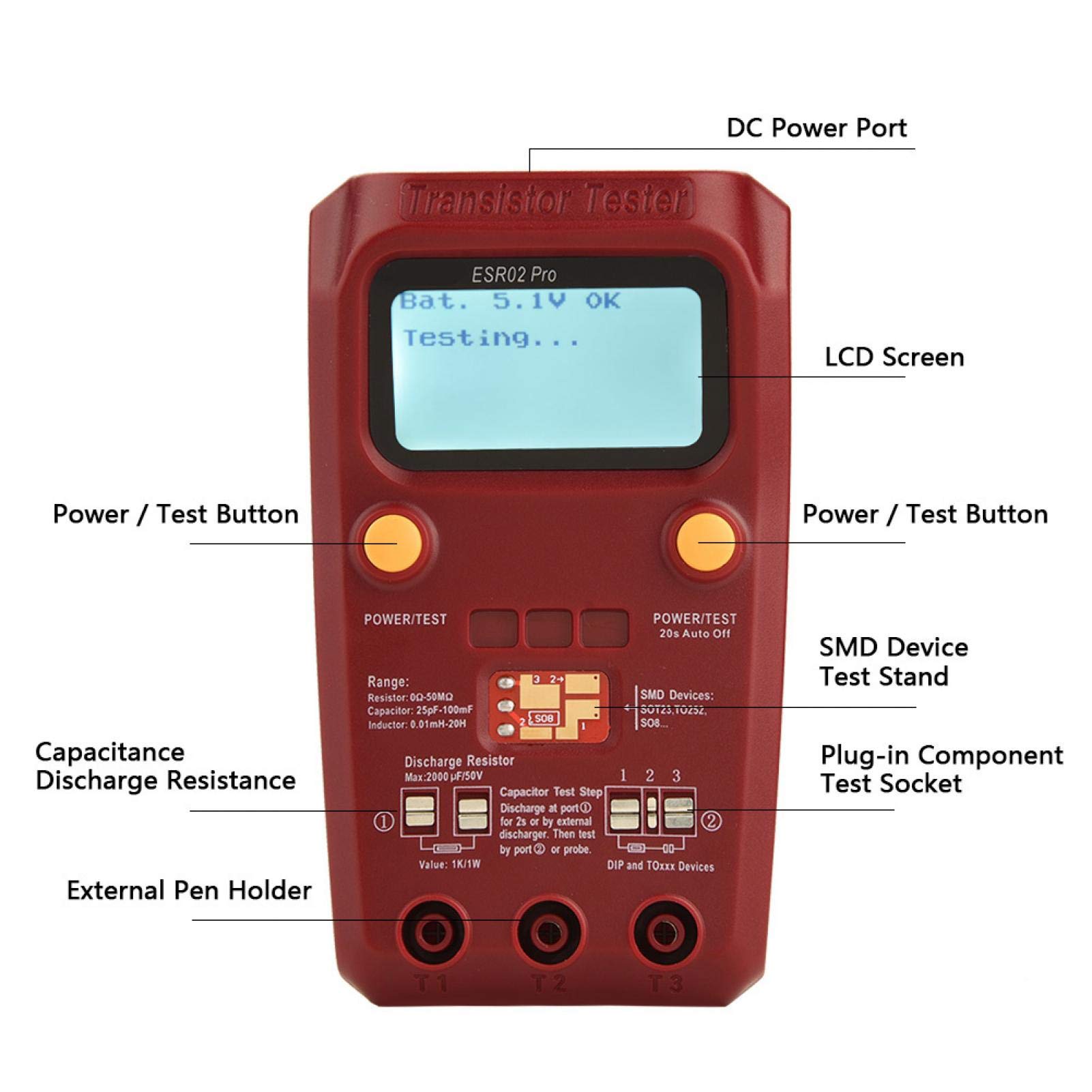

• LCD backlight digital transistor tester - A key operation, boot test, a key to get.Large LCD display with backlight function for easy reading.
• Wide application - Greatly practical - Automatically test the pin elements and display them on the LCD. Automatic detection of components such as NPN, PNP bipolar transistors, N-channel and P-channel MOSFET, diodes (Including double diodes), thyristors, transistors, resistors and capacitors, etc.
• Main use - Can detect transistor emitter forward bias voltage, MOSFET diode and amplification factor reference. MOSFET gate threshold voltage and gate capacitance measurement.

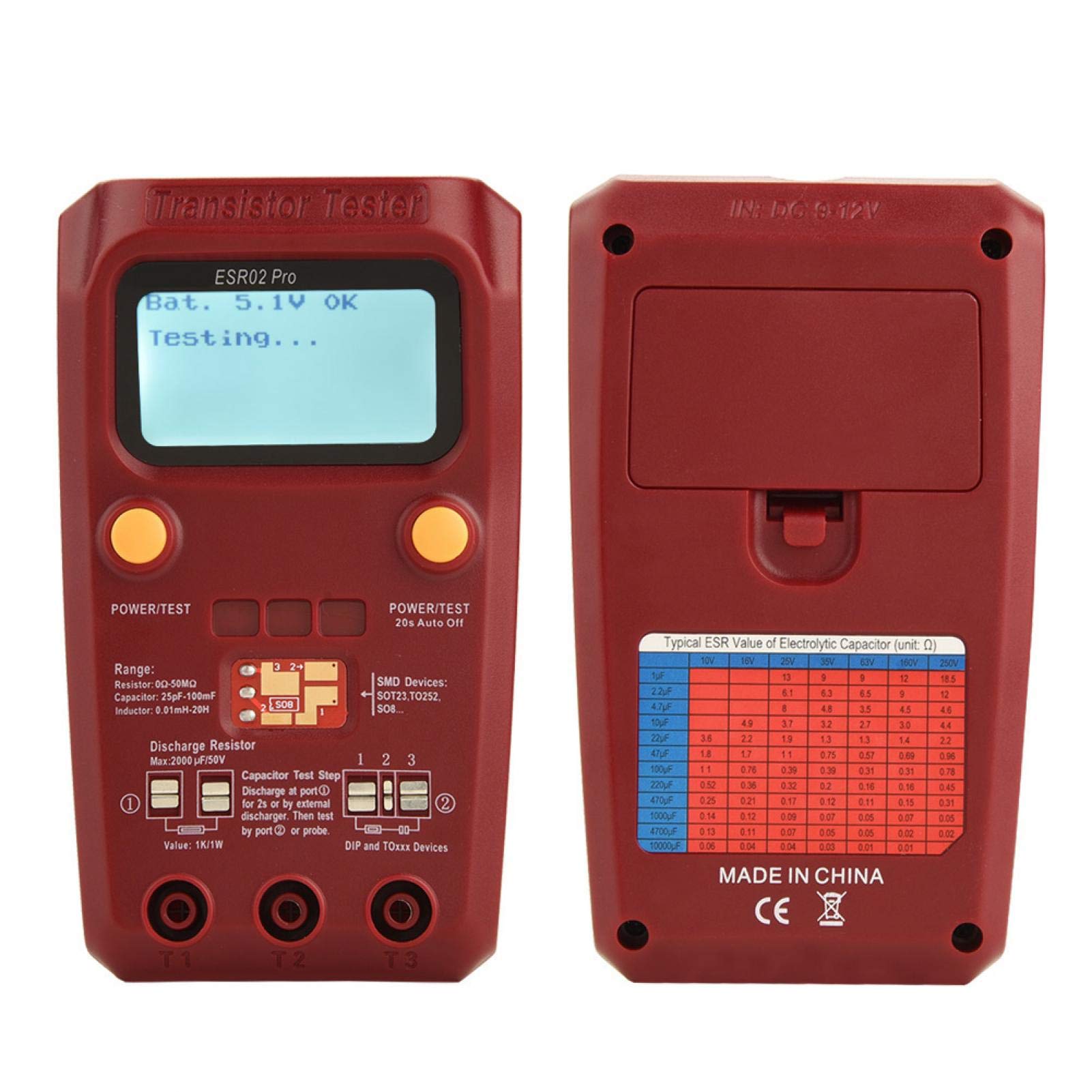

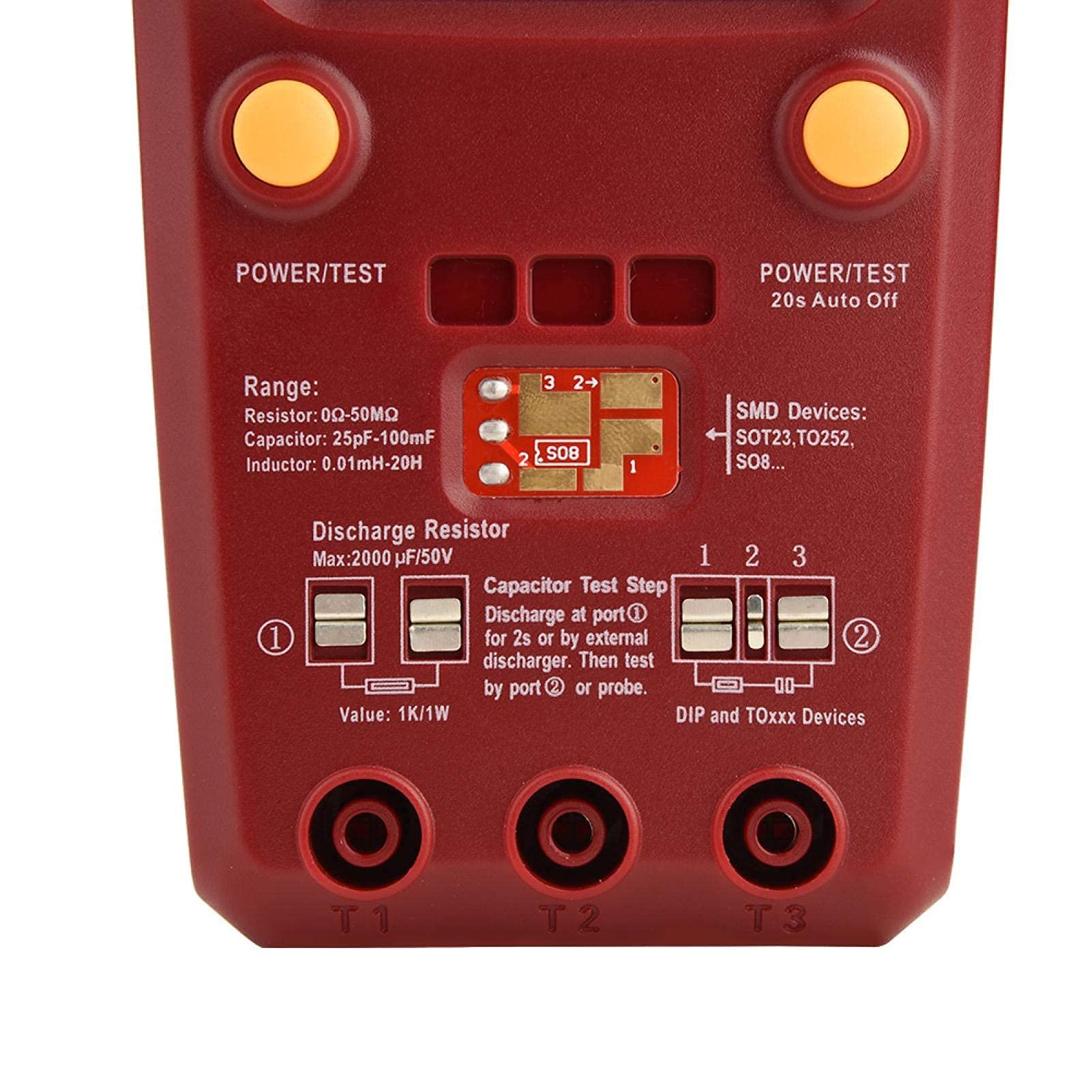

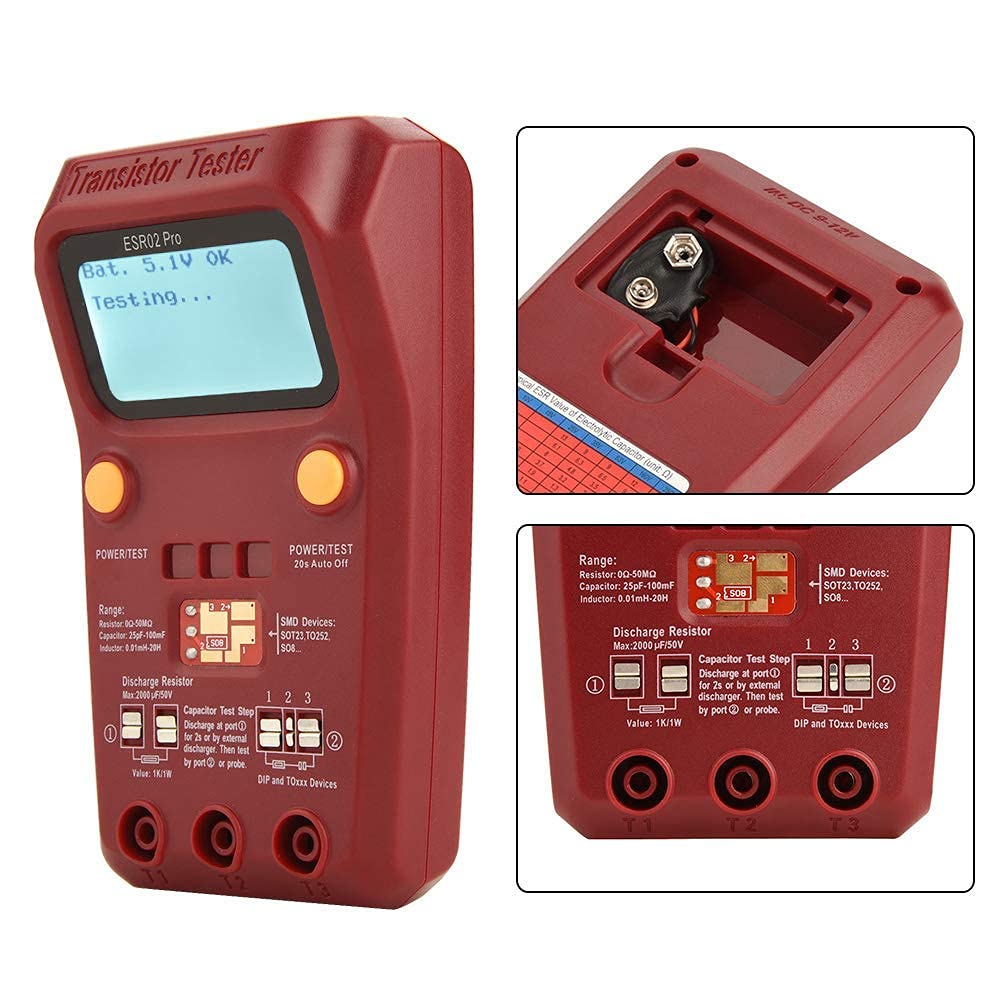

• Note - 1. Before testing the capacitor, be sure to discharge it, otherwise it may damage the internal circuit. 2. If using DC supply, please choose DC 9V~12V adapter. (including 9V and 12V) 3. Can be powered by a 9V 6LR61 battery (NOT included), when the battery power is under 6V, please replace a new one.

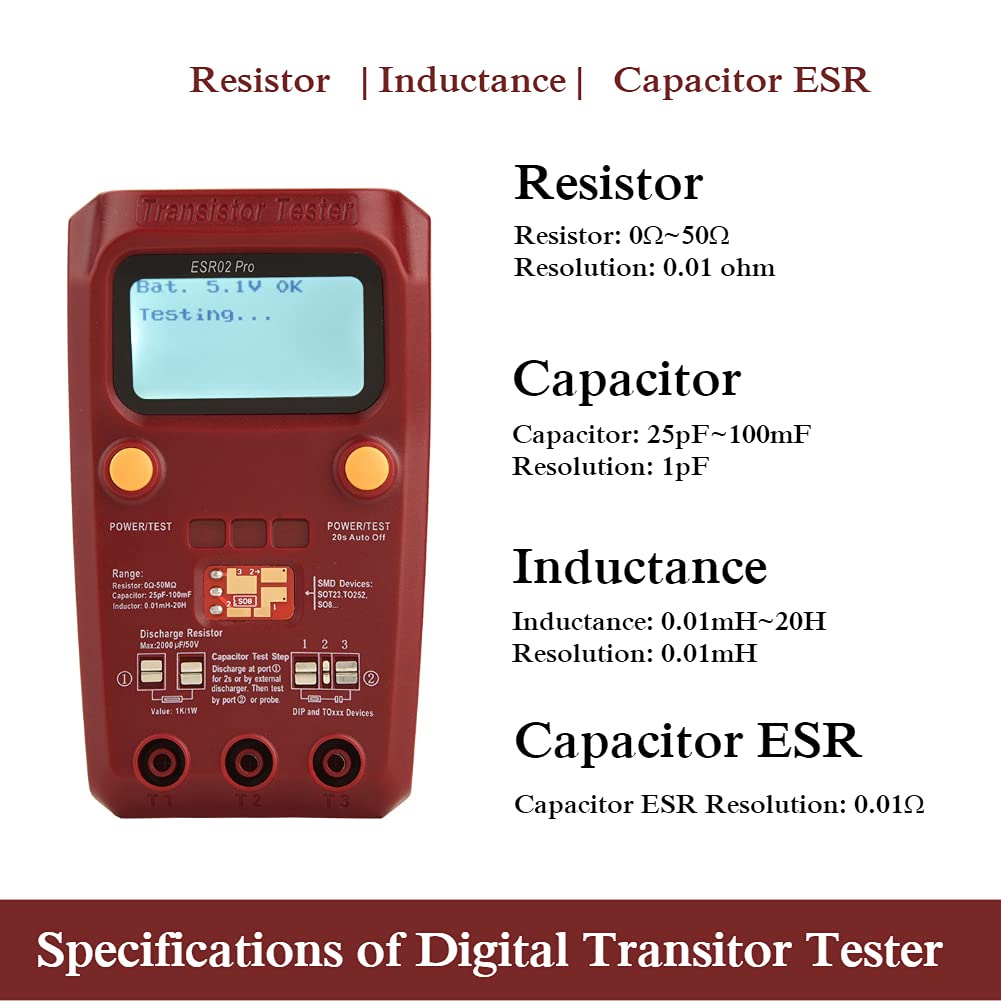

Specification: Brand: BSIDE Model: Pro Resistor: 0Ω~50Ω, Resolution: 0.01 ohm Capacitor: 25pF~100mF, Resolution: 1pF Inductance: 0.01mH~20H, Resolution: 0.01mH Capacitor Resolution: 0.01Ω Battery: 1pcs x 9V 6LR61 Battery (NOT included) Size: Approx. 14*8*4.5cm/5.5*3.1*1.8inch Weight: Approx. 223g / 7.9oz Function: 1. Add startup voltage detection function 2. Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including double diodes), thyristors, transistors, resistors and capacitors, etc. 3. Automatically test the pin elements and display them on the LCD. 4. Reference for transistors, MOSFET diodes and amplification factors that can detect the forward bias voltage of the transistor emitter. 5. Measure the gate threshold voltage and gate capacitance of the MOSFET 6. 1602 LCD screen adopts LCD (12864 LCD backlight) 7. Fast test speed, effective component test: 2 seconds (except for the large capacitance measurement of larger capacitors, it takes a long time, and the measurement time is one minute is normal). 8. One-key operation, start-up test, one-key acquisition. 9. Power off mode: less than 20 nA 10. Automatic shutdown function to avoid unnecessary waste, save battery power and improve battery life. Calibration: Short the test pin 1, 2, 3 together and push "POWER / TEST" button, then the screen prompts to enter calibration, push the button again within 2 seconds to confirm. Few seconds latter the screen prompts to release pin 1, 2, 3, release them and wait for calibration finish.
