Digital Signal Generator 4-20mA 0-10V Current Loop Simulator for PLC Testing with USB Power Supply(With battery)

• Precise Signal Output: Generates stable 4-20mA current and 0-10V voltage signals for accurate calibration of transducers and sensors, reliable process control system performance during installation.
• for versatile Power Options: Supports three power methods including external DC 15-30V, USB DC5V, or internal for battery (Type 2), allowing flexible use with PLCs, mobile power banks, or computers anywhere.

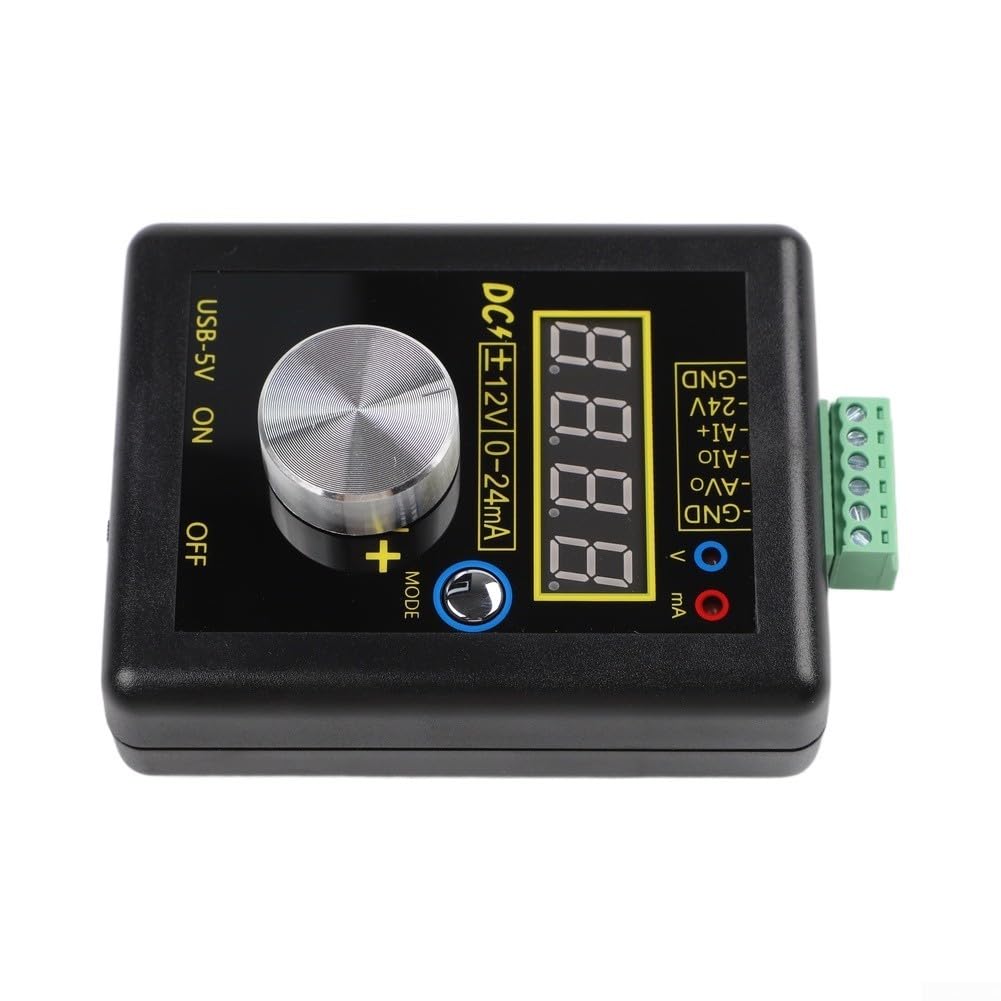

• Clear Digital Interface: Features a 4-digit high-definition display with 8-level adjustable brightness and an aluminum knob for easy parameter adjustment even in low-light industrial environments.
• Compact and Portable: Designed with a small footprint (89x69x28mm) and pluggable terminal blocks for safe wiring, making it the for ideal handheld tool for on-site debugging and maintenance tasks.
• Memory Save Function: Allows users to save specific voltage and current values; automatically recalls settings upon restart to for streamline repeated testing procedures for electrical engineers.

Features: The voltage and current signal generator is the most widely used electrical test instrument for electrical engineers and technicians to install, debug, repair and maintain electrical equipment on site. Pluggable terminal blocks, safe and convenient wiring. 4- high-definition digital tube, uniform and adjustable display brightness (brightness 1~8 levels). Aluminum knob cap, electroplated button, high-quality film, charging indicator, switch. Three power supply methods: external power supply, for USB DC5V, built-in / (built-in / charging can only be used when type 1 is ). As long as it is fully functional, it can also be connected at the same time. External DC 15-30V power supply can share 24V power supply with PLC and other devices. for USB interface, can be connected to mobile power supply, for charger, computer USB for port, etc. In the normal screen, save a voltage and current value, click the encoder to save, and after releasing the "OK" key, the screen displays "...", indicating that the save is successful. After restarting, the saved value is directly displayed, and there is no need to adjust the parameters every time you start the machine, which is very convenient. Easy to carry, small size, the choice for on-site debugging. Specifications: Part name: Voltage and current signal generator Material: ABS Color: black Voltage output: 0-10V Current output: 0-22mA Type: 1-2 (optional) Charging way: built-in / (only type 1), external power supply, USB DC5V : 1* / , 3.7V, 1100mAh (only type 1 included) Size: about 89*69*28mm/3.5*2.7*1.1 inches Package Content: Type 1: 1 * Voltage and current generator (excluding ) Type 2: 1 * Voltage and current generator (including )
