BSIDE S30X+X1 Smart Multimeter and Non Contact Voltage Detector Pen, Electrician Combo Kit Electronic LED Automotive Multimeter Set with Alligator Clip

• [Multifunction Tester Kit]: Comes with BSIDE S30X smart multimeter and BSIDE X1 voltage tester, two pairs of test leads, a pair of crocodile clips, etc. It meets most of the testing needs for home circuits, electrical overhaul, electronic components, multiple types of diodes, LED lighting, automotive repairs, industrial temperatures, and more.

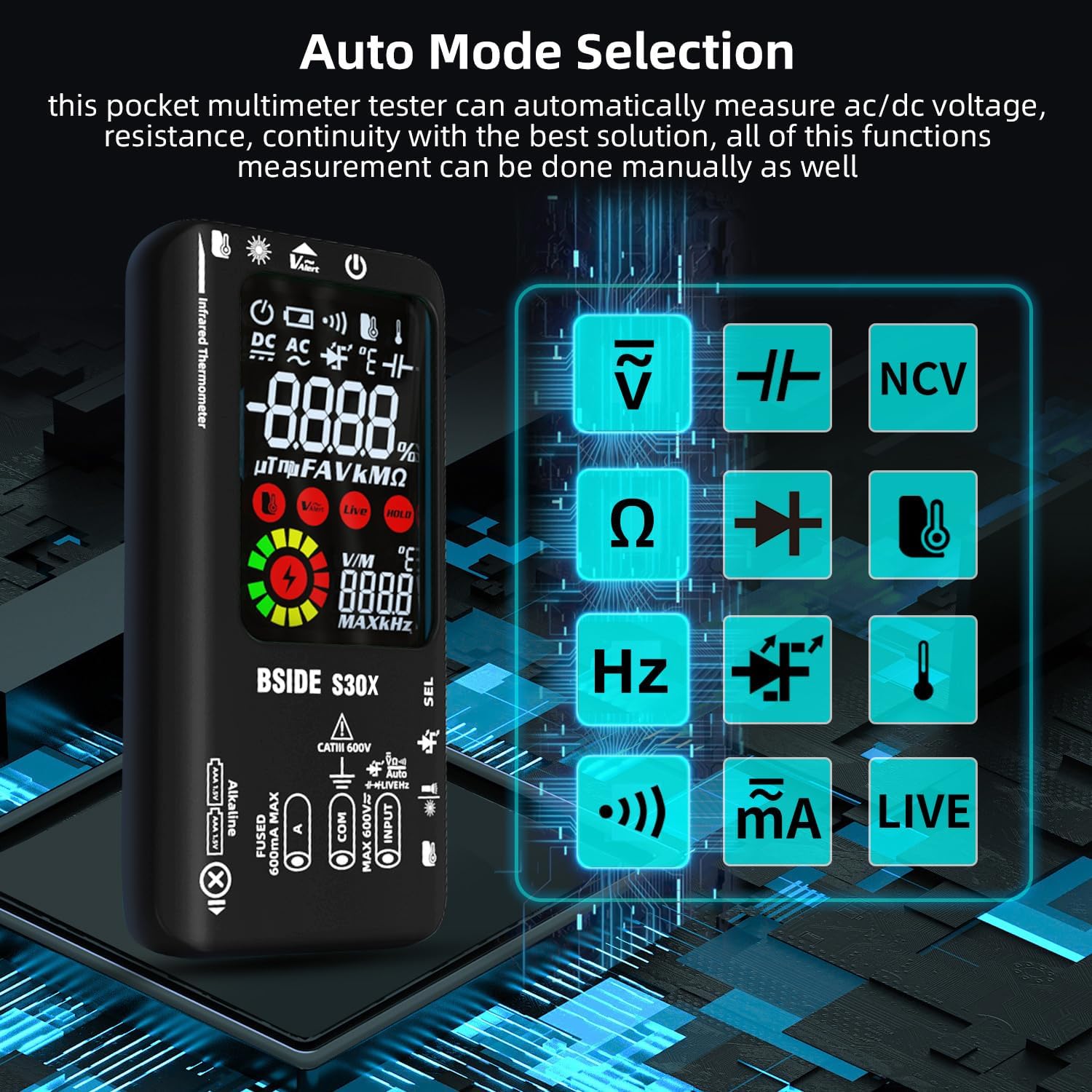

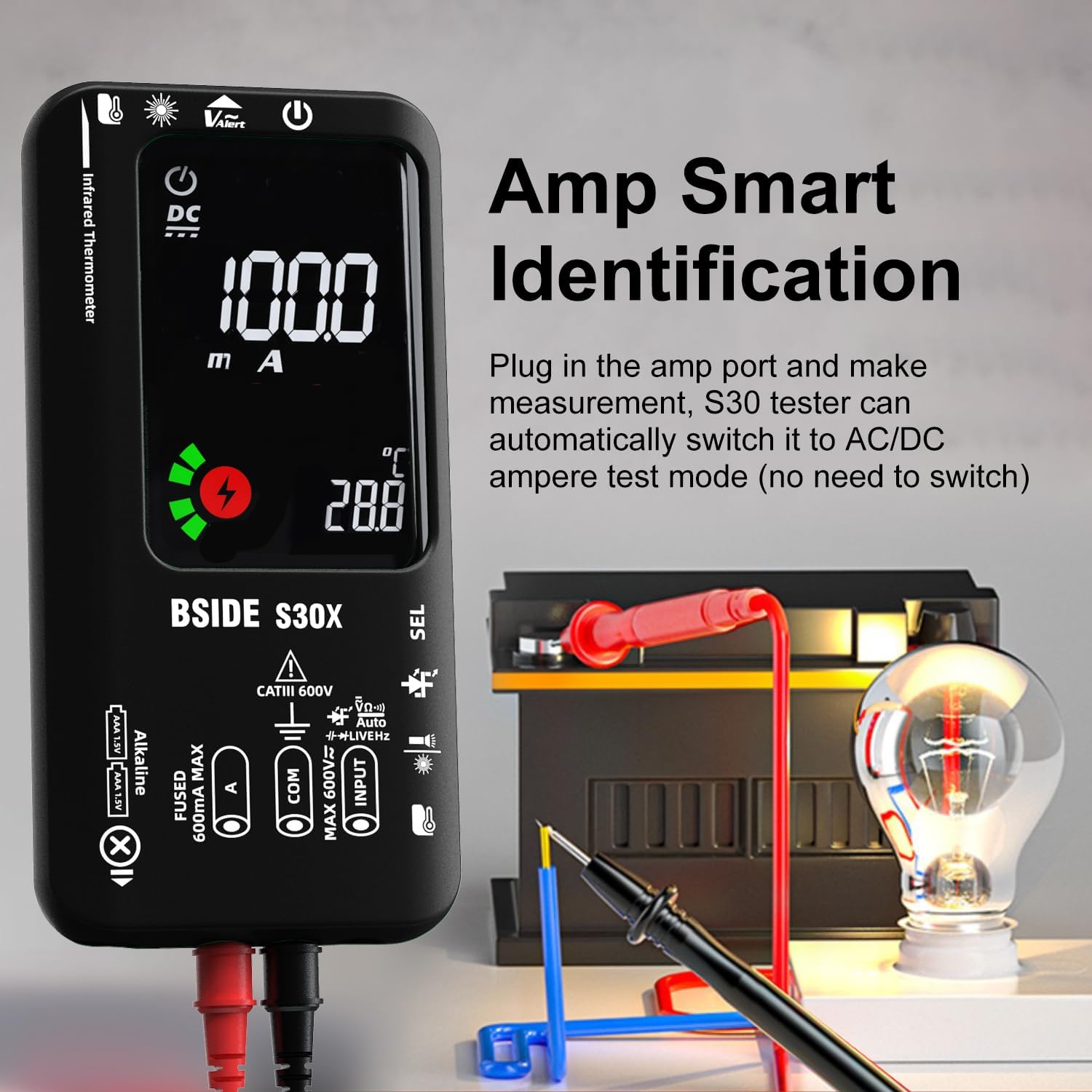

• [Automatic Tester Kit]: The digital multimeter and voltage test pen are easy to use. Both of them can automatically identify AC or DC voltage, resistance, continuity and select the required range, which greatly improves the testing efficiency. The multimeter can also automatically test AC or DC current.

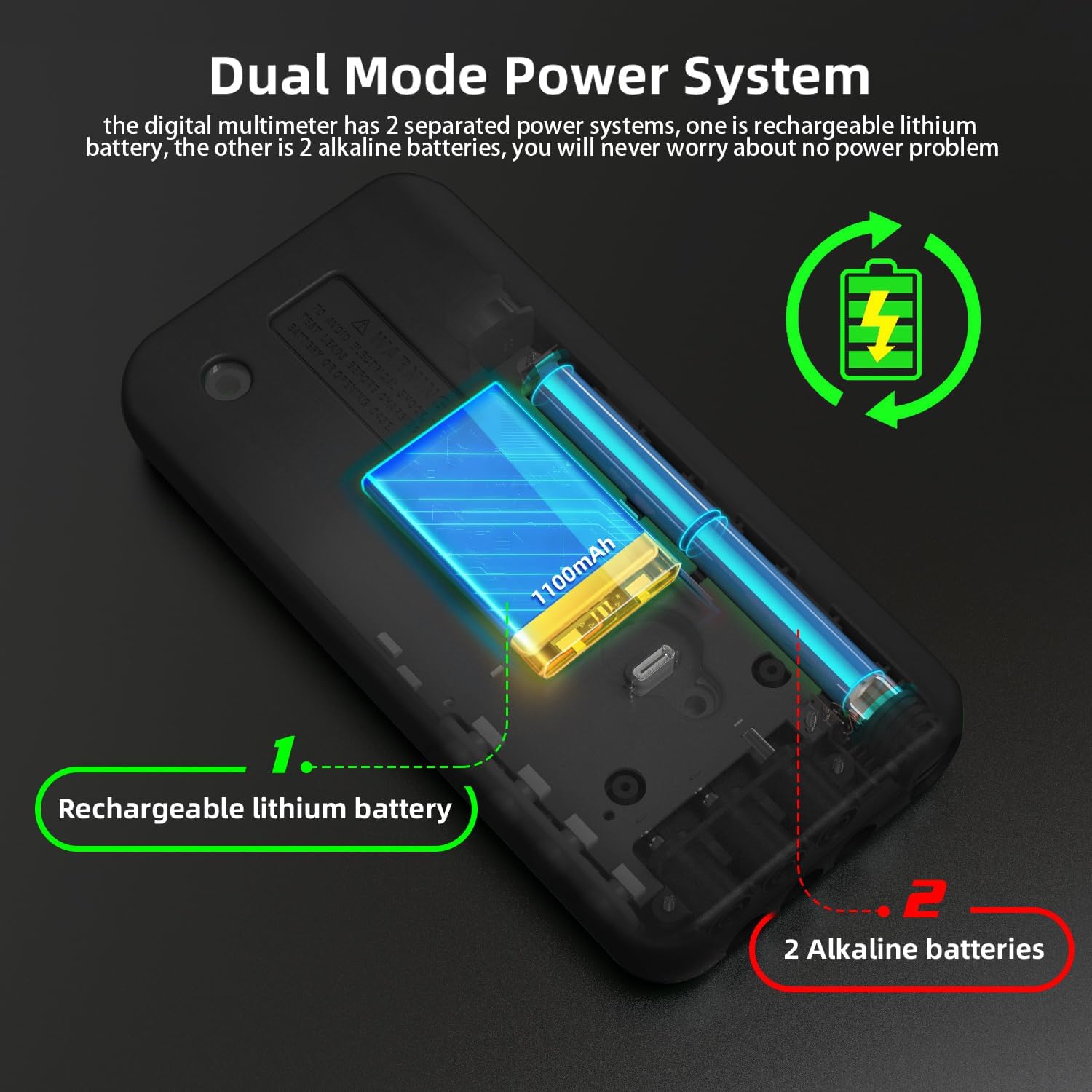

• [Dual Mode Power Supply]: This pocket multimeter is designed with dual mode power supply, rechargeable (built-in lithium-ion battery) or AAA battery power supply, which is very convenient for long time outdoor or emergency use. The electrical test pen comes with two AAA batteries for quick checks.

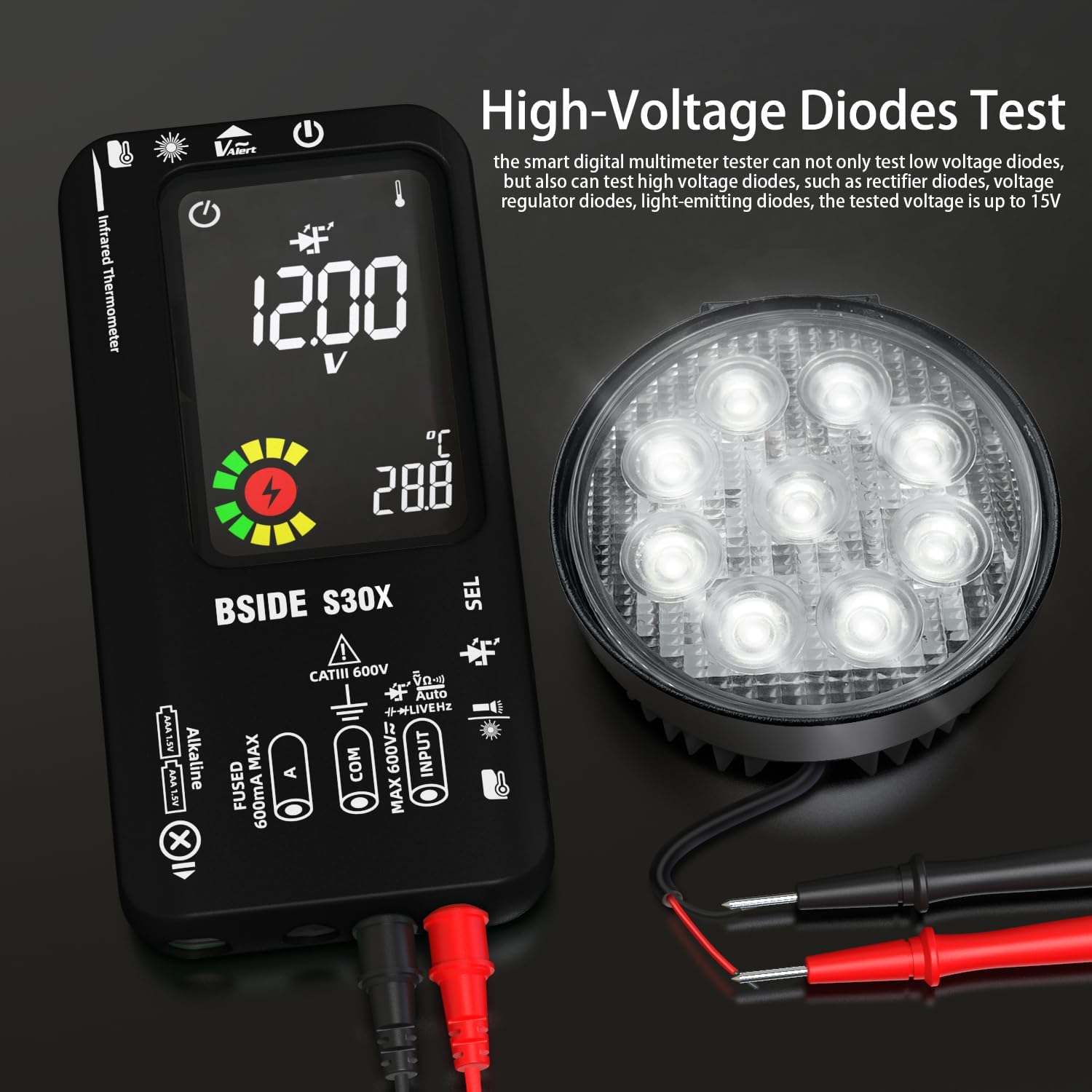

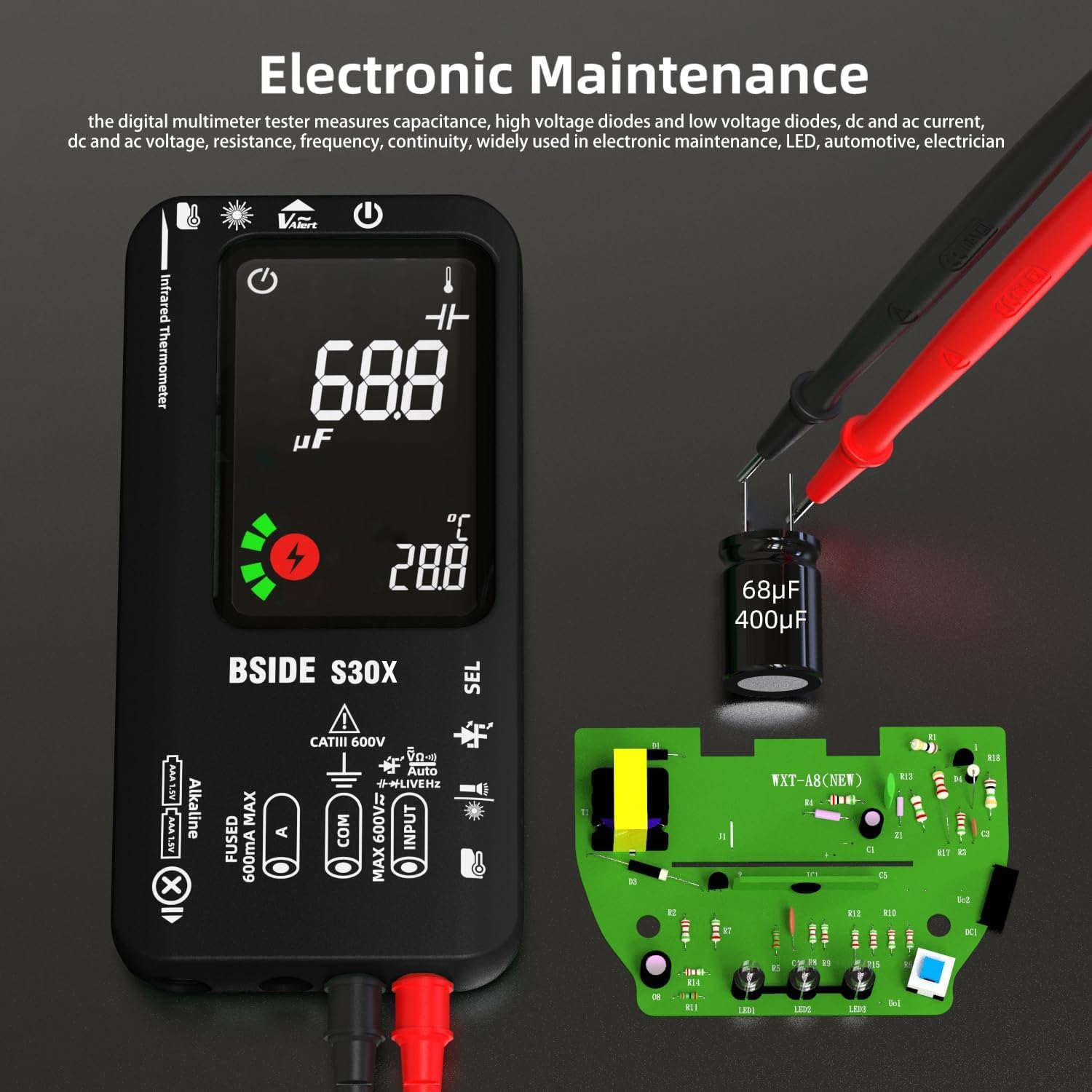

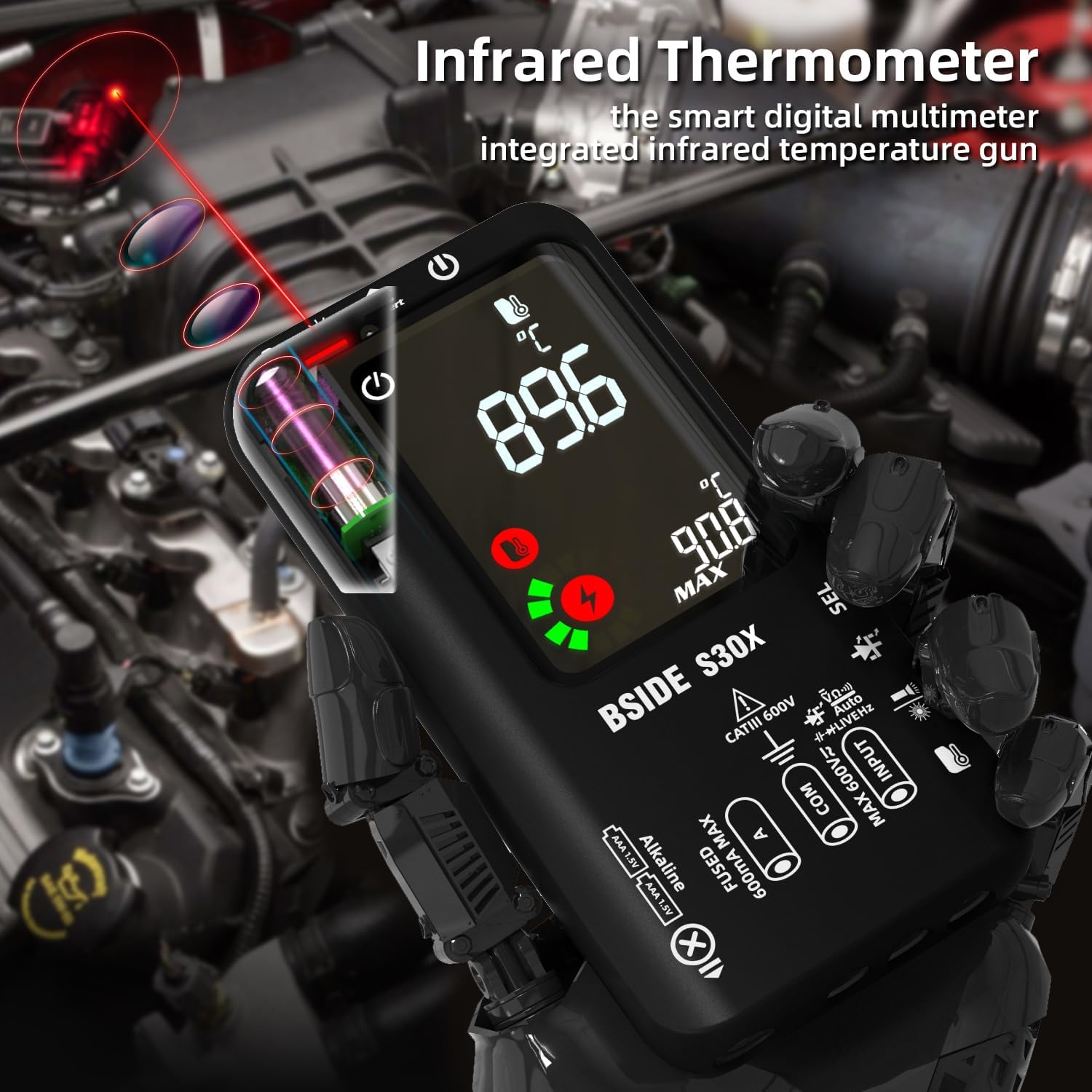

• [Advanced Multimeter]: The multimeter tester features a high-speed chip for faster testing. It can not only measure AC DC current, AC DC voltage, resistance, frequency and continuity, but also test capacitance, low-voltage and high-voltage diodes, find the firewire and zero wire, etc. It also provides non-contact infrared temperature measurement and NCV function. The included crocodile clips can help test LED lamps, small current and other test scenarios.

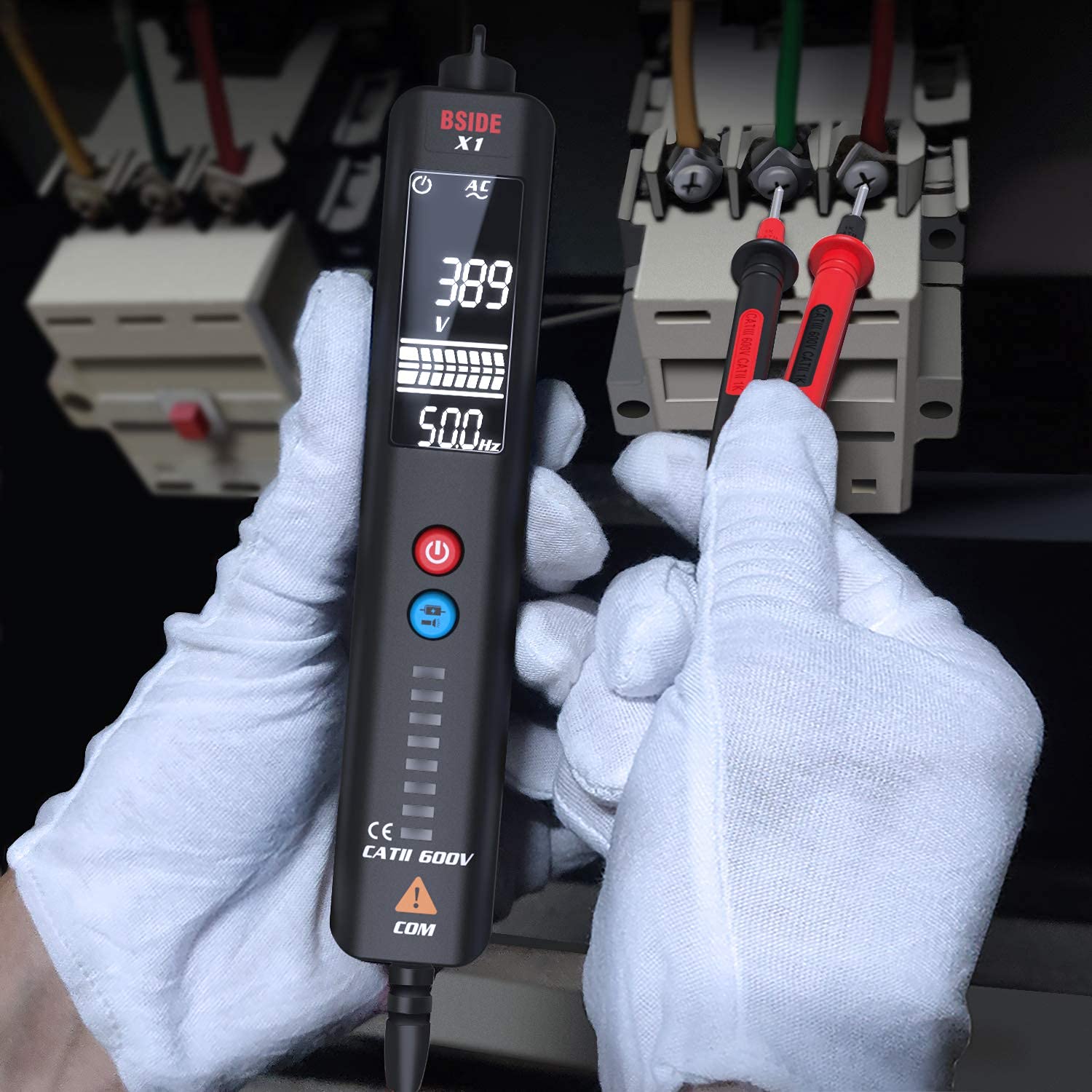

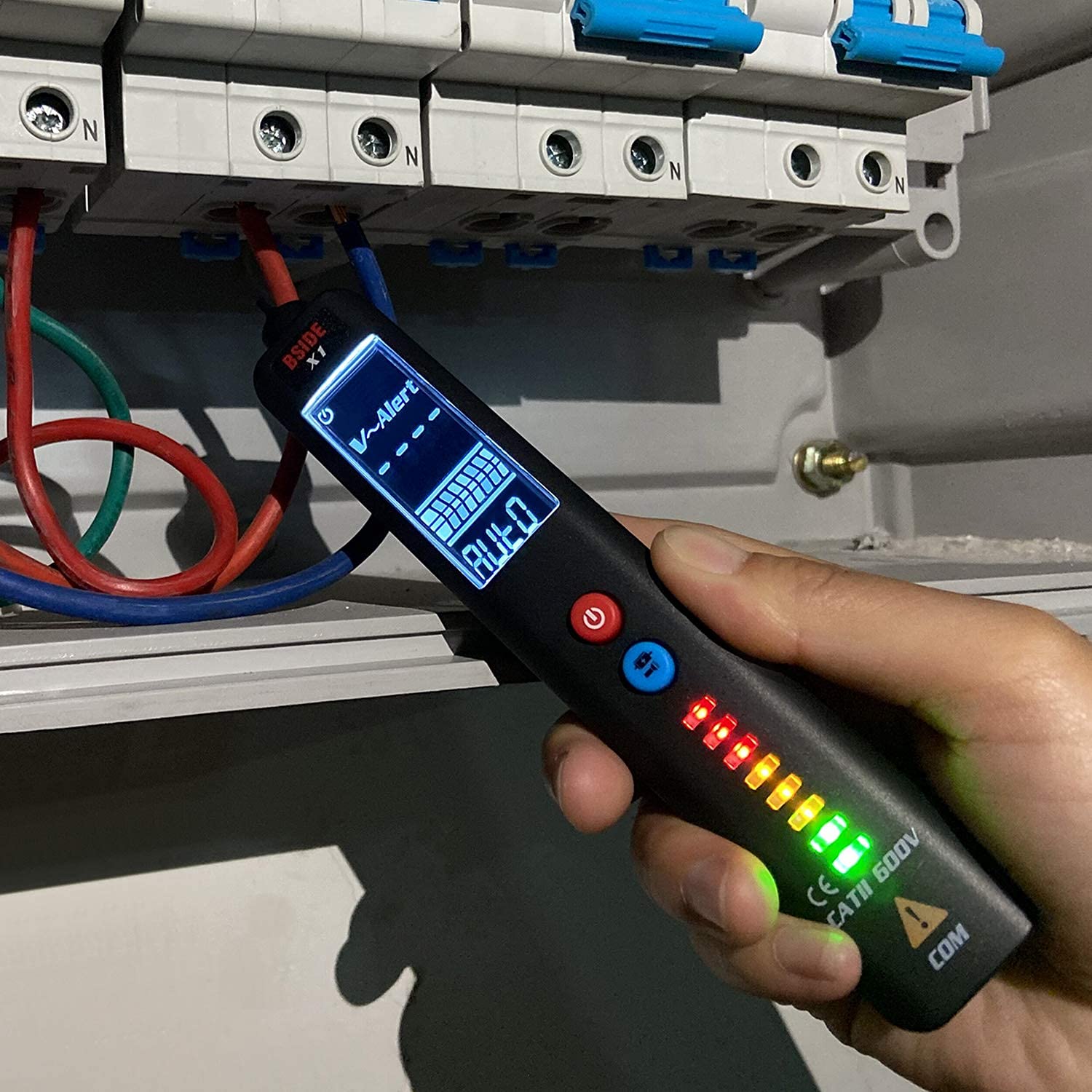

• [NCV with Dual Sensitivity]: The electric tester pen features a high sensitivity chip. It detects AC voltage with precise discrimination between phase and neutral at standard sensitivity when switched on. High sensitivity can be activated with the blue button for different wiring situations, e.g. looking for live wires in walls/ceilings.

BSIDE's newest smart multimeter S30X and classic X1 voltage detector pen set are a must-have for electricians, electrical engineers, workshop DIYers, automotive and lighting overhaulers. Smart Multimeter S30X: Measures: - AC DC voltage, resistance, frequency and continuity in auto or manual mode. - AC DC current automatically. - Capacitance, low voltage diodes - High voltage diodes. Other functions: Non contact temperature measurement Live wire search with single test lead Non contact voltage detecting with buzzer Multi tester with laser pointer, flashlight Large colour LCD with 3 testing results Auto switch-off, low battery indication Anti-burnout ceramic fuse, replaceable Display: 9999 counts AC DC Voltage: 0-620V AC DC Current: 1-610mA Resistance: 0-9.999MΩ Capacitance: 0.5μF-9999μF Frequency: 10-1000Hz Temperature IR: -20℃-400℃ Low voltage diode: less than 2V High voltage diode: up to 15V Continuity: Yes Power: Rechargeable or 1.5V (AAA) x 2 Weight: 245g Pen Multimeter X1: AC/DC voltage, resistance, continuity automatic test. NCV with adjustable sensitivity for AC voltage 90V-1000V/6V-1000V Low sensitivity for accurate identification of complex lines High sensitivity for easy detection of electrical wires in wall 8 LEDs in 3 colours to differentiate the intensity of tested voltage. Live/neutral wire check, breakpoint finder. EBTN LCD display with 3 test results Flashlight, Auto power off Power supply: 2 x battery AAA 1.5V DC Voltage: 0.5-500V AC Voltage: 1-500V Resistance: 10MΩ max Frequency: 40Hz-1000Hz Continuity: Yes Power: 1.5V (AAA) x 2 Weight: 93g Package Includes: Smart Multimeter S30X Pen Electric Tester 2 x AAA battery 2 x Test leads 1 x Alligator clips Charging Cable Carrying Cases English User Manual
