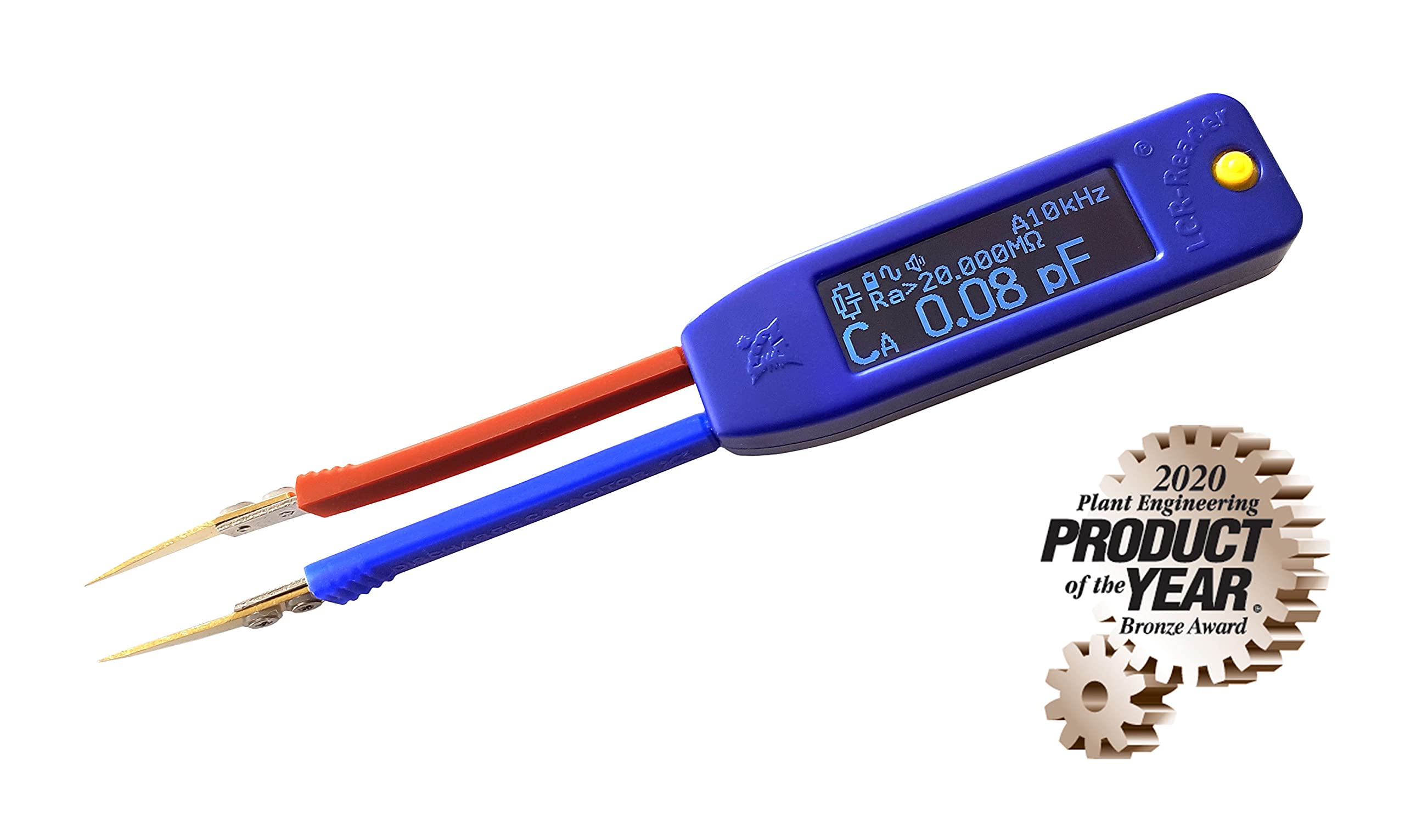

Digital Multimeter LCR-Reader-MPA: LCR-, ESR-, Voltage/Current-, Frequency-, meter, Diode/LED Tester, Oscilloscope (Black)

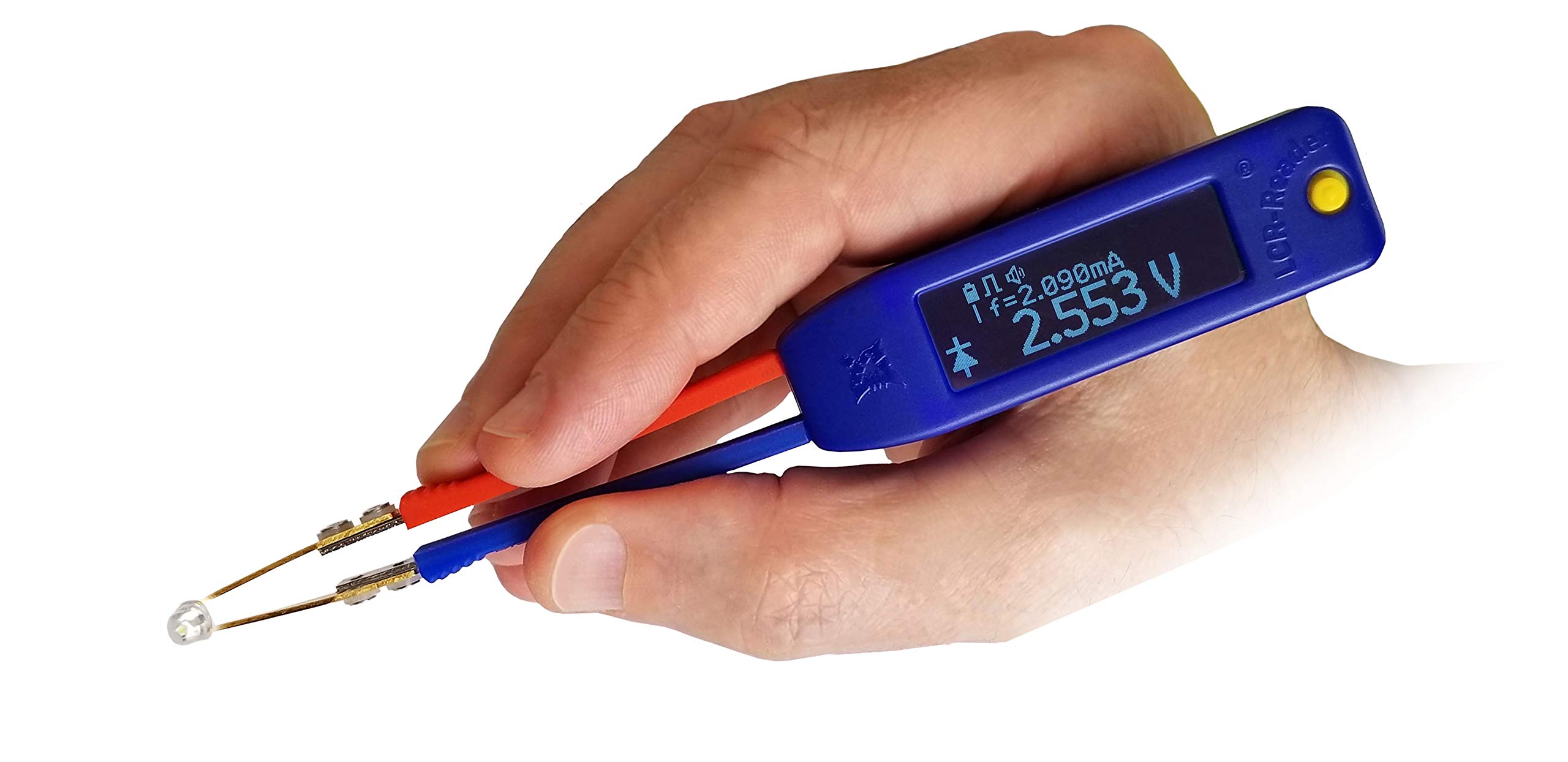

• Fully automatic and manual LCR-ESR, LED/Diode, AC/DC voltage/current measurments
• 0.1% Basic Accuracy
• Test Frequencies from 100 Hz to 100 kHz
• Oscilloscope test mode up to 100 kHz
• Large and Super Capacitance Testing to 1F

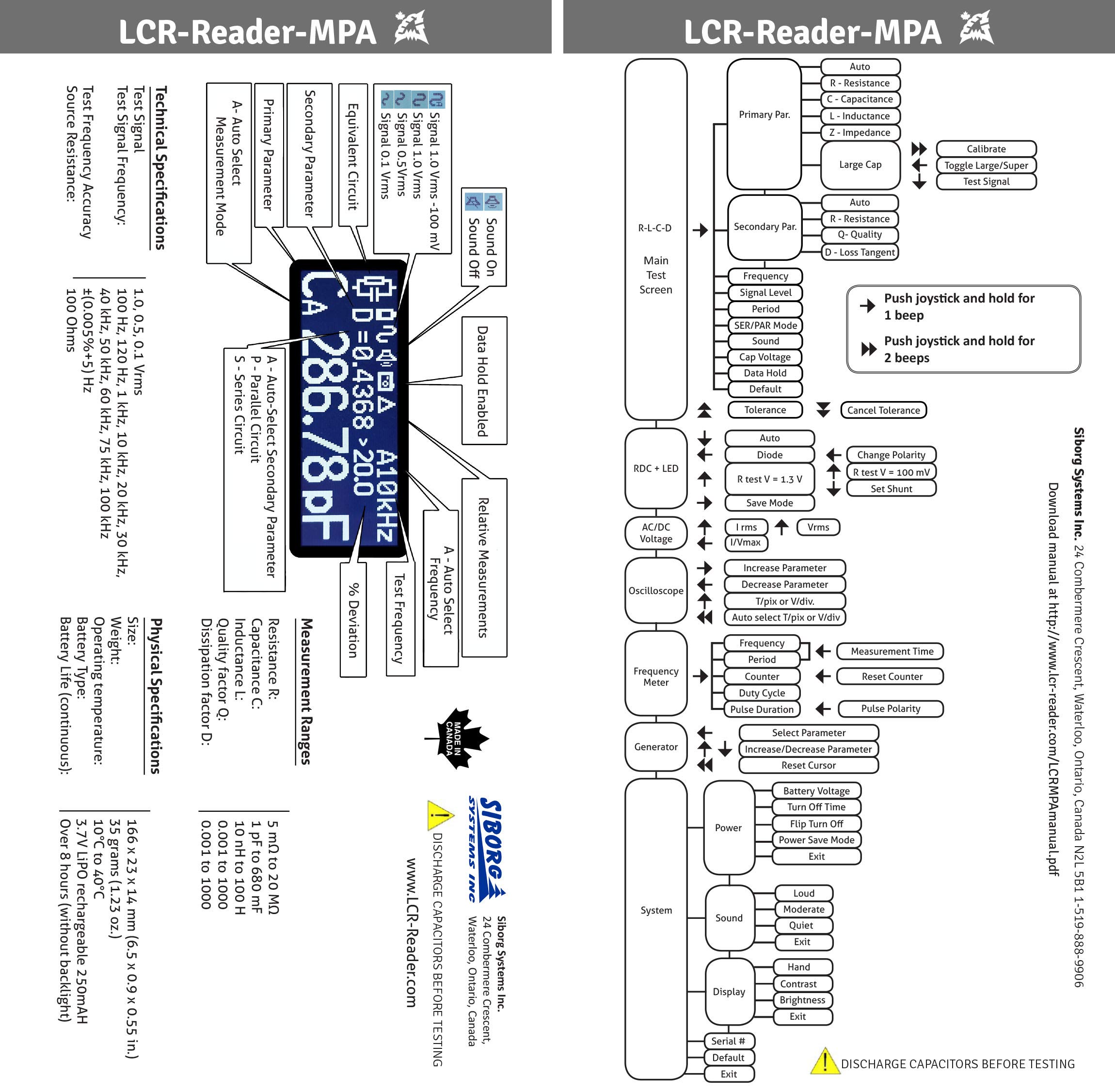

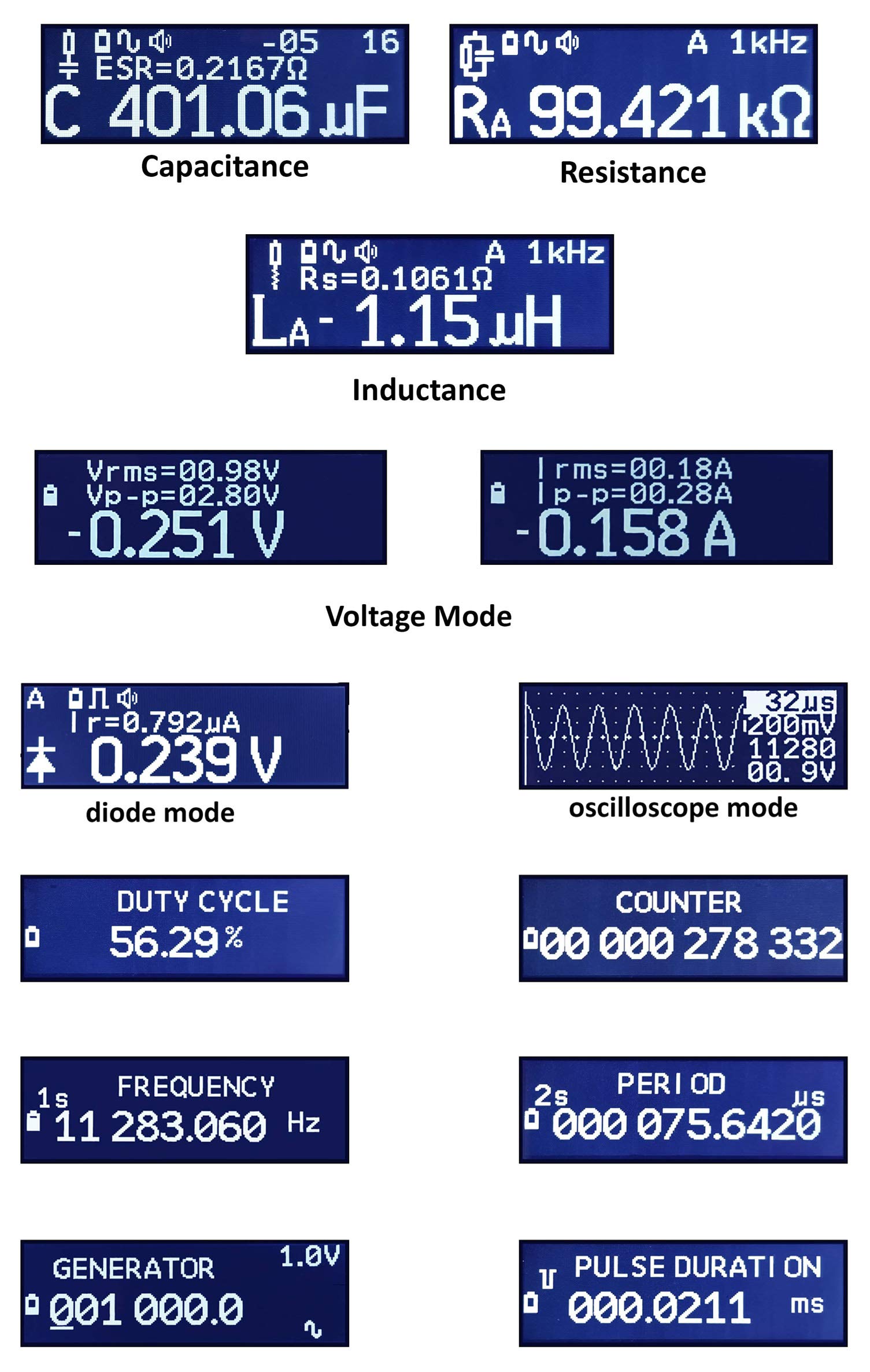

LCR-Reader-MPA is a fully automatic and manual multi tester with 0.1% basic accuracy with a wide selection of test functions and features including 100 kHz test frequency. When set to ‘Auto mode’, MPA automatically determines the type of component and best test parameters before measuring with high accuracy. All measurement values are instantly displayed. MPA is well suited for virtually any task involving SMT or PBC debugging. It is an exceptional tool for testing large Capactiances up to 1F. Electrolytic capacitors are measured at 120 Hertz with ESR measured a 100 kHz in accordance to regular electrolytic capacitor test conditions. When the device is in ‘Large Cap. Mode’ it will automatically reduce the test frequency to 25 Hertz, thus being able to measure very large caps with reasonable accuracy. An Oscilloscope mode allows to analyze voltage waveforms with frequencies up to 100 kHz on active circuit boards. This mode, while used with the LCR-Reader Kelvin Probe Connector, turns the MPA into a low-frequency probe station. Features: Fully automatic & manual LCR, ESR, LED/Diode measurements 0.1% Basic Accuracy Automatic & manual test frequencies; including 100, 120 Hz, 1, 10, 20, 30, 40, 50, 60, 75 & 100 kHz Test signal levels of 0.1, 0.5 & 1.0 Vrms Easy Open/Short Calibration and offset removal AC/DC voltage measurements up to 15 V AC/DC current measurements LED testing with 3.2 Volts Signal Generator with Sine wave up to 100 kHz Oscilloscope Transient Voltage up to 100 kHz 100 Ohms Signal Source Resistance Displays active & reactive impedance components Backlit LCD display Gold-plated test leads 1 oz. weight Li-Po battery & micro-USB charging port Handles components to 0201 size 4-way joystick navigation button
