Digital Force Gauge, Digital Pressure Push Pull Tester Dynamometer

• S-TYPE LOAD CELL for PUSH & PULL TESTING:This digital force gauge features an external S-type sensor for accurate tension and compression measurement, making it ideal for pull, push and mechanical force testing

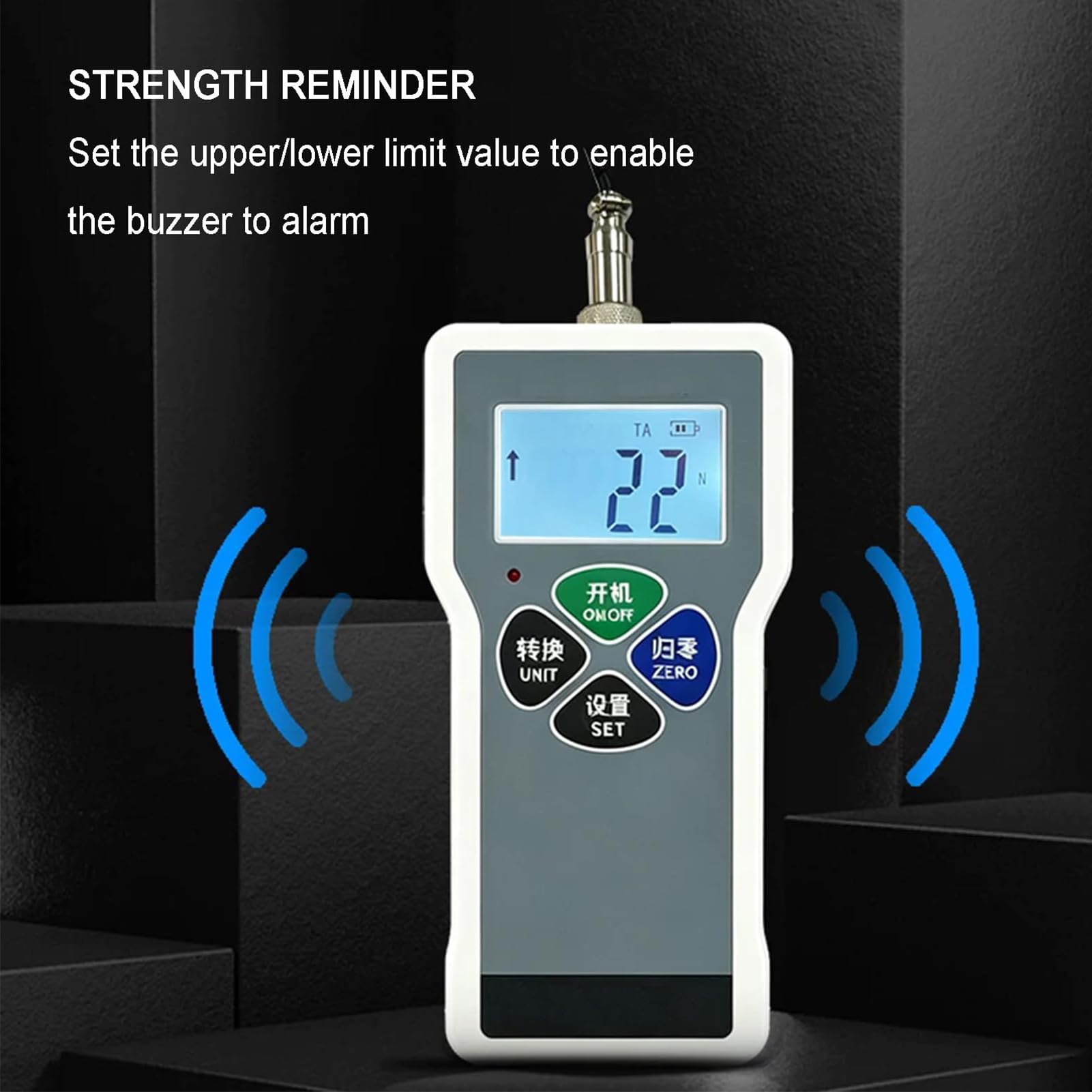

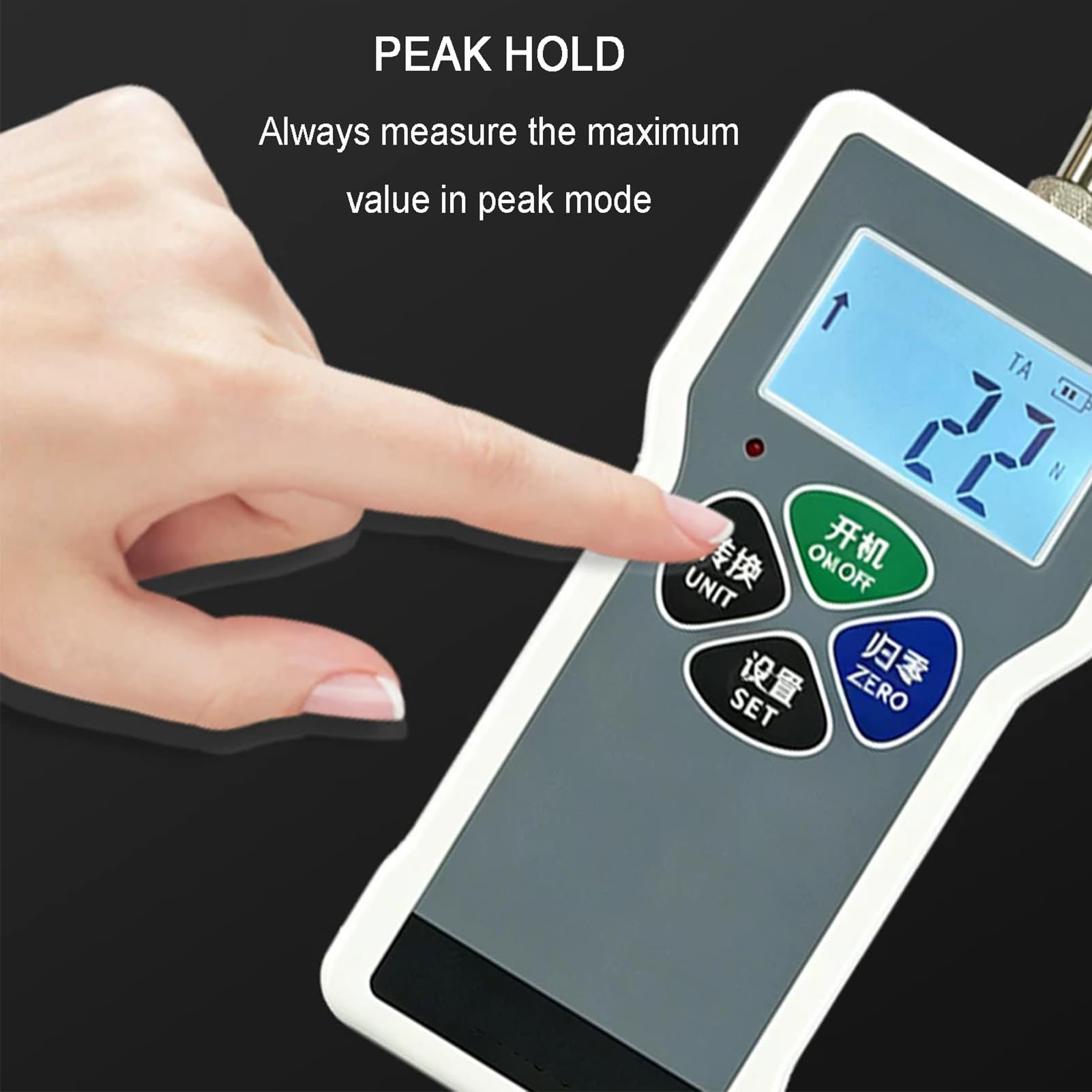

• PEAK HOLD & LIMIT ALARM:This s-type external load cell tester peak hold captures and retains the maximum force value for quick review. Set upper and lower tolerance limits with the comparison function; an alarm alerts you when readings exceed the preset range

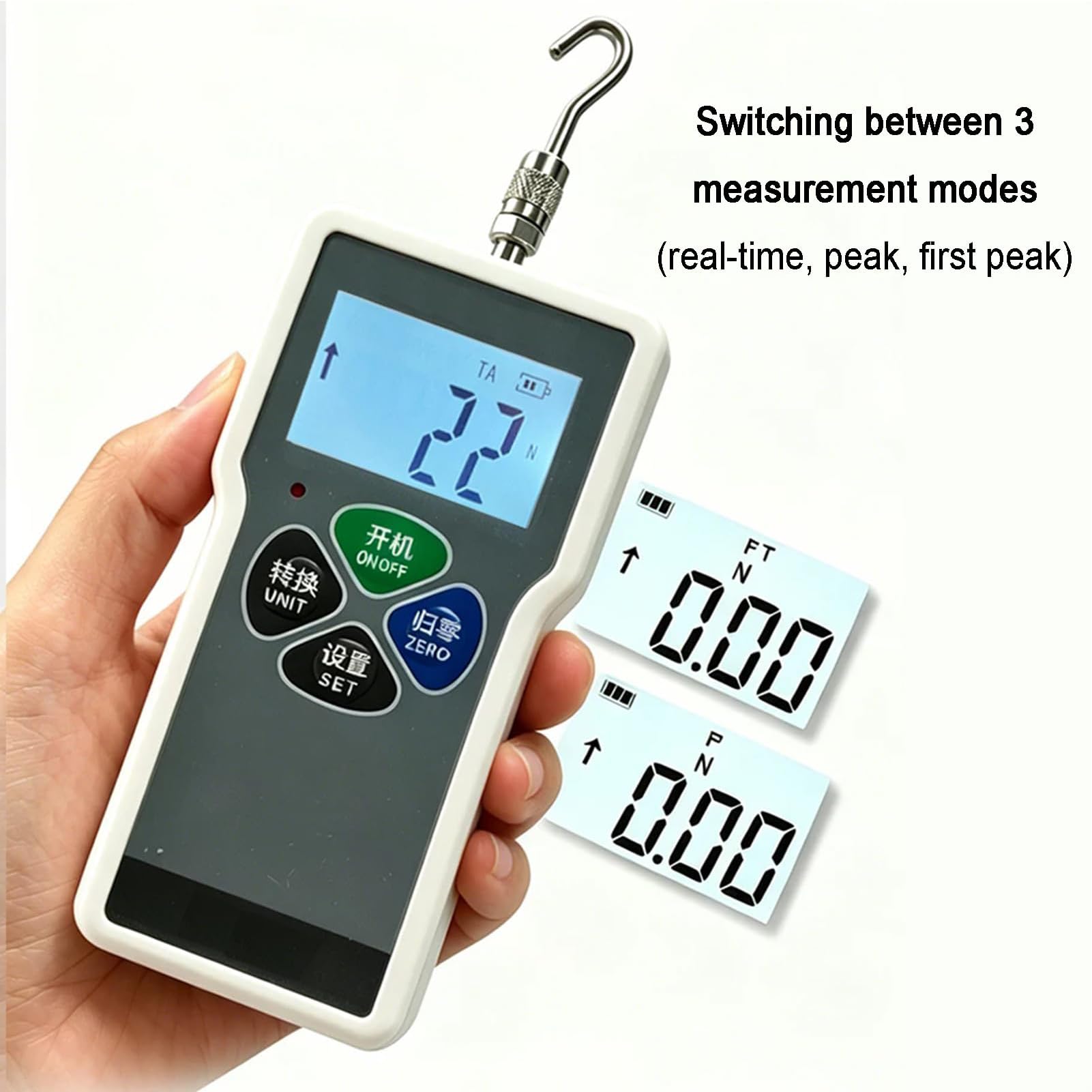

• 3 MEASUREMENT MODES:The digital push pull force gauge choose Real-Time Mode for continuous monitoring, Peak Mode for maximum force capture, or First Peak Mode for recording the initial peak during dynamic testing

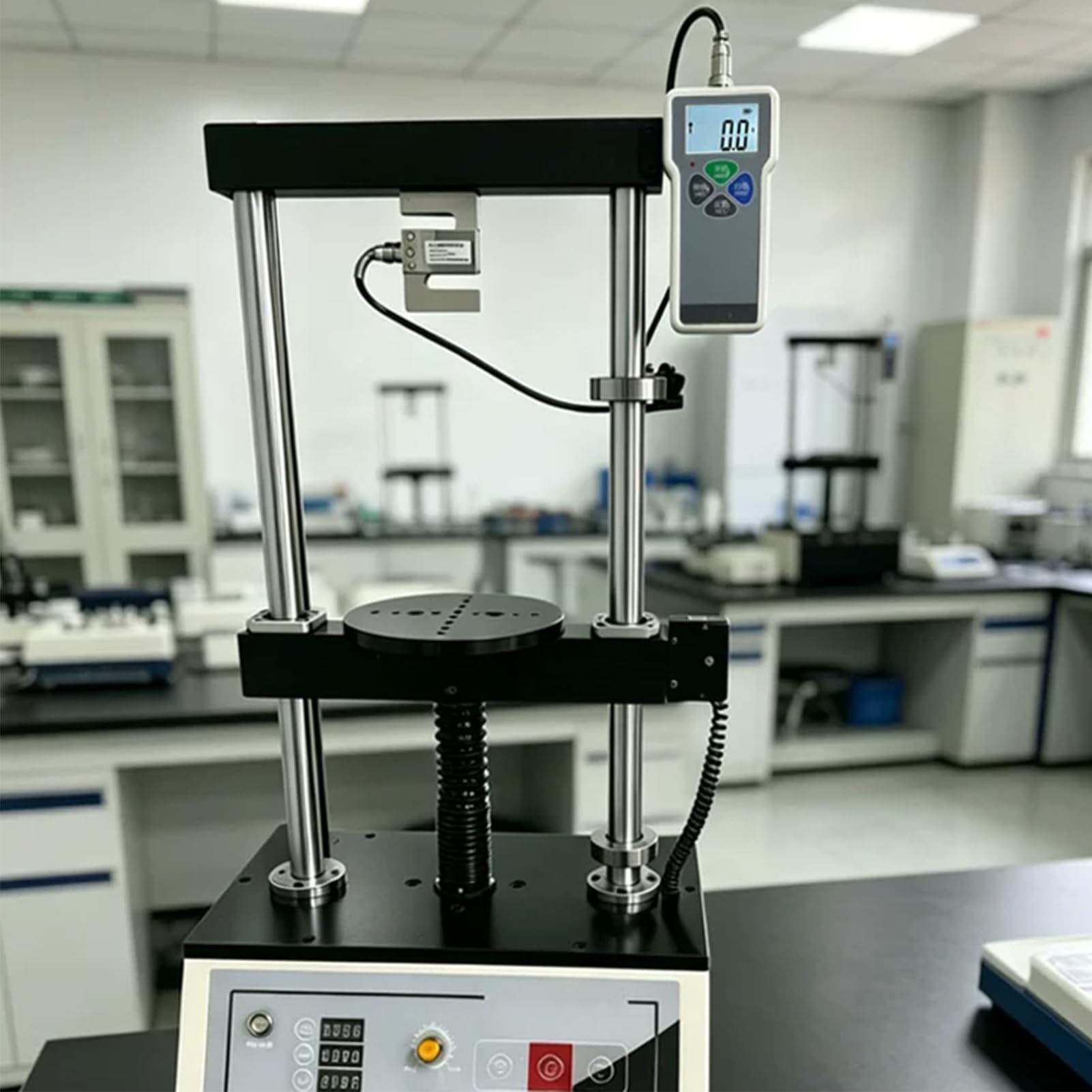

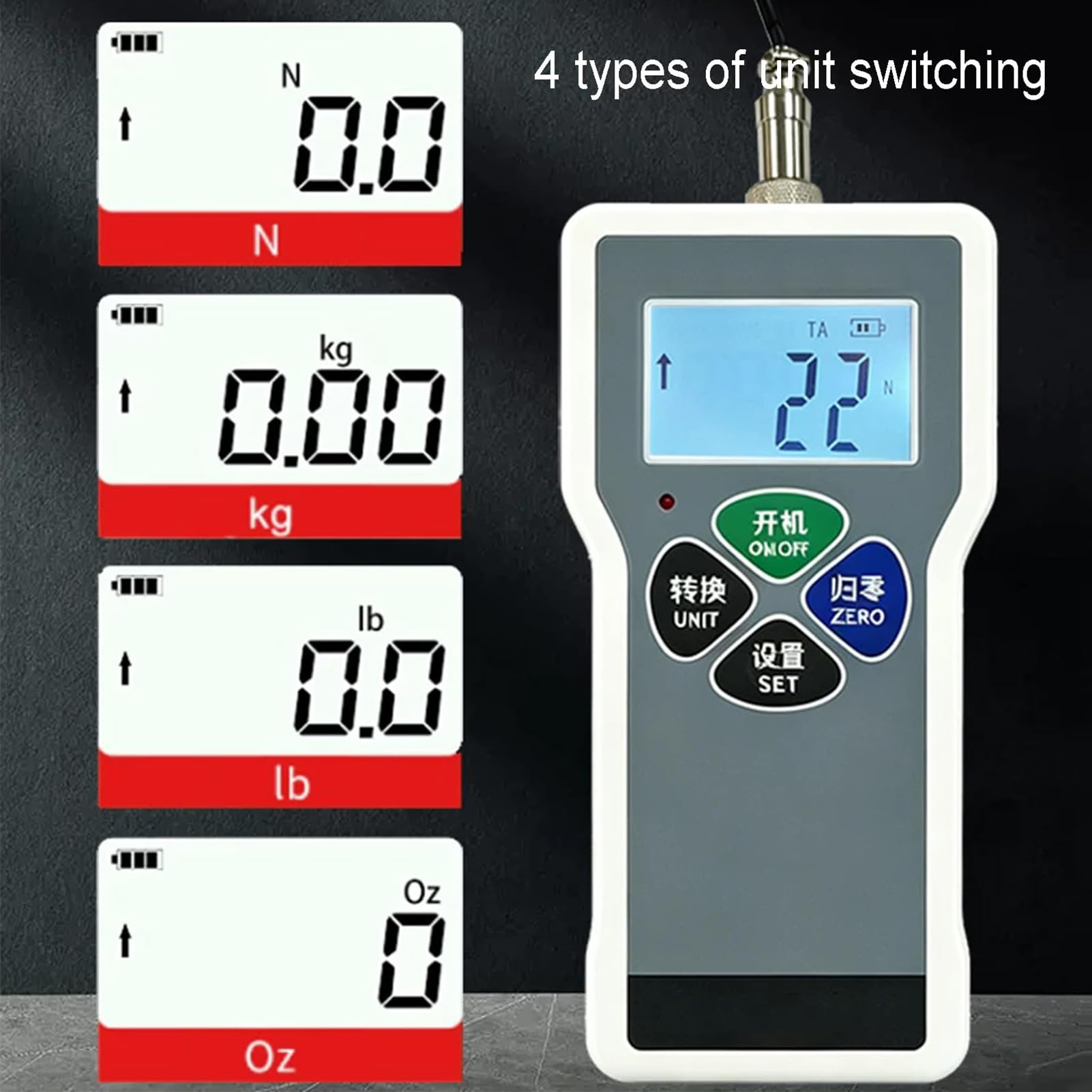

• 4 UNITS & 180° FLIP DISPLAY:This digital manometer easily switch between N, kgf, lbf and ozf. The clear LCD screen rotates 180° for convenient reading when used handheld or mounted on a test stand
• WIDE APPLICATIONS:This pressure gauge Ideal for push/pull, insertion, extraction and destructive tests. Suitable for automotive parts, electronics, hardware, textiles, light industry, manufacturing, quality control and laboratory testing

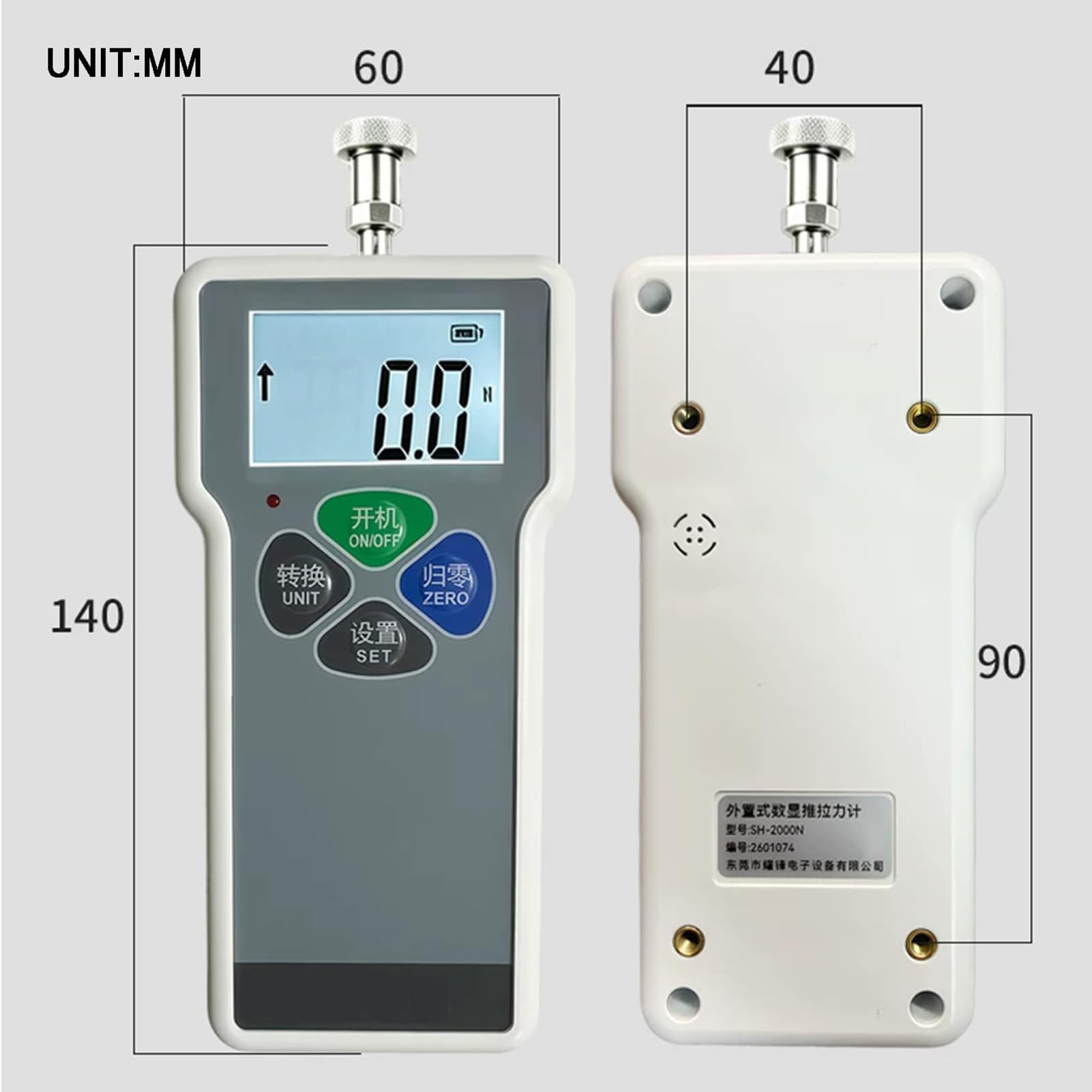

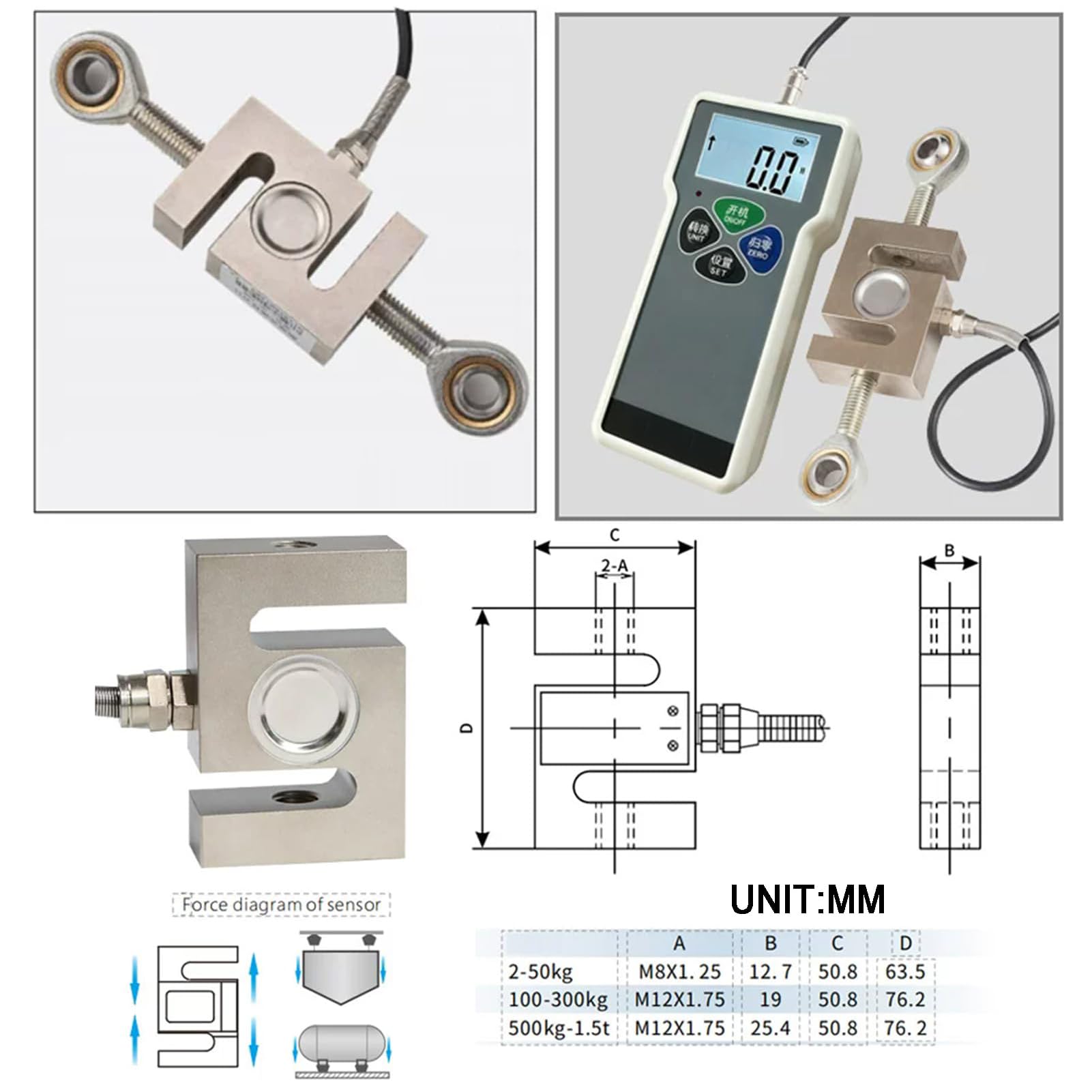

The S-Type Digital Push Pull Force Gauge is a professional-grade measuring instrument designed for accurate tension and compression force testing across industrial, laboratory, and QC applications. Featuring an external S-type load cell with ±0.5% FS accuracy, this versatile gauge handles both pull and push forces with exceptional reliability. Specifications: Name:Digital Push Pull Force Gauge Sensor Type: S-Type External Load Cell (Bidirectional: Tension & Compression) Accuracy: ±0.5% FS Resolution: 0.1N Measurement Modes: Real-Time, Peak, First Peak Units: N, kgf, lbf, ozf (Switchable) Display: LCD with 180° Flip Function Special Functions: Peak Hold, Auto-Release, Upper/Lower Limit Comparison with Alerts Power Supply: Rechargeable Size: 60*140mm Back installation size: 40*90mm Package List: 1 * Digital Push Pull Force Gauge 1 * S-Type External Load Cell
