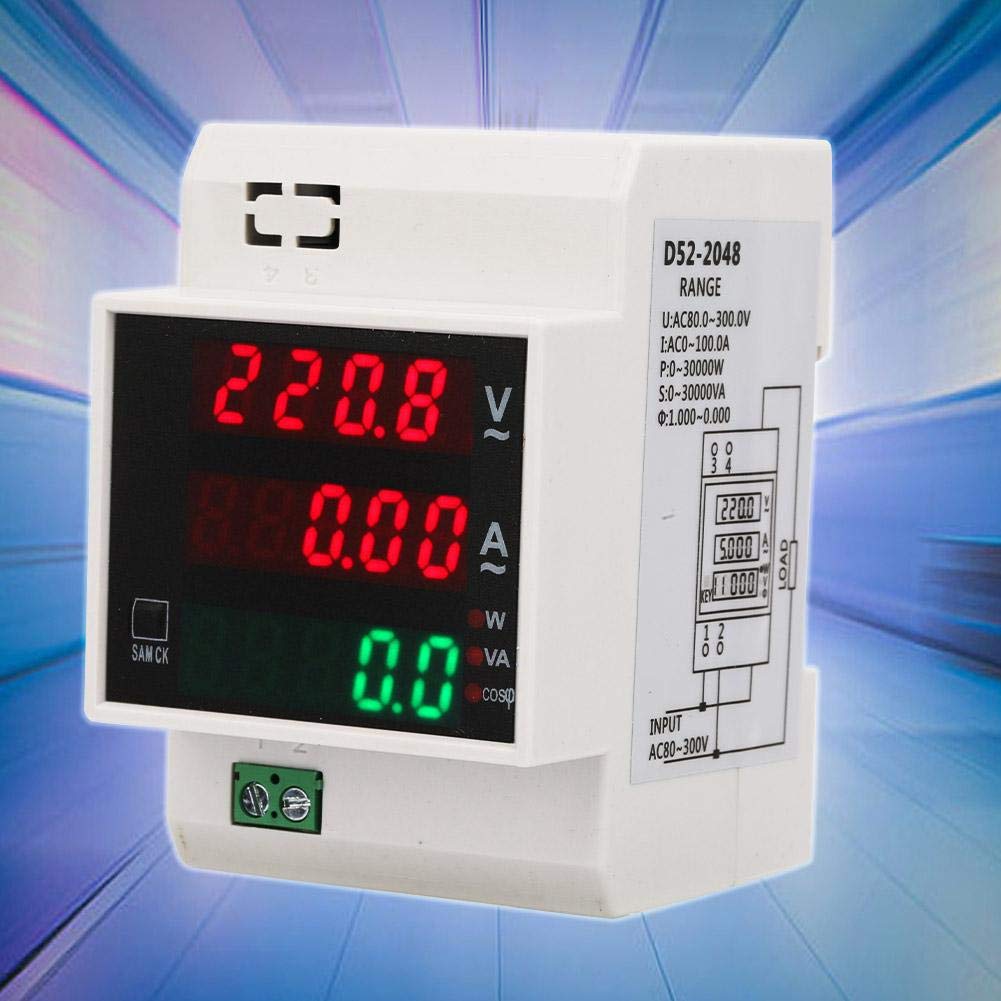

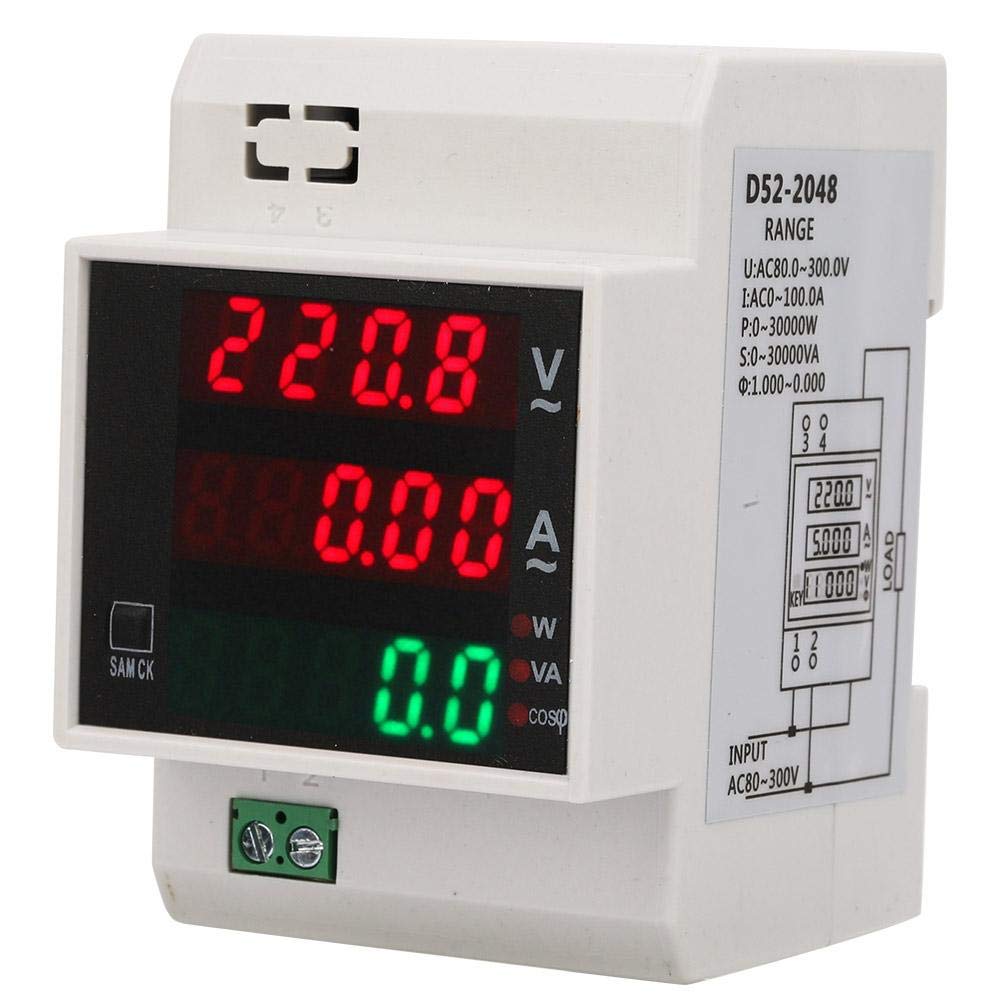

Digital Energy Meter LED Active Power Factor Multi-Functional Power Met(AC80-300V 100A)

• Multi-functional digital-display meter can measure the AC voltage and current, active power, apparent power and power factor at the same time.

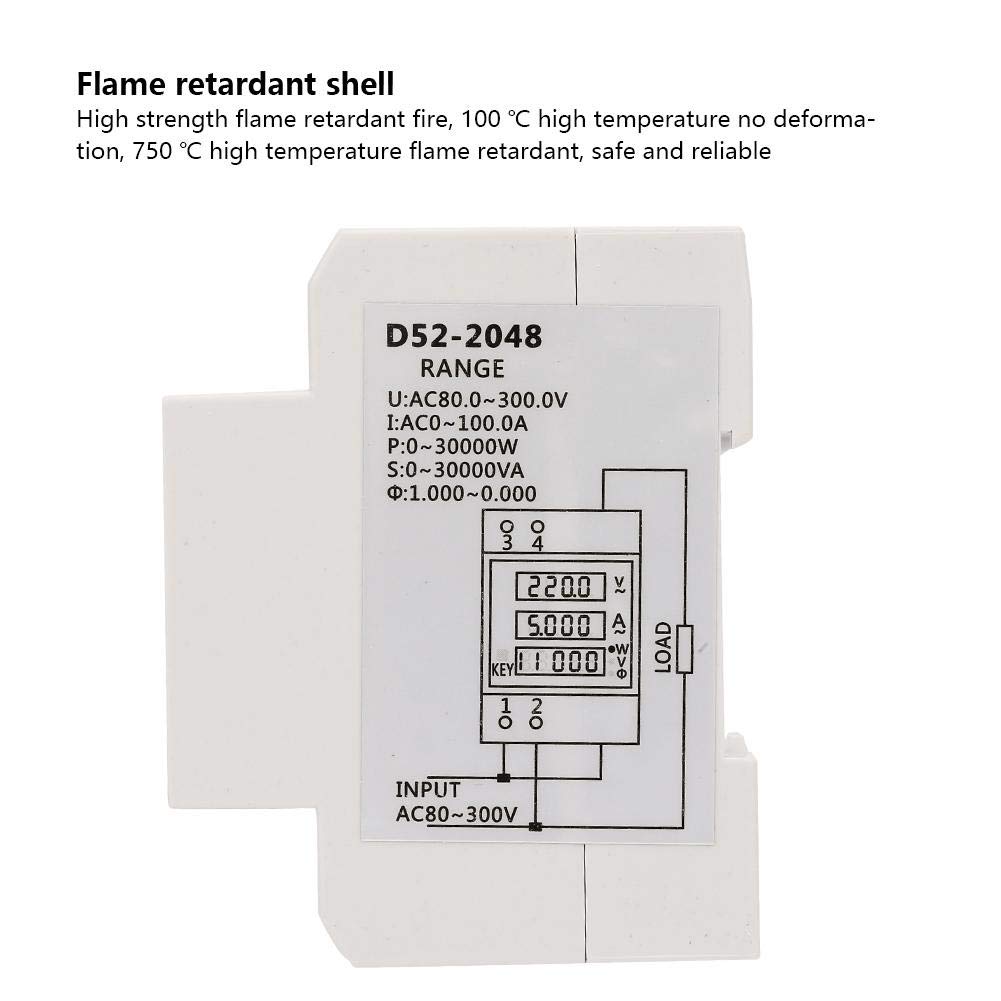

• Adopting high strength fire retardant material, safe and

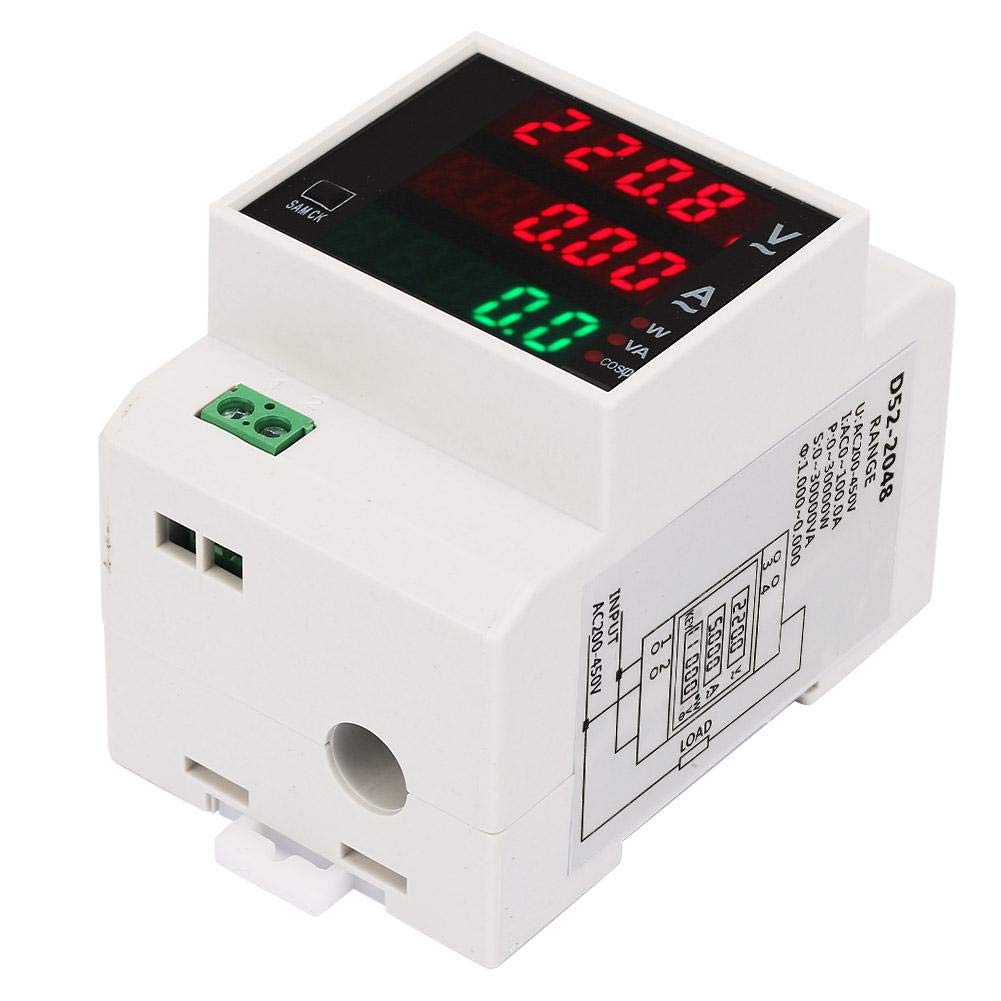

• High measurement accuracy, stable performance.Simply pass the wire of the measuring loop through the small round hole on the right side of the meter to complete the measurement.
• Compact size and sturdy structure, easy installation.
• No external AC transformer is required for measuring current within 99.9A.

Features: 1.Multi-functional digital-display meter can measure the AC voltage and current, active power, apparent power and power factor at the same time. 2.Adopting high strength fire retardant material, safe and reliable. 3.High measurement accuracy, stable performance. 4.Compact size and sturdy structure, easy installation. 5.No external AC transformer is required for measuring current within 99.9A. 6.Simply pass the wire of the measuring loop through the small round hole on the right side of the meter to complete the measurement. Specification: Measurement voltage: AC80-300V, AC200-450V (Optional) Measuring current: AC100A (additional transformer is required if it is greater than 100A) Power supply: no power supply is required Measurement accuracy: 0.5% Overall dimensions: 54 * 80 * 64mm / 2.1 * 3.1 * 2.5in  Installation: 35mm din rail installation Package List: 1* Multi-Functional Meter
