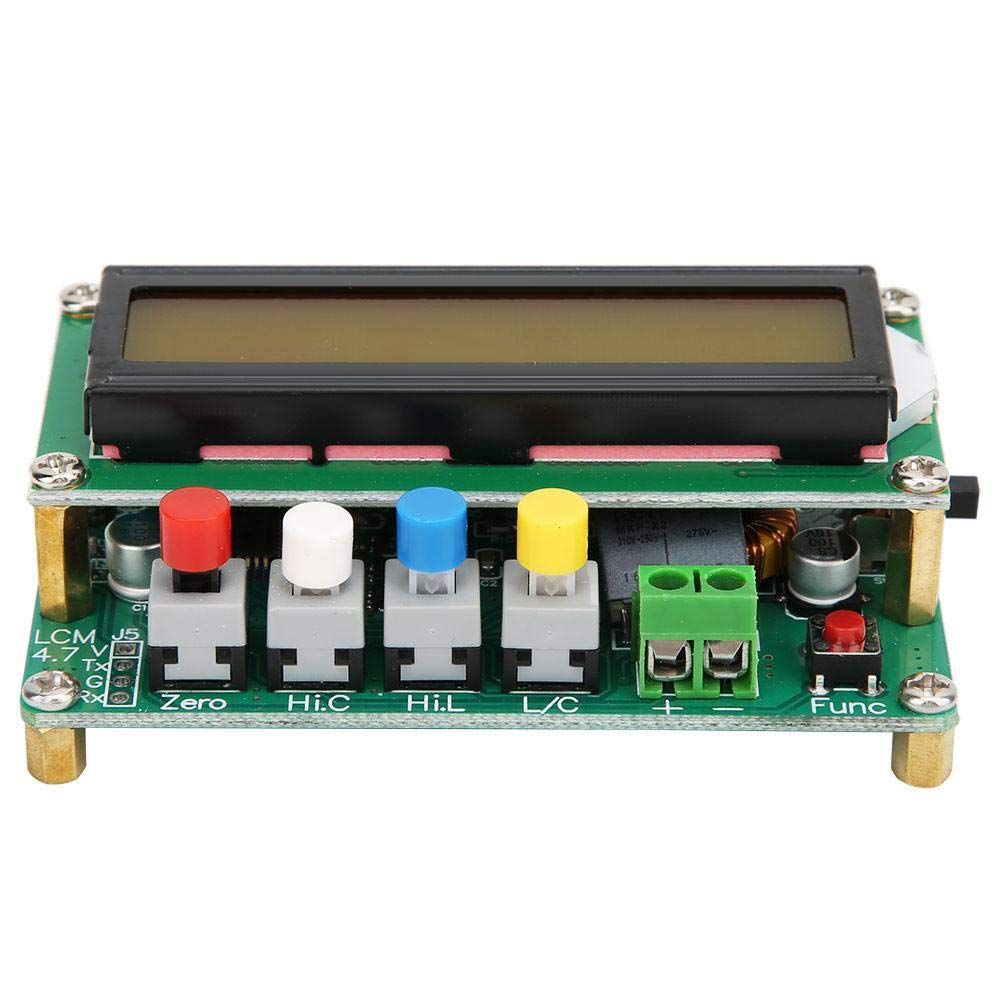

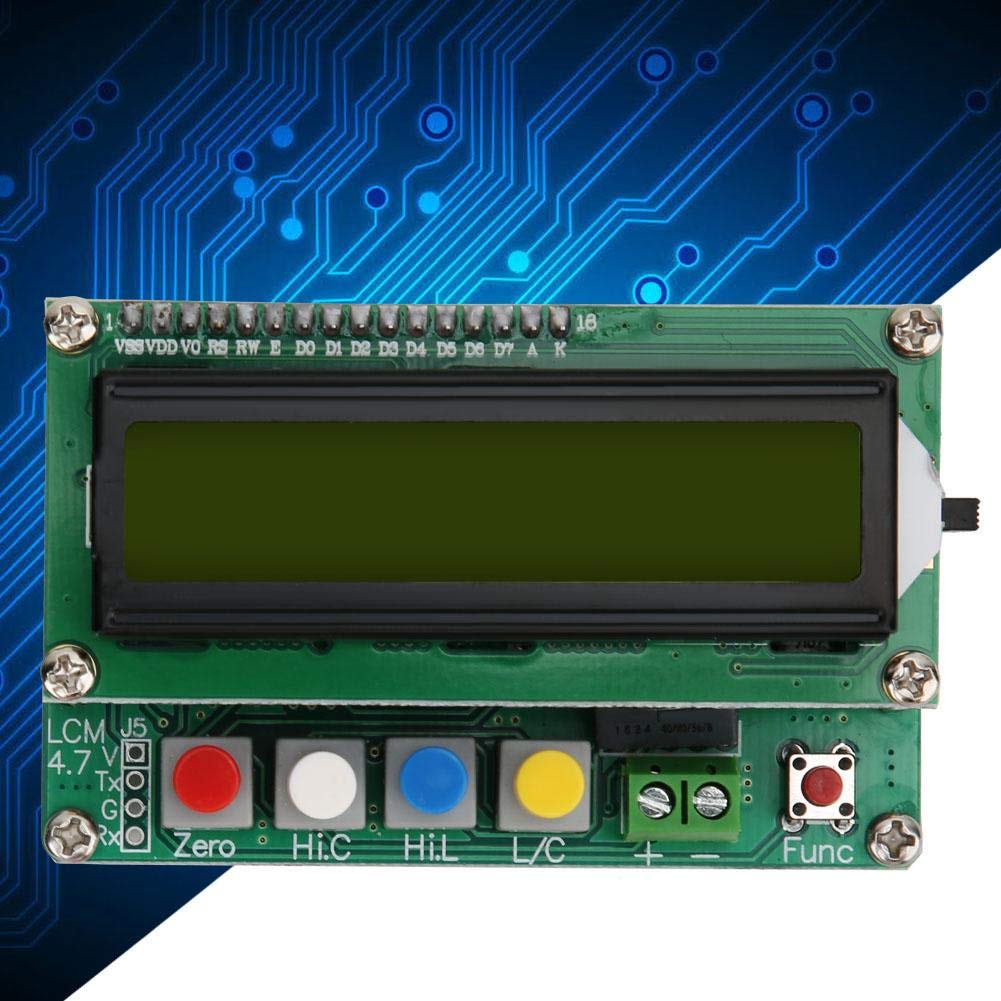

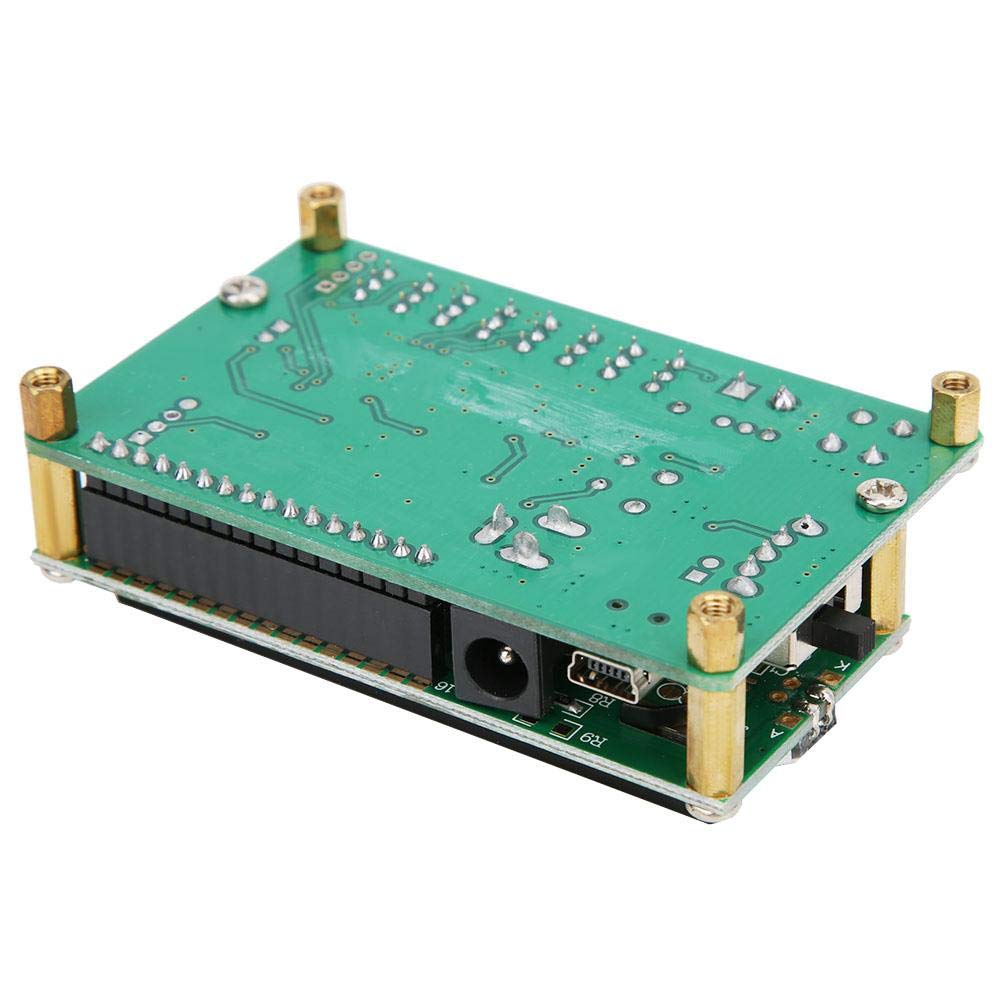

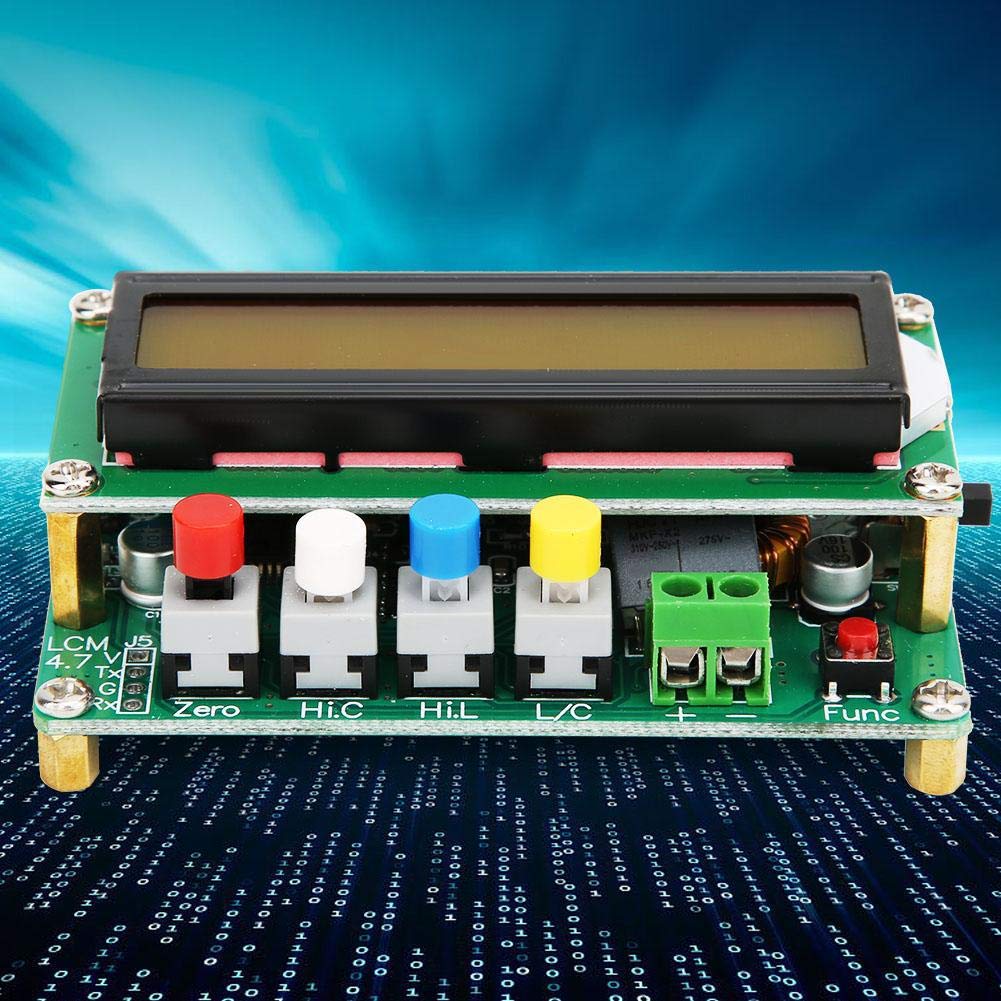

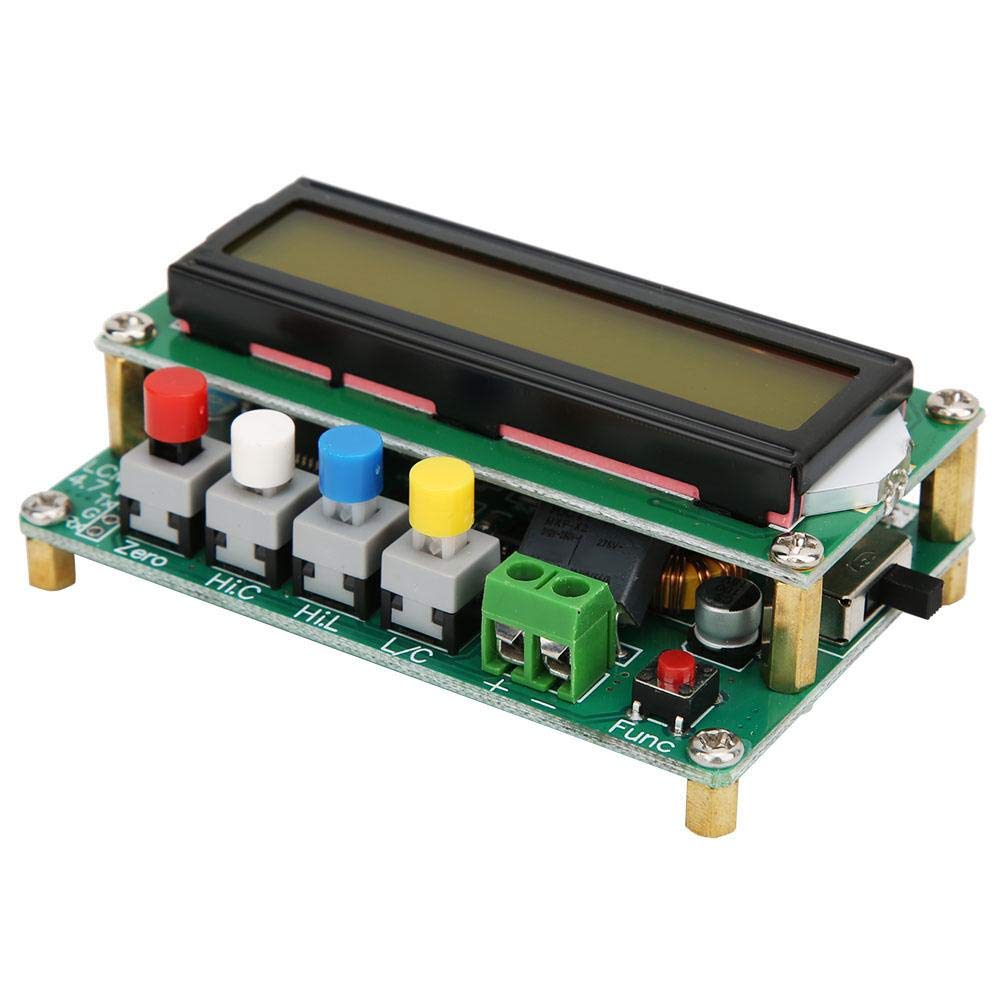

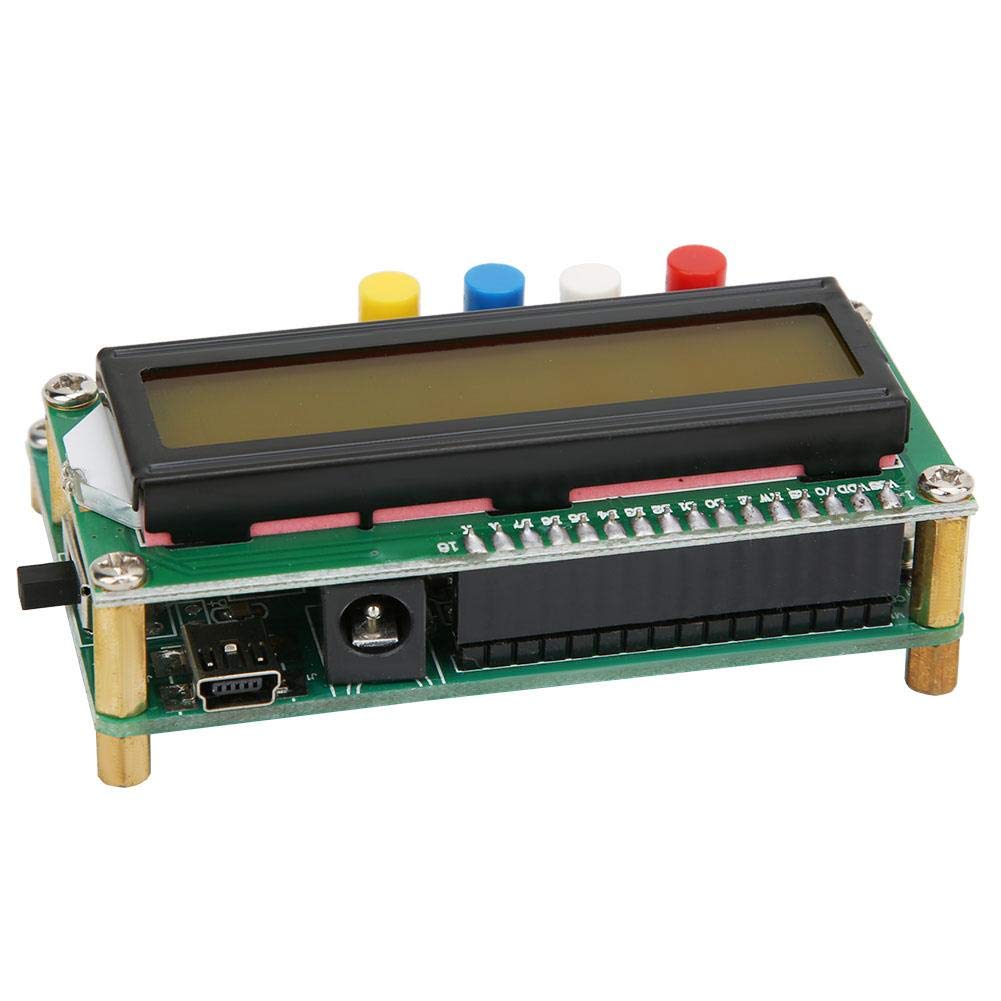

Digital Capacitance Inductance Meter Module, 1pF~1uF 1uH~100H High Accuracy Inductance Capacitance Multimeter, Capacitance Meter

• Capable of measuring inductors below 1uH and capacitors less than 1pF.
• Wide measurement range and high accuracy.
• Small size, light weight, easy to carry.
• The frequency display function can view the current measurement frequency while measuring the component to be tested.
• With four measuring gears, it is easy to use.

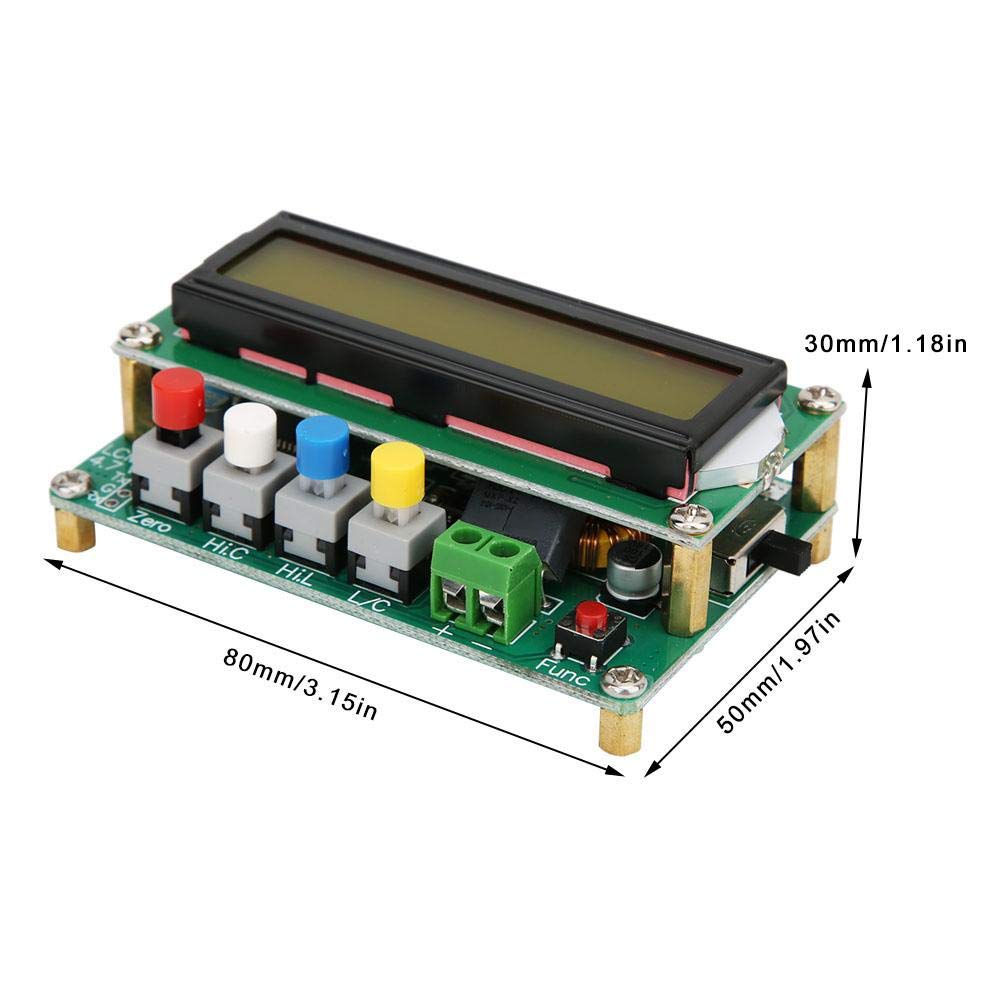

Specification: Item Type:Power Meter ModuleThe main function 1, measurement function C level ------ capacitance level (0.01pF~10uF) L level ------Inductive level (0.001uH~100mH) Hi.L level ---large inductance level (0.001mH~100H) Hi.C level ---large capacitance level (1uF~100mF) 2, clear correction function Capacitor mode ----- Open circuit correction; Inductance mode ----- Short circuit correction. 3, display mode Direct reading ---- Direct reading display.ProjectParameterCapacitance Measurement (C Level)Accuracy1pF~luF0.011uF~10uF0.05Resolution0.01pFInductance Measurement 1 Level)Accuracy1uH~100mH0.01Resolution0.001uHLarge Inductance Measurement (Hi.1 Level)Accuracy100mH~1H0.011H~100H0.05Resolution0.001mHLarge Capacitance Measurement (Hic Level)Accuracyu~100mf0.05Resolution0.01uFTest FrequencyL Level,C Level500kHzHi. C Level500HZ~50KHzInductance, capacitance and large inductance measurementLC resonanceLarge capacitance measurement methodCharge and dischargeDisplay method1602 LCD screenEffective display digit4Power supply interfaceMiniUSB and 5.5DC socketSupply voltage5VProduct Size80 x 50 x 30mm / 3.15 x 1.97 x 1.18inProduct weight80g (Main Unit) + 28g (MiniUSB cable) Package List: 1 x Meter 1 x Data Cable 1 x Red Crocodile Clamp 1 x Black Crocodile Clamp
