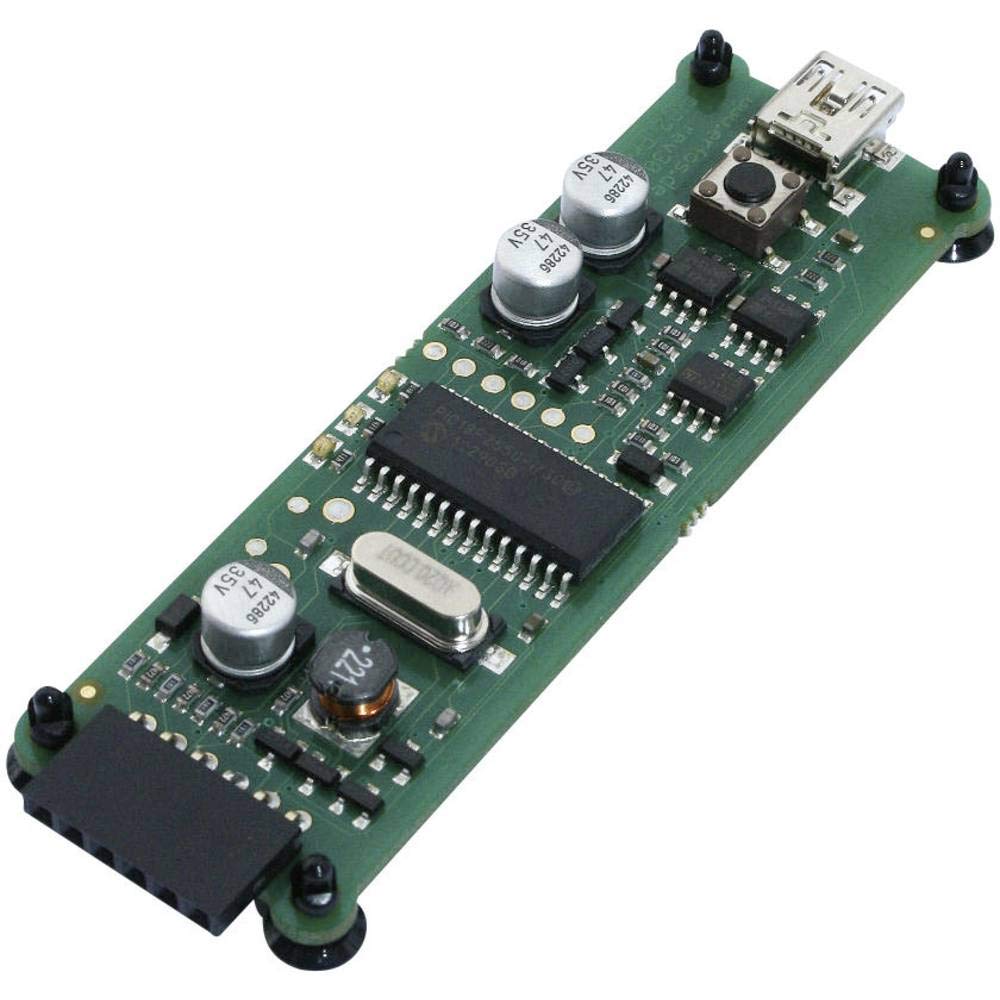

Diamex Pic-Prog Programming Tool

• Technical Specifications:
• Standard ICSP compatible 6-pin plug connector
• 3 LEDs for status indication
• Power supply via USB port, BIOS via USB updatable
• No driver required (HID device)

"Made in Germany" –Diamex PicKit - ICSP programmer with pivoting lever module for DIL controller The universal tool for programming many Microchip PIC controller. Software and hardware compatible to "PicKit2", the original software from Microchip (MPLAB, PicKit 2 Programmer) can be used. A firmware update of the programmer is possible using the Microchip tools. Pivoting lever module with 40-pin ZIF socket suitable for Diamex PIC Prog and PicKit2. Standard ICSP compatible 6-pin plug connector - 3 LEDs for status indication Power supply via USB port No driver required (HID device) Bios upgradeable via USB PIC microcontroller in 8, 14, 18, 20, 28, and 40-pin DIL / DIP packages can be programmed with this module in conjunction with Diamex PIC Prog or PicKit2. Following the 6-pin ICSP programming connector. Technical Specifications: - Standard ICSP compatible 6-pin plug connector - 3 LEDs for status indication - Power supply via USB port - No driver required (HID device) - BIOS via USB updatable Scope of delivery: - Programmer (no housing) - Mini-USB cable - Quick Start Guide - Pivoting lever module Support for the following microcontrollers: For a full list please refer to the programming software. PIC10Fxxx, PIC12Fxxx, PIC16Fxxxx PIC12HVxxx, PIC16HVxxx, PIC16LFxxxx, PIC18Fxxxx PIC18LFxxxx, PIC24Fxxxx dsPIC33Fxxxxxx, dsPIC30Fxxxx PIC32MXxxxxx
