Di Vapor (R) 90 Degree Wall Mounted Shower Door Glass Hinge | Chrome Plated | Single Sided | Tapered Edges

• 90 Degree Wall Mounted Shower Door Glass Hinge
• Chrome Plated Copper

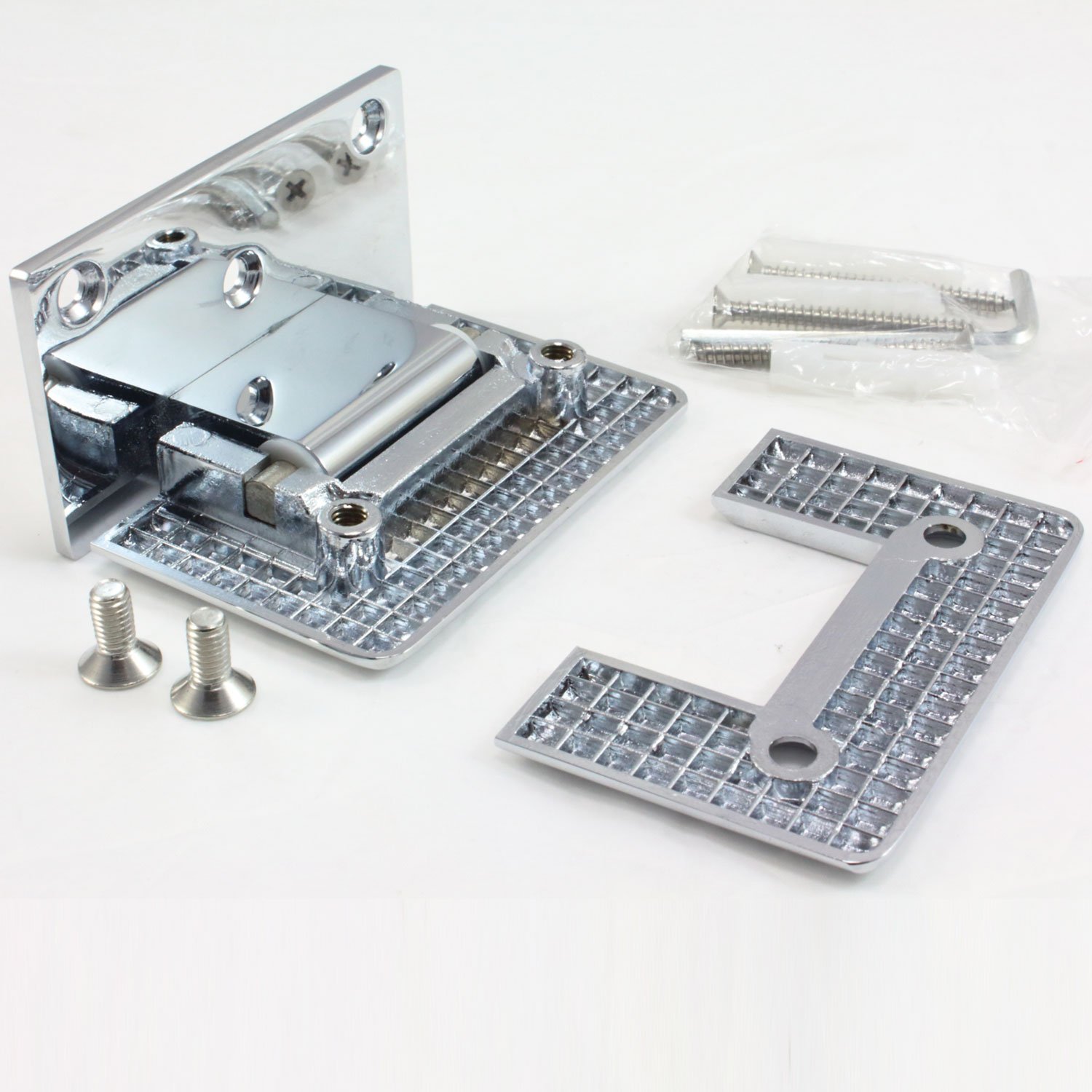

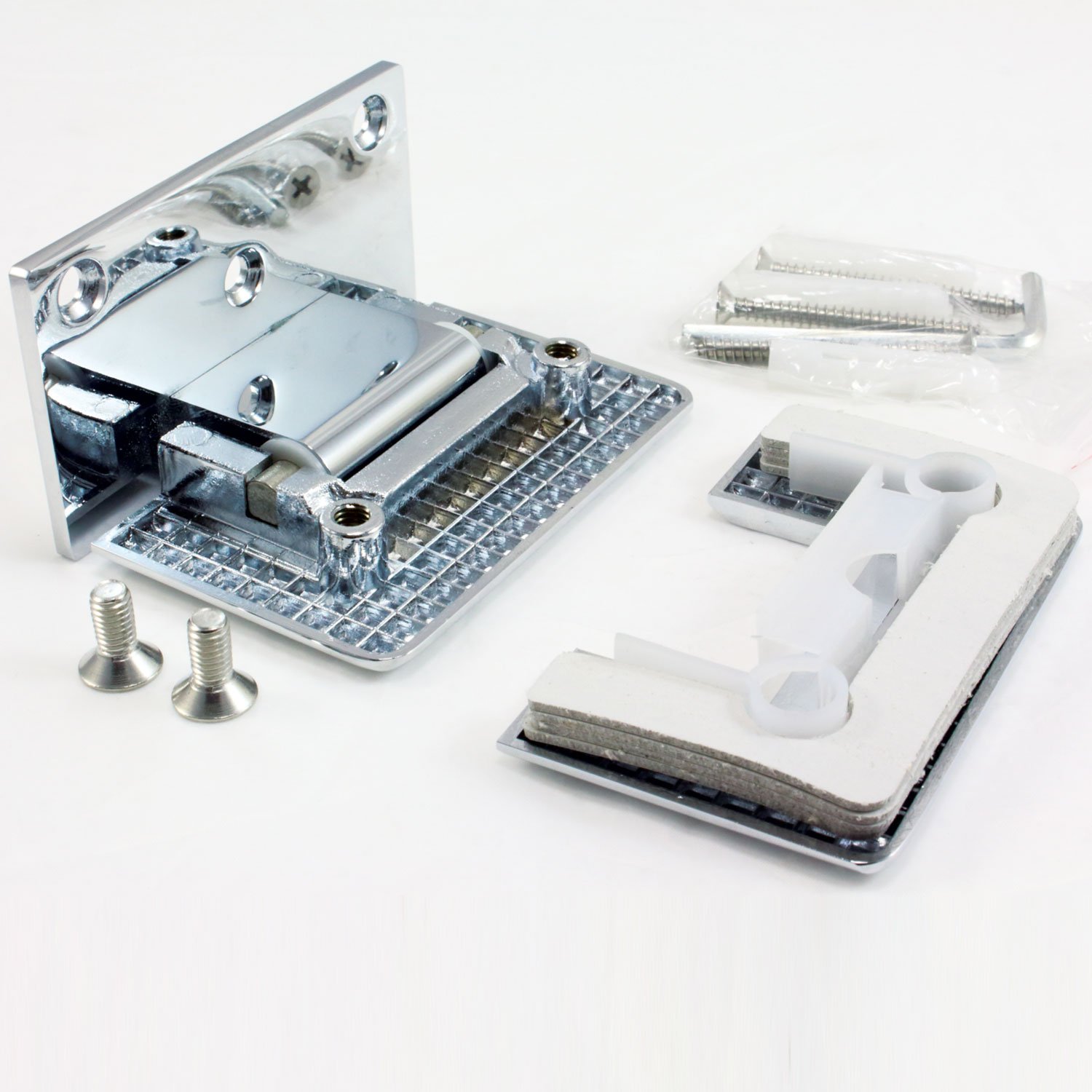

IMPORTANT Before ordering any custom glass, please ensure that your glazier is able to inspect the hinge in person. Any slight difference in the cutout before the glass is tempered will result in the glass needing to be re-cut. Di Vapor will not be responsible for any costs incurred with re-temper or re-cutting of glass. DO NOT order your glass before you have ordered the hinge(s) and have them to hand. -------------- What's included - The stainless chrome 90 degree glass hinge. - Allen key. - 3 x wall fixing screws and 3 x wall plugs - Gasket paddings (which will come already inside the hinge) The hinge is offset to one side of the hinge. If you require the hinge to be centered, we have hinges in our range that are the same design but centered. -------------- Useful Information Regarding this Glass Hinge Hinge Weight: 365g (0.365kg) Fixing Type: Wall mounted fixing. Glass Thickness: 8 - 10mm Glass Edge to Wall Surface: Approx 10mm Glass Requirements: Glass cut out is required. Please see technical cut out diagram in photos section for detailed measurements. Material: Chrome Plated Zinc Alloy Finish: Polished chrome (mirror finish) Weight Limit and Maximum Glass Panel Size: The maximum weight limit per hinge is 25kg. We recommend that this weight limit is adhered to and considered when deciding how many hinges are being used per panel. Typical usage for most panels and doors is 2 -3 hinges per side. The maximum width of the glass door should be no more than 700mm. Uses: Any glass panel or door. This can be inside or outside the bathroom. Can be in living room or kitchen, the hinge looks great everywhere around the home or office. Door Opening Function: This hinge will swing 180 degrees. That means that it will swing outwards 90 degrees and inwards 90 degrees. The hinge is a snap fixing which means that when it is opened it will automatic
