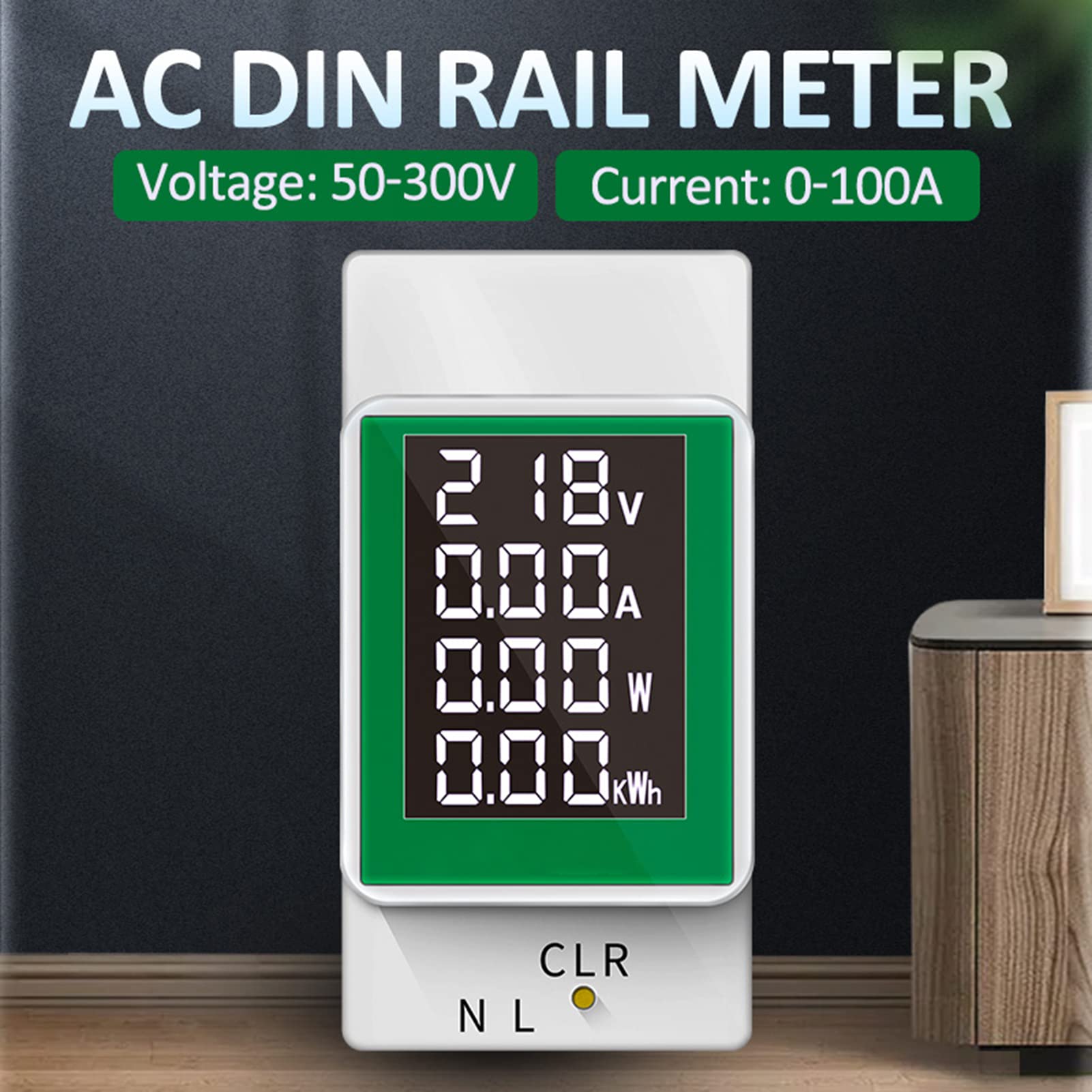

DEWIN Digital Ammeter PZEM-008 Electric Energy Meter AC50-300V/100A Ammeter Digital Display Voltage Tester Wattmeter for Home Circuit Measurement

• 【High-Quality Materials】: The shell of the electric energy meter is made of high-quality PC materials. It has flame retardant, high temperature resistance, non-flammable, and solid durability.

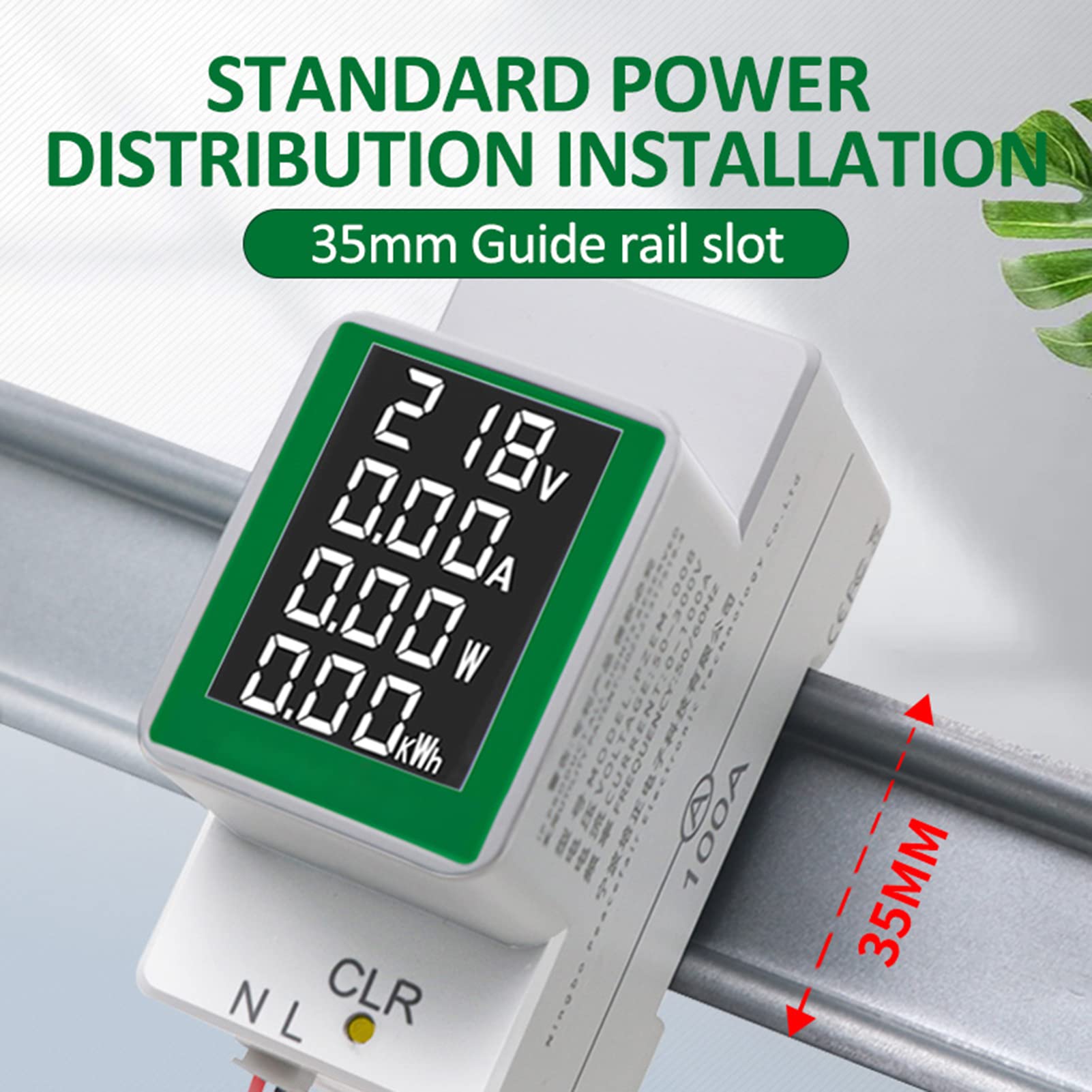

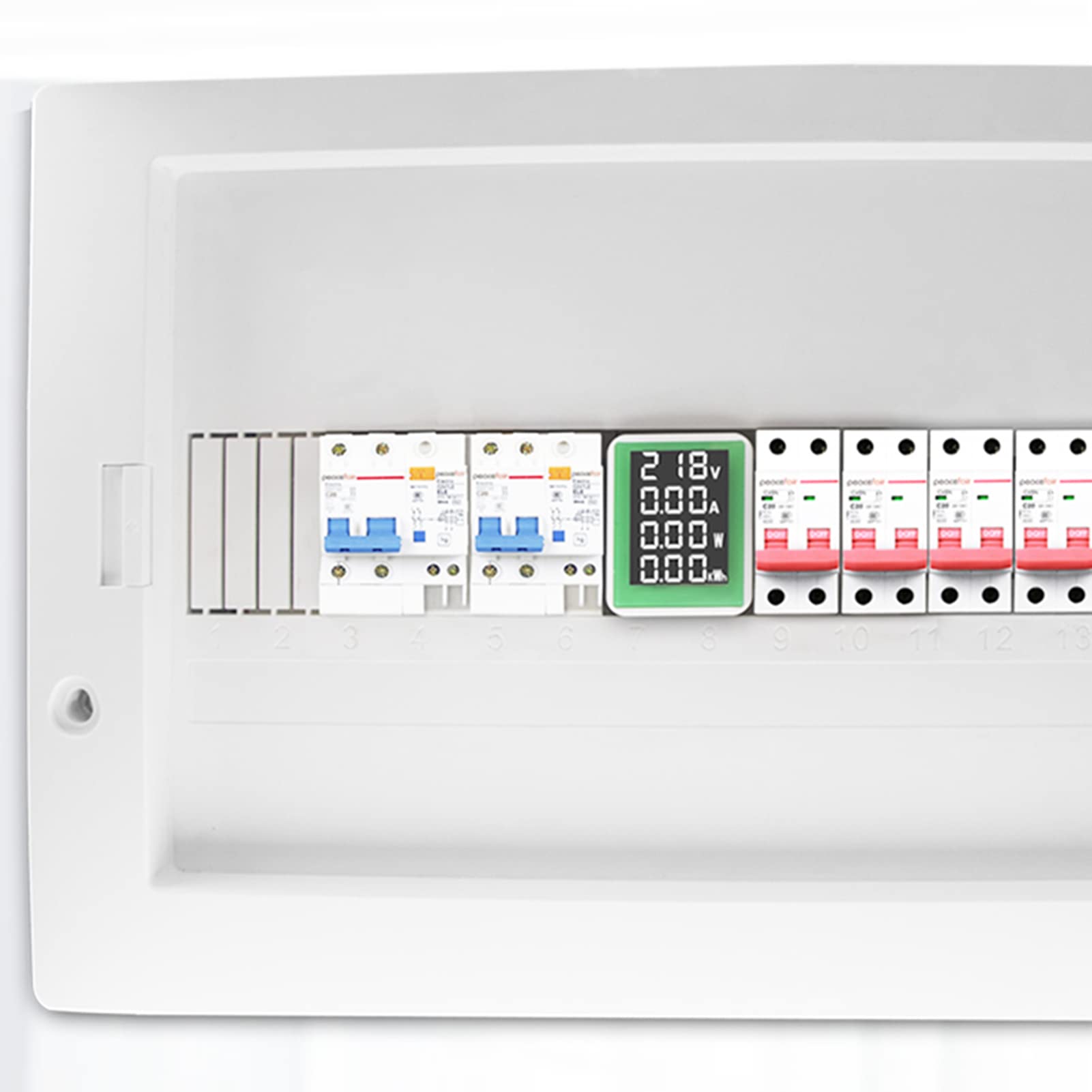

• 【Easy to install】: Standard power distribution installation: 35mm guide card slot installation is more convenient.

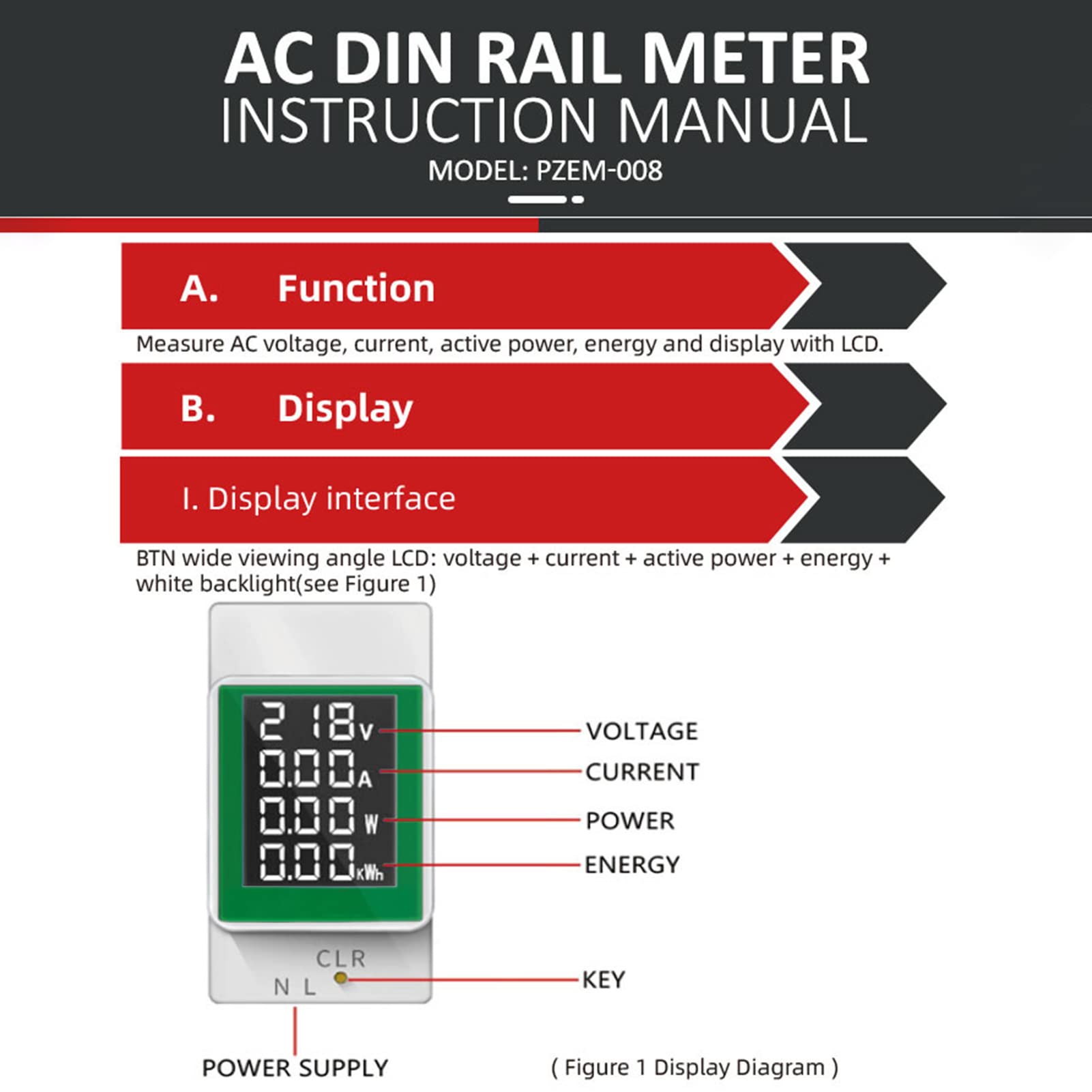

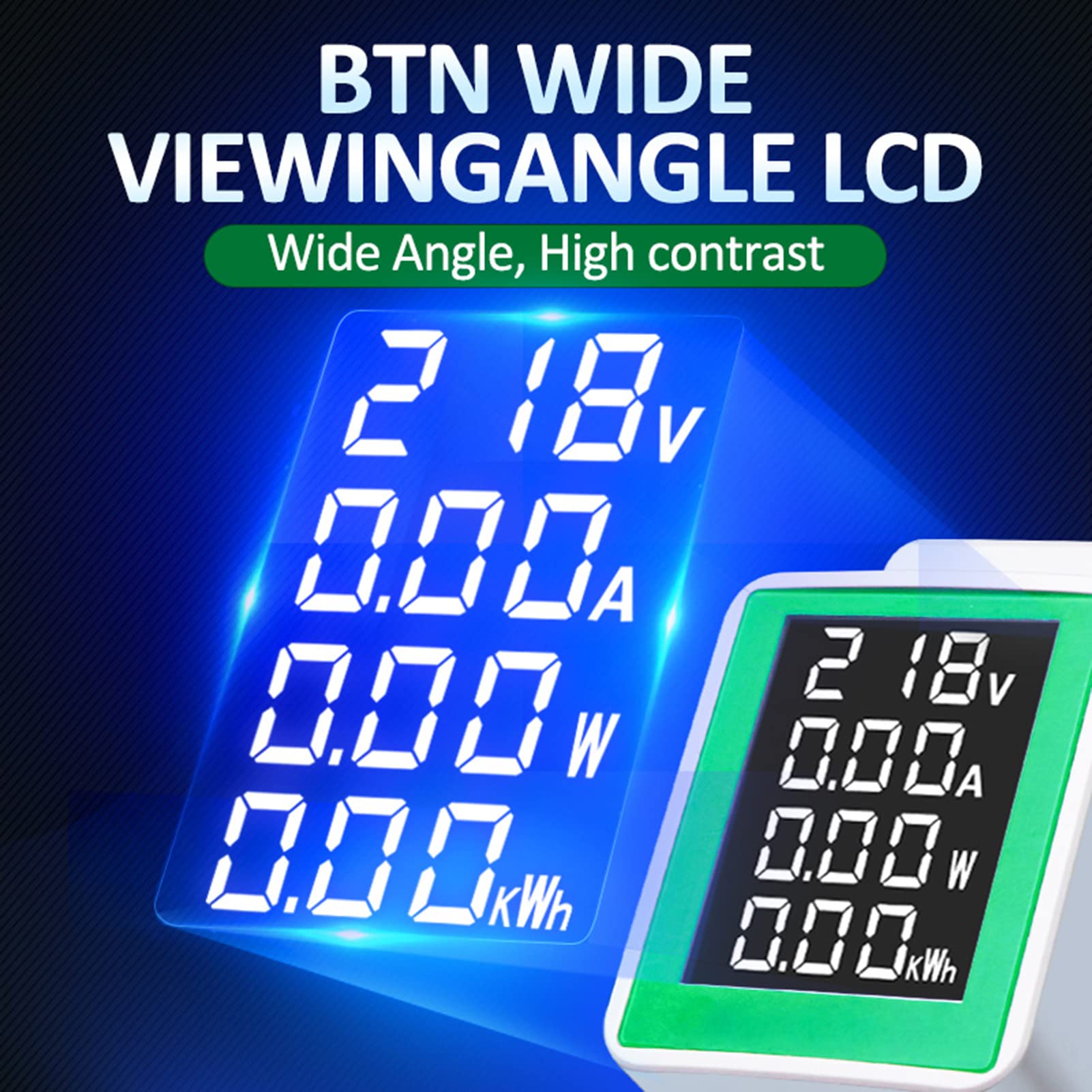

• 【LCD Display】: The electric energy meter has a large-screen LCD display, the reading is clearer, high accuracy and easy to read.

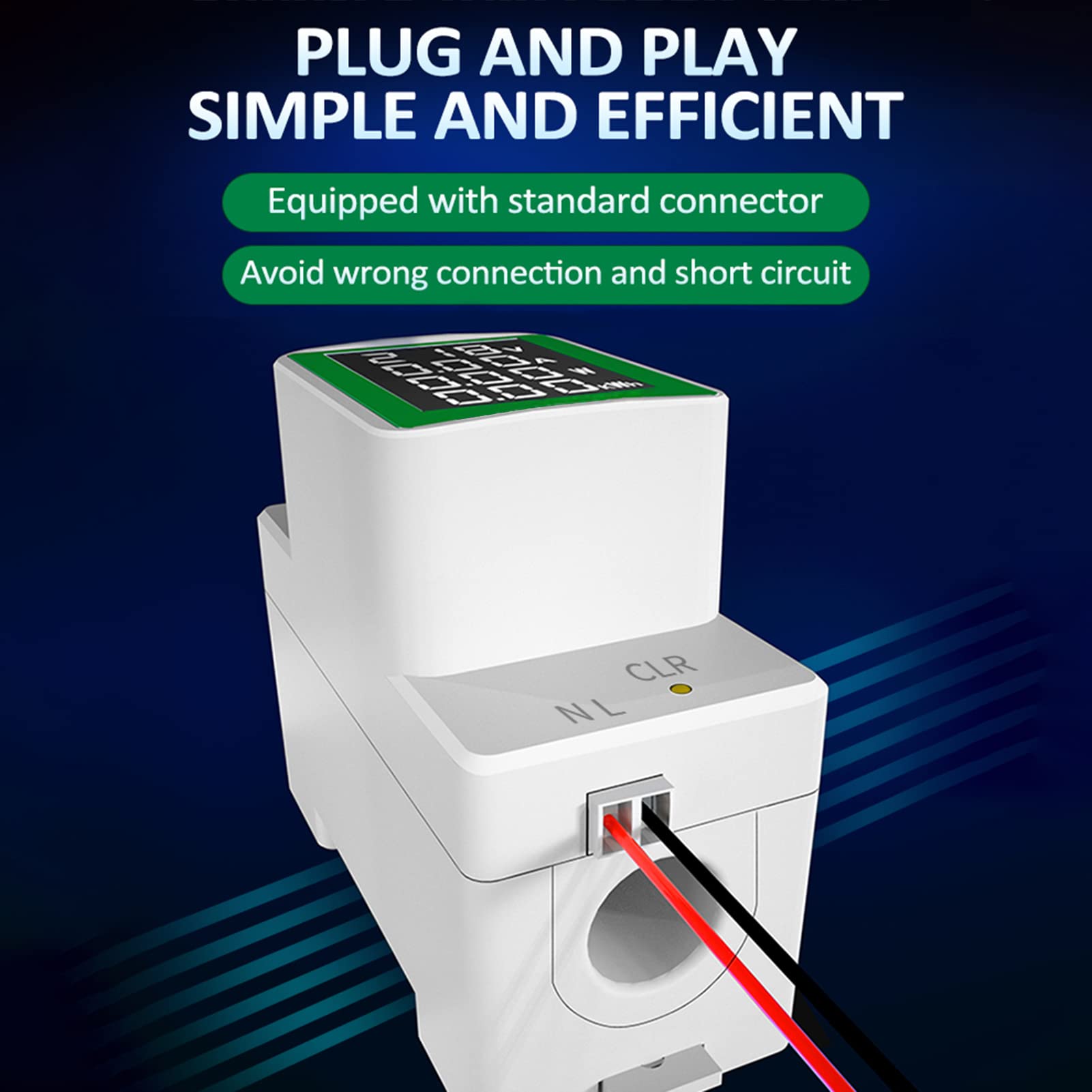

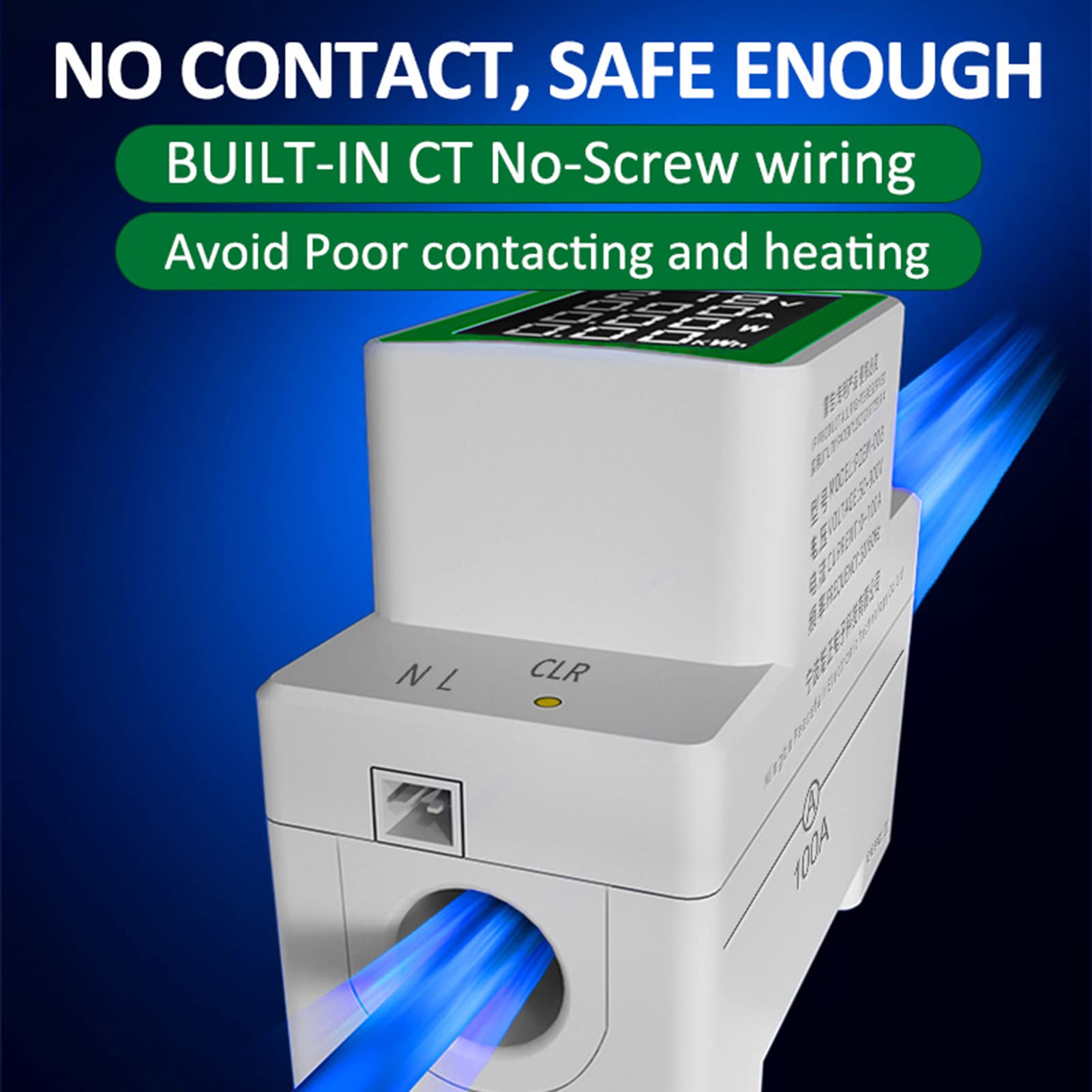

• 【Easy to Use】: Built-in CT screw-free wiring to prevent poor contact, heat generation, and non-contact testing is safer.
• 【Wide application】: With a wide range of power usage and practicality, electric energy meters are widely used in high and low voltage distribution cabinets, electronic maintenance, photovoltaic inverters, and home circuit measurements.

Features: 1. The electric energy test instrument has built-in screw-free CT wiring to avoid poor contact and heat, and non-contact testing is safer. 2. The shell of the tester is made of high-quality PC material, which is flame retardant, high temperature resistant and durable. 3. Standard power distribution installation: 35mm guide rail slot installation is more convenient. 4. The electric energy meter has a large-screen LCD display with clearer readings, high precision and easy reading. Specification: Model: PZEM-008 Voltage Measuring range: AC50-300V Measurement accuracy: ±1% Current Measuring range: 0-100A Starting current: 0.02A Measurement accuracy: ±1% Display format <10A display such as: 9.9A 100A display such as: 99.9A Active power Measuring range: 0-30KW Starting power: 0.5W Measurement accuracy: ±1% Display format: <10W display such as: 9.99W <100W display such as: 99.9W <1000W display such as: 999W <10000W display such as: 9.99kW ≥10000W display such as: 30.0kW Electricity Measuring range: 0-1999kWh Overflow retention, unless manually cleared Measurement accuracy: ±1% Display format: <10kWh display such as: 9.99kWh <100kWh display as: 99.9kWh <1000kWh display as: 999kWh <10000kWh display as: 1999kWh Power supply voltage: AC 50V-300V Packing list: 1 x Electric energy meter 1 x Flat cable 1 x Manual Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-3mm measuring deviation due to manual measurement.
