DeLOCK Adapter USB 2.0 Type-A Male > 1 x Serial RS-232 DB9 Male with Screws and Nuts ESD Surge Protection

• This USB 2.0 to RS-232 adapter by Delock offers a flexible DB9 connection with matching screws and nuts for operation on serial controls, printers, measuring devices, IoT devices, etc.
• An integrated ESD surge protector prevents the destruction of electronic components

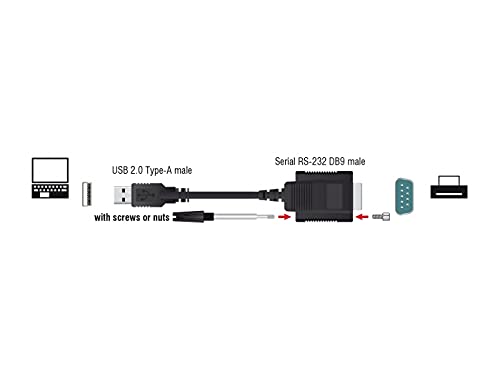

• Connectors: 1 x USB 2.0 Type-A male, 1 x serial RS-232 DB9 male

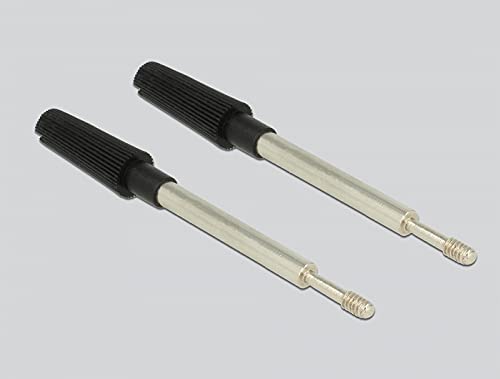

• Chipset: FTDI FT232RL; Serial plug with bolts or nuts; Screw type: #4-40 UNC
• Compatible with USB 3.0, USB 2.0 and USB 1.1 full speed 12 Mbps; data transfer rate up to 115.2 Kbps

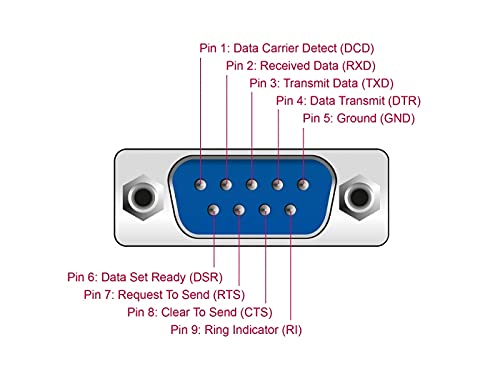

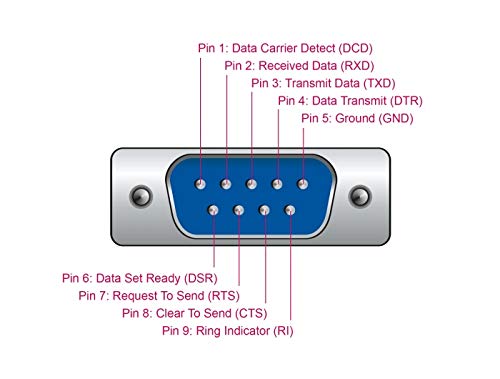

• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND; Parity bit: even, odd, none, marked, empty

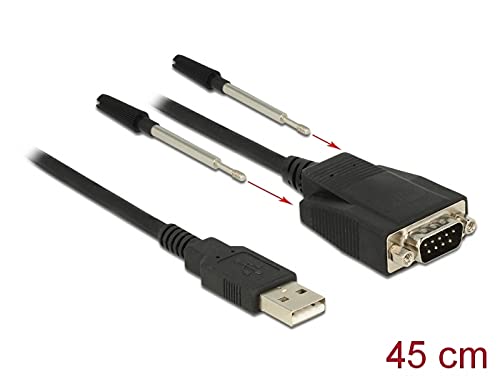

This USB 2.0 to RS-232 adapter by Delock offers a flexible DB9 connection with matching screws and nuts for operation on serial controls, printers, measuring devices, IoT devices, etc. An integrated ESD surge protector prevents the destruction of electronic components. Specification: • Connectors: 1 x USB 2.0 Type-A male 1 x serial RS-232 DB9 male • Chipset: FTDI FT232RL • Serial plug with screws or nuts • Screw type: #4-40 UNC • Compatible with USB 3.0, USB 2.0 and USB 1.1 full speed 1.1 2 Mbps 2Mbps Data transfer rate up to 115.2 Kbps • Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND • Parity bit: even, odd, none, marked, empty • Stop bit: 1, 1.5, 2 • Data bit: 5, 6, 7, 8 • Flow control: none, Xon / Xoff, RTS / CTS, FIFO: 128 bytes - TX, FIFO: 256 bytes - RX, ESD surge protection: ± 15 KV ESD protection human body model (HBM) ± 15 KV IEC1000-4-2 air gap discharge ± 8 KV IEC1000-4-2. Contact Discharge • Power consumption: approx. 150 mA • Cable length: approx. 35 cm. Cable length including connections: approx. 45 cm • Operating temperature: 0 °C ~ 60 °C • Humidity: 5 ~ 95 %. System requirements: • Windows 7/7-64/8.1/8.1-64/10/10-64, Linux from Kernel 2.6 • PC or notebook with a free USB Type-A port. Package contents: • USB 2. 0 to 1 x Serial Adapter • 2 x Screw • Driver CD • User Manual
