Deleycon motion sensor 01

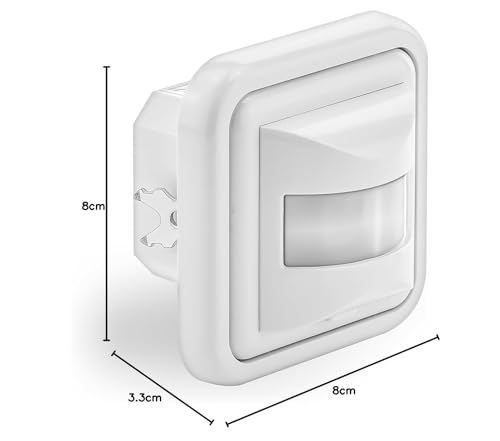

deleyCON flush-mounted infrared motion sensor for indoor use The deleyCON infrared motion sensor gives you reliable, proven technology for indoor surveillance. Secure the rooms in your house, ensure automatic lighting in your office or use as an ideal means of expanding the lighting system in your cellar - the possibilities are practically endless. This infrared motion sensor is designed to be flush-mounted. Technical highlights The infrared motion sensor responds to heat radiation (infrared radiation) from moving objects or people and animals which cross the sensor's detection zone. An integrated light sensor stops the sensor from operating during the day. Innovative and highly versatile The infrared motion sensor lends itself to various possible indoor applications. Because it is designed to be flush-mounted, it can be installed in various different places. Using a controller, you can set the ambient brightness that switches on the motion sensor . Specifications Voltage: 220-240 V AC 50 Hz Nominal load: 0 W - 500 W light bulb Nominal load: 5 W - 200 W LED and energy-saving lamps Ambient light temperature: Sensitivity adjustable to 3-2000 lux Switch-off delay: min. 10 sec. / max. 7 min. Sphere of coverage: 160° Motion detection: up to 9 m away For indoor use To be flush-mounted Ambient temperature: - 20°c to +40°c Air humidity:< 93% RH (non-condensing) Installation height: 1.0 - 1.8 m Protection class: IP20 Power consumption (stand-by): 0.52 W Power consumption (operation): 0.24 W Measurements: 80 x 33.1 x 80 mm Delivery contents: infrared motion sensor + instruction manual
