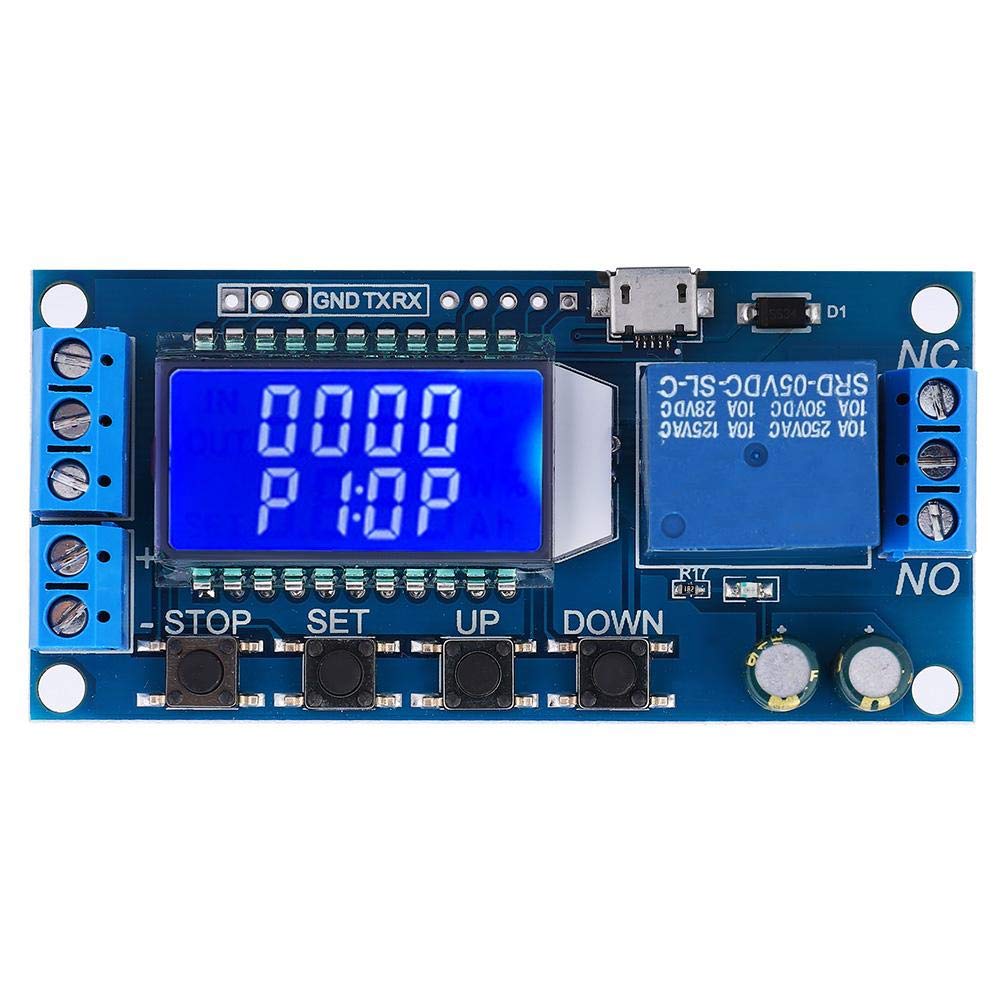

Delay Relay Module, Time Delay Relay Module,5V 12V 24V Delay Off Cycle Timer Module, 0.01s-9999min with LCD Display

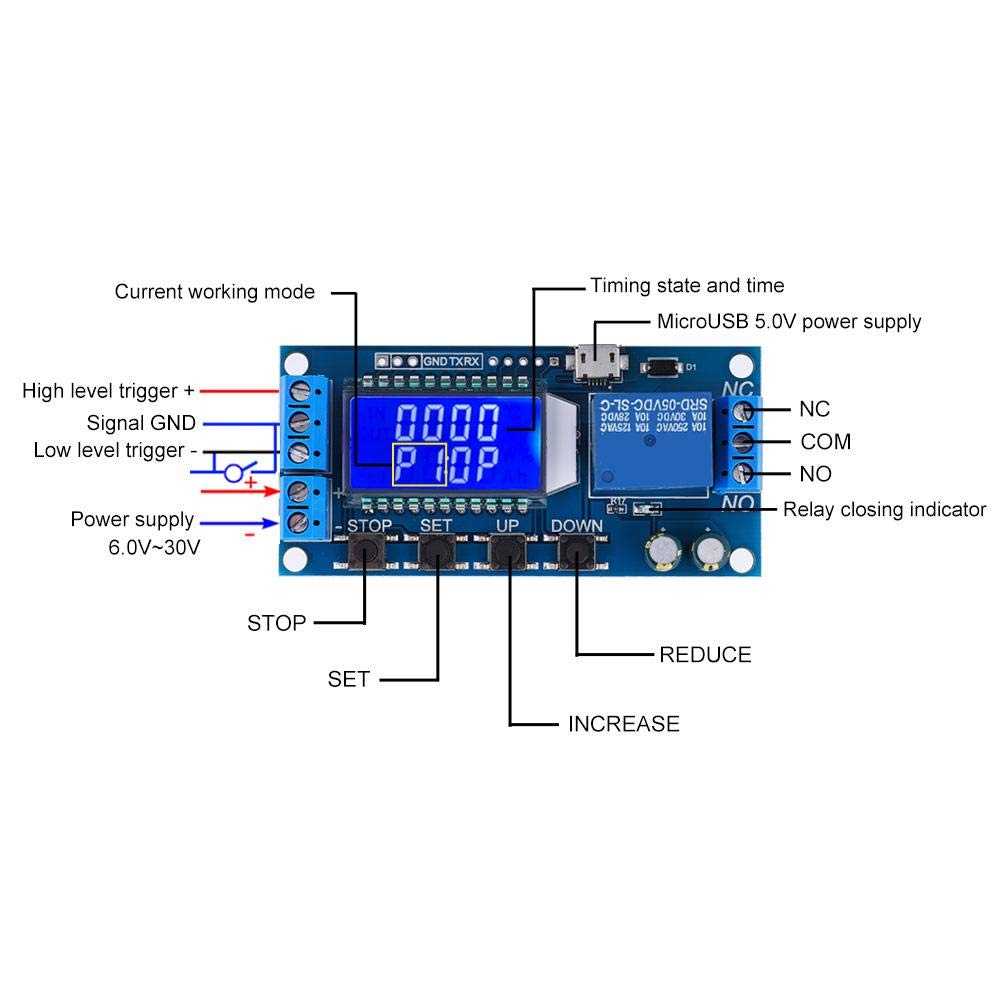

• 1. With LCD display screen, the current mode and parameters are clear at a glance.Add sleep mode, after enabling, no within 5 minutes, automatically turn off the LCD backlight, any buttons wakes up the screen.

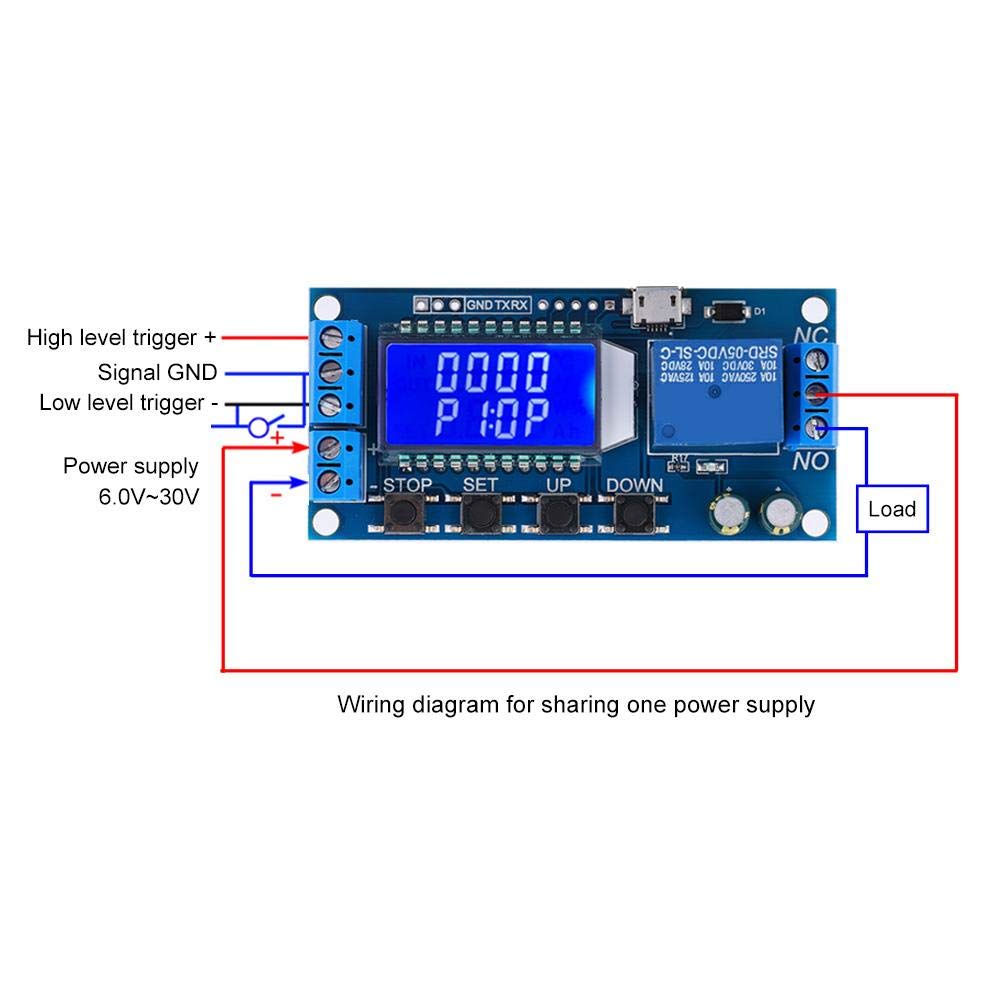

• 2. Support high or low level trigger, switch quantity control, suitable for most applications.
• 3. Wide power supply voltage 6~30V, support micro USB 5.0V power supply, very convenient to use. Automatically save all parameter settings when power failure.
• 4. Support UART data upload and parameter setting.Different 0P, CL, LOP parameters can be set, these parameters are independent of each other and saved separately.

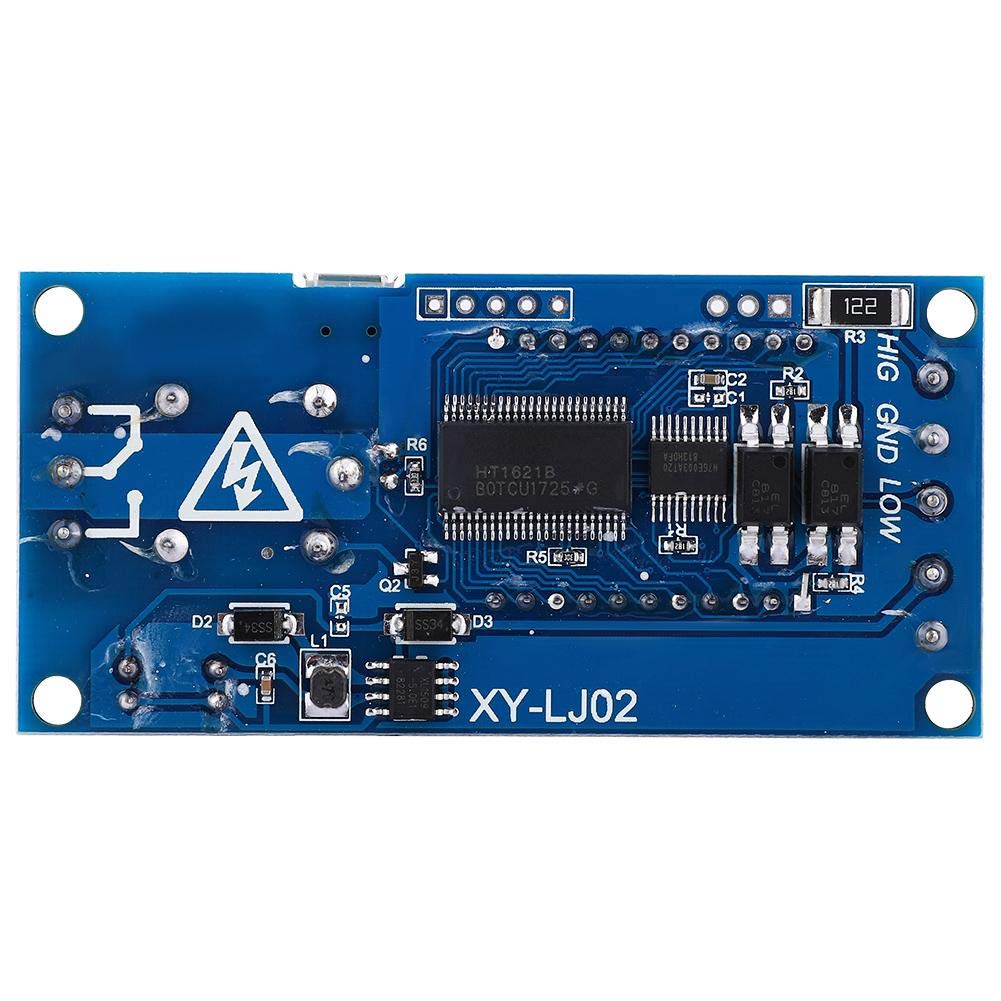

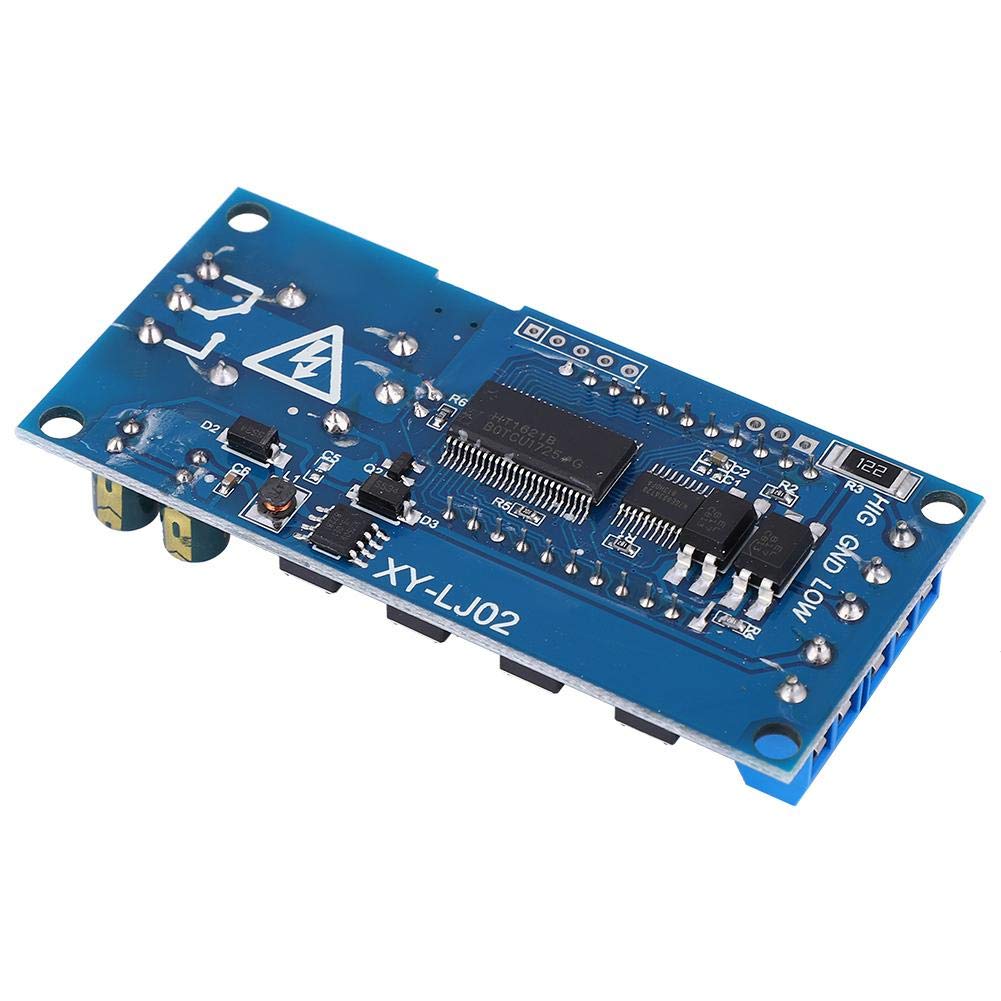

• 5. One button emergency stop function (STOP button), with reverse connection protection.Industrial grade circuit board, with optocoupler isolation to enhance anti-interference ability.

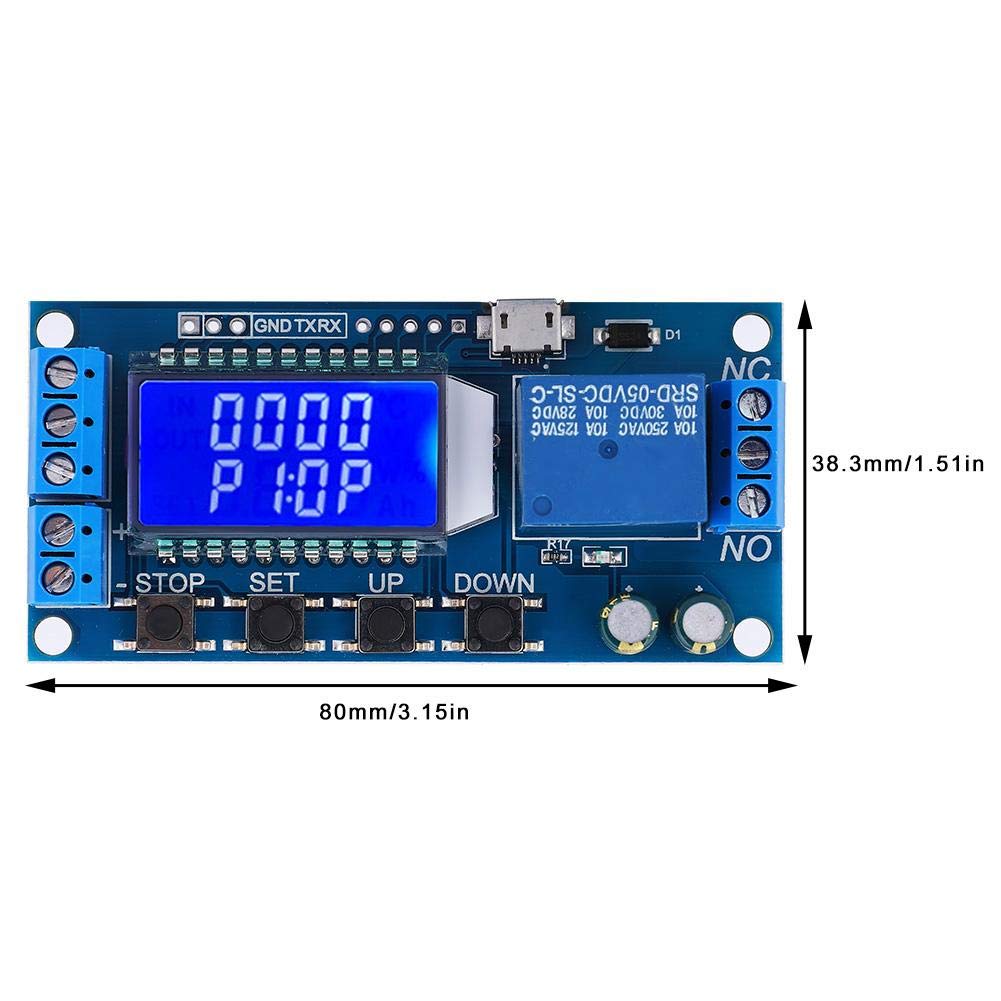

Specification: Item Type: Delay Relay Module Working Voltage: 6--30V Timing Range: 0.01s-9999min continuously adjustable Trigger Source: High Level Trigger (3.0V~24V), Low Level Trigger (0.0V~0.2V), Switching Quantity Control (Passive Switch) Output Capability: Can control devices within 30V 5A or within 220V 5A Quiescent Current: 15mA Operating Current: 50mA Service Life: >100,000 times Working Temperature: -40~85¡ãC Size: 88x3.8x1.9cm / 3.15x1.5x0.75in How to Choose Timing Range: In the OP/CL parameter modification interface, short press the STOP button to select the timing range: XXXX: Timing range is 1s~9999s XXX.X: Timing range is 0.1s 999.9s XX.XX: Timing range is 0.01s to 99.99s X.X.X.X: Timing range is 1min to 9999min Parameter Setting: Parameter Description: OP: Conduction time, CL: Disconnection time, LOP: Cycle number (1-9999 times, ''----'' means infinite loop) a) Enter the setting interface by long pressing the SET button; b) First set the working mode, the working mode flashes reminder, set the working mode by short pressing the UP/DOWN button; c) Short press the SET button to select the working mode and enter the system parameter settings; d) In the system parameter setting interface, short press the SET button to switch the system parameters to be modified, short press / long press the UP / DOWN button to modify; (Note: Short press SET in P-1~p-3, P-7 mode); e) In the OP/CL parameter modification interface, press STOP to switch the timing unit (1s/0.1s/0.01s/1min); Package List: 1 x Delay Relay Module
