Dehn+Söhne Universal Earth Terminal 540 250 M8 Rd8-10 mm + 4-50 mm² Connector for Lightning Protection 4013364138650, 1 x Universal Earth Terminal, Silver
Options
1 availableAbout this item

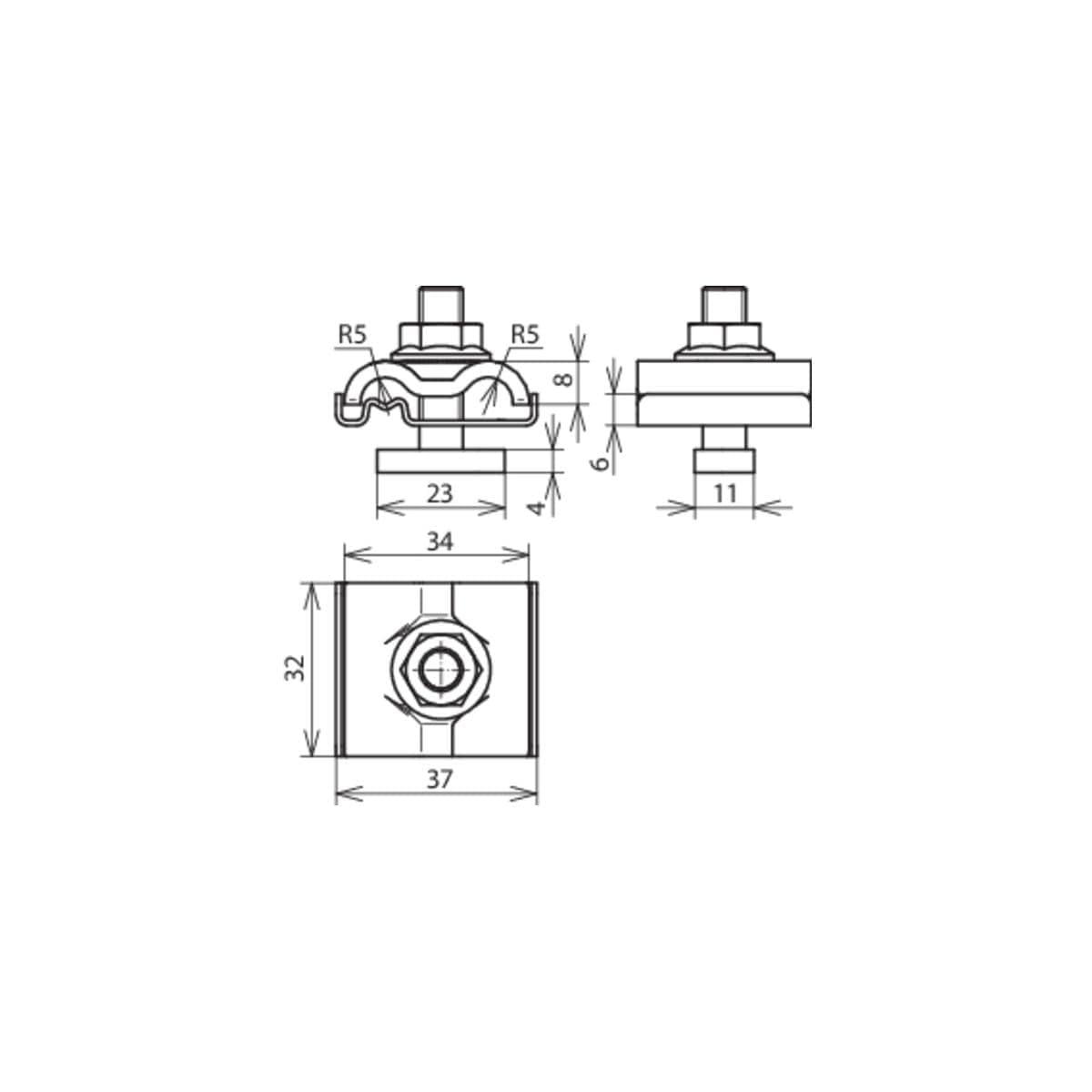

- With hammer head screw and locking tooth nut
- Clamping range round conductor: 8.0 - 10.0 mm
- Connection cross-section: 4.0 - 50.0 mm²
- Stainless steel (V2A)
- Box contents: 1 piece
Product description

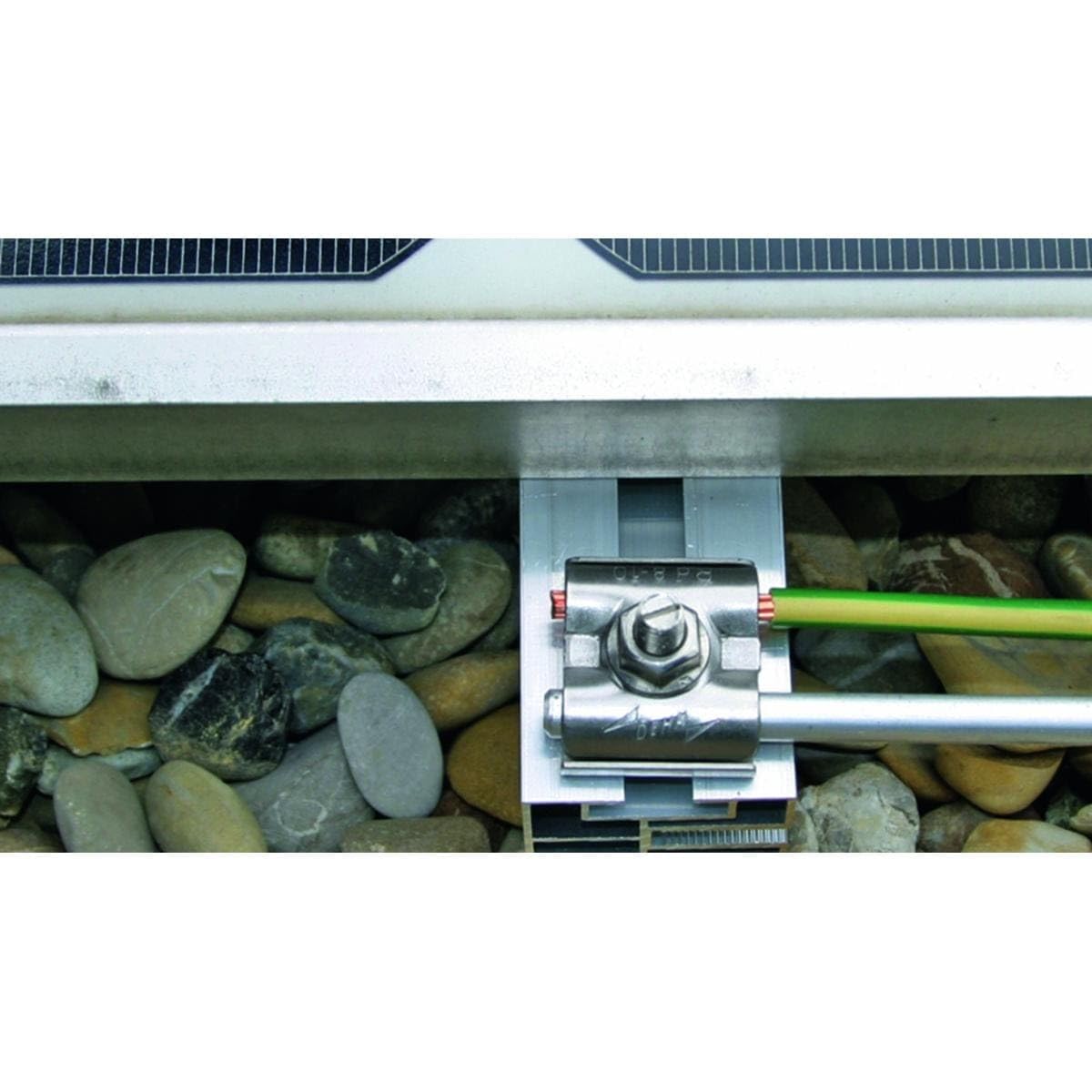

UNI earth terminal according to DIN EN 62561-1, for integrating mounting systems e.g. from PV systems in the functional potential compensation / functional grounding (conductor colour if necessary black) and lightning protection potential compensation according to DIN EN 62305-3 (VDE 0185-305-3). Thanks to the contact plate (intermediate element) made of NIRO, different materials of the conductor (Cu, Al, St/tZn and NIRO) can be used with the usual mounting systems, e.g. aluminium without contact corrosion. Design with hammer head screw M8, locking tooth nut and double superior, e.g. B. for the through wiring of the profiles.
