Ultrasonic Sensor HC-SR04 5Pcs Distance Measurement Module 2cm-450cm Detecting Range Transducer

• Good performance: Stable performance, high reliability. Level Output: High 5V, Low 0V
• With GH-311compatible: This module is completely compatible with GH-311 anti-theft module. This Ultrasonic distance measuring module for
• Detecting Distance: 2cm-450cm. It can compete with foreign ultrasonic ranging modules such as SRF05 and SRF02.
• Accurate measurement: High precision distance measurement, super close blind zone(2cm).Accuracy: 0.3cm.Static Current: <2mA
• Founction: This module can accurately measure distance by using ultrasonic ranging principle.Operating Voltage: DC5V.

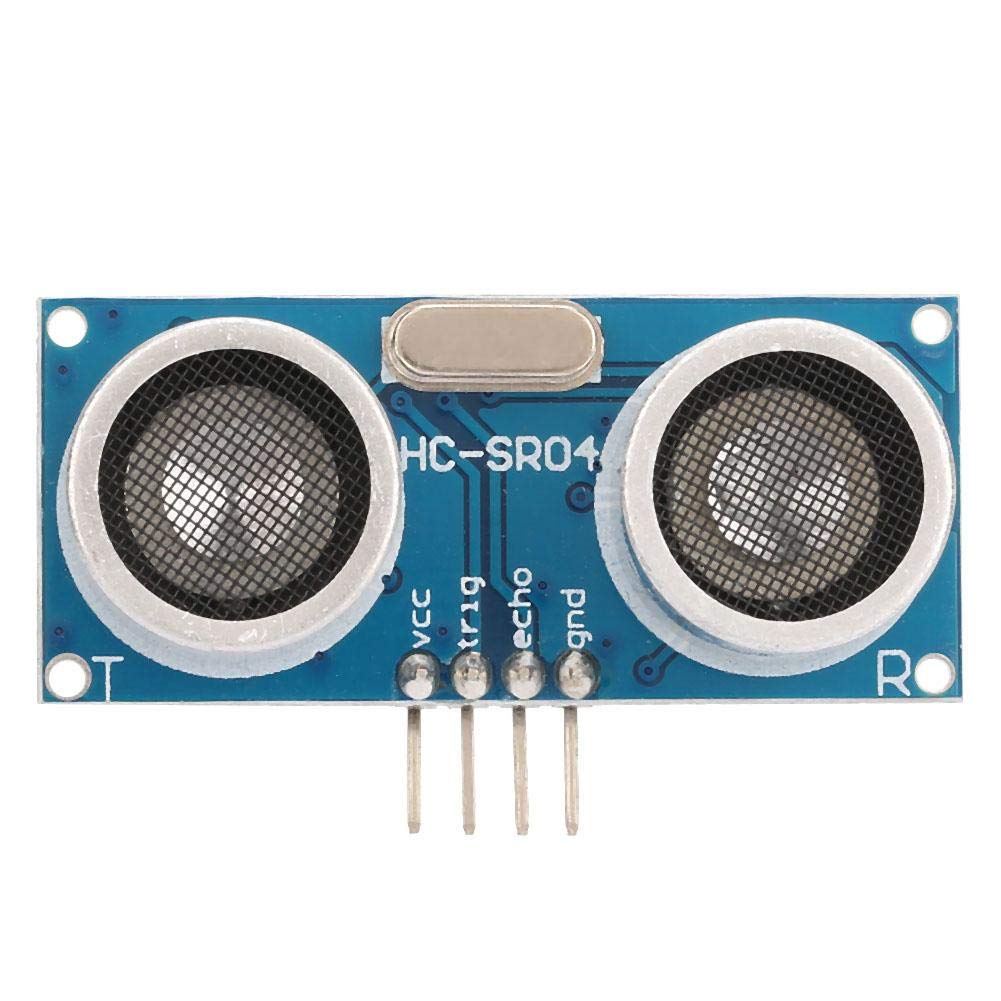

Specification: Condition: Brand New Operating Voltage: DC5V Static Current: <2mA Level Output: High 5V, Low 0V Sensing Angle: ≤15° Detecting Distance: 2cm-450cm Accuracy: 0.3cm Wiring: VCC, trig(control terminal), echo(reception terminal), out(empty), GND Module Working Principle: 1. Adopt IO trigger through supplying at least 10us sequence of high level signal. 2. The module automatically send eight 40khz square waves and automatically detect whether receive the returning pulse signal. 3. If there is returning, output high level through IO, the continuance time of high level is the time of that from the ultrasonic transmitting to receiving. Measuring distance = (high level time * sound velocity (340M/S) / 2. Package list: 5 x Ultrasonic Ranging Module Note: 1. The module should be inserted in the circuit before power-on, which avoid producing high level of misoperation; If not, then power again. 2. The TRIP pin is an internal pull-up 10K resistor. Pull down the TRIP pin by the IO port of the microcontroller and give a pulse of 10us or more. 3. The OUT pin is the switch output pin when the module is used as the anti-theft module. The distance measuring module does not need this pin!
