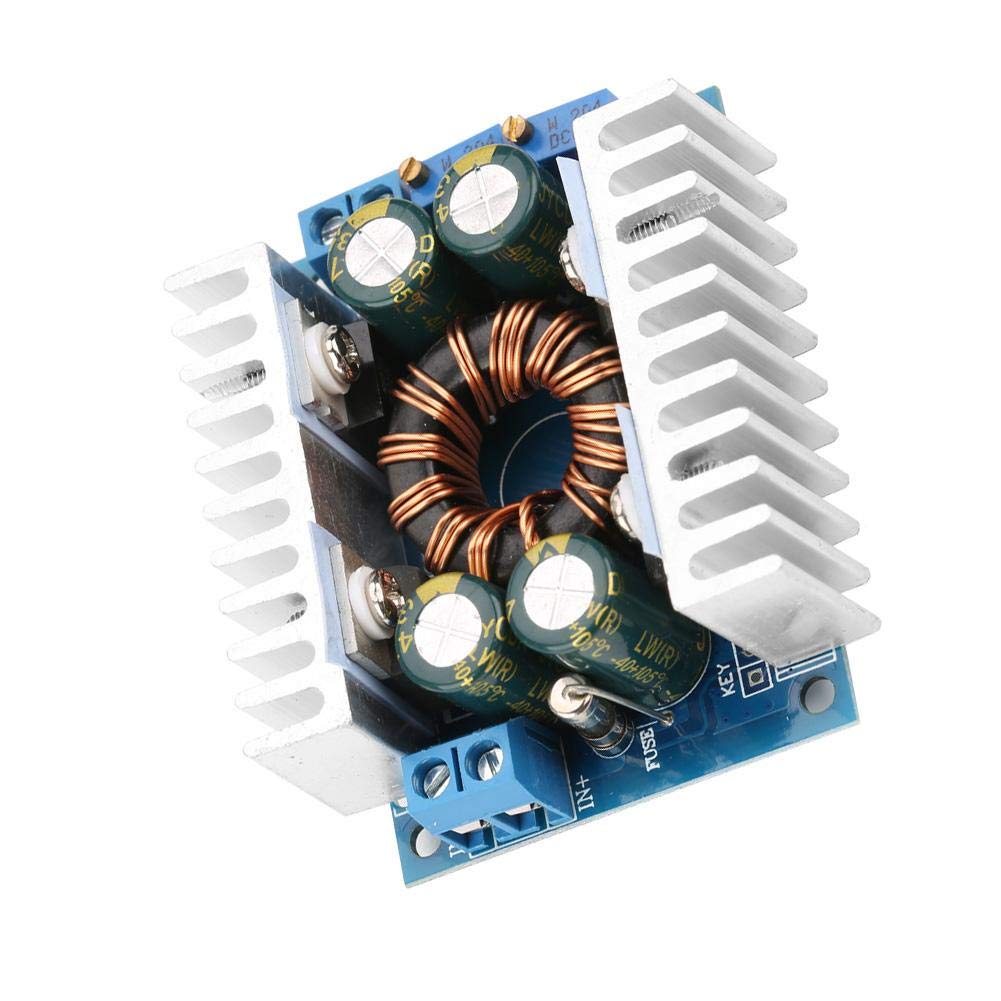

DC5-30V to 1.25-30V Automatic Step UP/Down Converter Boost Voltage Regulator Module, Adjustable Power Supply

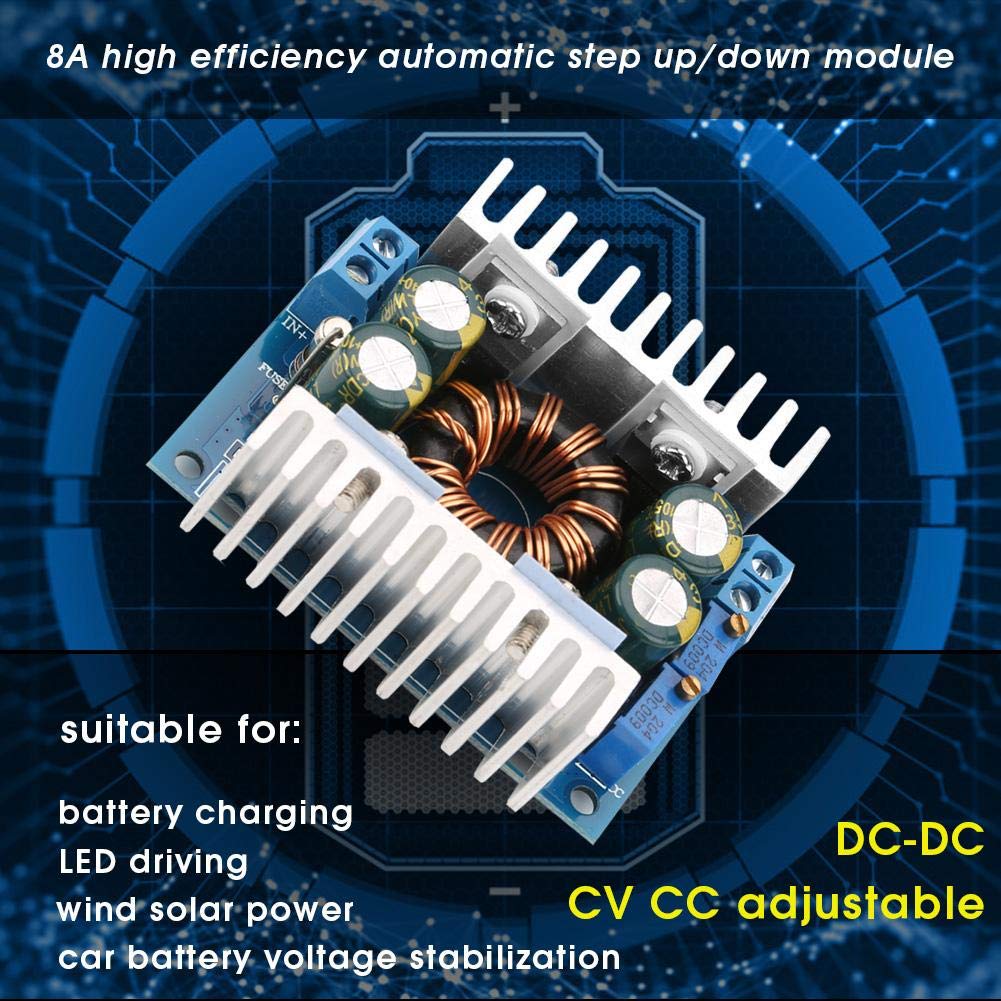

• Use to long time: This is a non-isolated DC regulated power converter module with long service life. Type: Non-isolated synchronous rectification automatically step up/down module
• Stable and efficient performance: High quality components ensures high conversion efficiency, up to 93%.High power and stable output, it converts 5-30VDC to 1.25-30VDC. Conversion Efficiency: Typical 91%, maximum 93%

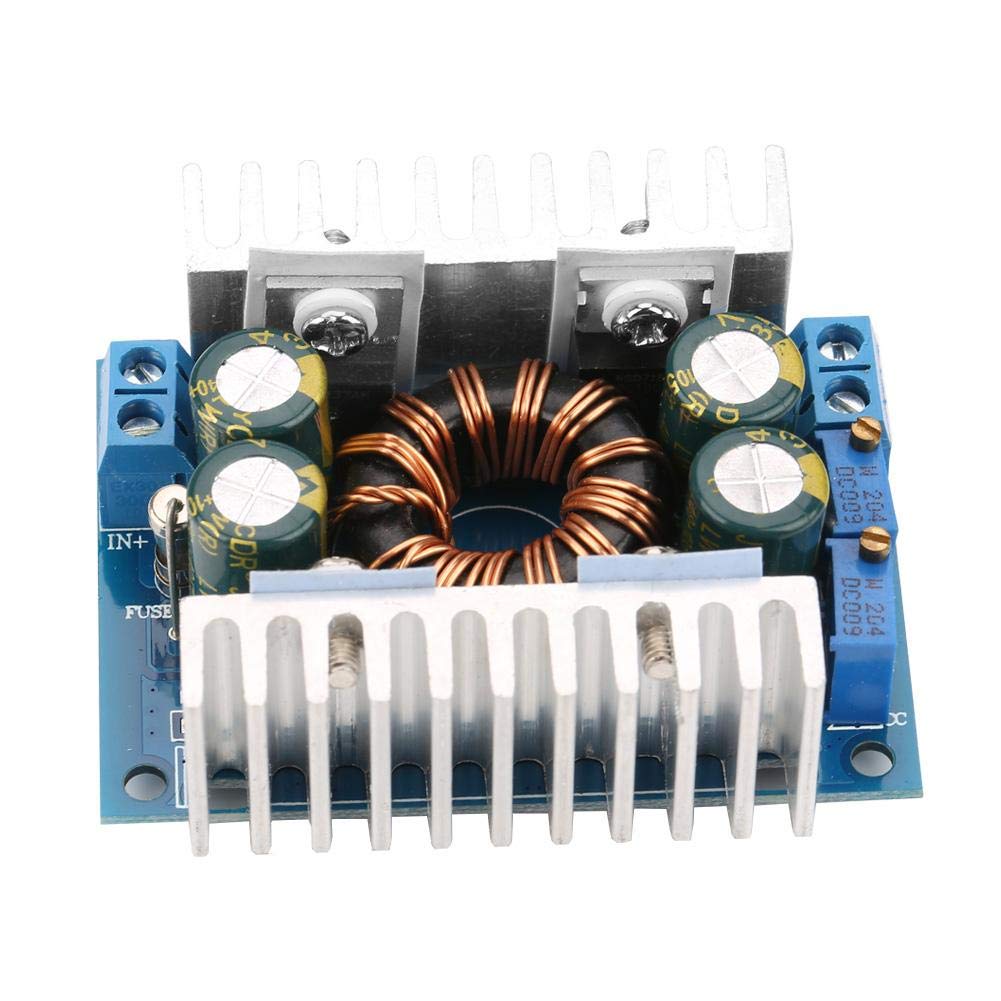

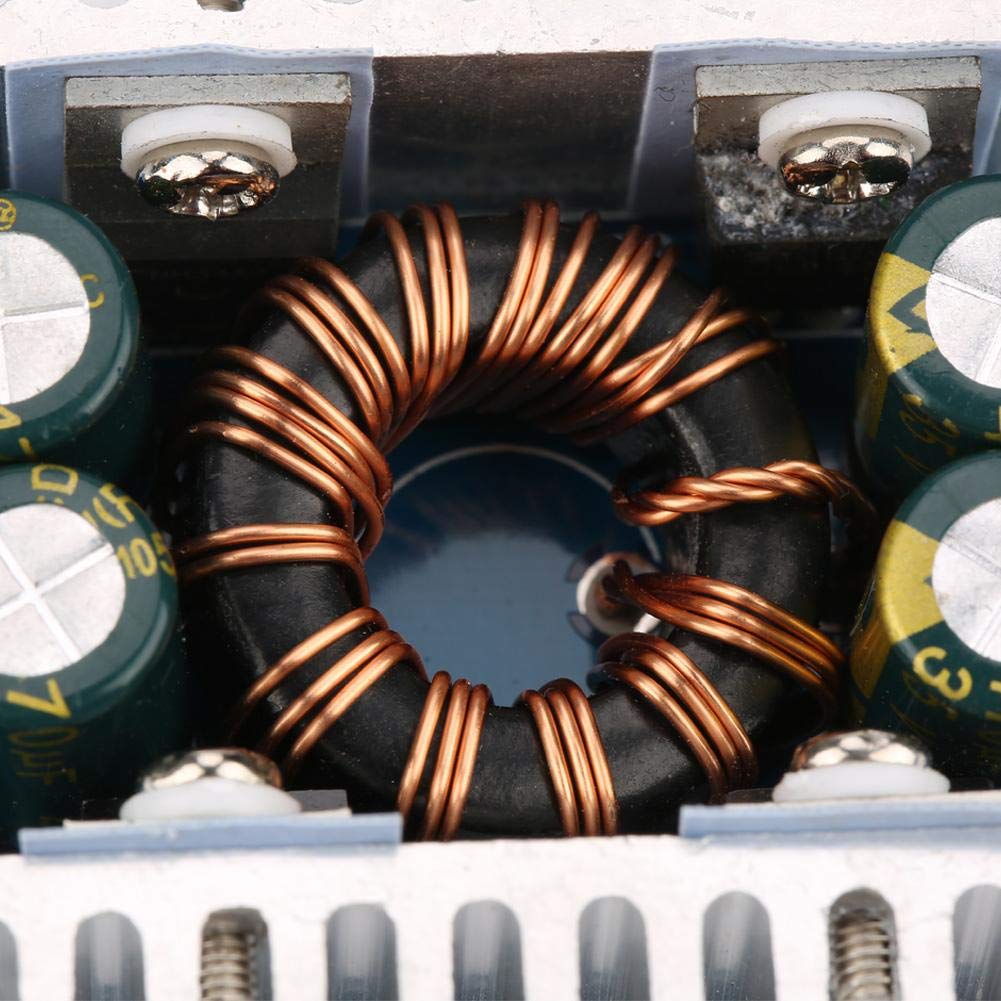

• Good heat dissipation: Designed with two heat sinks for better heat dissipation. Constant Current Output Range: 0.2-10A. Operating Temperature: -40℃ to +85℃
• Input and output: Input Voltage: DC5-30V. Input Current: 8A, (MAX) 10A, (within 6A for long-term work). Output Voltage: 1.25-30V continuously adjustable. Output Current: 10A (MAX)
• circuit safety: It supports over current, short circuit, over temperature protection.Frequency: 150KHz

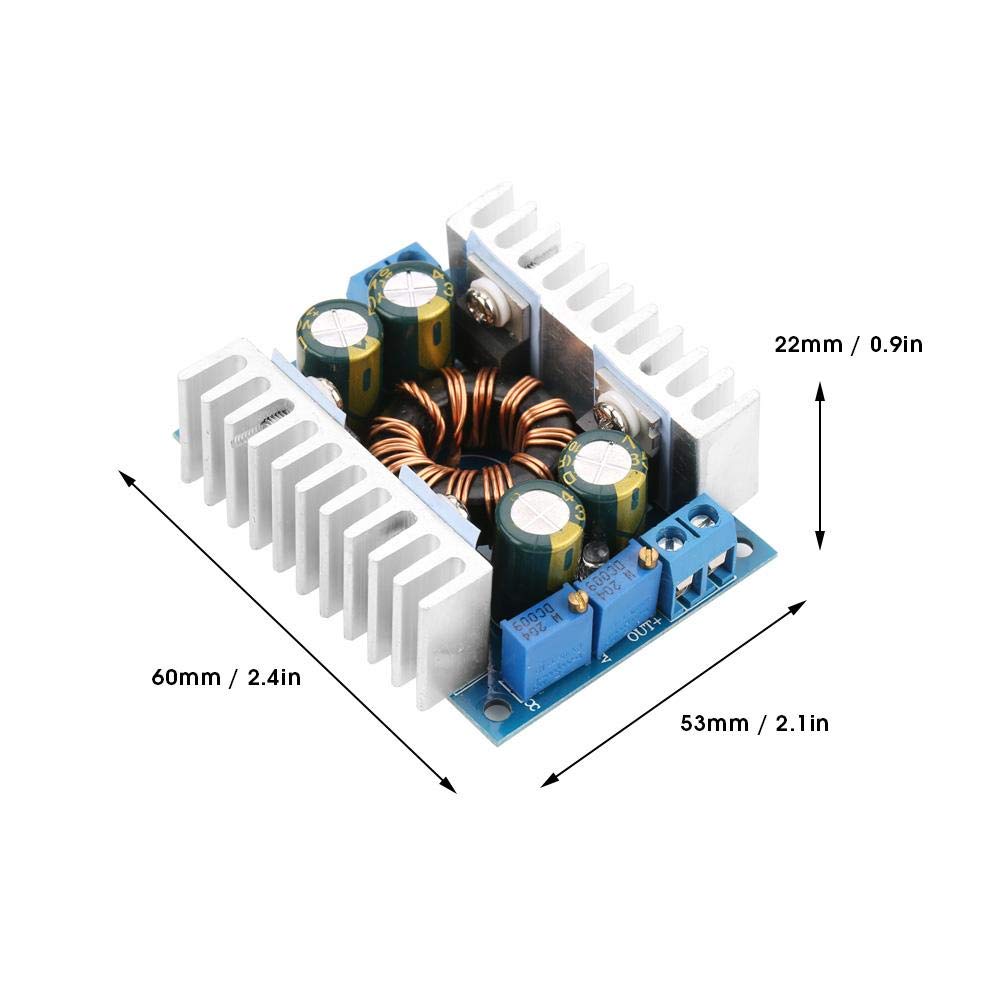

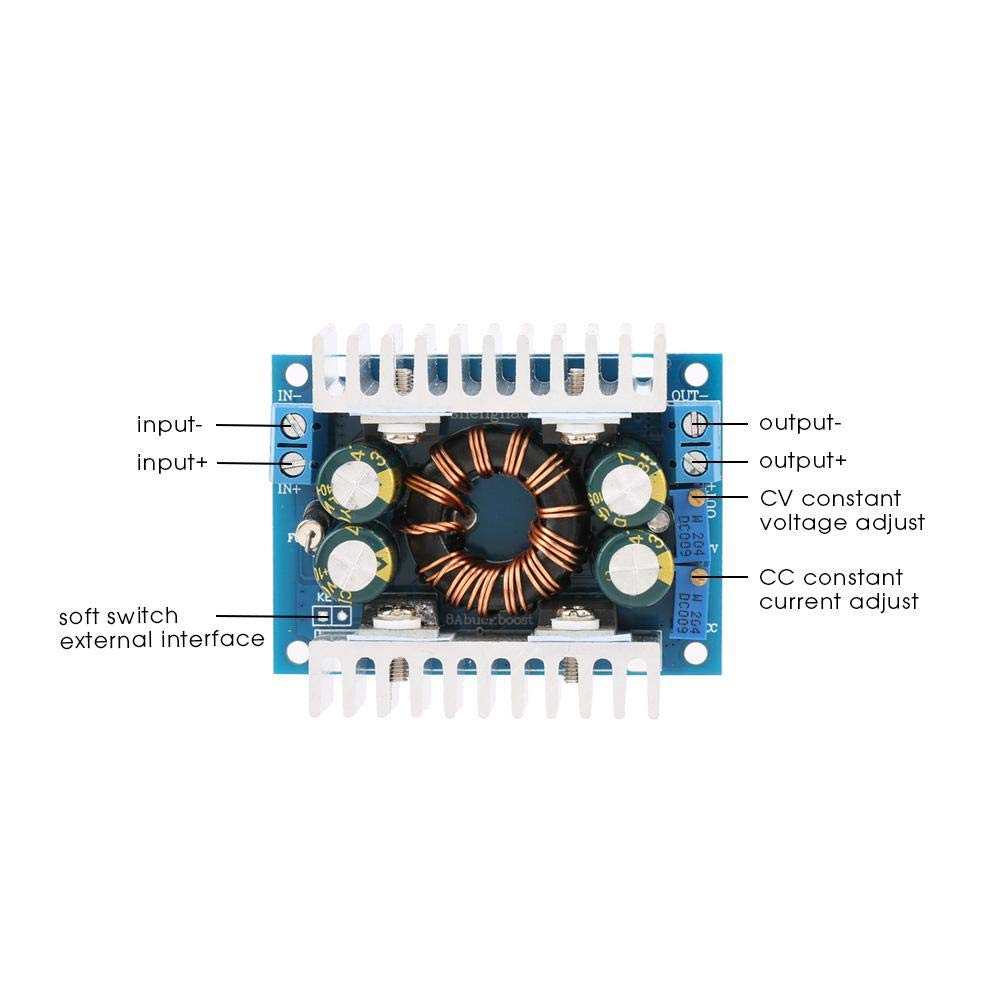

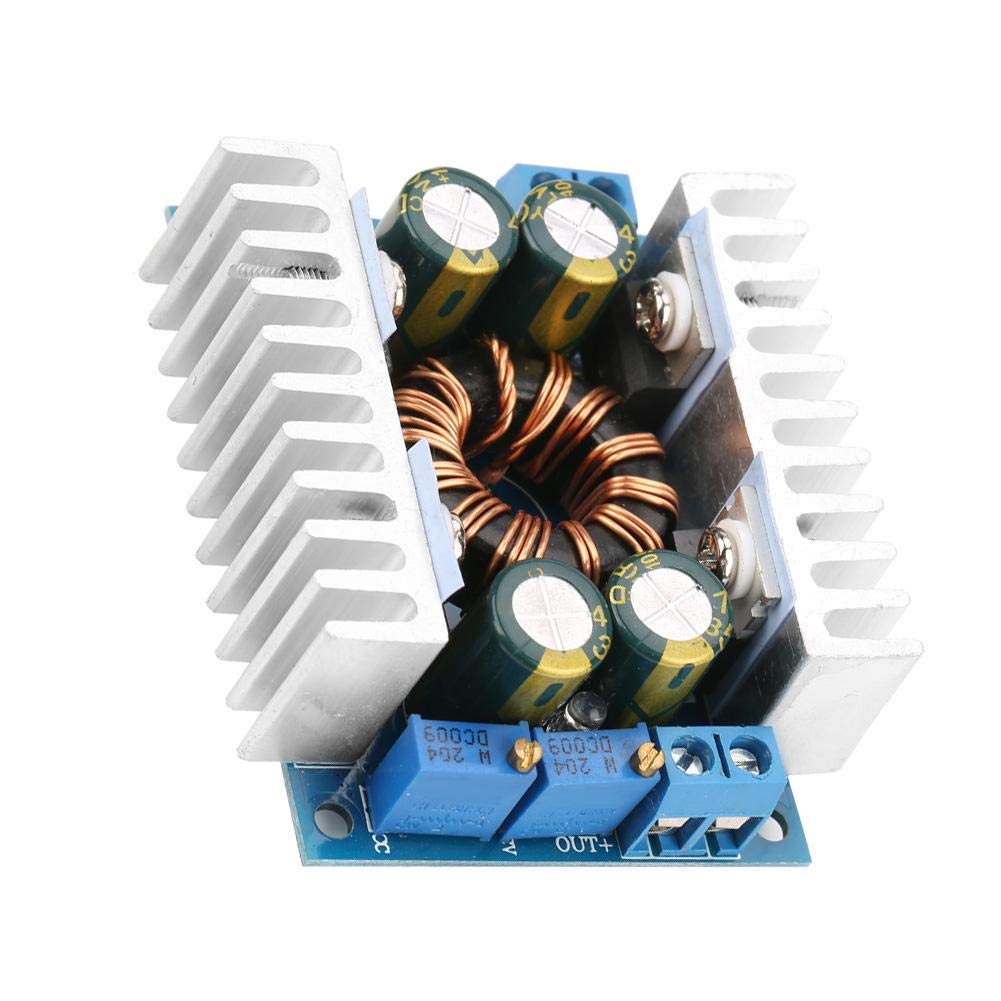

Specification: Type: Non-isolated synchronous rectification automatically step up/down module Input Voltage: DC5-30V Input Current: 8A, (MAX) 10A, (within 6A for long-term work) Quiescent Current: 4mA (there will be deviation when working voltage is different) Output Voltage: 1.25-30V continuously adjustable Output Current: 10A (MAX) (long-term natural cooling within 5A, please reduce rated value when output high voltage), enhance heat dissipation or reduce rated value when module temperature is over 65℃ Constant Current Output Range: 0.2-10A Operating Temperature: -40℃ to +85℃ Frequency: 150KHz Conversion Efficiency: Typical 91%, maximum 93% Over Current Protection: Yes Short Circuit Protection: Yes (current limiting protection) Over Temperature Protection: Yes (automatic reduce output voltage) Reverse Input Protection: No, please connect to a diode in series at input if needed Output Flow Back Protection: Yes, do not need to add the diode when used for charging. Wiring Method: Terminal block output, (IN is input, OUT is output) Weight: 70g / 2.5oz (approx.) Package list: 1 * Module Current Adjustment: 1, Adjust the CV potentiometer, set the output voltage according to the load requirements. 2, Rotate counterclockwise CC potentiometer about 30 circles, (i.e. the output current is set to minimum), connected to the LED, set CC potentiometer to required current. If you use the module for battery charging, connect to output after battery is fully discharged. Adjust CC to required current. Because if the more energy is left in battery, the less charging current will be. Please do not use short circuit to adjust current.
