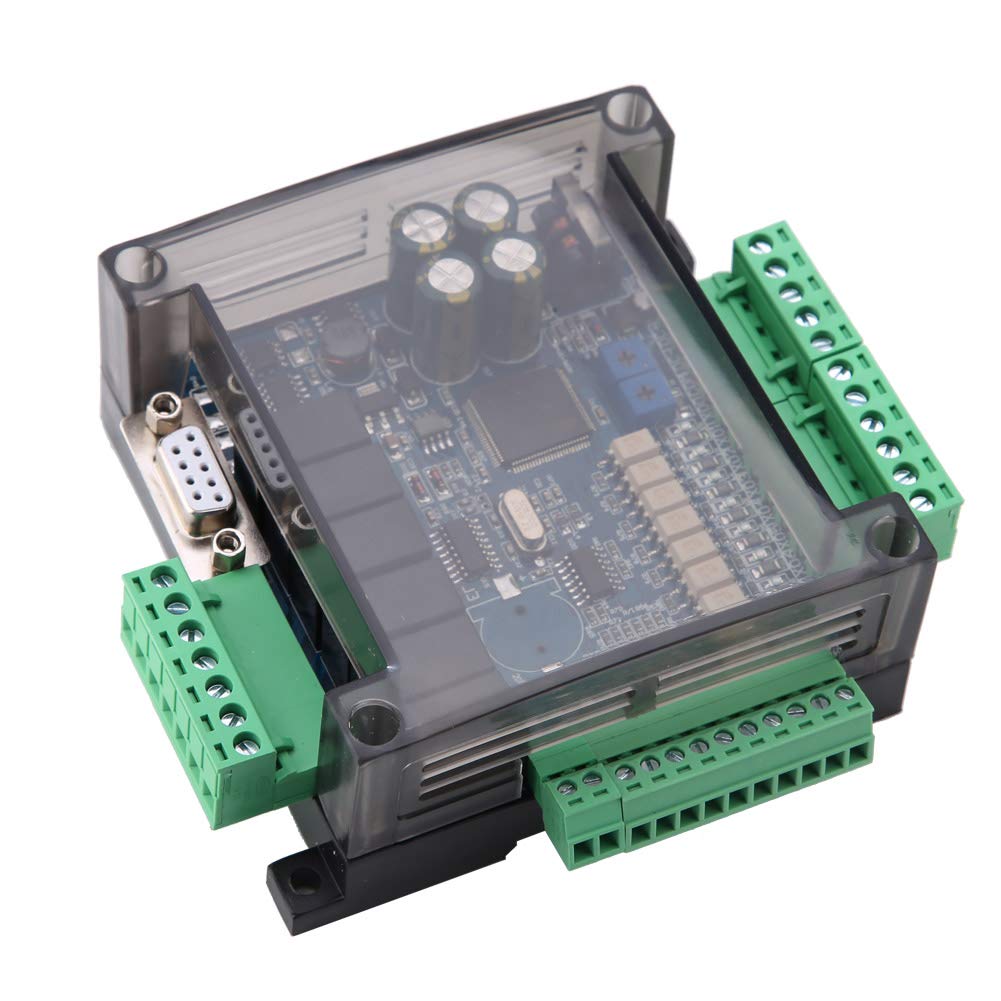

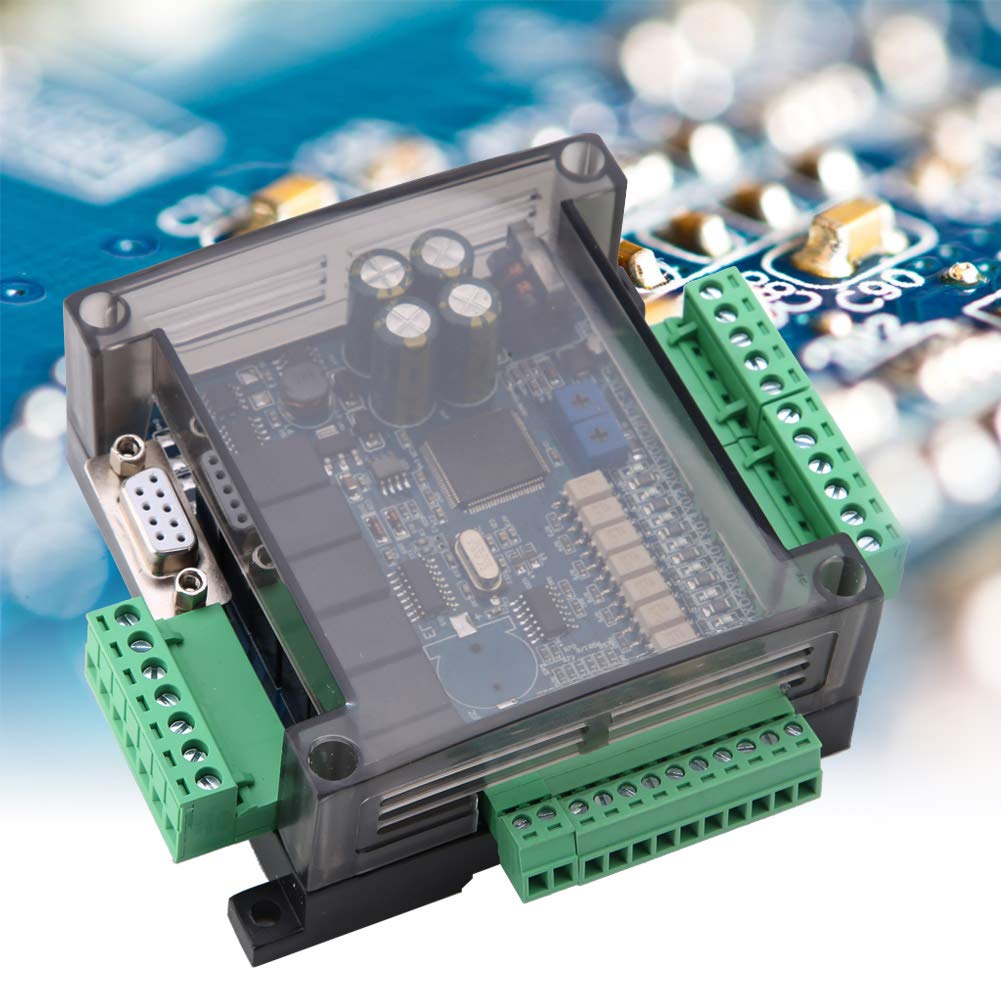

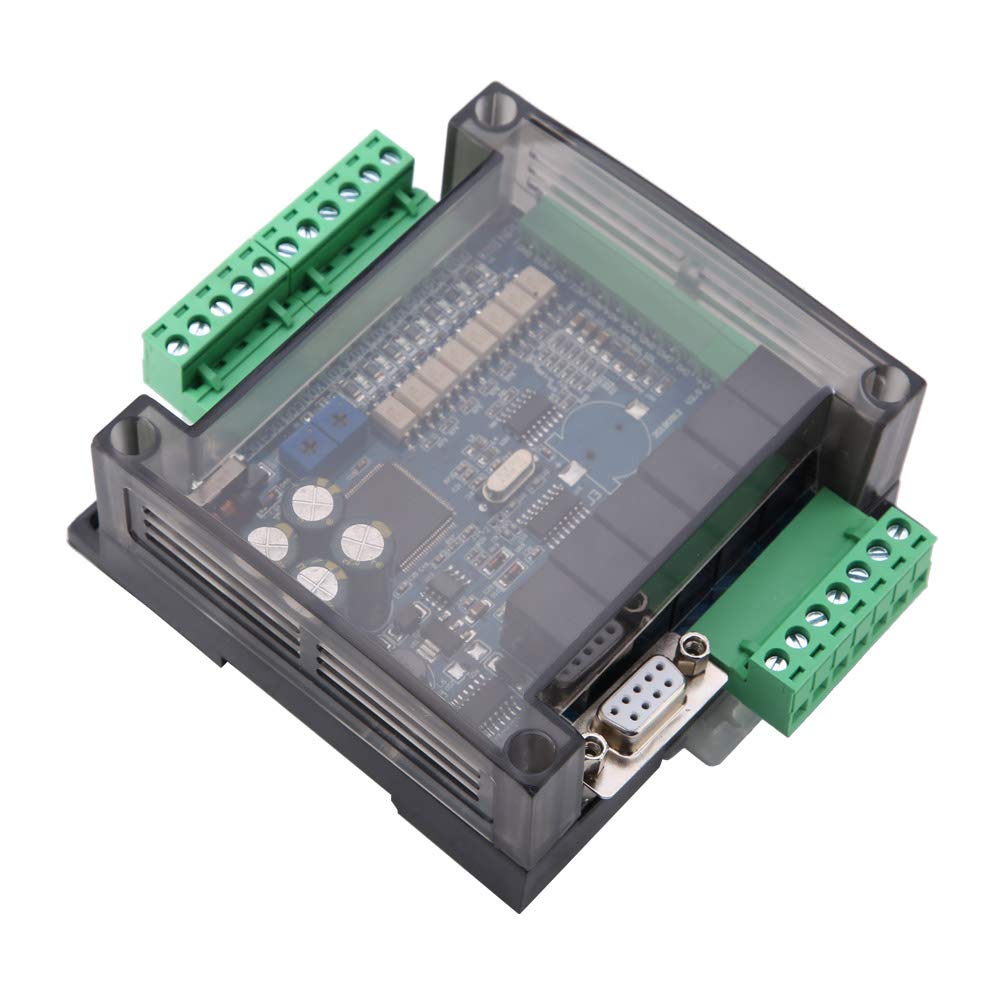

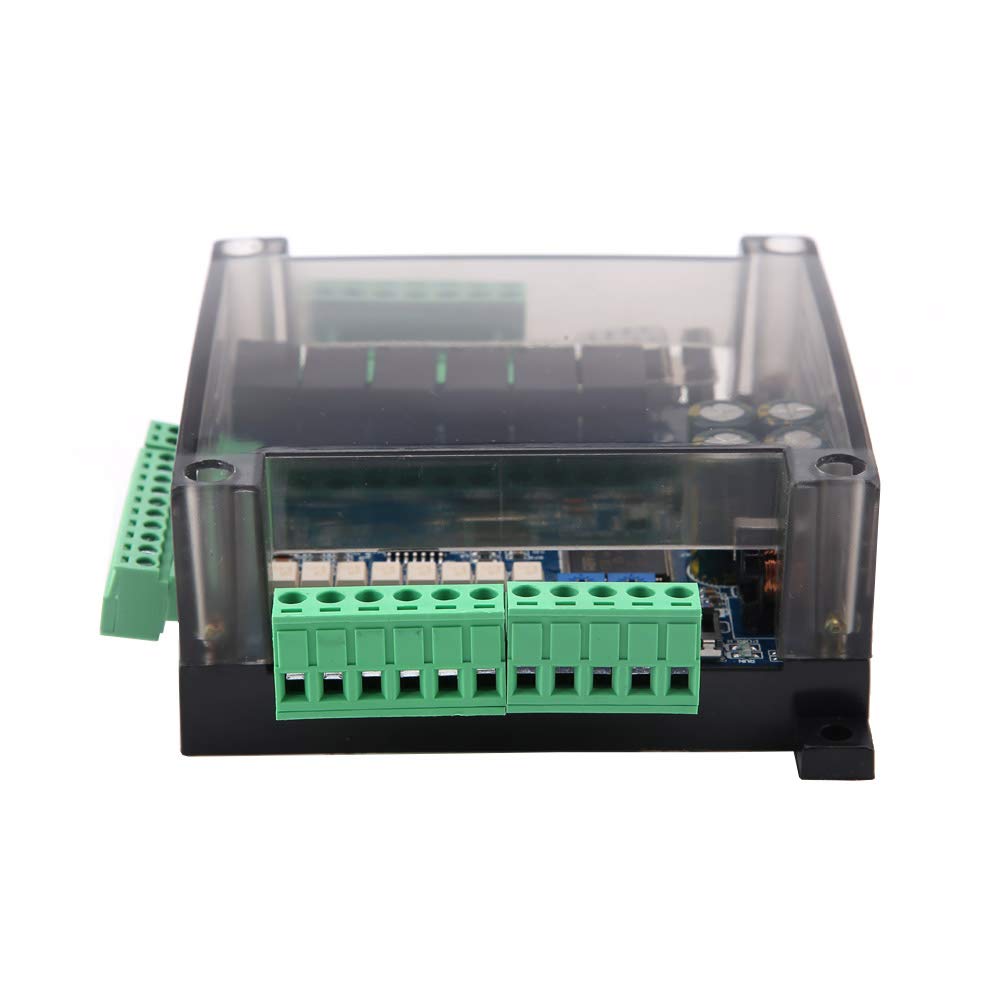

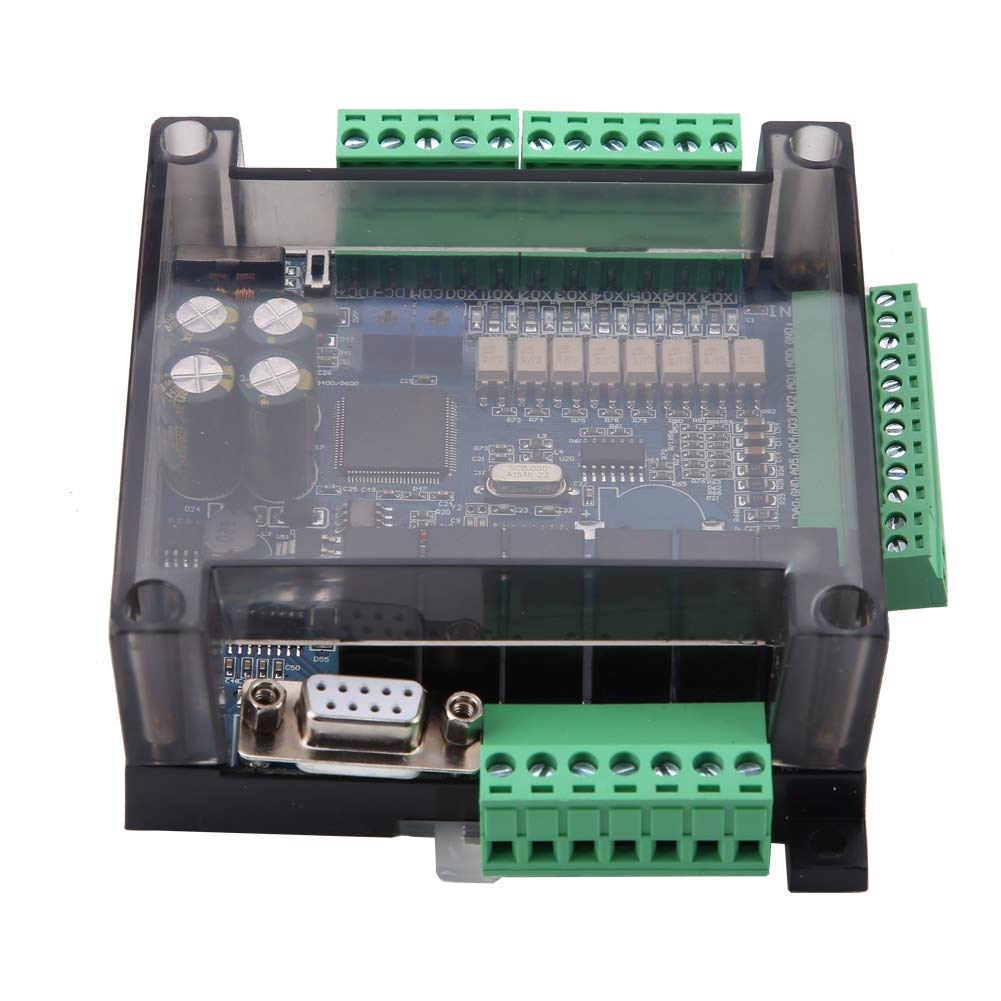

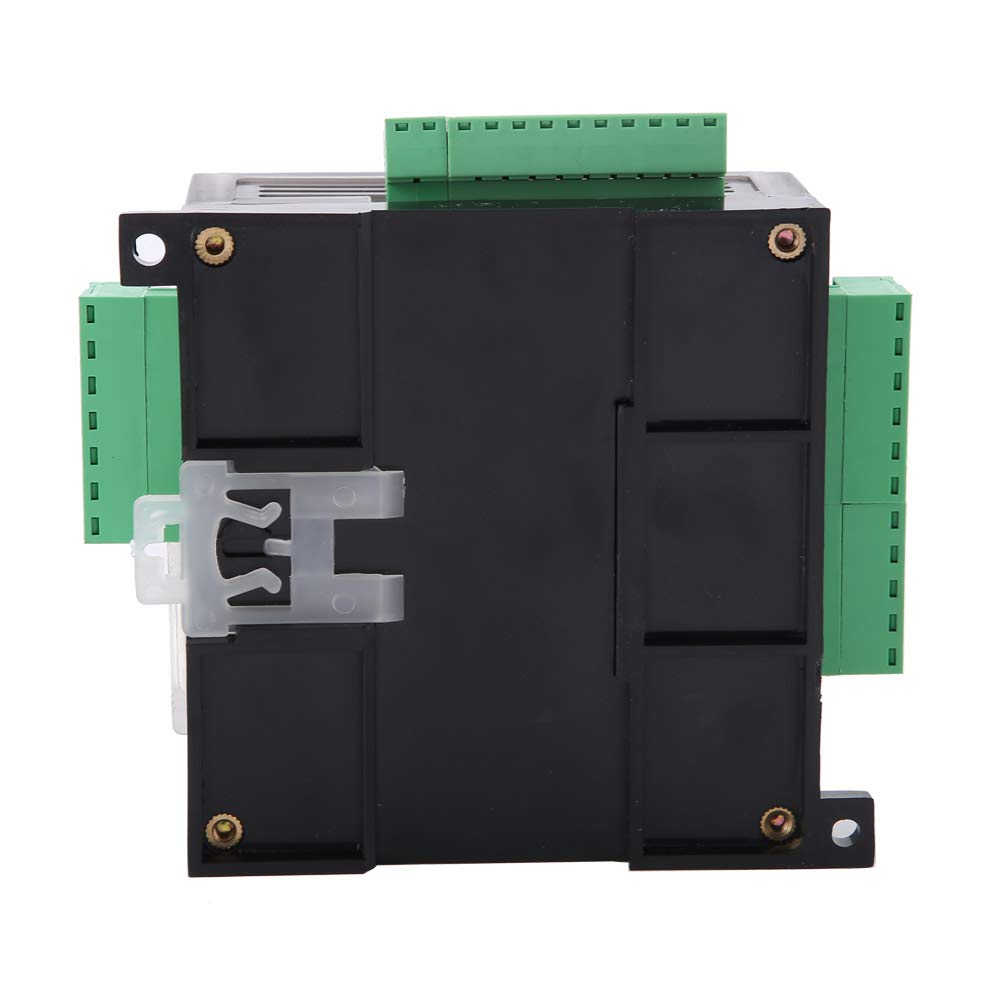

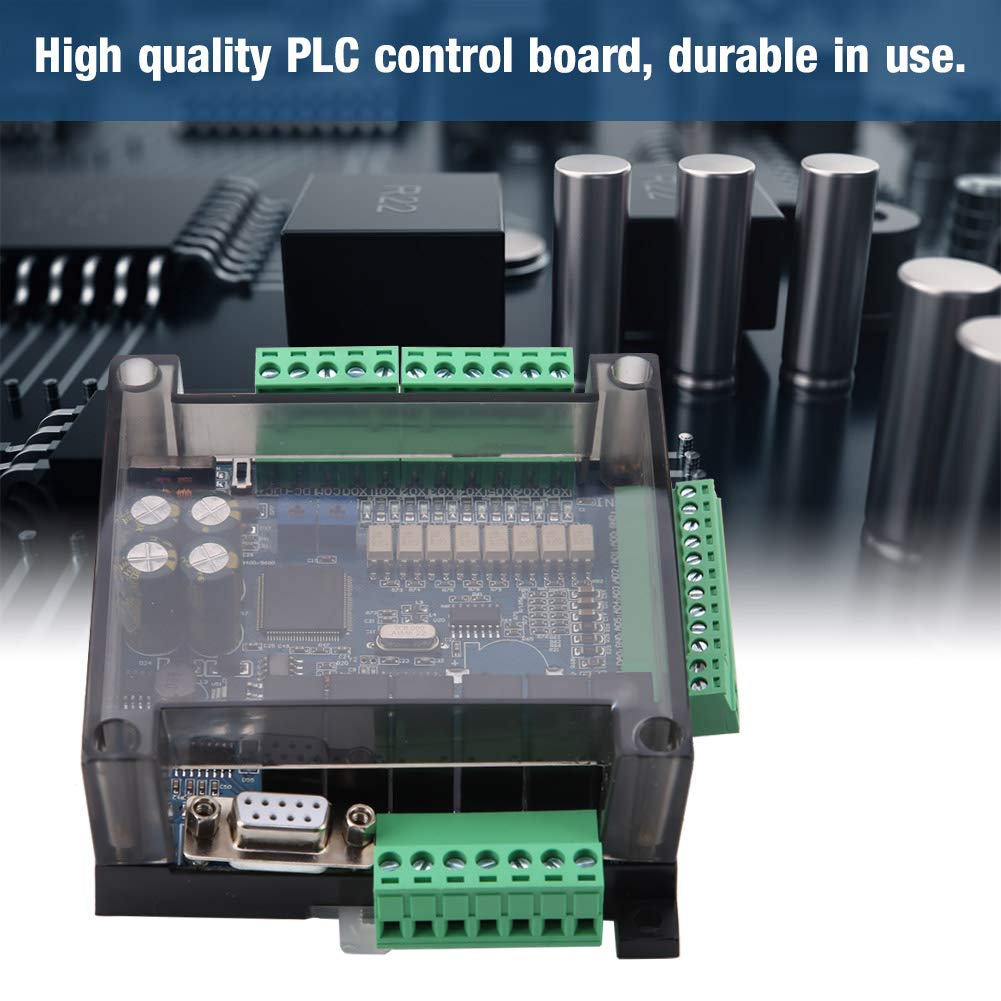

DC24V PLC Control Programmable Logic Controller FX3U-14MR 8 Input 6 Output Industrial Control Board PLC Programmable Logic Controller Relay Output

• TWO COMMUNICATION PORTS: One RS232 (DB9) serial communication port is FX3u protocol 38400,7, E, 1; One RS485 (485 optional configuration) (communication protocol can be set to D8120).
• ANALOG OUTPUT: 2-channel analog output, 12-bit accuracy, output voltage: 0-10v. Output analog voltage WR3A instruction, corresponding to the value 0-4095.
• ANALOG INPUT:Six-way analog input,12 bit accuracy, input voltage:0-10V,0-20MA; Read the analog quantity with RD3A directive. The corresponding values 0-4095. Two-way potentiometer analog input, D8030, D8031.
• THE OUTPUT POINT Y ELEMENT: Y0-Y5 is optional relay or transistor output, relay output current 5A. The transistor output DC24V, the current maximum 1A. Y0-1 is high-speed output port (maximum 100K). PWM period is 0-32767US.
• SUPPORTS WIDE USE: The PLC board is powered by DC 24V. Do not input AC or 220V voltage. Widely used for fields of printing, metallurgy, food, textile, packaging, home, building materials, plastics, chemicals.

Specification: Weight: 239g/8.4oz Input point:8 Output point:6 Power supply voltage: DC24V Output current: 5A Analog input: 6AD Analog output: 2DA High speed count:6 road 12K optional 100K Pulse output: No Floating point: Support Step motor: No support Memory capacity:8000 step Programming software: GX developer or GX works Program steps: 8000 steps Two communication ports: One RS232 (DB9) serial communication port is FX3u protocol 38400,7, E, 1; One RS485 (485 optional configuration) (communication protocol can be set to D8120). The output point Y element: Y0-Y5 is optional relay or transistor output, relay output current 5A. The transistor output DC24V, the current maximum 1A. Y0-1 is high-speed output port (maximum 100K). PWM period is 0-32767US. High The maximum speed current is 1A. External load common terminating + 24, the other end received the PLC output port Y. Analog input: Six-way analog input,12 bit accuracy, input voltage:0-10V,0-20MA; Read the analog quantity with RD3A directive. The corresponding values 0-4095. Two-way potentiometer analog input, D8030, D8031. Analog output: 2-channel analog output, 12-bit accuracy, output voltage: 0-10v. Output analog voltage WR3A instruction, corresponding to the value 0-4095. Intermediate relay M: M0-M3071, the power loss preservation range can be set. Package List: 1x PLC Control Board
