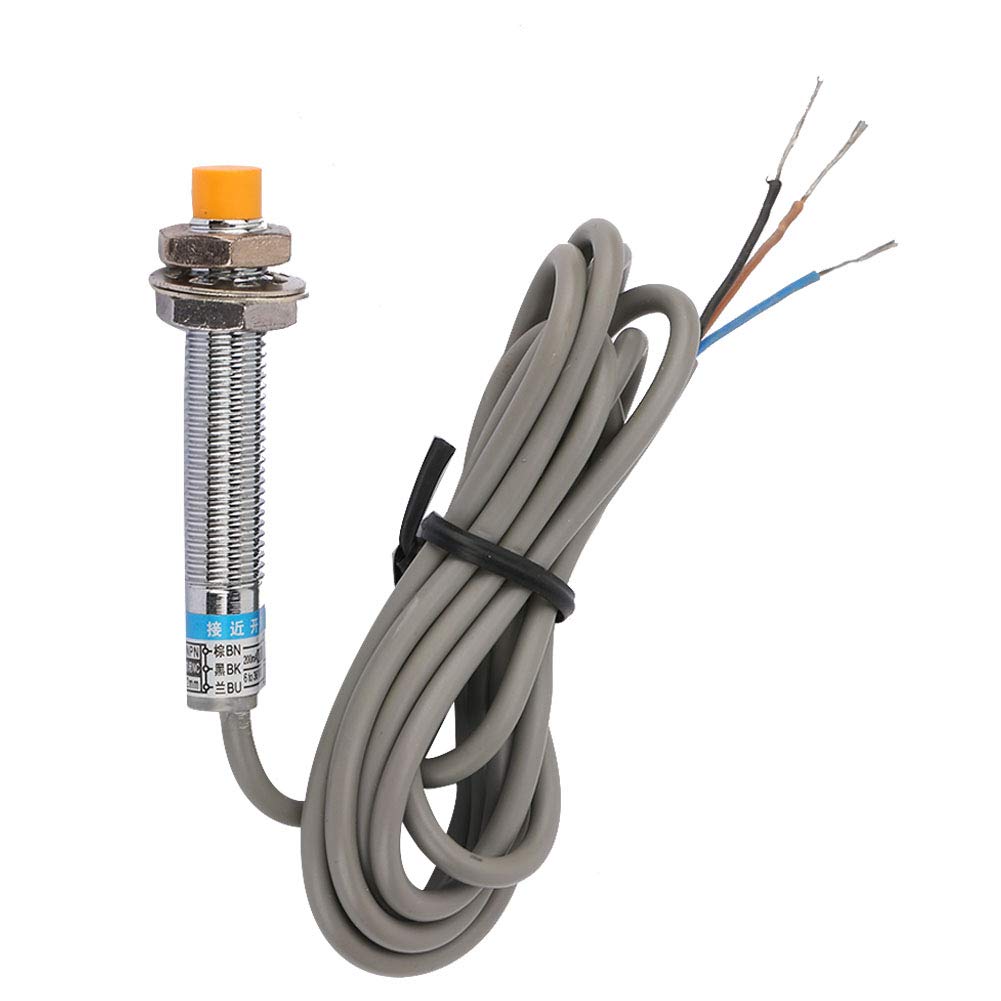

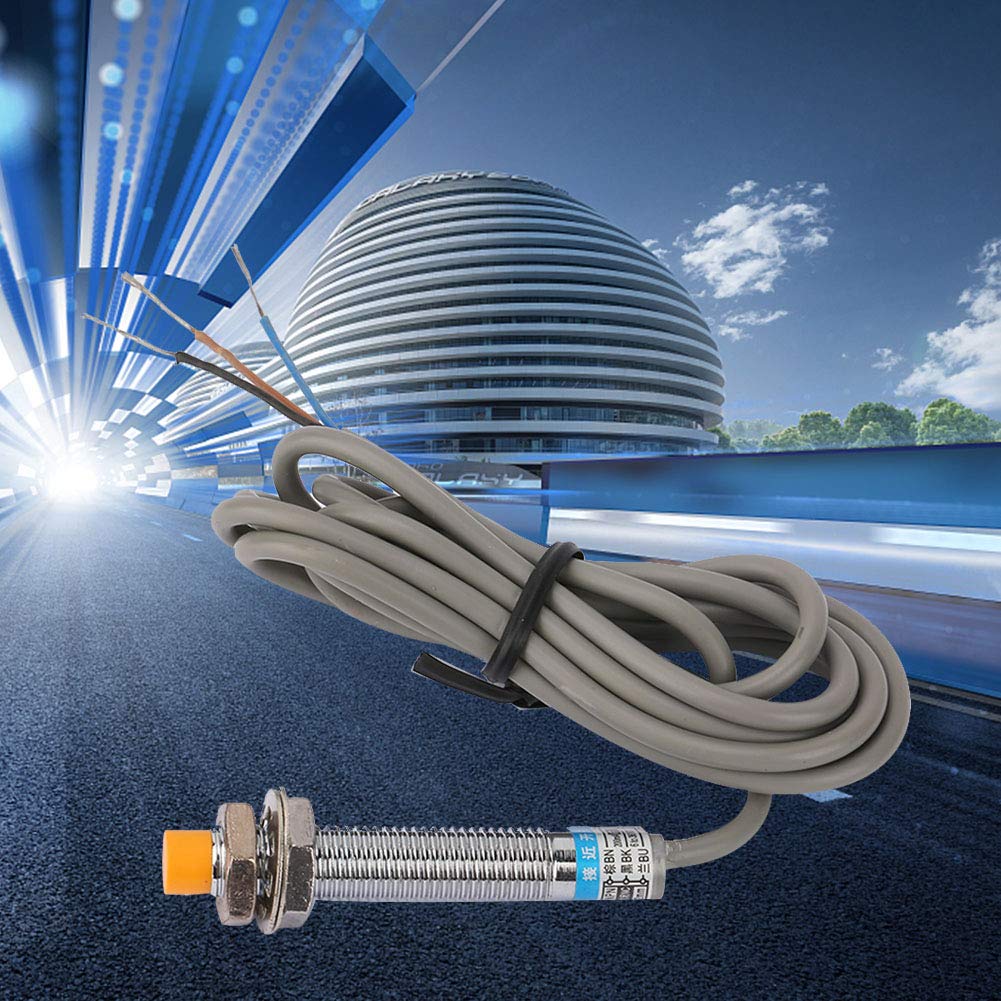

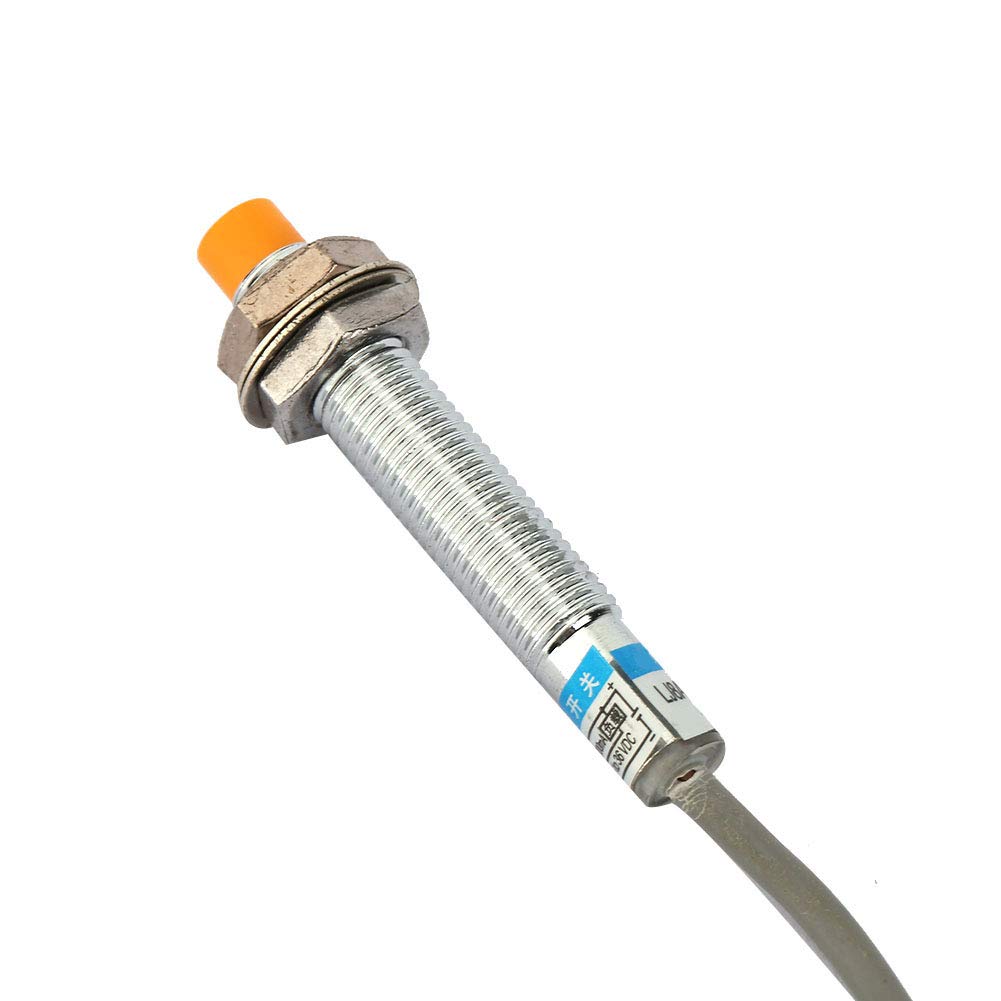

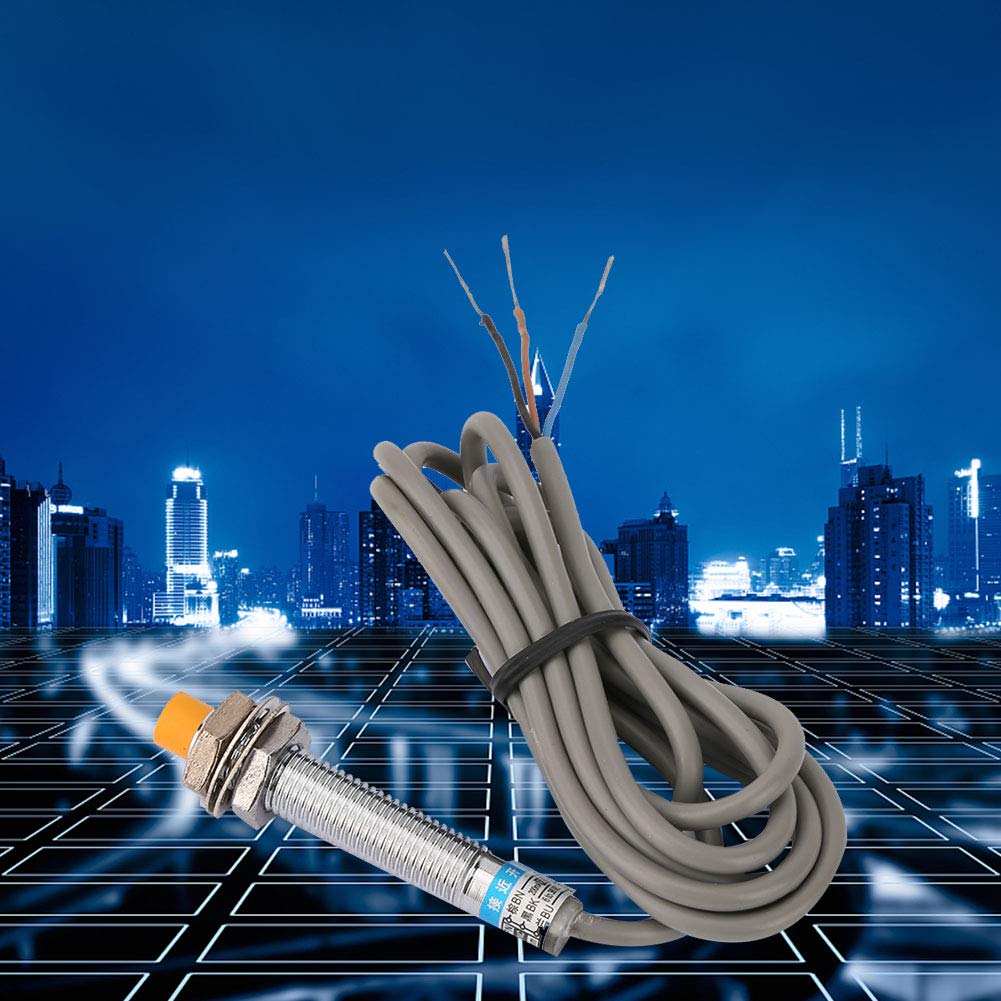

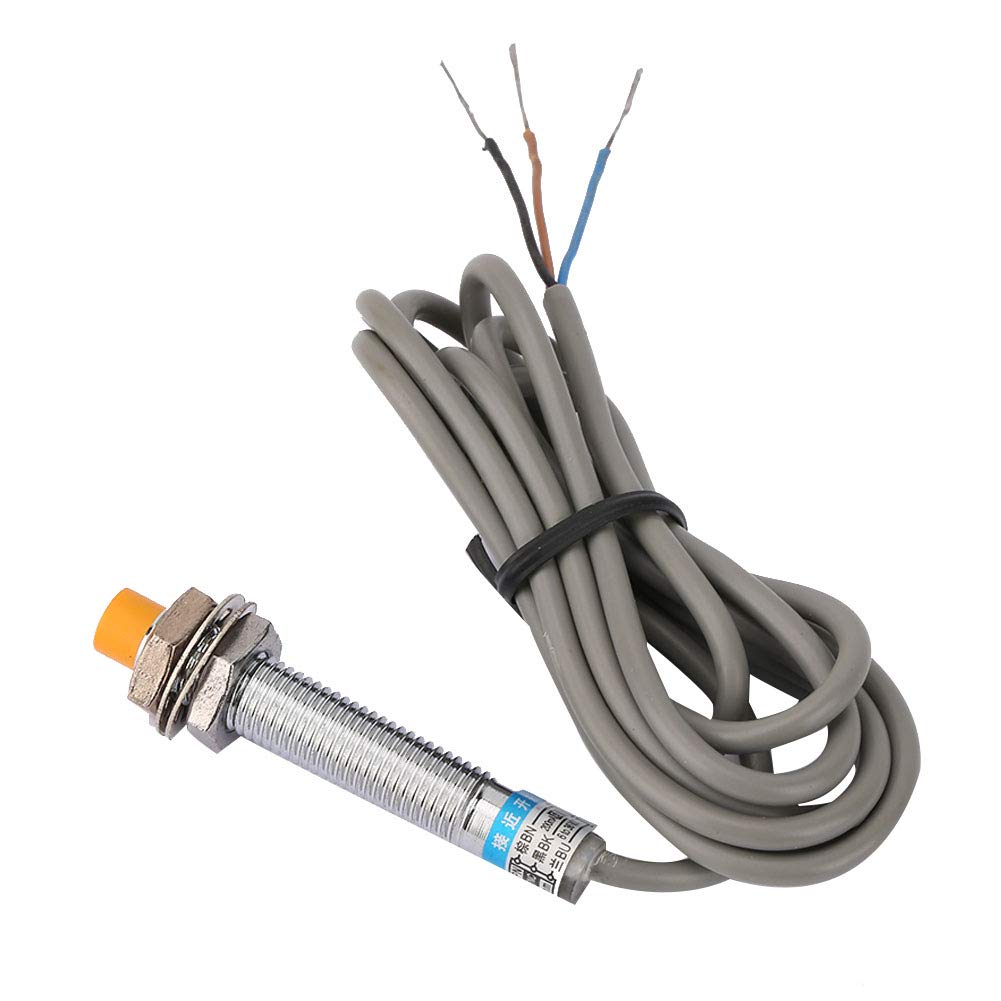

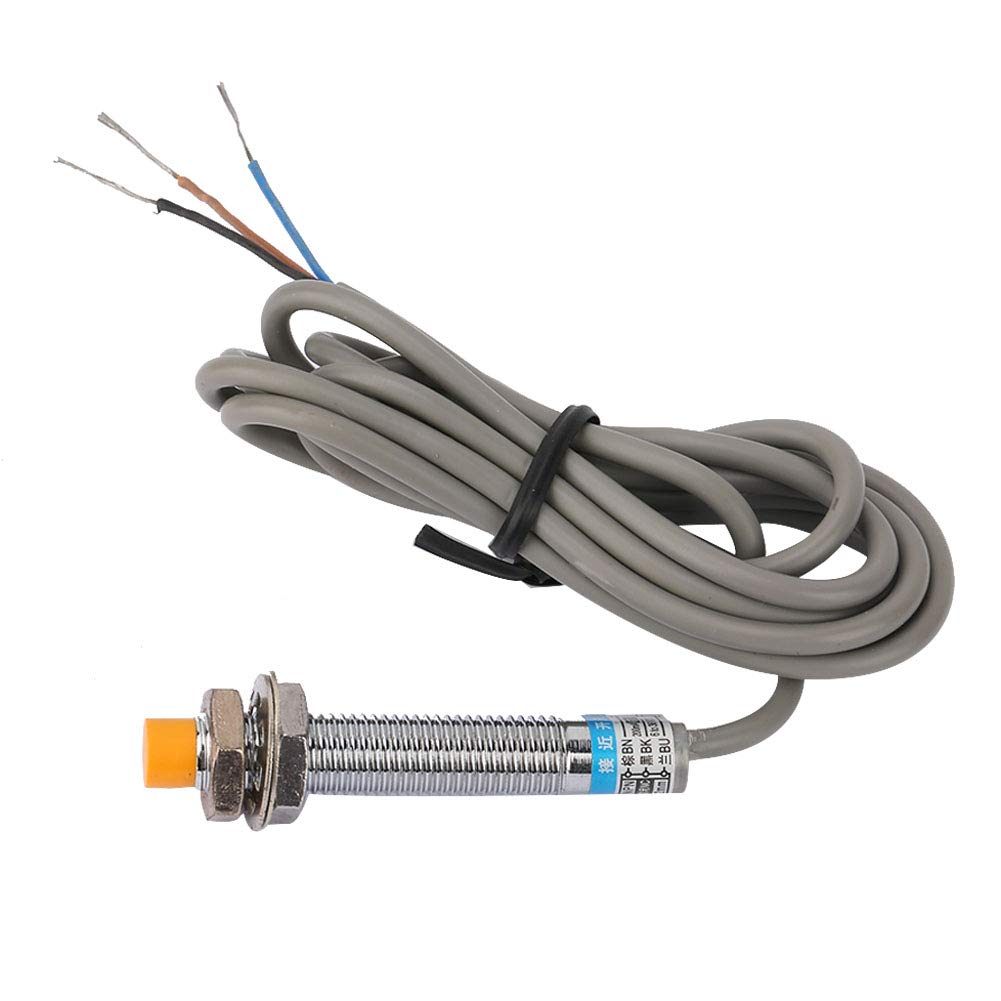

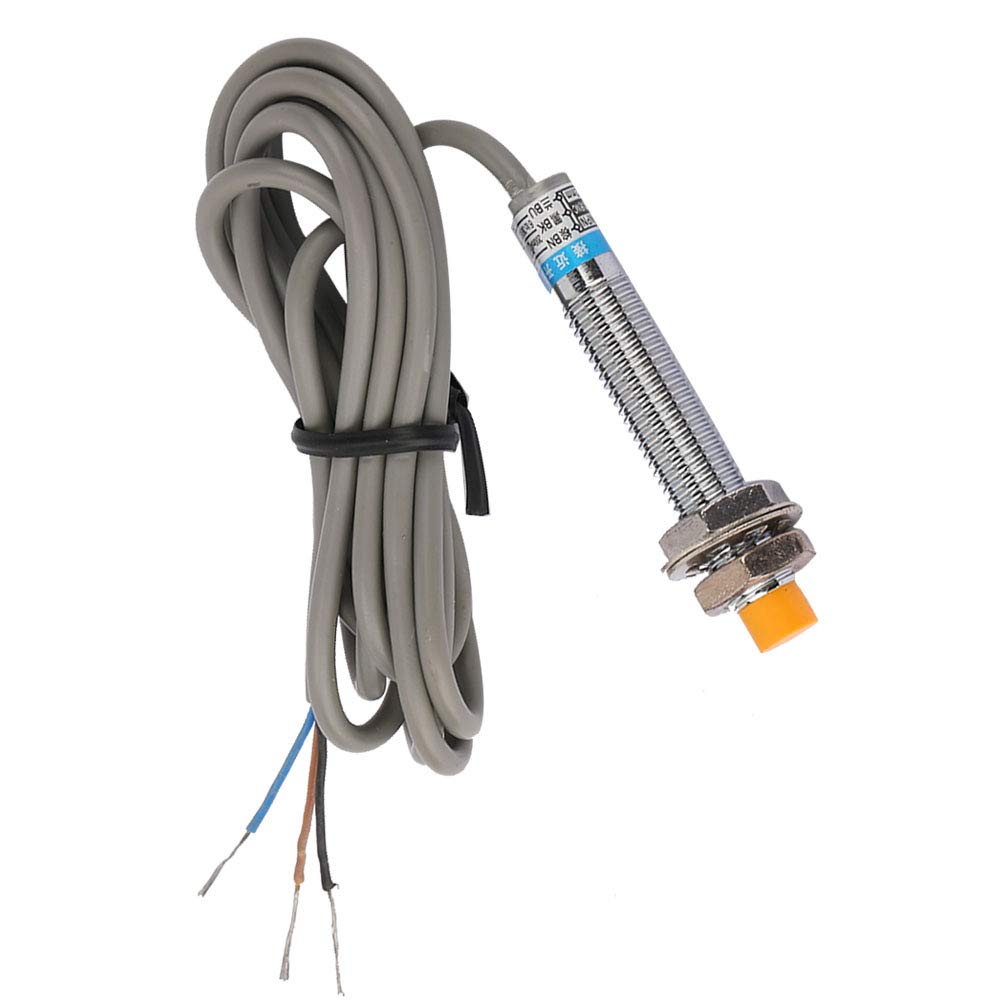

DC Type Proximity Sensor Switch LJ8A3-2-Z/AX 3-Wires NPN Normally Close Inductive Sensor Detection Proximity Switch

• 【CONTACTLESS SWITCH SENSOR】: This Inductive proximity switch is a position switch that can be operated without mechanical direct contact with moving parts, when an object approaches the sensing surface of the switch to the action distance.
• 【QUICKLY RESPONSE DETECTOR】: When the metal detector is close to the sensing area of the switch, the contactless switch can be pressure-free, spark-free, and quickly send out electrical instructions, accurately reflecting the position and range of the motion mechanism.
• 【CHARACTERISTIC OF SWITCH】: The Inductive Proximity Switch is a kind of on-off sensor, which has the characteristics of travel switch and micro-switch, as well as sensing ability, and you don’t have to worry about working performance.
• 【AN IDEAL PROXIMITY SWITCH】: The Proximity switch, also known as contactless proximity switch, is an ideal electronic switch sensor, which has reliable action, stable performance, fast frequency response, long application.
• 【MANY ADVANTAGES SWITCH】: This Inductive proximity switch has many advantages in these aspects, such as general stroke control, positioning accuracy, operating frequency, service life, convenience of installation and adjustment, which can be widely used in machine tools, metallurgy, chemical, textile and printing industries.

Specification: Material: brass plated nickel shell, ABS detection surface Weight: 28g/1oz Detection distance: 2mm ±10% Set distance: 0-1.6mm Lag distance: less than 10% of the detection distance Detection object: magnetic metal (the detection distance of non-magnetic metal decreases) Standard test object: iron 12 * 12 * 1mm Response frequency: DC: 0.5kHz, AC: 25Hz Power supply voltage: DC 12-24V (6-36V) ripple (p-p) less than 10% (DC type) Withstand voltage: AC1000V 50/60Hz 1min between the charging part and the shell Voltage influence: within the rated power supply voltage range of ±15%, within the detection range of ±10% when it is the rated power supply voltage value Current consumption: N.P type: below 13mA D type: below 0.8mA A type: below 1.7mA Control output: N.P type: below 300mA D type: below 200mA A type: below 400mA Circuit protection: N.P.D type: reverse connection protection, surge absorption, load short circuit protection A Type: surge absorption Ambient temperature: each - 30 to + 65 ℃ action and save Ambient humidity: 35-95% RH each (no ice, no frost) action and save Temperature influence: Temperature range -30 to + 65 ℃ , +23 ℃, ± 15% detection distance; Temperature range -25 to + 60 ℃, +23 ℃, ± 10% detection distance. Package List: 1 x Proximity Sensor Switch
