DC Programmable Meter Controller 0-90V 0-500A Volt Amp Power Meter Ah Auto Shut Down Battery Tester

• Battery Status At A Glance.
• Measure Forward (Positive) and Reverse (Negative) current at the same time.
• Combines many functions in one, displays voltage, charge and discharge current, consumed amp hours and remaining battery capacity.
• Flexible On-line calibration function, calibrate Voltage and amps reading easily.
• Adopting modular design, collocate indicator lights on the panel for various working status.

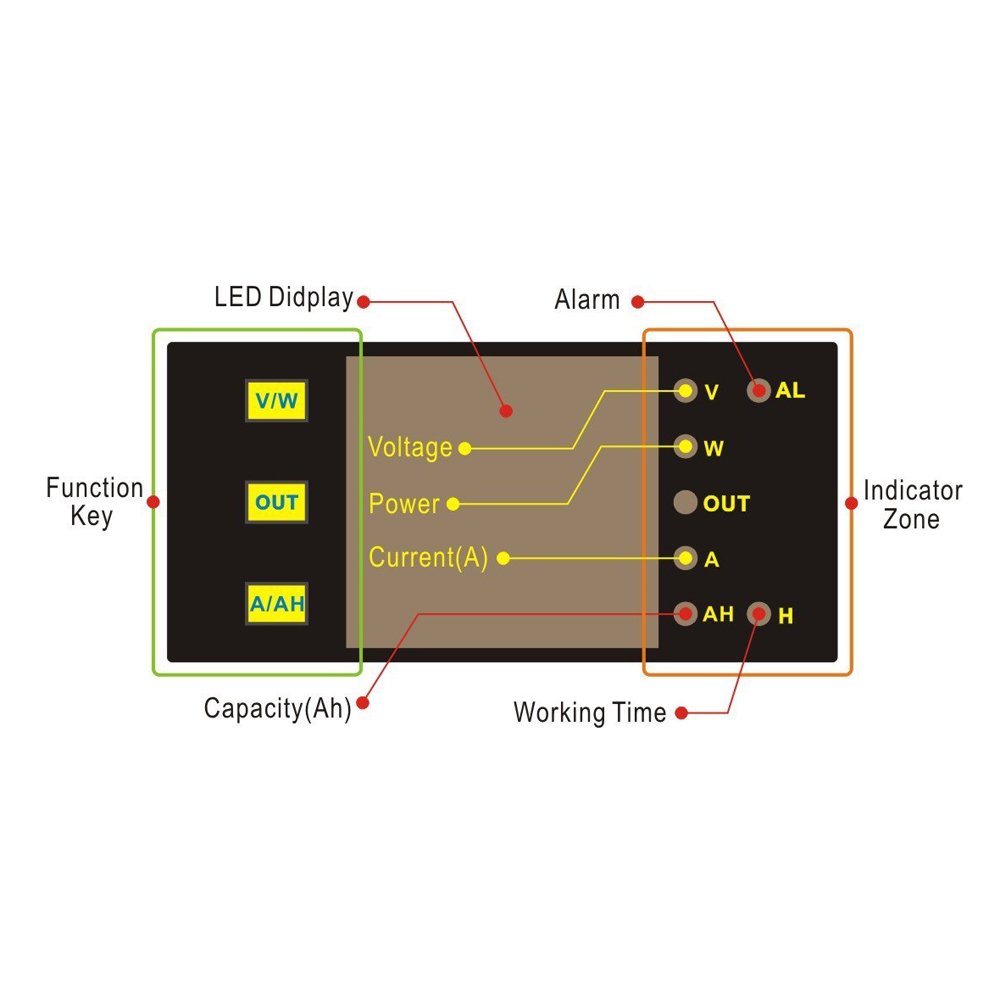

Product description The DCM9040 Battery Monitor The unit is designed to monitor performance most kind of battery systems, it continuously monitors voltage, discharge current, number of power, consumed amp hours, these information leads to more efficient use of the battery, which can enhance battery life and reduce the risk of failure. Combines many functions in one, Dual display. *Voltage (V), Power (W), Current (A), Ampere-hour (Ah), Working Hours (H). It is equipped with an internal programmable alarm, to run a generator when needed or to turn off devices when the battery voltage exceeds programmable boundaries (relay required). *[OVP] Over Voltage protection *[LOP] Low Voltage protection *[OCP] Over Current protection *[OAH] Over Charge protection *[OPP] Over Power protection *[OFT] Over Time protection Flexible On-line calibration function, calibrate Voltage and amps reading easily. Adopting modular design, collocate indicator lights on the panel for various working status 4 digits LED, High accuracy It can measure currents up to 400 amps, capacity up 999 amp hours. It can be powered by the same source being measured(5-40V). It is easy to enable simple DIY installation. Technical Specification Power Supply: 5~40V (external/Internal power supply) Measuring range: 0-90V/0-500A (external power), 5-40V/0-500A (external power) Display Type: 7 segment 4digits Red LED Sampling rate: 5 readings per second Accuracy: Volt ± 0.1% + 2byte / Amp ± 0.5% + 3byte Resolution: 0.01V, 0.01A, 0.01W, 0.01Ah, 0.01H Package including 1x Battery Monitor 1x Shunt 1x Installation instruction Safety Warning Product Dimensions: 76.5mm*39.2mm*25mm
