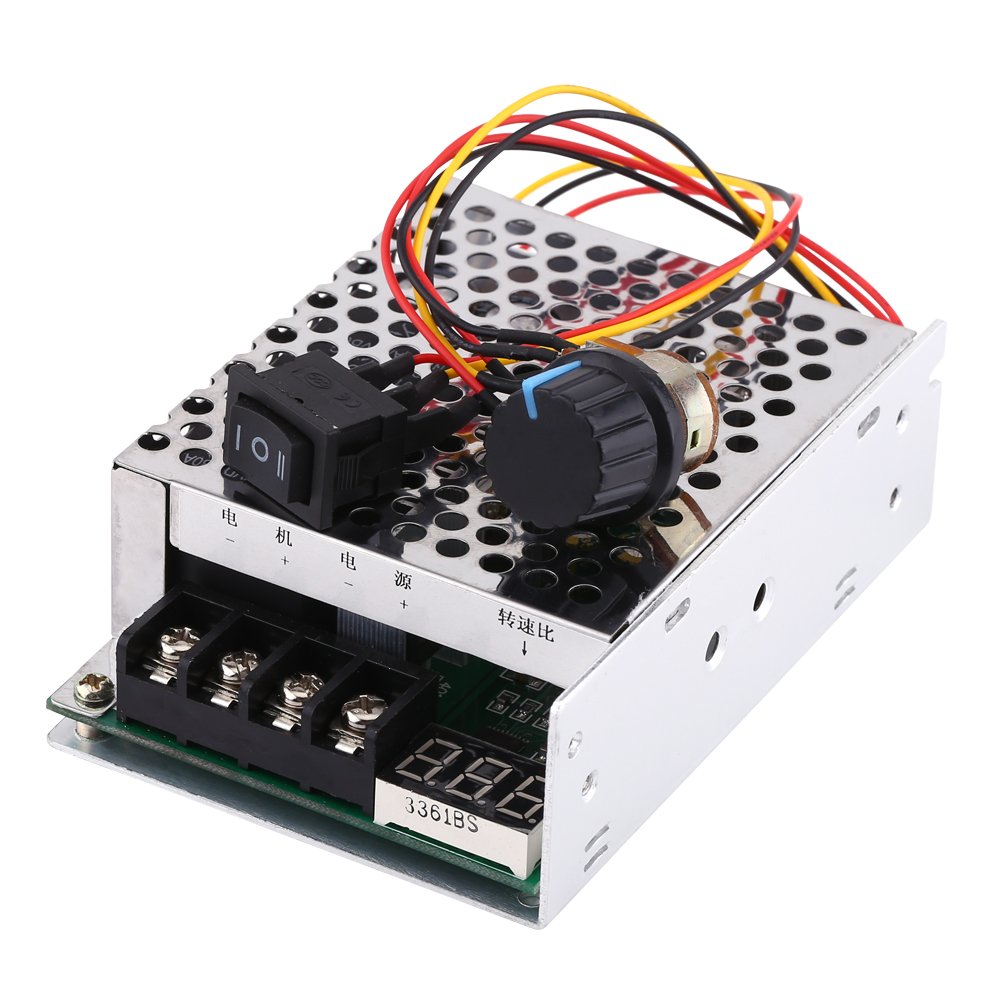

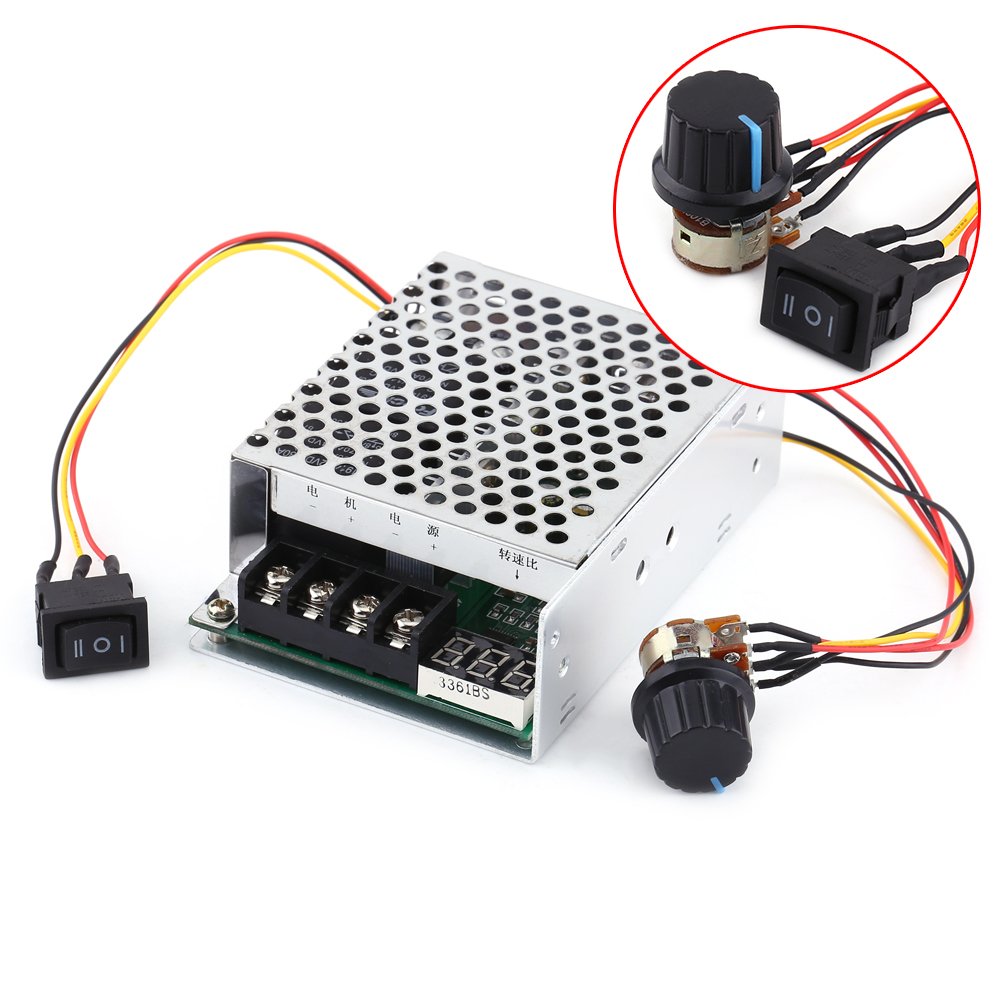

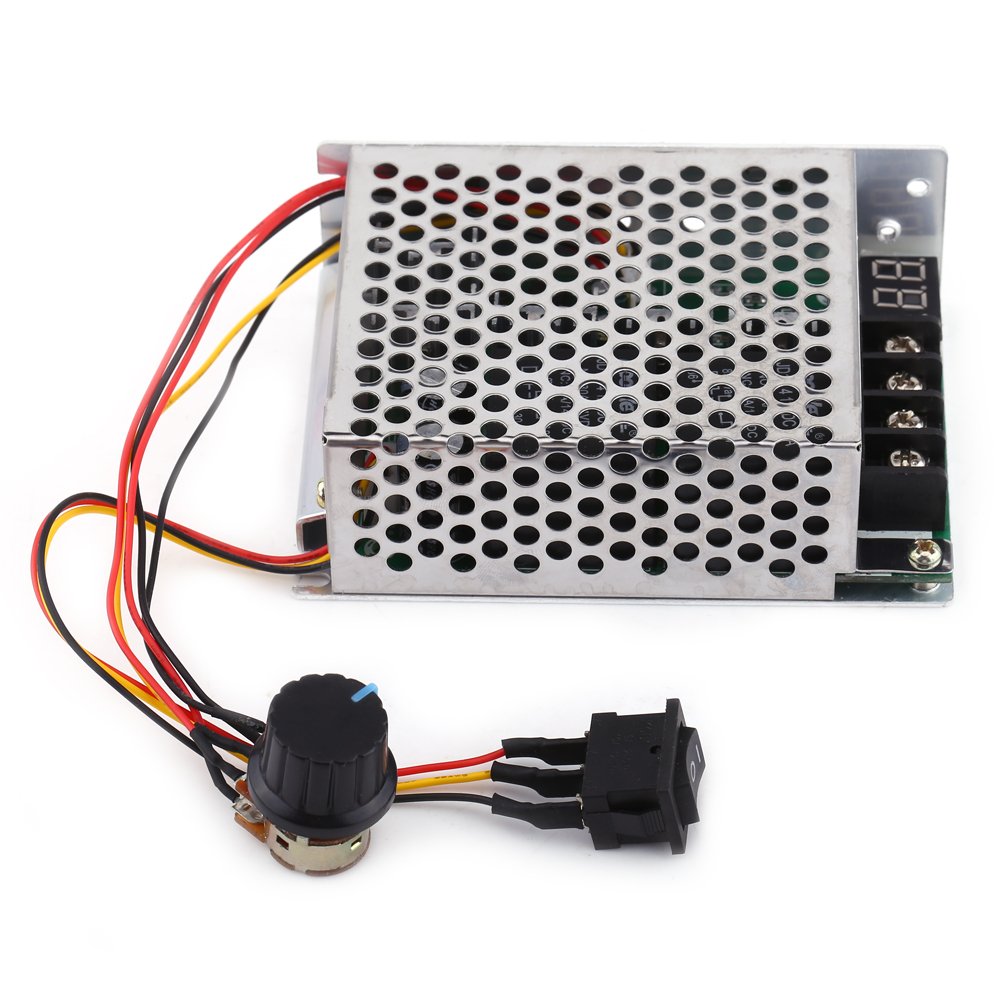

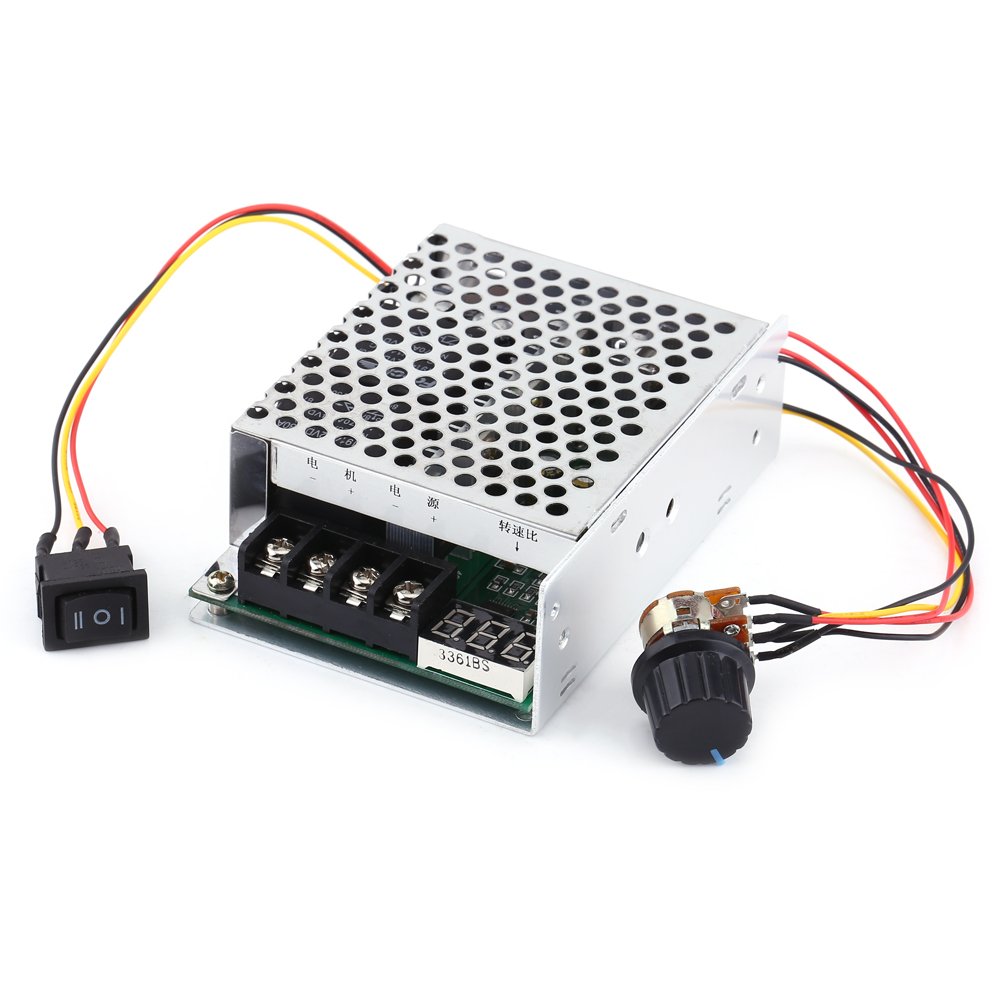

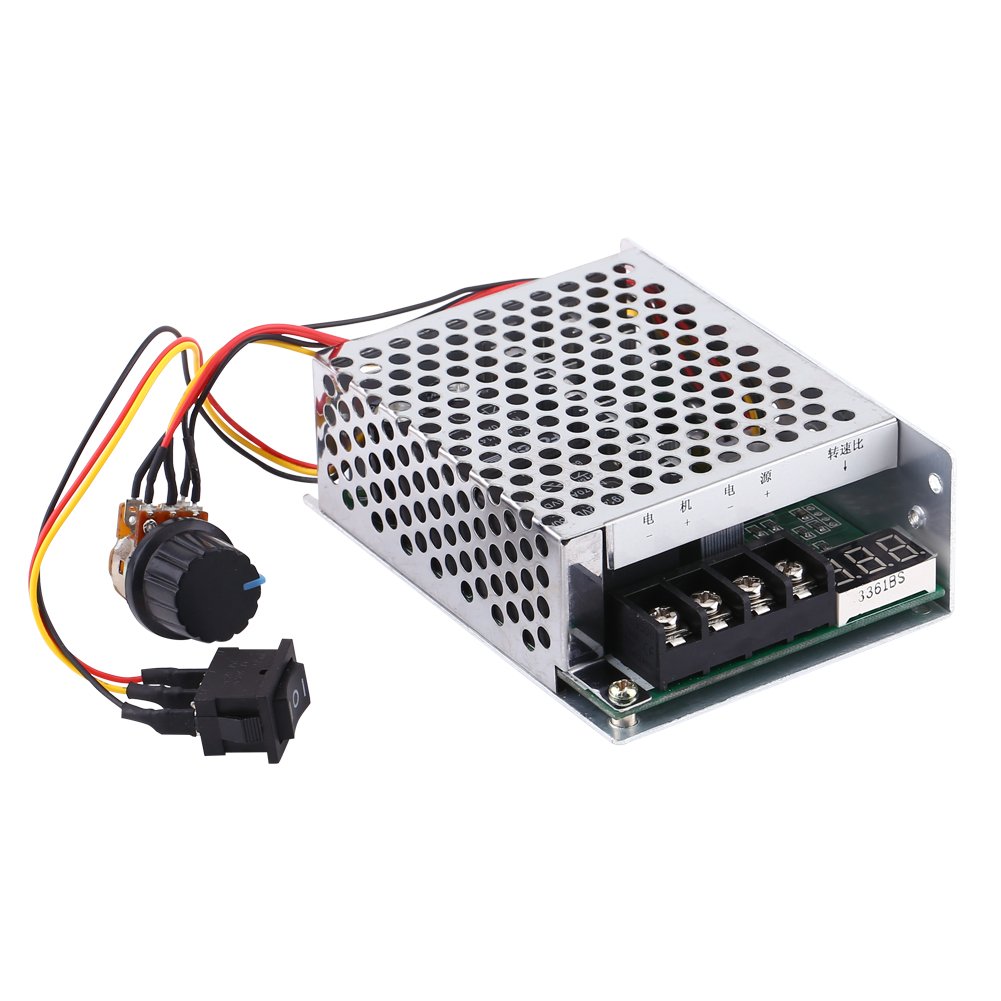

DC 10V-55V Motor Speed Controller Reversible with Digital Display Reversible Switch for DC Motor Driver Module

• capable of regulating DC motor speed with a wide range and reverse the rotation through a reversing switch, which has forward/off/reverse 3 phases
• The input voltage range from DC 10V to 55V, and the rated current 40amp, so it's really a large power speed controller
• Fitted with a display panel which display the rate in percent of actual speed to maximum speed, that will help regulate the motor speed much more precisely

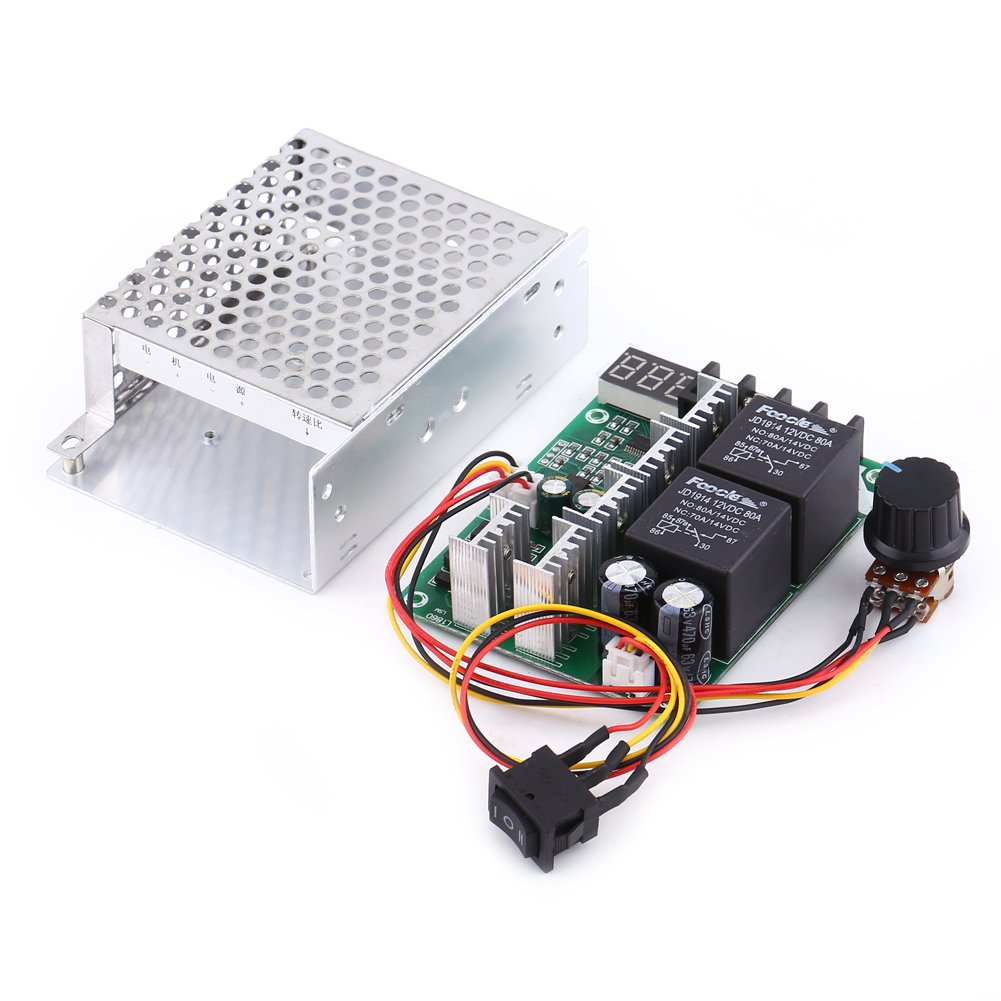

• Comes with a well-designed case, which can protect the controller board from damage and help dissipate heat

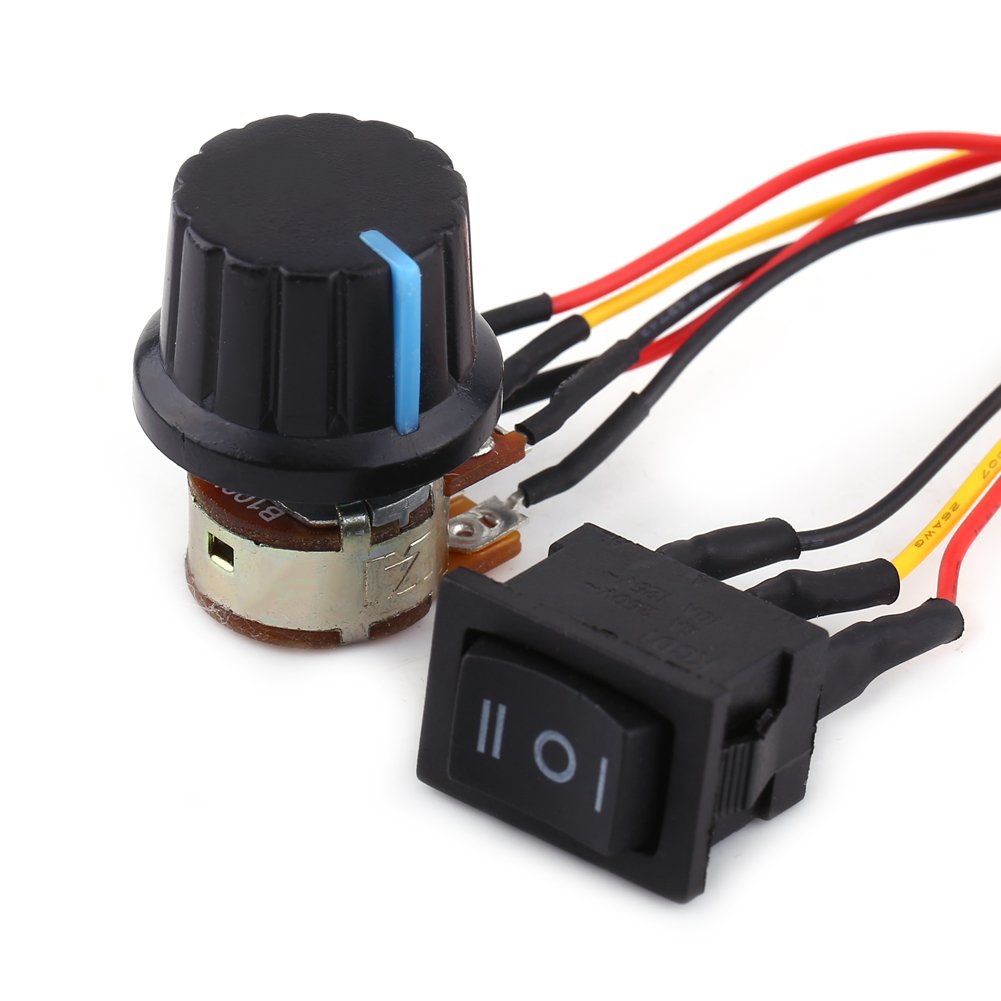

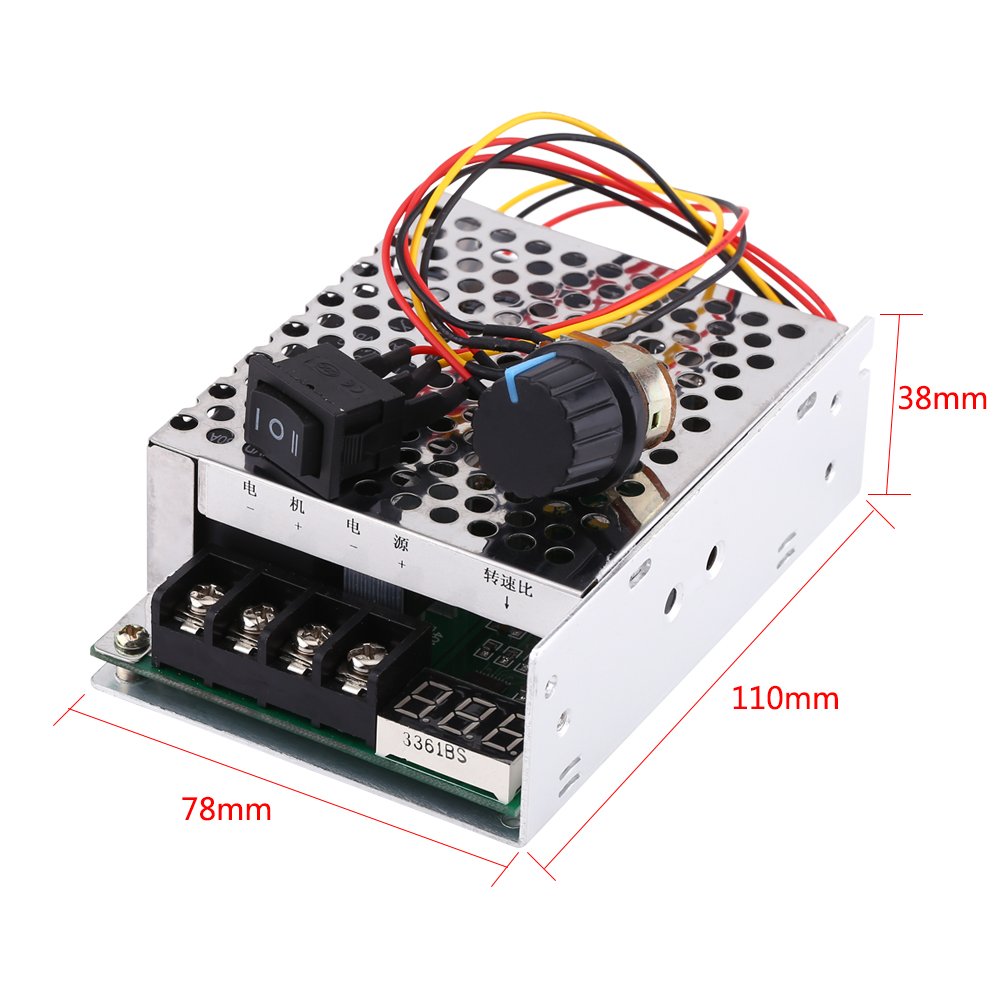

This product can not only regulate the DC motor speed, but also change the rotation direction. With a potentiometer and reversing switch, it's easy to control the motor rotate as the way you expect. It has a well designed case, which can protect the controller board from damage and help dissipate heat. Fitted with a digital display that shows the rate in percent of actual speed to maximum speed, you can regulate the speed much more precisely. Specifications: Input Voltage: DC10V-55V Output Voltage: Linear with load Max. Current: 60A Continuous Current: 40A Speed Range: 0% to Forward & Reverse: Support Regulation Method: Potentiometer(linear) Regulation Type: Regulating Current Control Frequency: 15KHz Wiring Type: Screw terminal Rotary Knob: 100K(with switch) Size: 110 x 78 x 38mm / 4.33 x 3.07 x 1.49" Package Includes: 1 x Speed Controller
