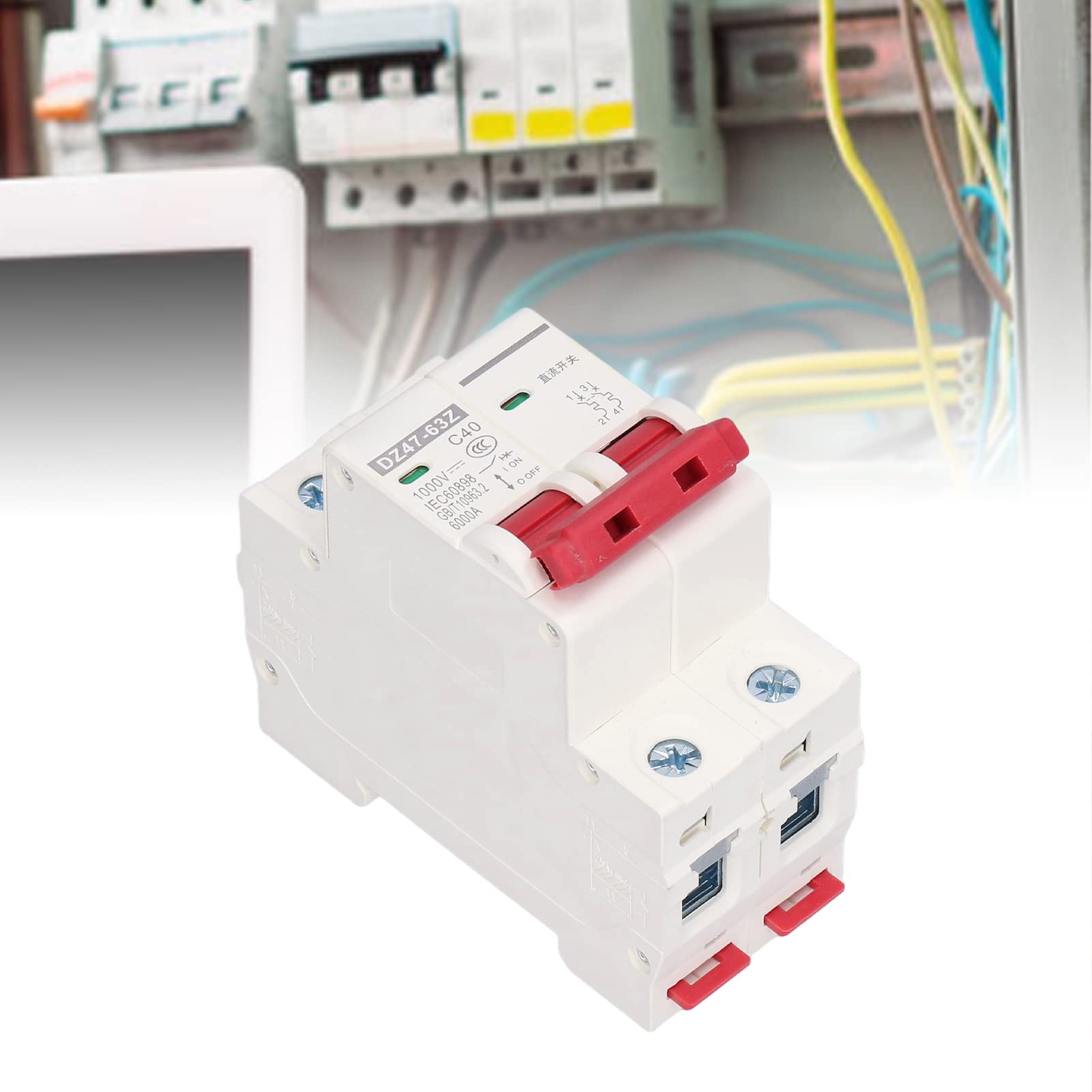

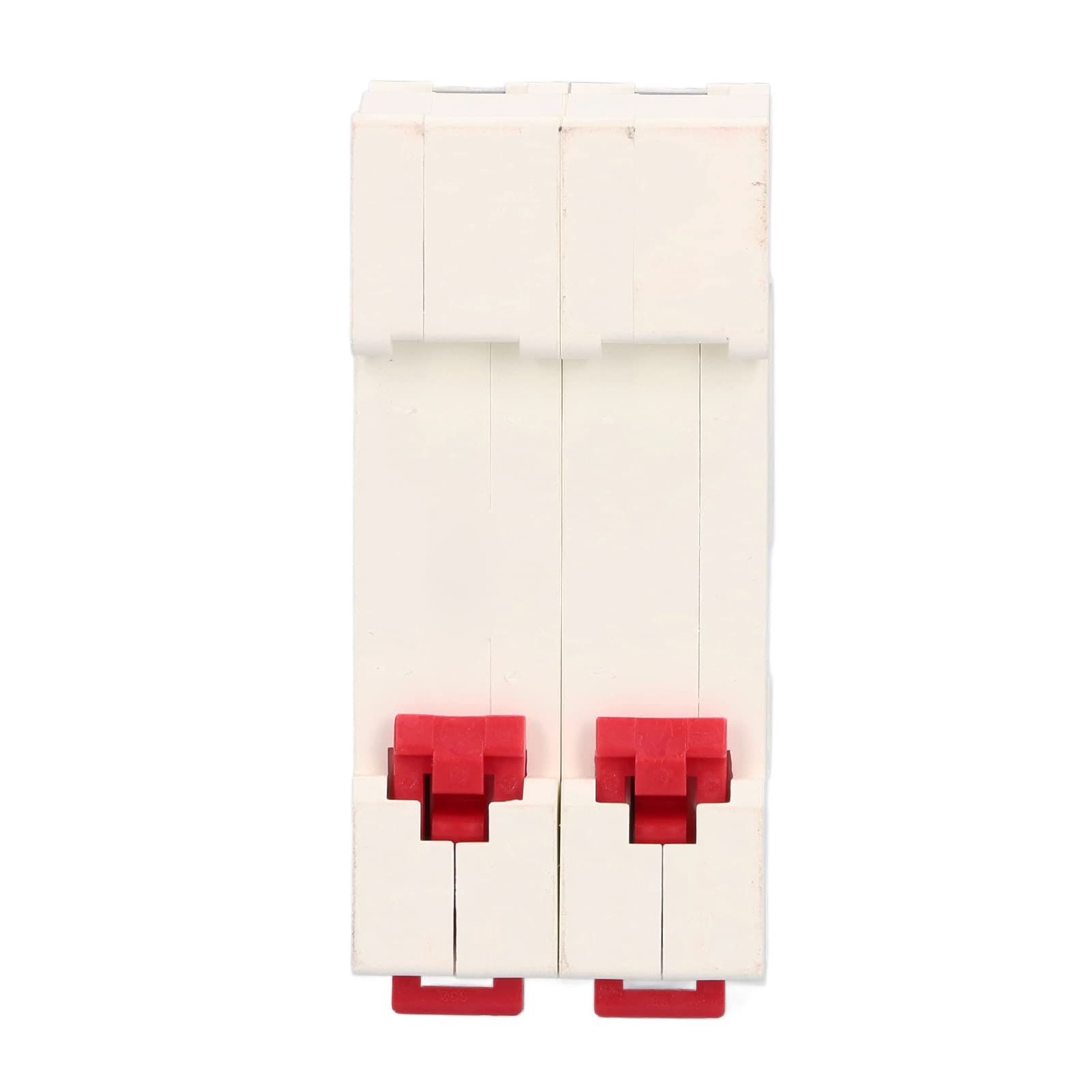

2Poles DC 1000V Mini Circuit Breaker, MCB Solar PV System Isolator Switch, DIN Rail Mount DC Disconnect Switch for Solar Panel, Battery (40A)

• Specification --- Model: DZ47-63Z, Material: PA66, Rated Current: 40A, Rated Voltage: DC 1000V, Rated Ultimate Short Circuit Breaking Capacity(home Icn): 6000A.

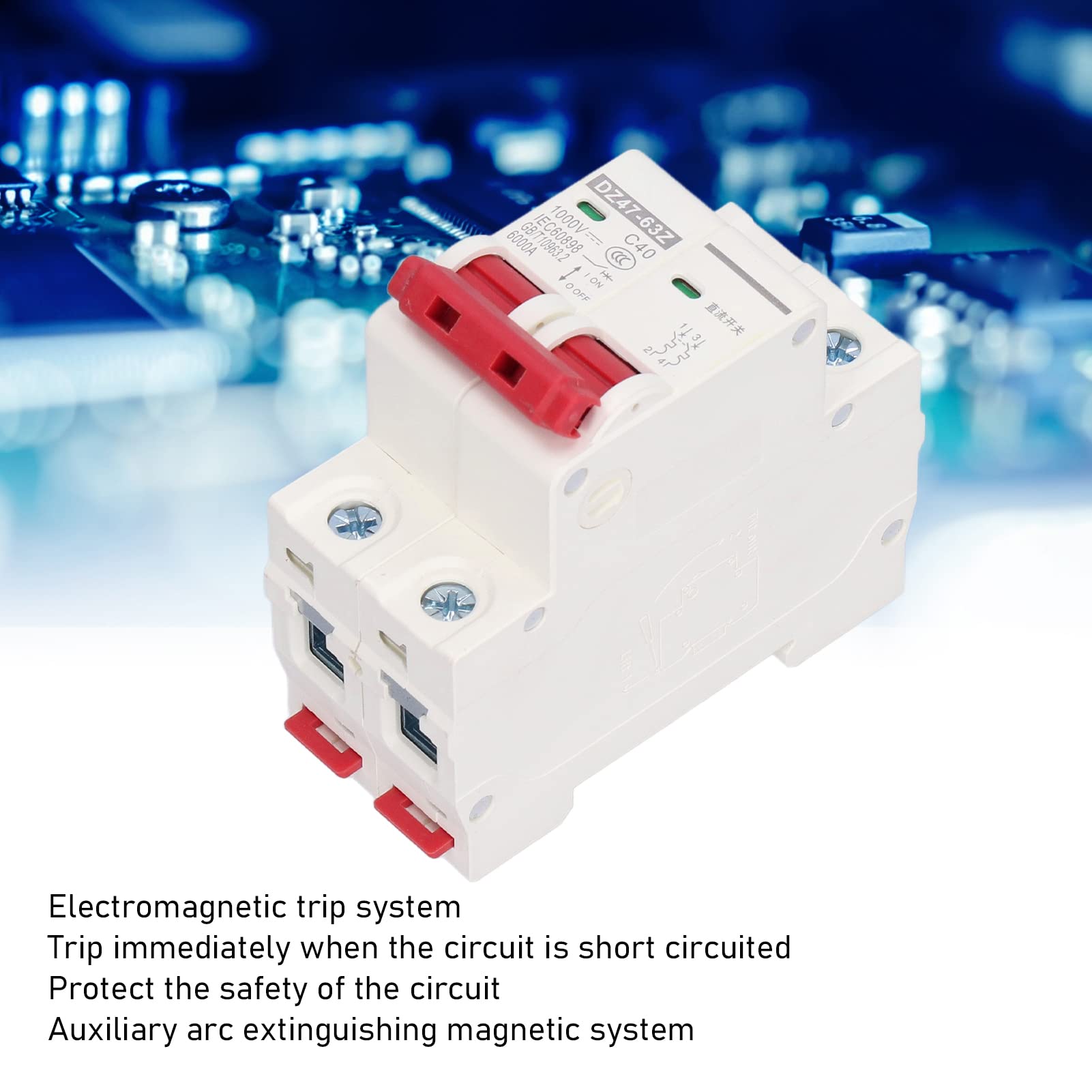

• Strong Protection --- Miniature circuit breakers can protect distribution facilities from overload and short circuit damage, and can also be used for control and isolation. Electromagnetic decoupling system can quickly decouple when the circuit is short circuited to protect the safety of the circuit.
• Widely Used --- Ideal 2P isolator for solar photovoltaic (PV) systems, battery energy storage systems, ship power systems, and other DC power setups. Delivers consistent and reliable performance across residential, commercial, and industrial applications.

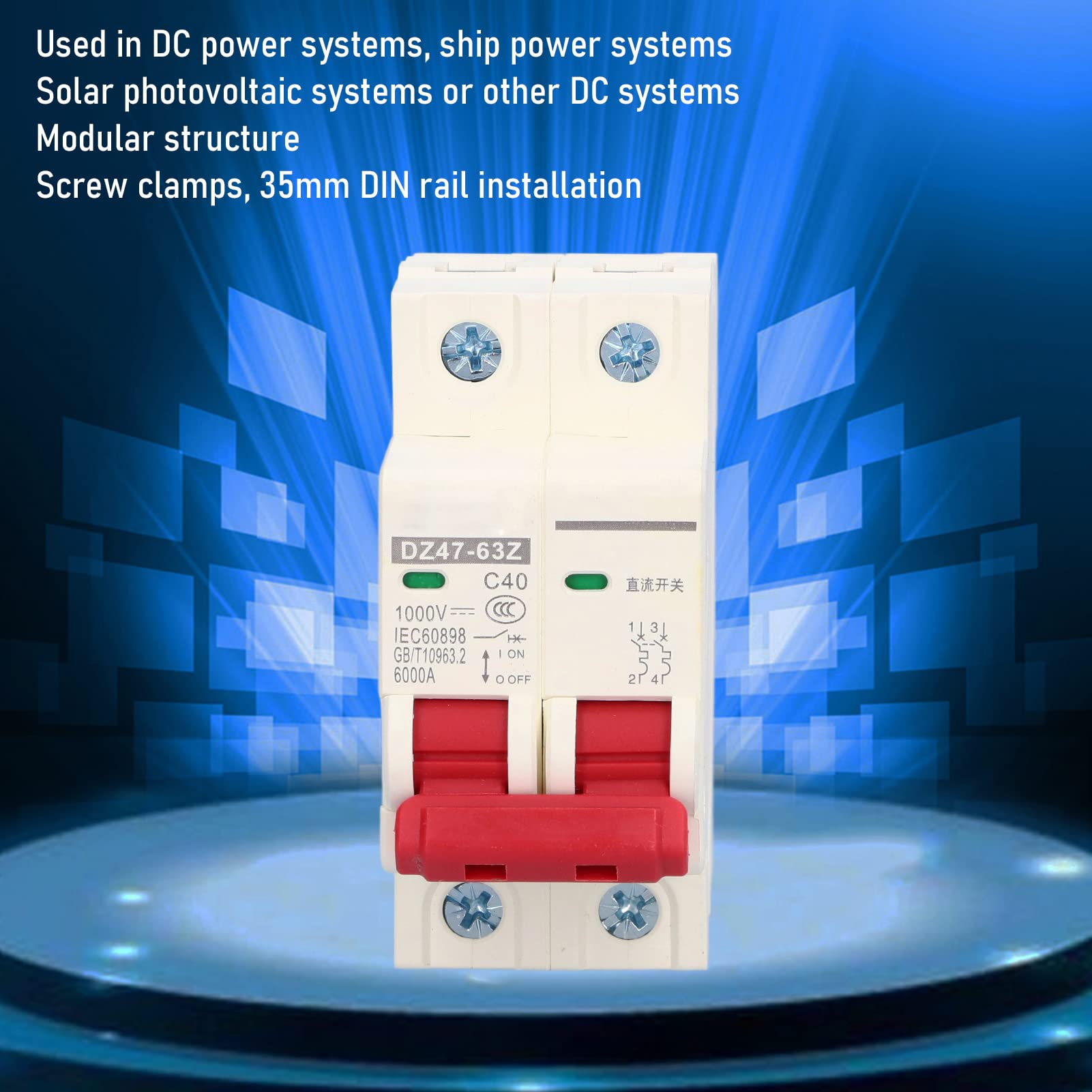

• DIN Rail Installation --- The DC circuit breaker adopts a modular structure and is installed with screw clamps and 35mm DIN rails. This type of DC circuit breaker has an auxiliary arc extinguishing magnetic system, which is faster.
• Durable Build for Long-Term Use --- Crafted from PA66 material, this DC circuit breaker boasts excellent durability, corrosion resistance, and mechanical strength. It’s engineered to withstand harsh working conditions, ensuring a long service life for your solar PV and DC power systems.

Specification: Item Type: DC Miniature Circuit Breaker Model: DZ47-63Z Material: PA66 Rated Current: 40A Rated Voltage: DC 1000V Rated Ultimate Short Circuit Breaking Capacity(home Icn): 6000A Uses: Solar photovoltaic, electric motorcycle, electric car Package List: 1 x DC Miniature Circuit Breaker Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
