Keenso Positive Negative Voltage Converter, DD1912PA 2 in 1 step-up step-down DC-DC converter module 3-24VDC input positive and negative dual voltage output

• ◇【Support dual output voltage】-- This boost converter supports both positive and negative dual output voltages.
• ◇【High conversion rate】-- Regulator Boost Converter has a conversion efficiency of up to 90% and a stable output voltage.
• ◇【Built-in frequency compensation】-- Boost Converter has built-in frequency compensation, soft start function, thermal shutdown function and current limiting function.
• ◇【Stable performance】-- Positive Negative Voltage Regulator is manufactured with high quality electronic components and has stable performance. Bullet Point
• ◇【Applications】-- ADCs, DACs, operational amplifiers, audio equipment, LCD power supplies, etc.

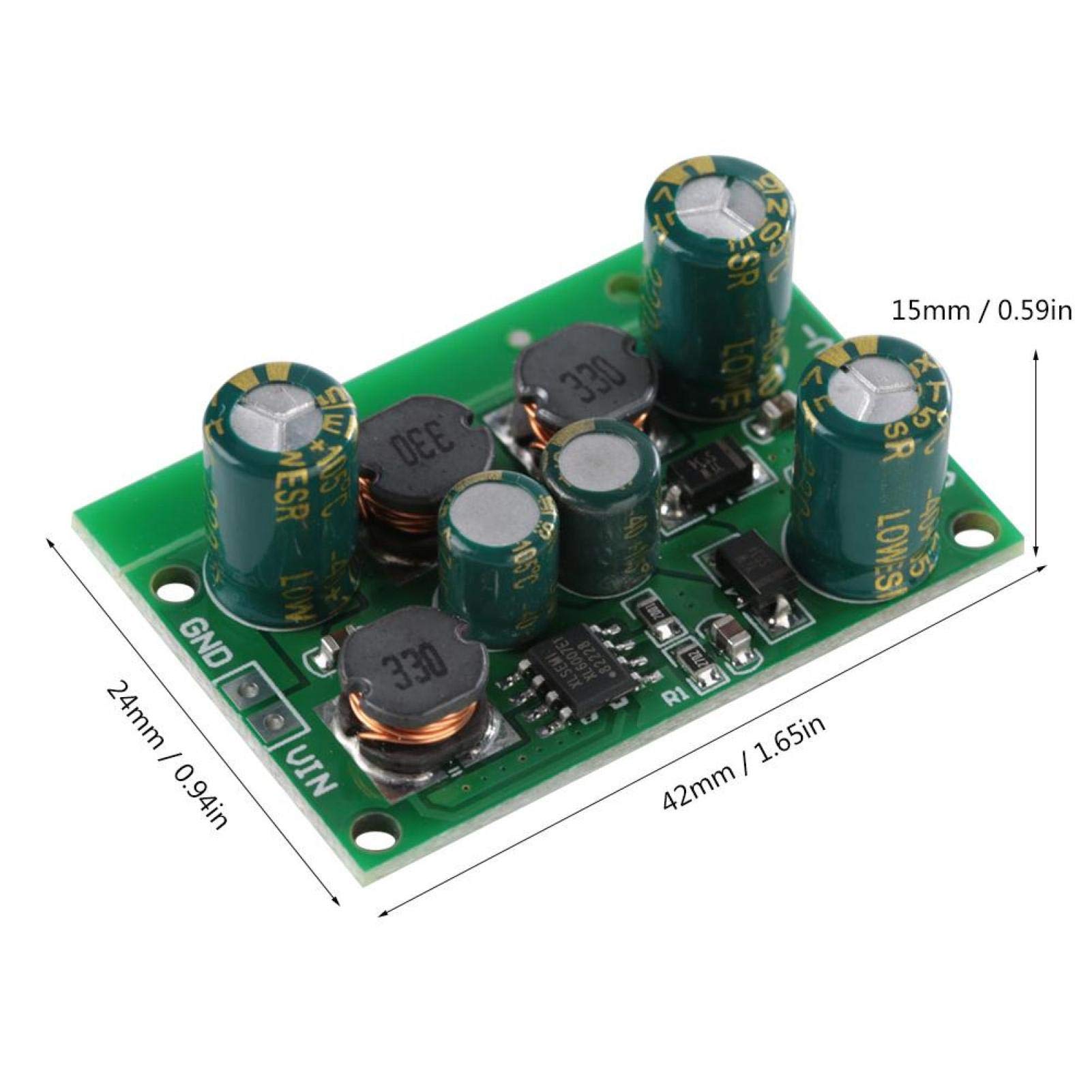

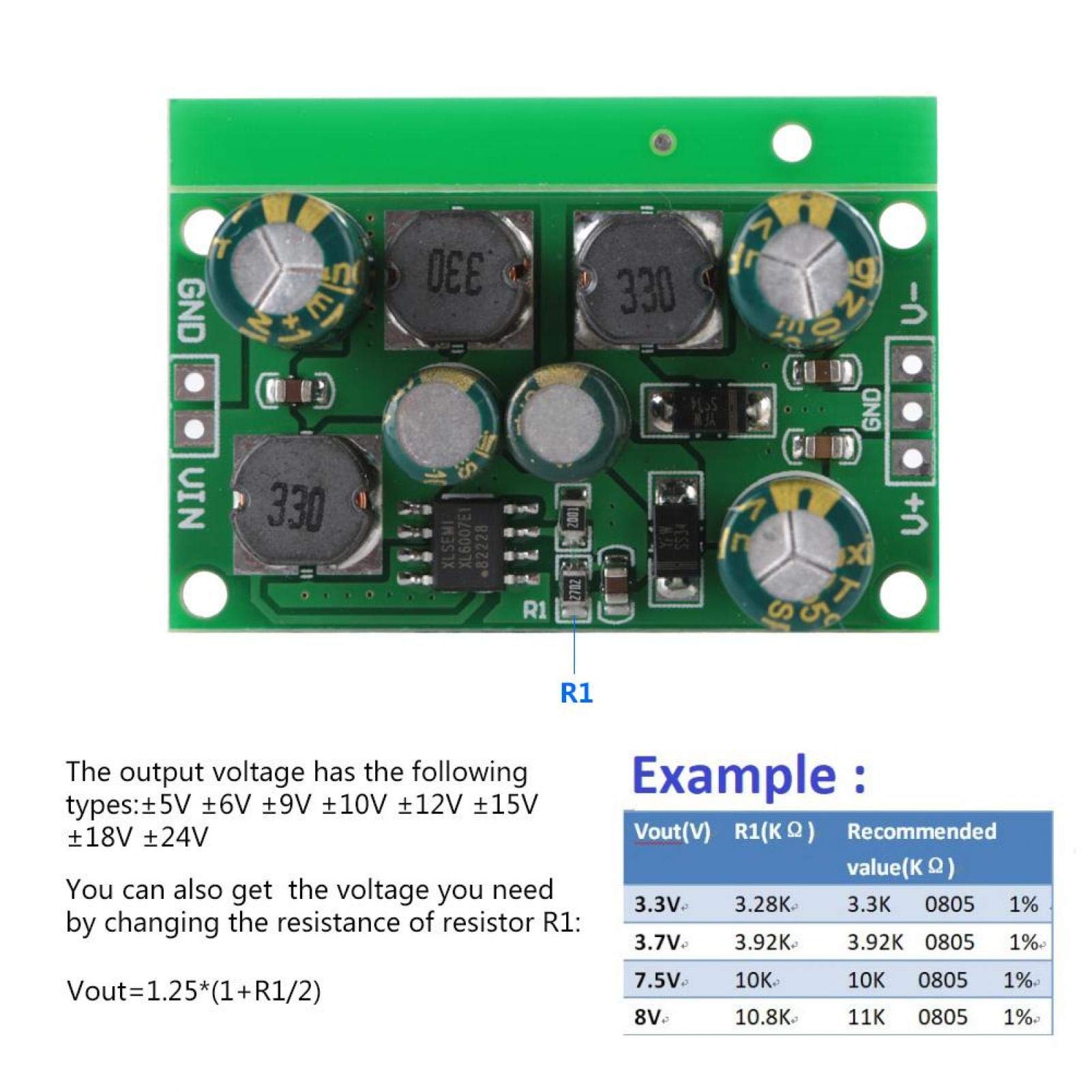

Specification: Input voltage: 3~24V Output voltage: ±5V/±6V/±9V/±10V/±12V/±15V/±18V/±24V (Optional) Maximum output power: 1-8W Conversion efficiency :70-90% Quiescent current: 3-4mA Accuracy : Positive voltage ±3%, Negative voltage ±5% Working frequency: 400kHz Operating temperature: -40~85℃ Size: 42*24*15mm / 1.65*0.94*0.59in Weight: 12g (approx.) Package List: 1 * Positive Negative Voltage Converter
