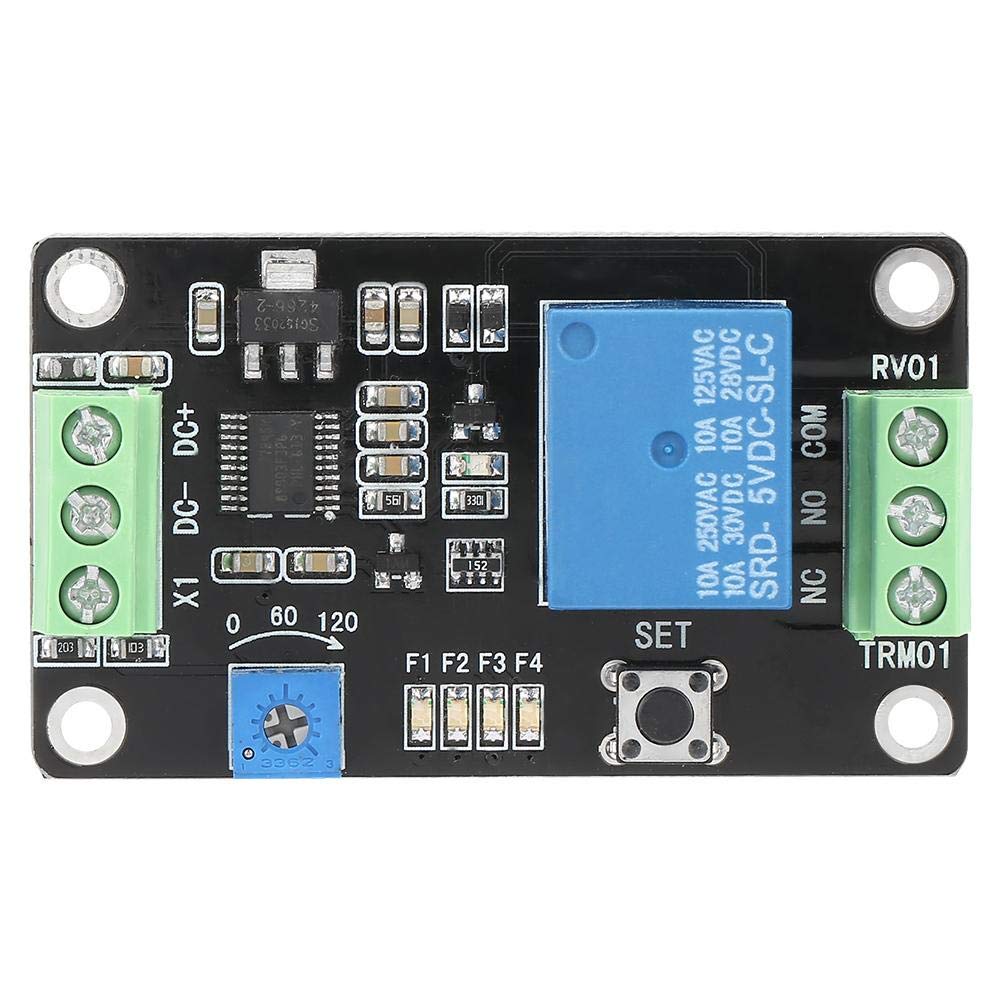

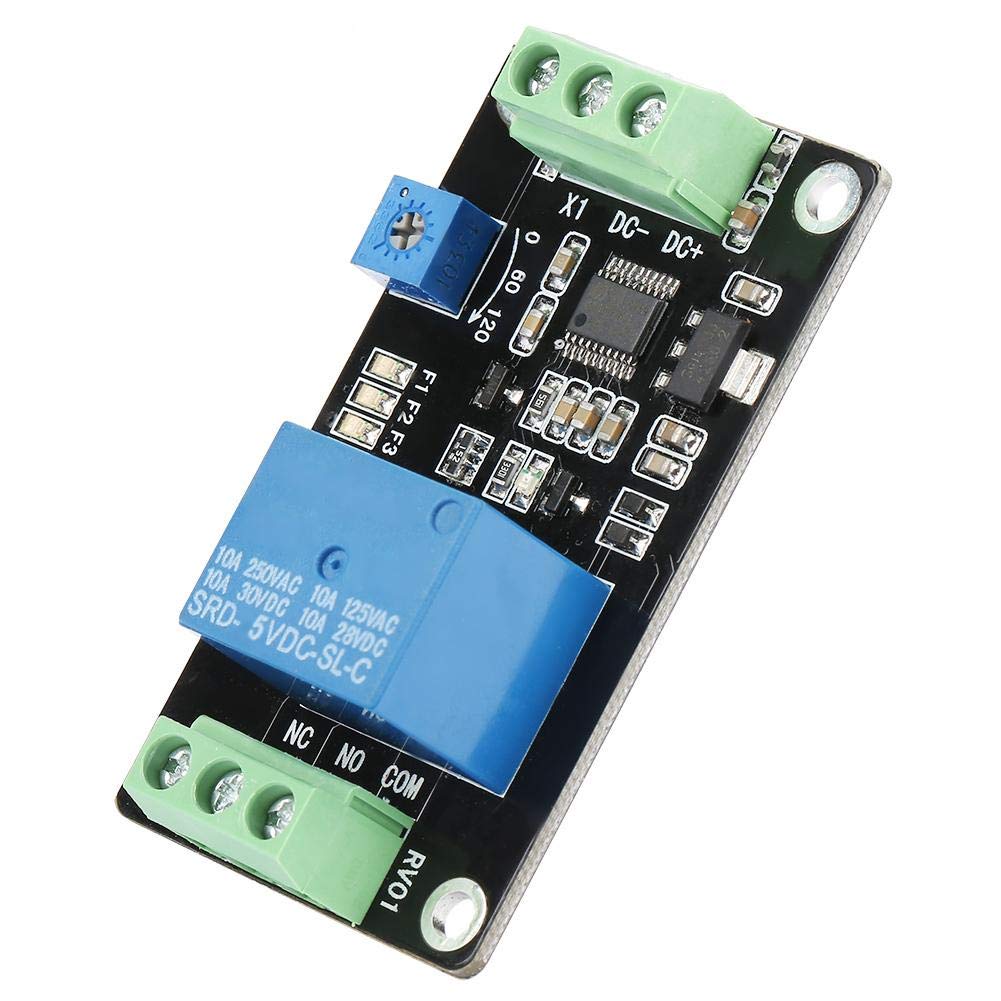

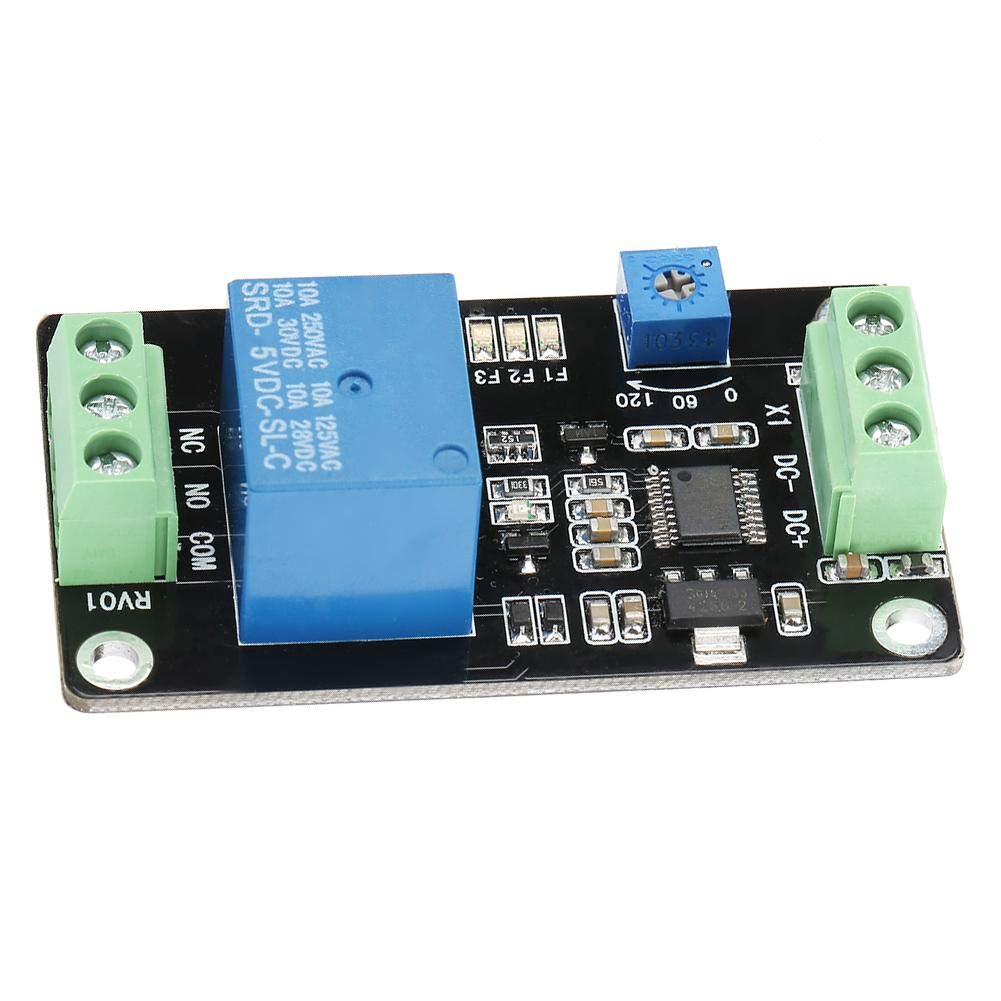

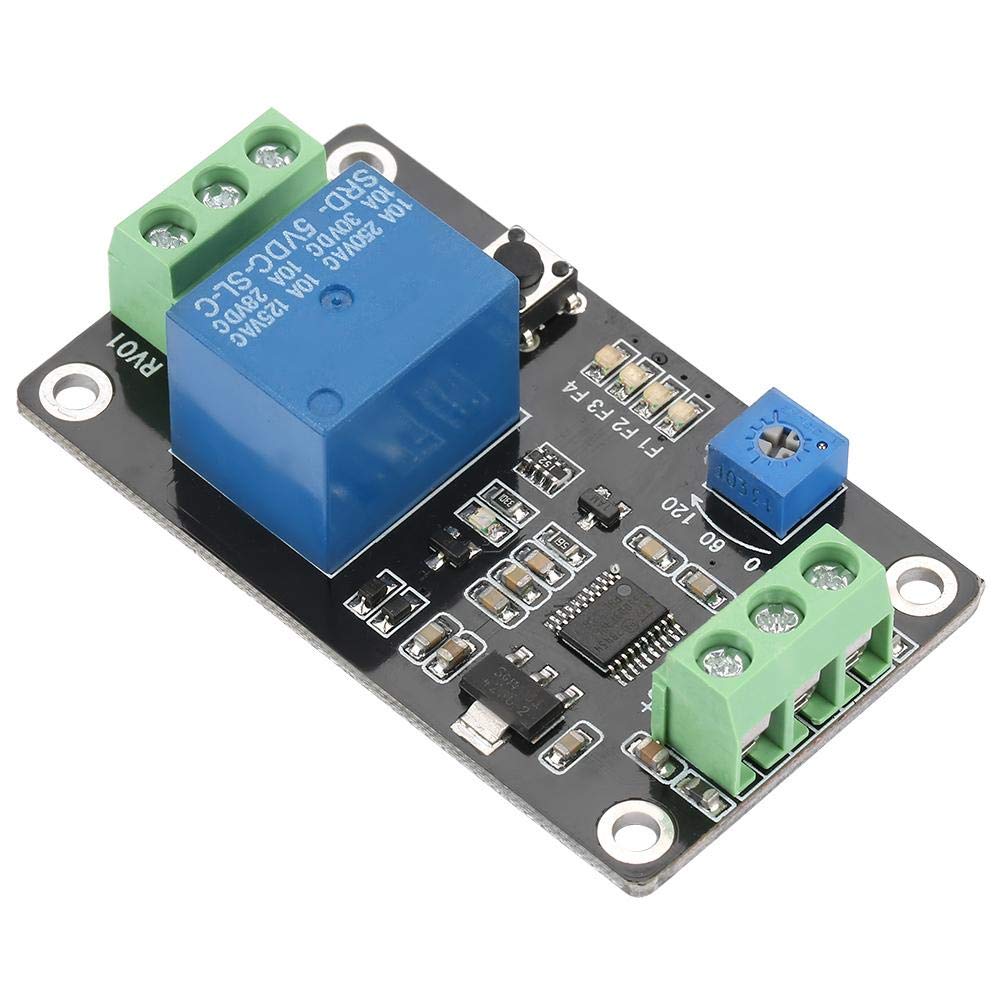

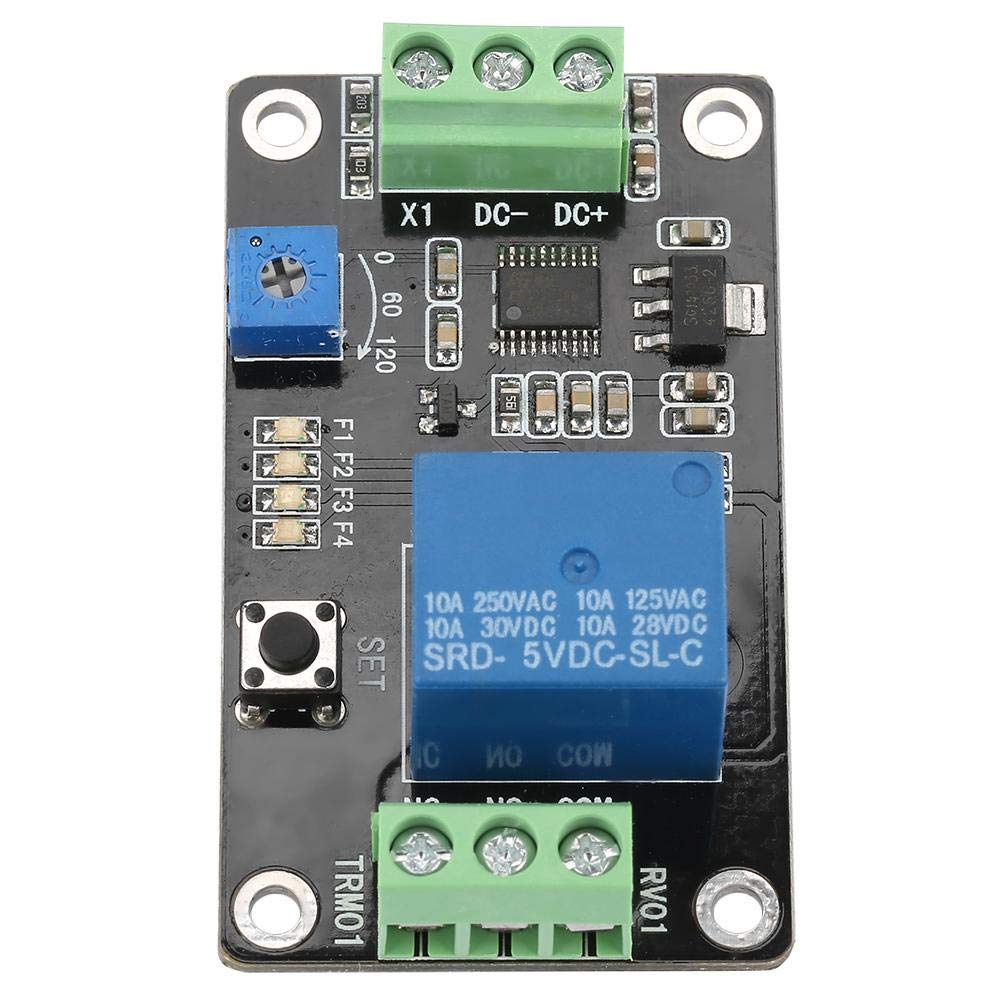

DC 5V/12V/24V Delay Timer Relay, Self-locking Delay On Off Time Switch Super 555 Timer DC 5V/12V/24V (DC 5V)

• With delay ON, delay OFF, self-locking and trigger delay function.
• With power supply anti-reverse function to prevent damaging the module.
• There are three working voltage versions of 5V/12V/24V for users to choose from.
• The delay time can be arbitrarily set between 0.1 seconds and 120 seconds.
• The parameters can be saved, and the setting contents are not lost when power off.

Features: 1. With delay ON, delay OFF, self-locking and trigger delay function. 2. With power supply anti-reverse function to prevent damaging the module. 3. There are three working voltage versions of 5V/12V/24V for users to choose from. 4. The delay time can be arbitrarily set between 0.1 seconds and 120 seconds. 5. The parameters can be saved, and the setting contents are not lost when power off Specification: Working voltage: DC 5V, 12V, 24V (Optional) Working current: <80mA at 5V (<1mA when the relay is not operating) <35mA at 12V <1mA when the relay is not operating) <18mA at 24V (<1mA when the relay is not operating) Load capacity: -normally open port: DC 0-30V/10A, AC 0-250V/10A -normally closed port: DC 0-28V/10A, AC 0-125V/10A Working temperature: -20~60℃ (limit range -30~70℃) Size: 60*35*20mm / 2.36*1.38*0.79in Package weight: Approx. 23g Module function: The user can select one of the following four functions by pressing the button. The delay time can be selected by adjusting the potentiometer. The delay time T1 can be adjusted between 0.1 second and 120 seconds. Module interface: Module voltage / signal input has 3 wiring terminals. 1. DC+: DC power supply positive 2. DC-: DC power supply negative 3. X1: input signal detection interface Relay load output has 3 wiring terminals. 1. COM: relay common interface 2. NO: relay normally open interface 3. NC: relay normally closed interface Package list: 1 * Delay Timer Relay
