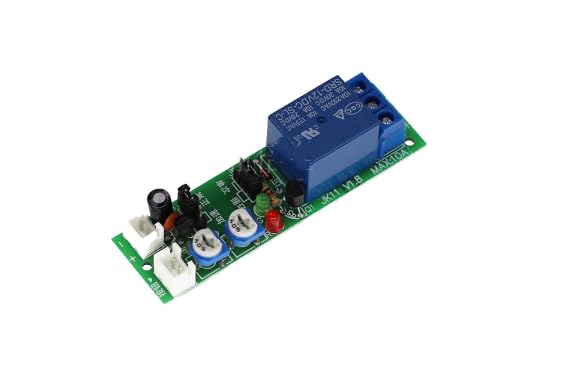

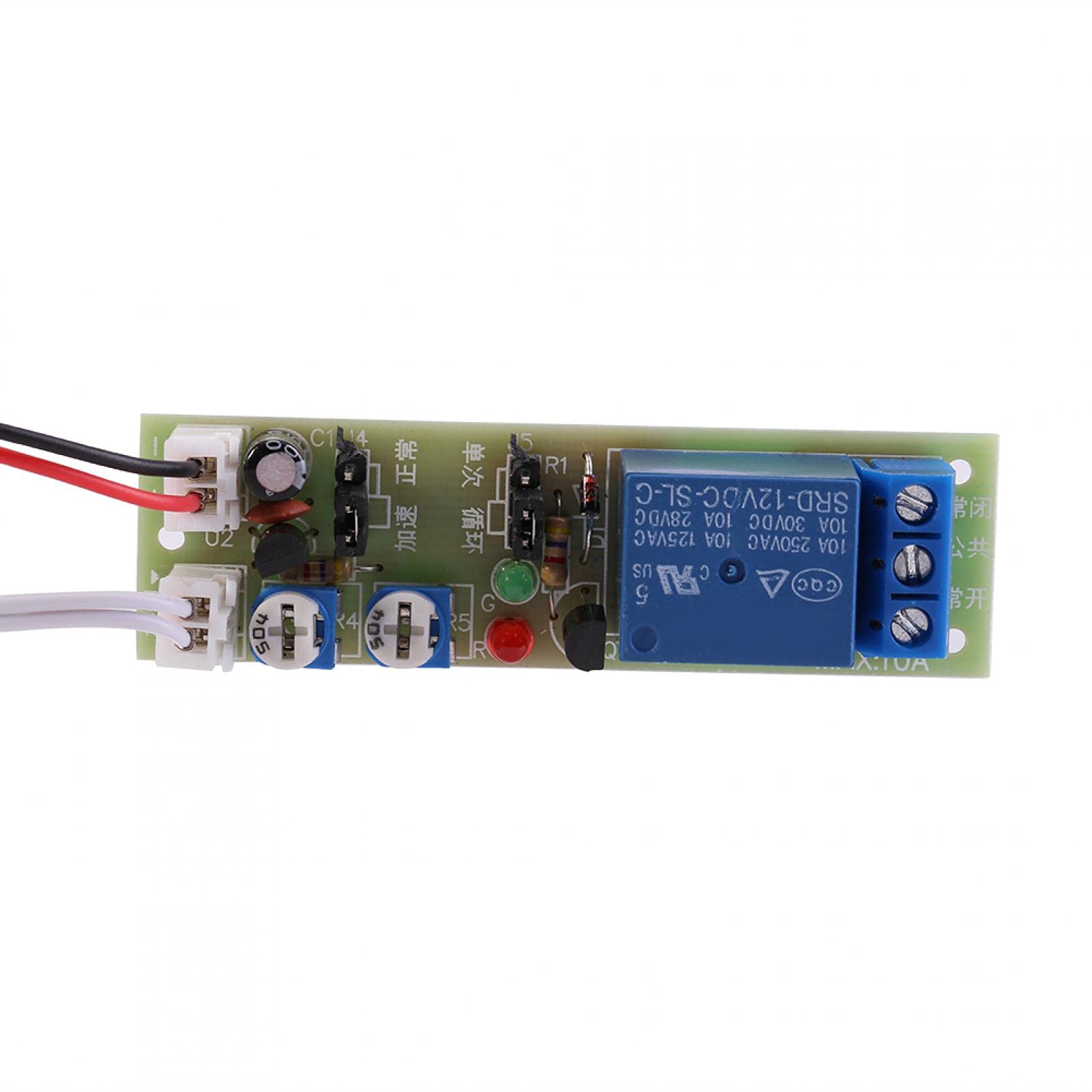

DC 5 V / 12 V / 24 V cycle time relay, timer on/off module 0-15 min / 0-60 min adjustable (DC12 V, 0-15 min)

• Adopts MCU as the main chip, less than 2% time error, high time accuracy
• Supports both mon-mode and cycle mode, you can adjust the bridge to switch to mode.
• Two delay time intervals to choose from: 0-15 minutes adjustable and 0-60 minutes adjustable
• Can be used to control the AC or control repeated on/off for burn-in testing of equipment and products.
• Suitable for devices with timer, repeated machine test circuit and intermittent fish tank pump.

This relay module is designed with high precision. Its maximum load capacity is 10 A 250 V AC or 10 A 30 V DC. It supports both mon-mode (once) and cycle mode, making it very convenient for use. In addition, you can use this module on devices with timer, repeated machine test circuit and intermittent fish tank pump. And we supply different types of modules, including DC5V 0-15min, DC5V 0-60min, DC12V 0-15min, DC12V 0-60min, DC24V 0-15min and DC24V 0-60min. Please make sure you choose the correct part before purchasing. Technical data: Type: DC5V, 0-15min / DC5V, 0-60min / DC12V, 0-15min / DC12V, 0-60min / DC24V, 0-15min / DC24V, 0-60min (optional) Max. Charging capacity: 10A 250V AC, 10A 30V DC Size:70×20mm Time error: <2% Box contents: 1 x time delay module.
