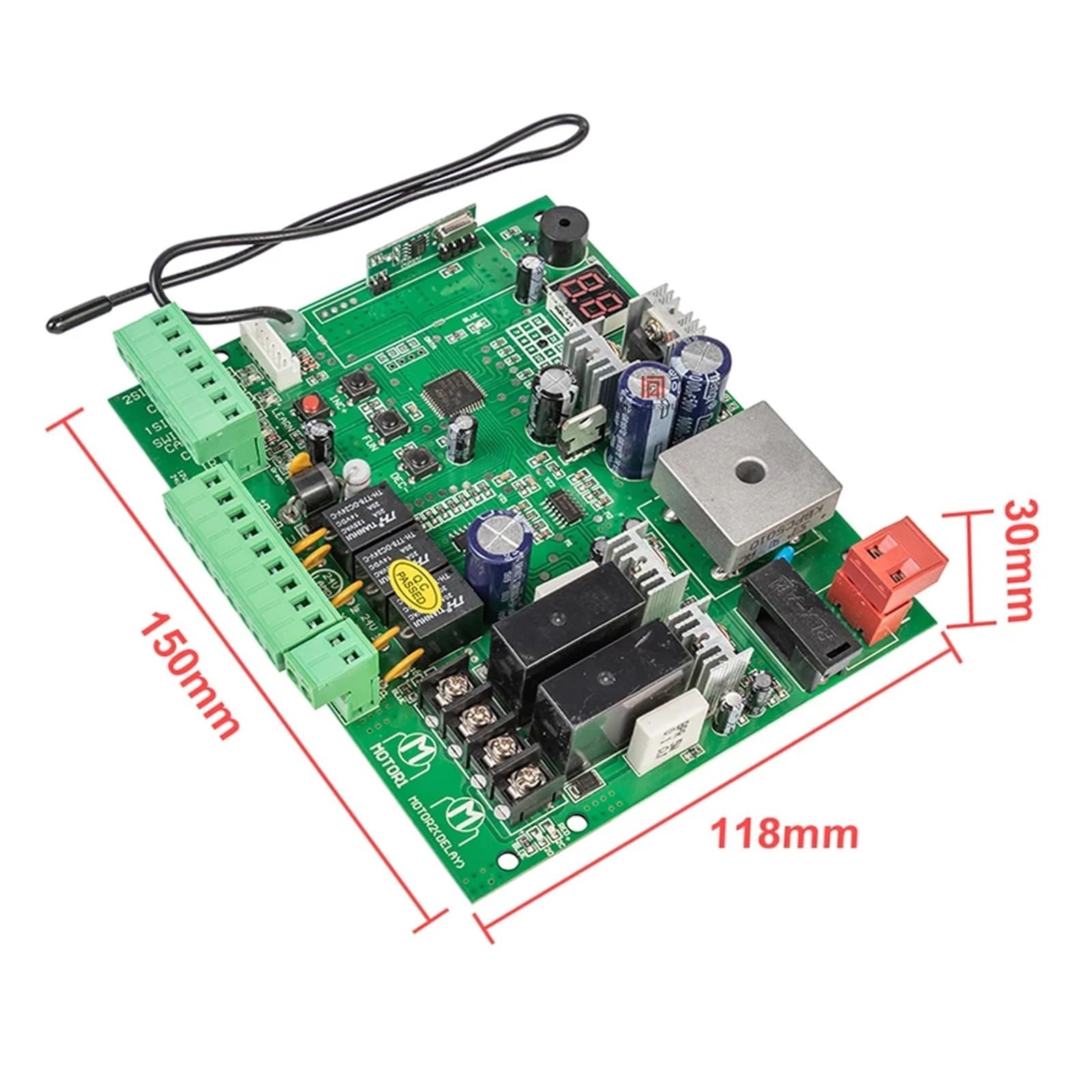

DC 24V PCB Board Control Board for Automatic Double Arms Swing Gate Opener Control Board Panel Smart Control Center System Replace Fittings for Electric Automatic Gate Openers(with 4 RC)

• 1. Application: Used for double or single swing gate opener.
• 2.Speed -adjustable function.
• 3. Auto closing/opening,opening/closing delay time adjustment.
• 4. Adjustable Residence sensitivity.
• 5.Terminals available for loop detector, photocell, push button, keypad, access control equipment

DC 24V PCB Board for Automatic Double Arms Swing Gate Opener Control Board Panel Smart Control Center System Replace Fittings 1. Application: Used for double or single swing gate opener. 2.Speed -adjustable function. 3. Auto closing/opening,opening/closing delay time adjustment. 4. Adjustable Residence sensitivity. 5.Terminals available for loop detector, photocell, push button, keypad, access control equipment 6. Digital LED Menu brings a easy setting 7. Open/Close single leaf or double leaves. 8. Total 60's working time to protect the motors. 1. Technical parameters: 1.Control panel voltage input: 24VDCAC. Can connect 2PCS 12V 9AH back up battery. Note that the control board purchased separately needs to be used with a transformer, and cannot be directly 100-250V AC. 2.Motor's voltage: 12-24VDC support.The input of the control board is 24V, and the output is 12-24V.
