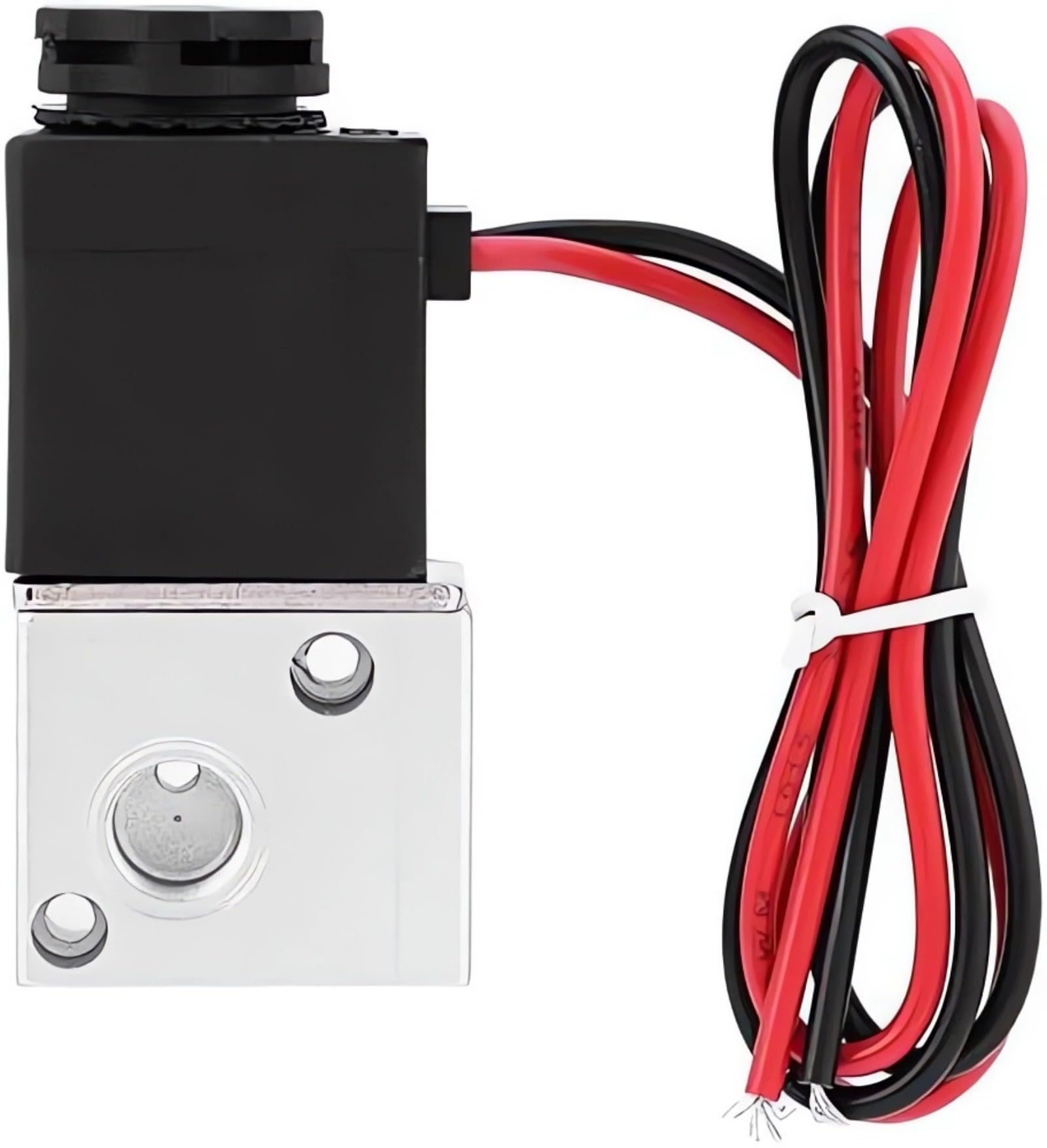

DC 24V 1/8" BSPT 3 Way 2 Position Pneumatic Electric Solenoid Air Valve

• This solenoid air valve is made of high quality brass material, and durable in use
• This is direct acting type normally closed solenoid air valve, which is sensitive to change direction
• Sturdy body have a long lifespan, perfect for electrically driven pneumatic power control
• The inner valve core and spring are made of stainless steel and will not rust, no need additional lubricate
• With solenoid operated for control appropriate flow and direction, provide great performance

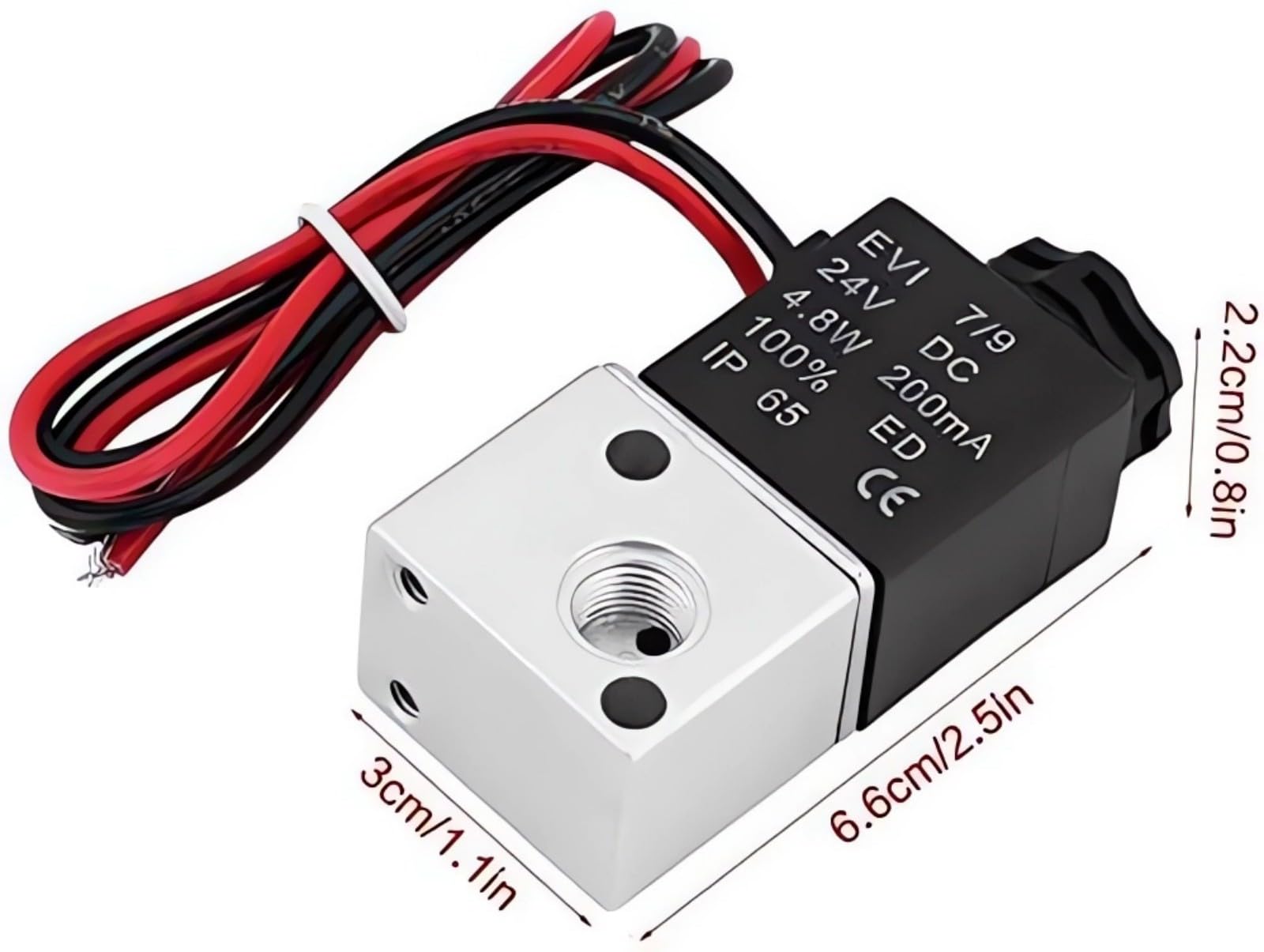

This solenoid air valve is 3 way 2 position, direct acting normally closed type, made of high quality brass material, sturdy body have a long lifespan, perfect for electrically driven pneumatic power control. Specifications: Material: brass Working medium: air Acting mode: direct acting Type: normally closed type Voltage(Optional): DC12V/24V/AC110V Receiver diameter: 1/8"BSP Use pressure: 0-0.08MPa Maximum pressure resistance: 1.0Mpa Operating temperature range: 10 ~ + 60 ℃ Use voltage range: ±10% Protection level: IP65 Electrical connection: outlet type or terminal type Maximum action frequency: 10 times/s Minimum excitation time: 0.005 / S Size: 6.6 x 3 x 2.2cm/2.60 x 1.18 x 0.87inch Weight:136g,135g Package Included: 1 x Solenoid Air Valve DC 12V
