DC 12V Worm Geared Motor Reversible High Speed Reduce Electric Gear Motor (6RPM)

• Self-locking function:The worm gear motor is designed with self-locking function,which means the output shaft is not to move without electric motors.
• Vertical output shaft direction:The output shaft direction of the motor shaft is arranged vertically.
• Multiple No-load speed choice:You can chose different size at 5rpm / 6rpm / 20rpm / 40rpm / 62rpm.

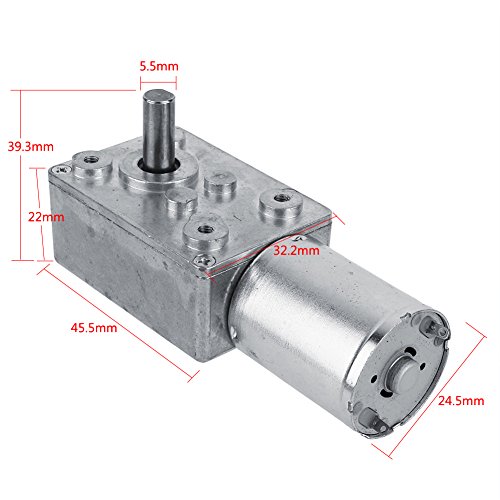

• Notice on installation:The entire body of the motor output shaft is relativly short compared to the general direction of gear motor, and it requires to widely adapted to some of the installation dimensions of this aspect.
• Widely used:It is suitable for a door opener, miniature winch and other occasions.

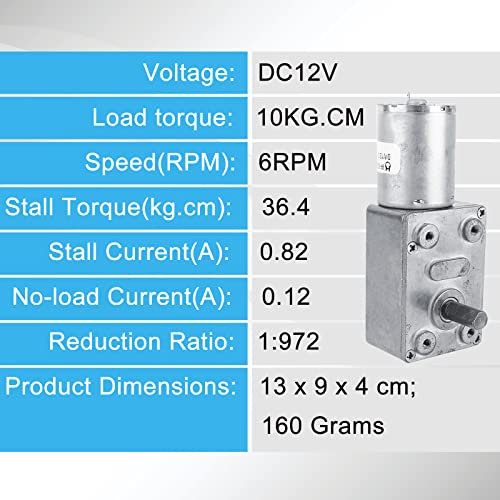

Description: This product features self-locking function and vertical output shaft direction. You have No-load speed choice at 5rpm / 6rpm / 20rpm / 40rpm / 62rpm. It is widely used in windows, a door opener, miniature winch and other occasions. Specifications: Voltage: DC12V Load torque: 10KG.CM No-load speed choice : 5rpm / 6rpm / 20rpm / 40rpm / 62rpm(optional) 5RPM: 36.4kg.cm Stall Torque 0.82A Stall Current 0.12A No-load Current 1:972 Reduction Ratio 6RPM: 36.4kg.cm Stall Torque 0.82A Stall Current 0.12A No-load Current 1:972 Reduction Ratio 20RPM: 28.2kg.cm Stall Torque 1.14A Stall Current 0.22A No-load Current 1:400 Reduction Ratio 40RPM: 15kg.cm Stall Torque    1.15A Stall Current 0.31A No-load Current 1:224 Reduction Ratio 62RPM: 16kg.cm Stall Torque    2.52A Stall Current     0.41A No-load Current 1:224 Reduction Ratio Package contain: 1  × Geared Motor
