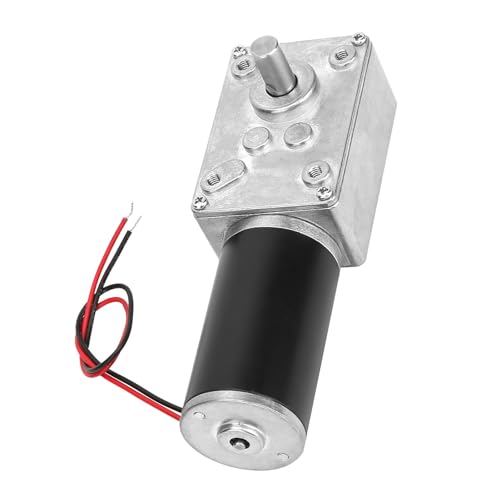

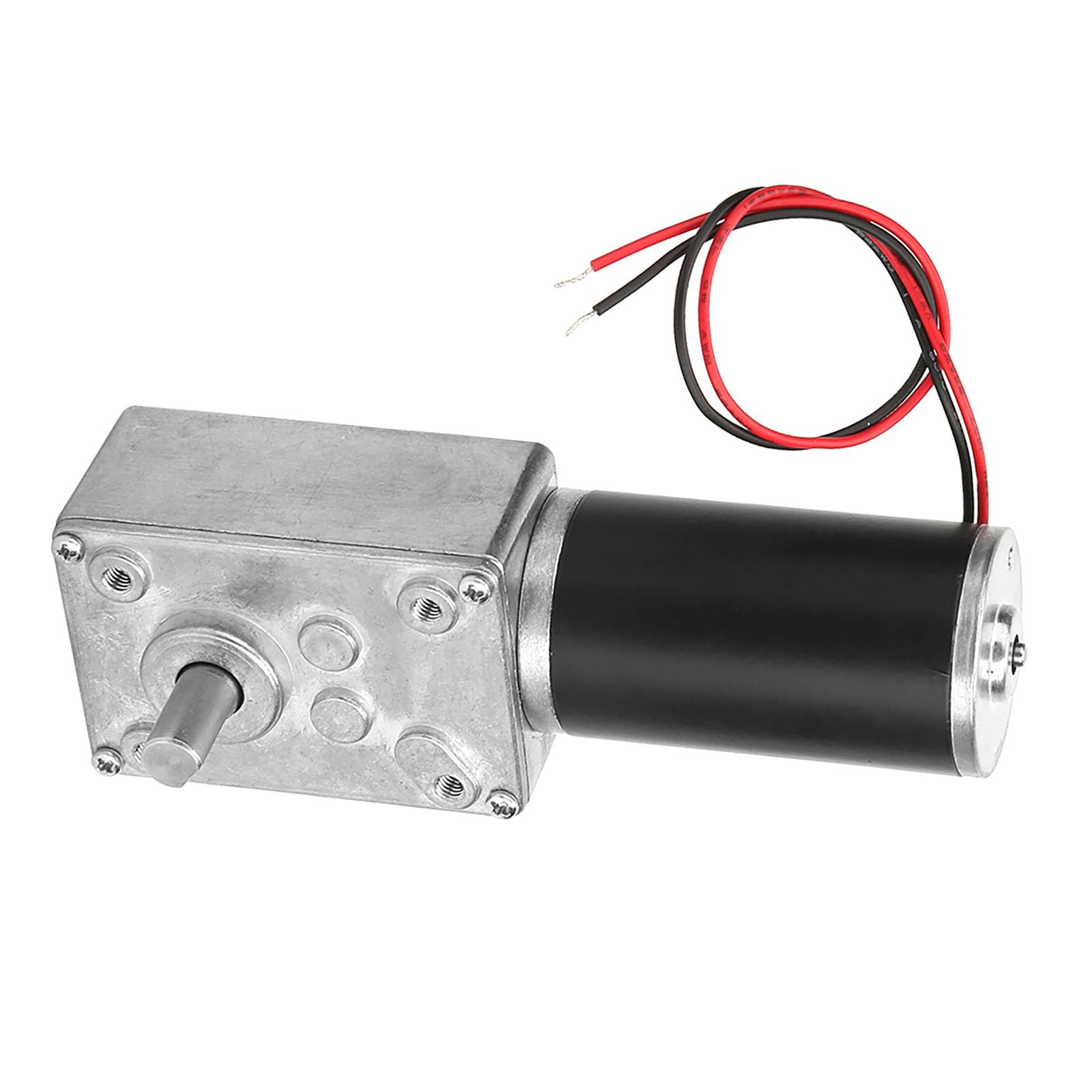

DC 12V Reversible Worm Gear Motor High Torque Turbo Reduction Electric Motor 8mm Shaft 200RPM

• Powerful Copper Motor: Equipped with a high-performance 31mm copper tube motor, delivering strong torsion in a compact design for efficient power.
• Enhanced Wear Resistance: Features a bearing structure that significantly improves the shaft's durability and to wear during extended.
• Durable All-Metal Gears: Constructed with robust all-metal gears, engineered to withstand high and a prolonged operational lifespan.
• Self-Locking Turbo Worm Design: Utilizes a that provides a self-locking function, ideal for applications requiring position holding.
• Versatile Application Fit: Commonly in curtain openers, equipment, window actuators, and various smart home automation devices.

Features: 1. Made of high quality material, durable and long service life. 2. 31mm high quality copper tube motor, small volume and big torsion 3. Ball bearing design enhances the wear resistance of shaft 4. All metal gears are impact resistant, long life 5. Generally used in curtain machines, advertising equipment, window openers and smart devices Specification: Condition: Brand New Voltage: 12V Optional Style: 12V 400RPM, 12V 200RPM, 12V 130RPM, 12V 50RPM, 12V 30RPM, 12V 20RPM, 12V 12RPM, 12V 10RPM Voltage V 12 12 12 12 12 12 12 12 Rated speed RPM 400 200 130 50 30 20 12 10 Rated torsion Kg.cm 3.4 6.2 10 20 40 60 70 70 Rated current A ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6 Maximum torsion Kg.cm 8.5 16 25 50 70 70 70 70 Stop current A 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 Package List: 1 * Worm Gear Motor
