QENETY DC 12V 1CH RF Relay, 433 mhz Universal Wireless Remote Control Switch, Relay Receivers with Transmitters 433Mhz EV1527 Learning Code Remote Control Switch (2 Relay and 5 Transmitters)

• 433Mhz RF: 433Mhz RF wireless remote control switch. Small and the performance is stable and reliable, high sensitivity, signal can pass through walls, floors and doors. Range up to 50m/164ft in open space. You can remotely operate every machine connect with the relay receiver through the remote control.

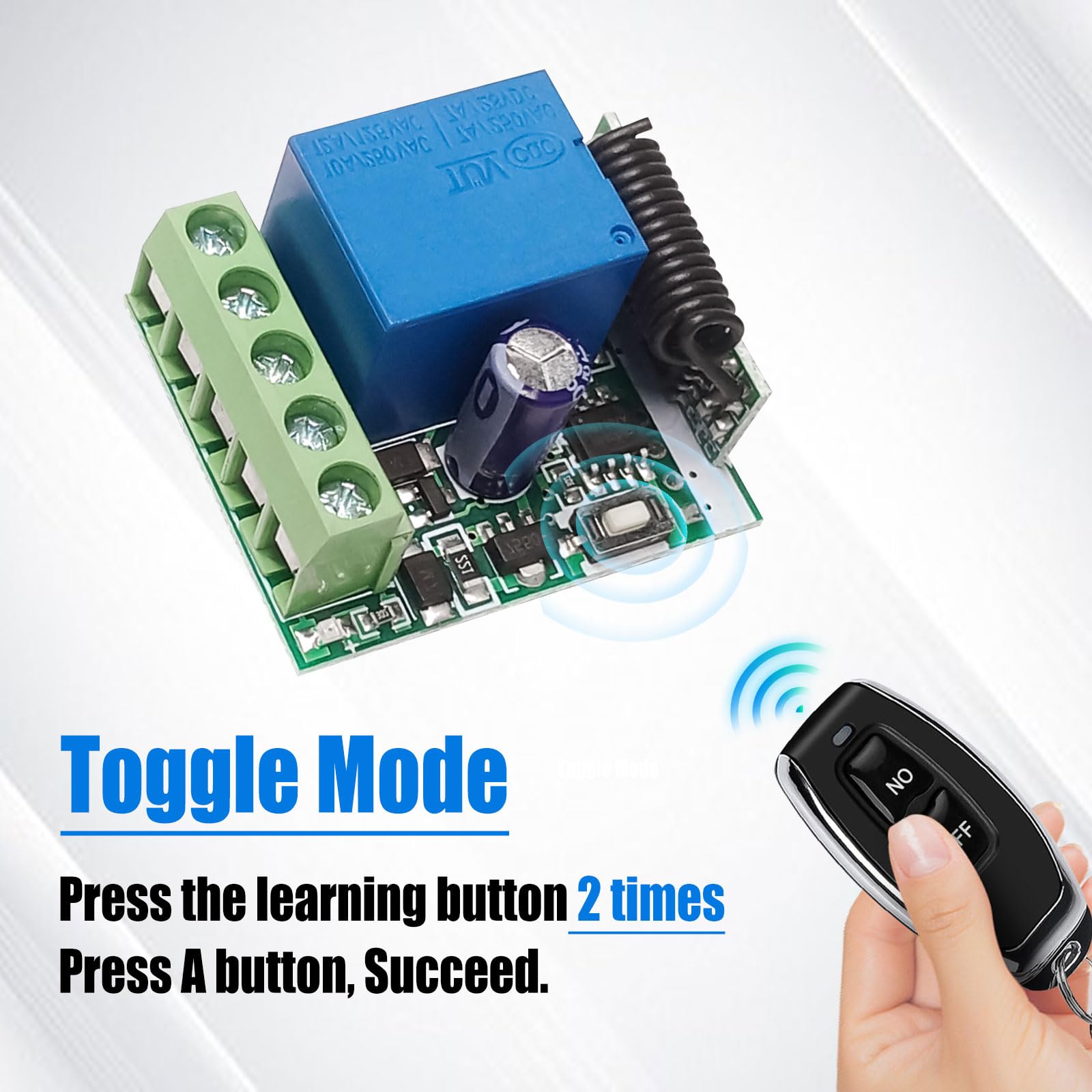

• Easy to Use: Extremely easy to set up and reset. There are 4 operating mode(momentary/toggle/latched/delay mode) can be chosen.You can easily program by yourself depends on your needs. The operating mode of the product is adjustable.This item has already been set up in toggle mode. For example, press "A" button to control "1" receiver, press "B" button to control "2" receiver and so on.
• Multiplayer Control: One receiver can store about 20 transmitters. So you can share the transmitters to family/ friends.All of you can remote control the device connect with the relay receiver. And one transmitter can control multiple receivers too.
• Widely Use: Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.You can remotely operate every device connect with the relay receiver through the remote control. such as, electric lock, Electromagnetic door,fan, lamp, lighting, ventilation device,water pump, signal transmission and DIY remote control switch.
• Excellent Service: We attach great importance to the shopping experience of users. If you have any problem, you can contact us. We will solve your problem.
• Code clearing function: Press the code matching button on the control panel 8 times in a row, and the LED indicator light will flash 8 times. At this time, the LED indicator light will automatically flash 8 times in a row, indicating that the code clearing is completed and all previously learned remote control key codes will be cleared.
• Delay 5/10/15/20 seconds: Press the code matching button on the control panel 4/5/6/7 times continuously, and the LED indicator light will flash 4/5/6/7 times. After the LED indicator light is on, press the remote control button that needs to be coded, and the LED indicator light on the control panel will flash 3 times in succession. Code successfully.

Jog function: Press the code matching button on the control panel once, and the LED indicator light will flash once. After the LED indicator light is on, press the remote control button that needs to be coded. The LED indicator light on the control panel will flash three times in a row and the code will be successfully combined. Self-locking function: Press the code matching button on the control panel twice in succession, and the LED indicator will flash twice. After the LED indicator lights up, press the remote control button that needs to be coded, and the LED indicator on the control panel will flash three times in succession to code. success. Interlock function: Press the code matching button on the control panel three times in a row, and the LED indicator light will flash three times. After the LED indicator light is on, press the remote control button that needs to be coded, and the LED indicator light on the control panel will flash three times in a row to code the code. success. Specifications Of The Transmitter: Operating Frequency: 433MHz Power by 3V Coin Cell Button Battery (Battery included ) Material: PVC Button: 2 Buttons Operating Voltage: 3V Operating Current: 12mA Transmitting Power: 10mw Modulation Mode: ASK (AM) Encoding Type: Learning Transfers Distance: 20-50 m Specifications Of The Receiver: RF Working Mode: Superheterodyne Reception Modulation Mode: ASK Working Mode: Momentary, Toggle, Latching and Time Delay Mode. Input Voltage: DC 10~14V RF Frequency: 433MHz Quiescent Current: 5mA Receiving Sensitivity: >97dbm Remote Control Range: >100m (Free Space). Wired Connection Way: Fixed Wiring Pillar. Decoding Mode:MCU Software Decoding. Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay
