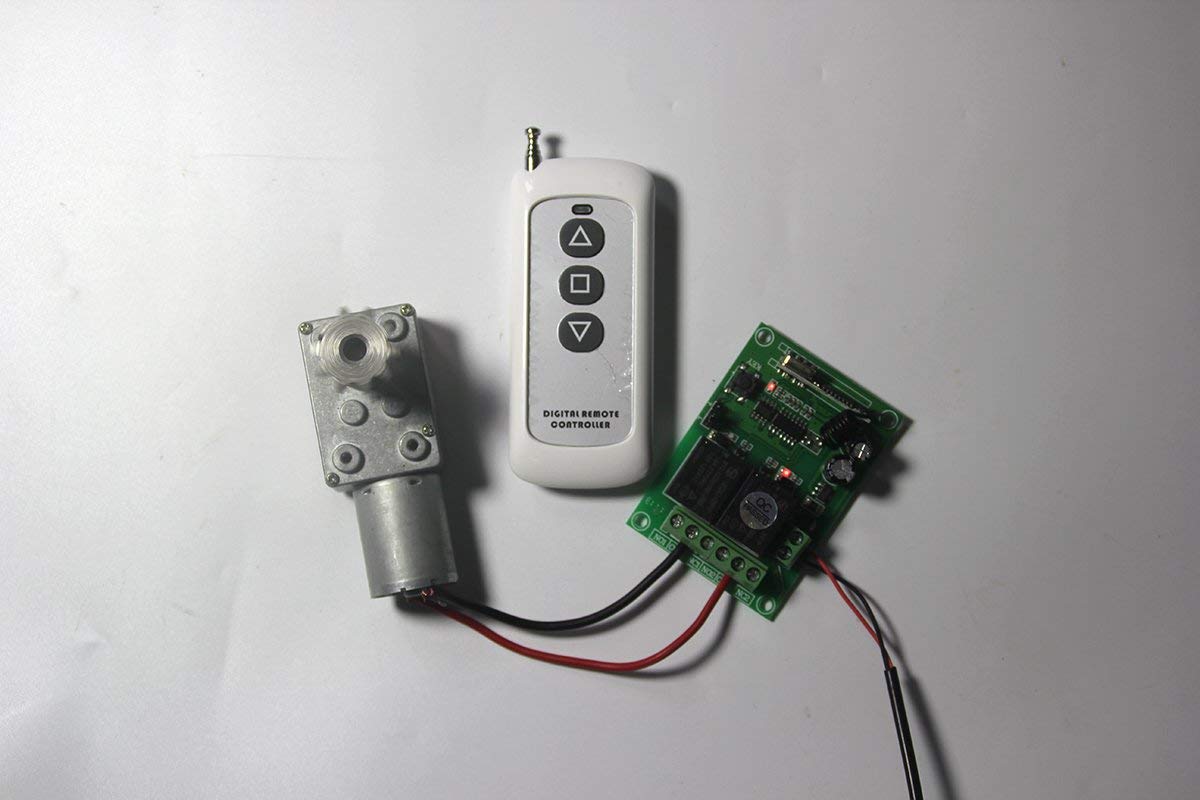

DC 12V Motor Control with Remote Control Radio Remote Control DC Motor Linear Drive Wireless Remote Control Switch for Motor Forward Reverse Stop Motor Direction Control 200m Range

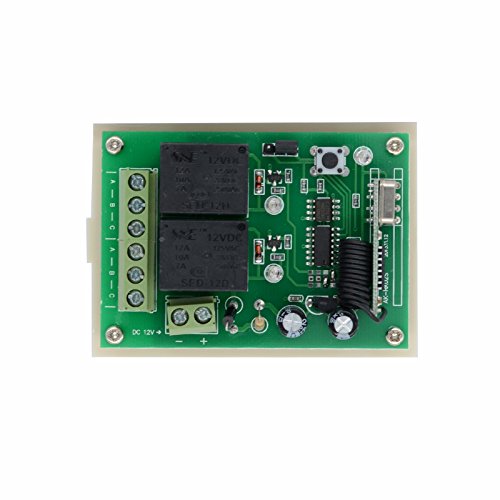

• The DC12V 2CH receiver with 2 relays, the motor can be controlled forward and backward, or the power supply on and off, here is specially designed for DC12V low power motor forward and backwards. The switch can be compatible with 2262/2260/1527/2240 etc. chip and multiple code transmitters.
• Keep away from dust and moisture. The product uses high frequency technology, with greater range and a stable signal.
• The maximum output is up to 10A. You could turn the receiver on/off with transmitter (remote control) from any location within a reliable distance.
• The wireless signals can run through walls, floors and doors. The product uses undirected wireless coding technology and allows independent control without mutual control. The remote control has a range of up to 100 m - 200 m outdoors.

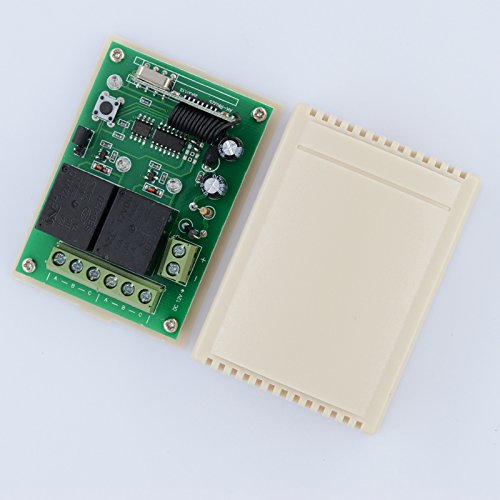

• Delivery 1 x receiver with housing+ 1 X remote control with battery （Excluding motor）

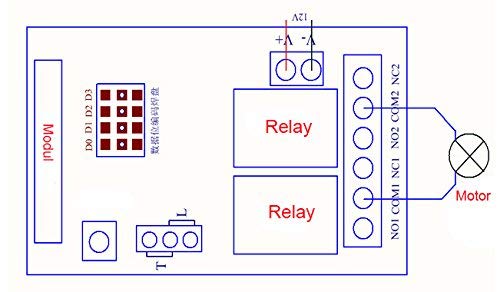

Box contents: 1 x receiver with housing. X remote control with battery (if you need extra remote control, please tell us). Parameters operating voltage: DC12 V standby current: ≤10 mA 1 channel working current ≤ 40 mA 2 channel working current ≤ 80 mA output current ≤ 10 A. Control mode: we have already set latch before shipment. Receipt board size: 70 mm x 50 mm x 18 mm. Year warranty The working Mode can be changed to: jumper to "2 & 3 pin" → toggle (1 button on/same button off) jumper to "1 & 2" pin → latch (1 button on/another button off). No jumper or jumper to 1 pin → momentary (button function, relay pulls on as long as button pressed). the button ▲ of the button Transmitter: Motor rotates in positive direction. Release the button: engine stops. Press the button ▼ of transmitter: motor rotates in reverse direction. Release the button: engine stops. Toggle press the button ▲ of transmitter: motor rotates in positive direction. Press again: motor stops pressing the button ▼ of transmitter: motor rotates in reverse direction. Press again: engine stops. Latch press the button ▲ of transmitter: motor rotates in positive direction. Press the button ▼ of transmitter: motor rotates in reverse direction. Press the button ■ of transmitter: engine stops. Learning method input power for the receiver. Press the learning button, the LED indicator is OFF. Then press the transmitter as you hear the sound from relay act, it means to learn successfully. Clear code Press and hold the learning button on the receiver until the LED is OFF to ON, which means that all stored codes have been successfully deleted.
