usangreen DB25 Serial Barcode Scanner Printer Adapter Converter Cable with Silabs CP2102 USB RS232 Cable (Length:180CM)

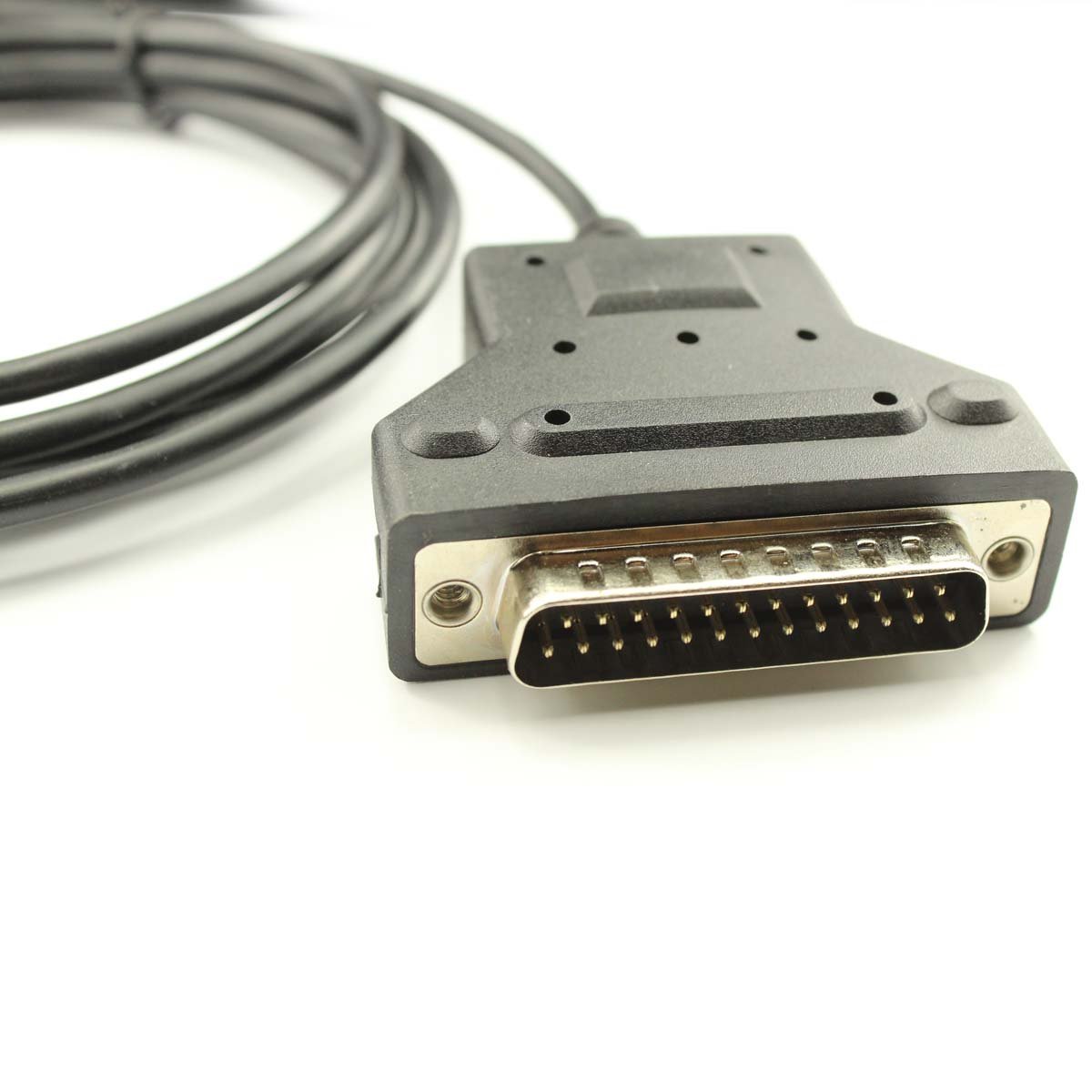

• Serial DB25 cable, not P-a-r-a-l-l-a-l cable, both side PE+PVC over-molded.

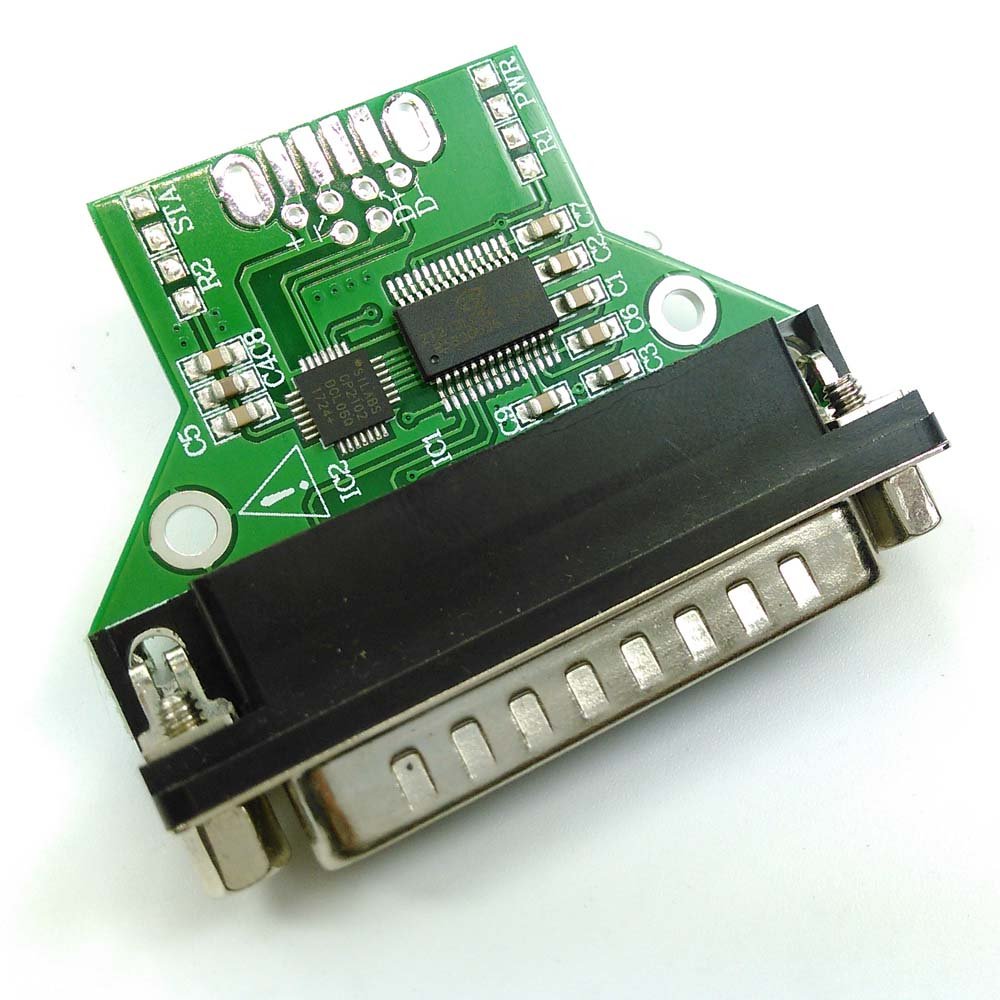

• CP2102+ZT213 chip usb rs232 to db25 serial printer cable
• Support Win 7, Win 8, 8.1, win 10, mac, Android

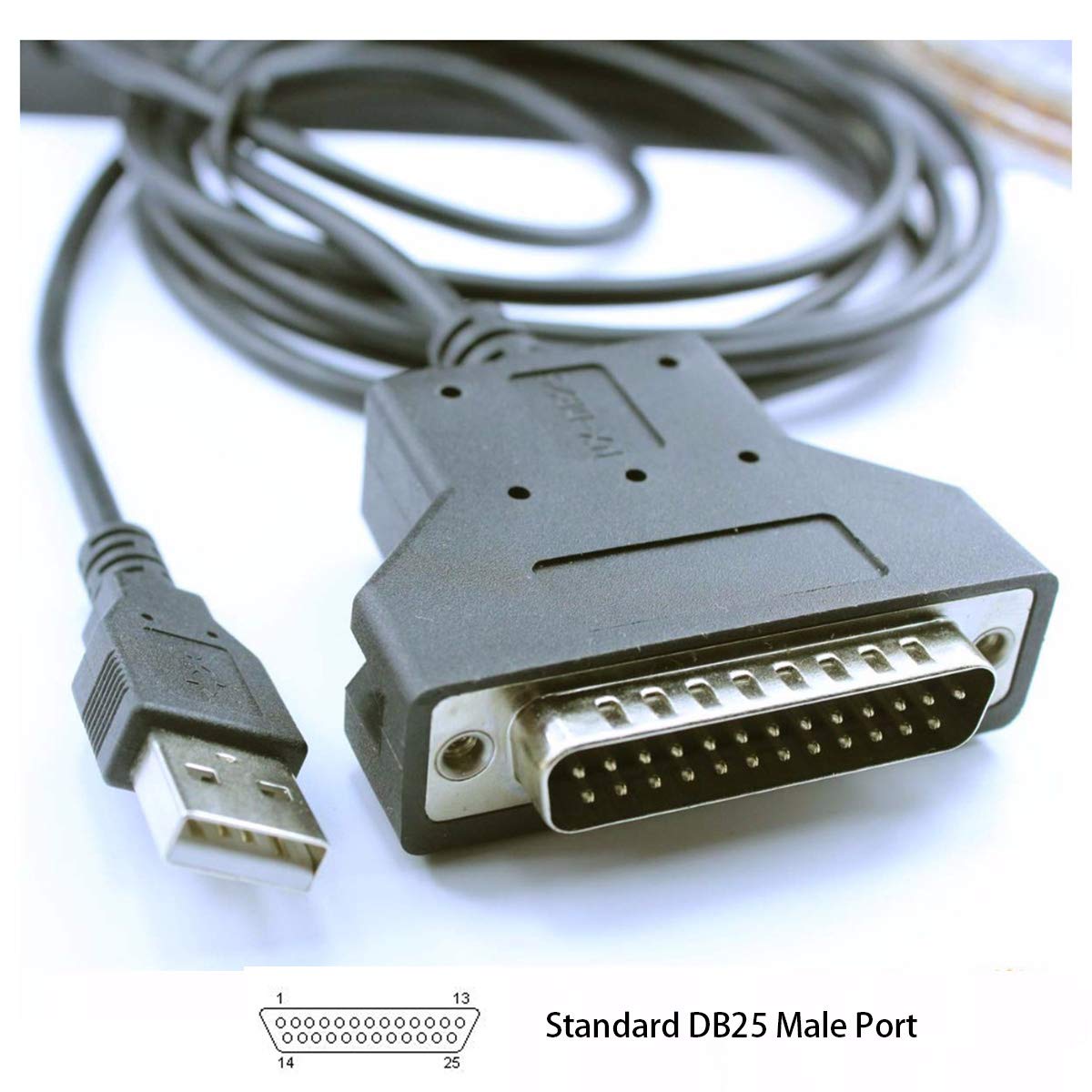

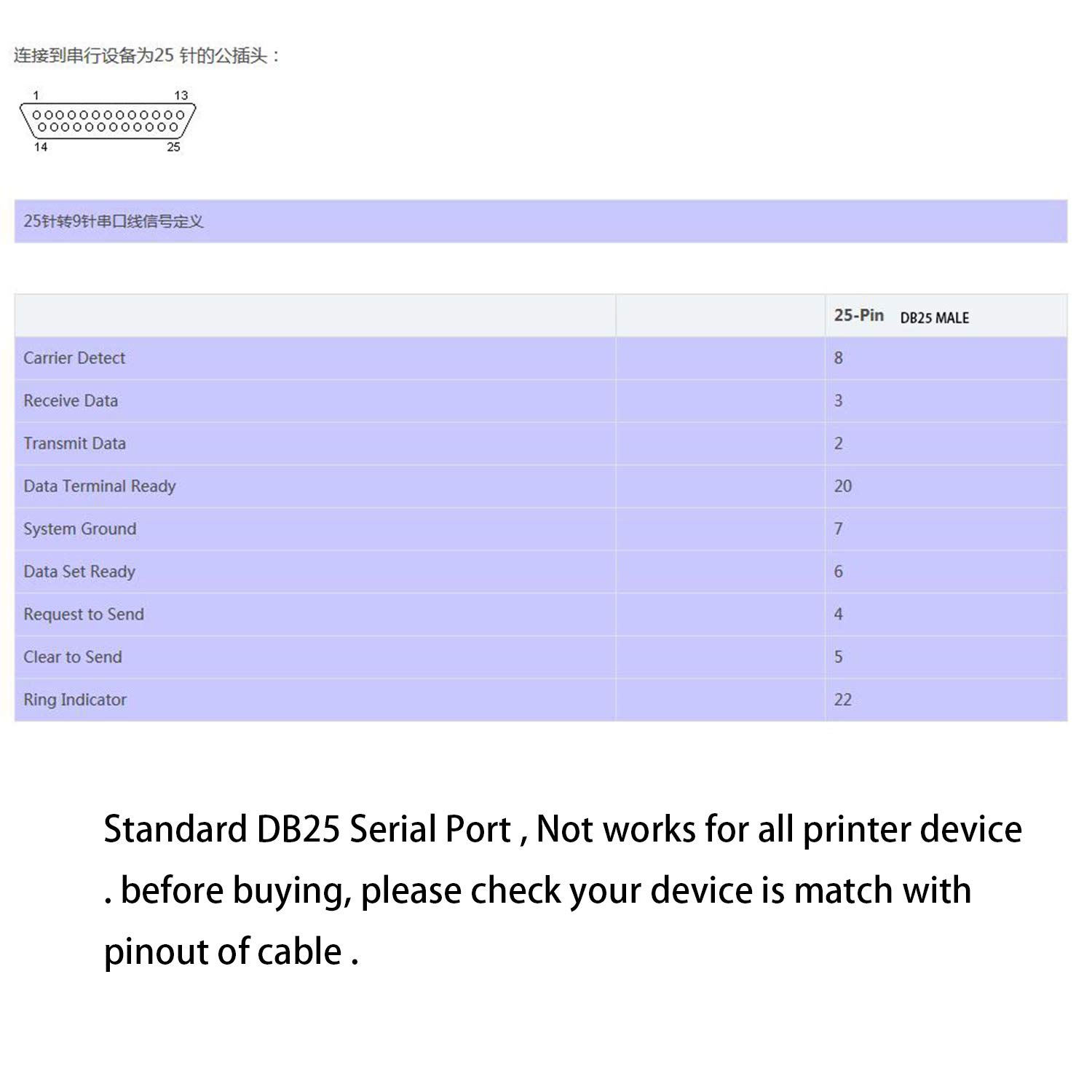

• DB25 male pinout: 2-TXD, 3-RXD, 4-RTS, 5-CTS, 6-DSR, 7-GND, 8-DCD, 20-DTR, 22-RI as standard;This is a USB Serial DB25 Male Standard Cable, Due to Different Printer with Different Pinout, So, this cable Not Works for all printers, please check your device is match with this standard pinout before buying . thank for your support and understand .
• Length:180cm, the driver download:http://silabs.com/products/mcu/pages/usbtouartbridgevcpdrivers.aspx

Serial DB15 cable, not P-a-r-a-l-l-a-l cable, both sides PE + PVC overmolded. CP2102 + ZT213 chip USB RS232 to DB25 serial printer cable USB 2.0 standard, 12 m full speed support. Support Win 7, Win 8, 8.1, Win 10, Mac, Android. 30 cm long, DB25 side PE + PVC oversprayed. DB25 pin assignment: 2-TXD, 3-RXD, 4-RTS, 5-CTS, 6-DSR, 7-GND, 8-DCD, 20-DTR, 22-RI as standard. 24/28AWG copper, PVC jacket with shielding USB RS232 COM Port Converter Cable Both sides are molded from PE and PVC USB Serial Adapter Cable USB COM232 Adapter Cable USB RS232 DB25 Adapter Cable USB suspend states are supported via SUSPEND pins All handshake and modem interface signals Supported data formats: data bit: 5, 6, 7 and 8, Stop bits: 1, 1.5 and 2. Parity: odd, even, Marking, spaces, no parity Baud rates: 300bps to 1Mbits 576 byte reception buffer; 640 bytes transferred Hardware or X-On / X-Off handshake is supported. Even drawing support. Line interruption transmission. 0.3 m length in stock. Update serial PLCs, modem to USB, barcode reader, scanner, etc. Compatible Serial PC Performance Supports Windows 7/8 / 8.1 / XP / 9X / 2000, Linux, Mac etc Package: 1 x 30 cm USB DB25 cable
