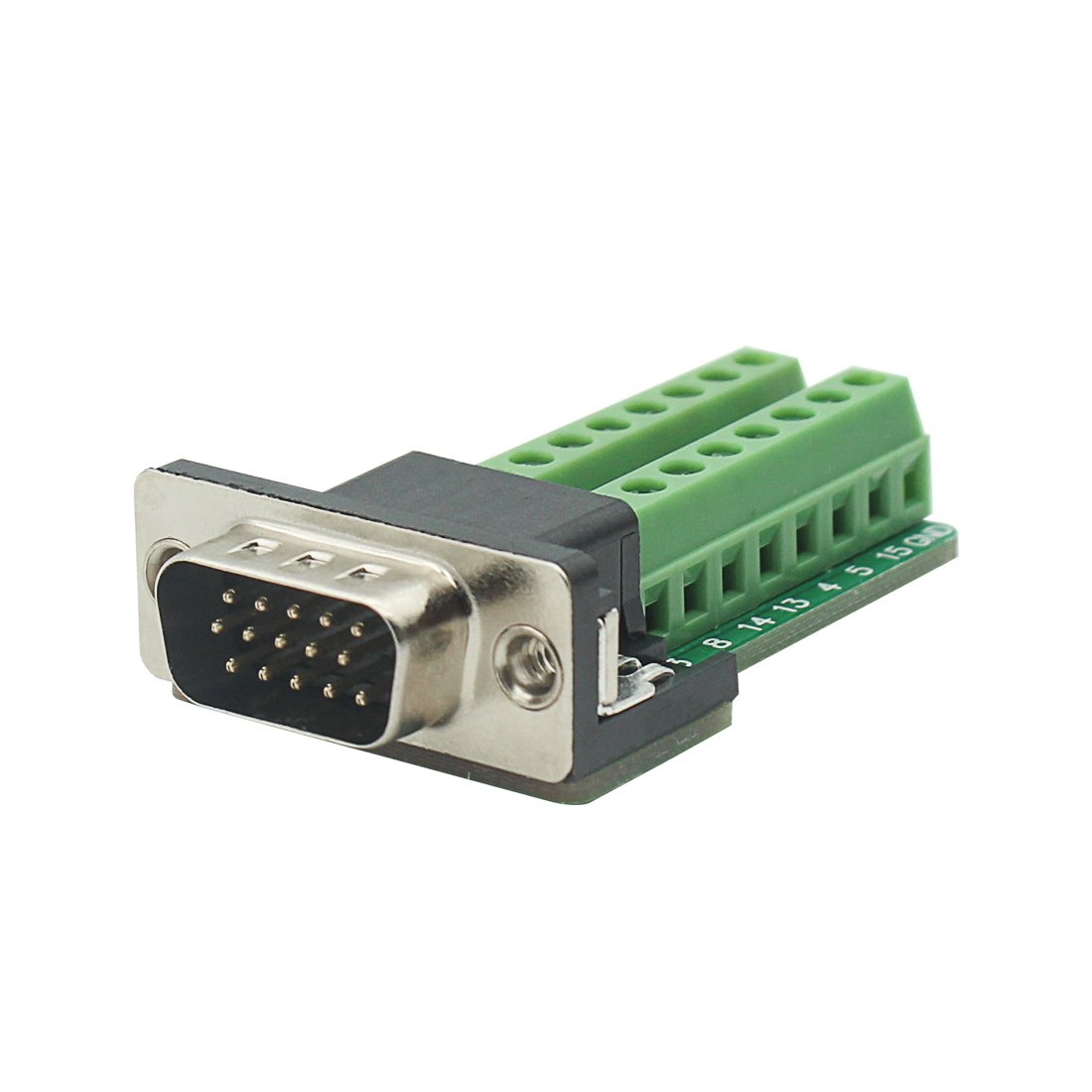

DB15Adapter D-SUB DB15 VGA Male 3Row 15Pin to Terminal Breakout Board Connectors with case

• Suitable for variety of pin connections required to use serial communications industrial control products

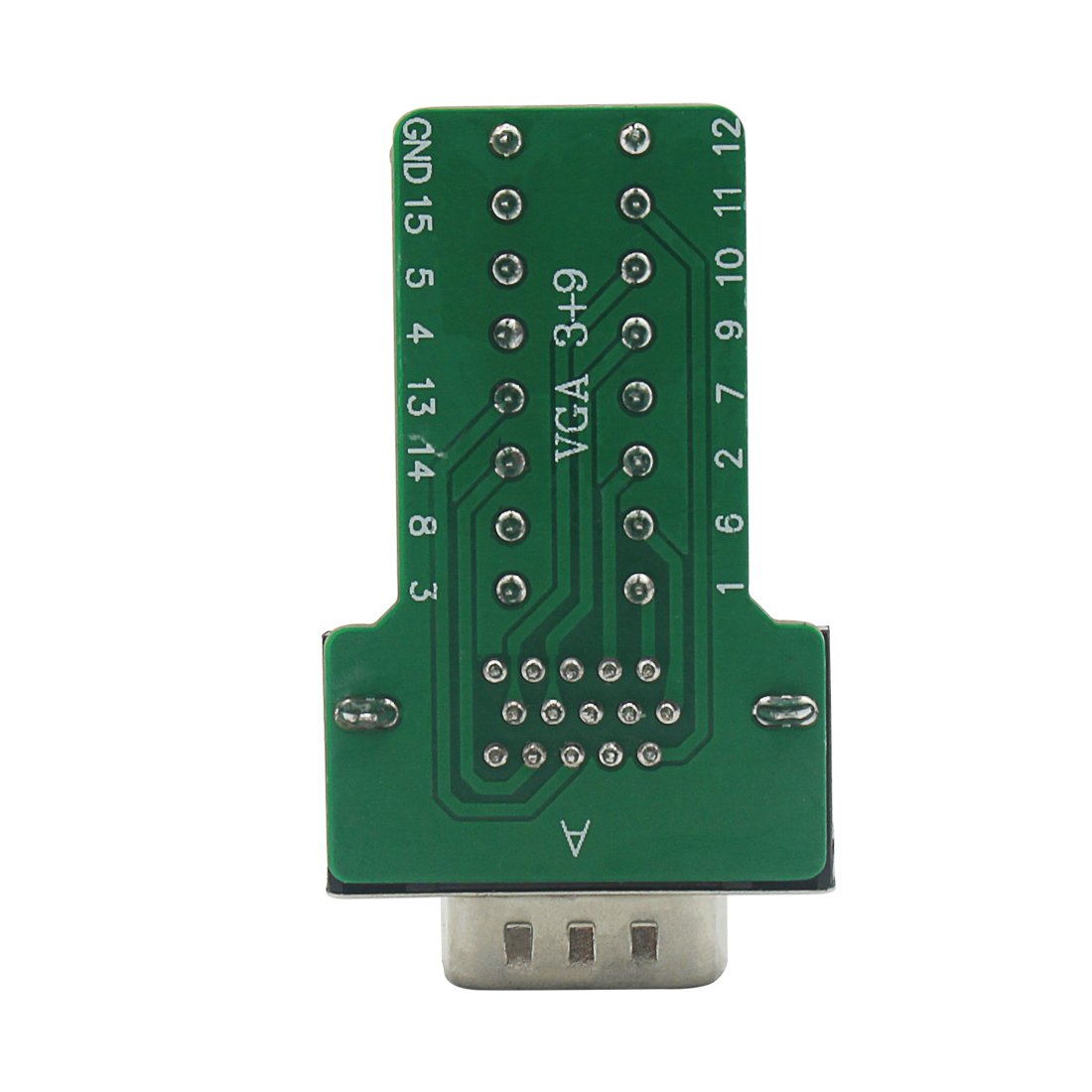

• High quality PCB carrier, all signal ports named and labeled clearly
• No soldering needed! This is SO convenient.

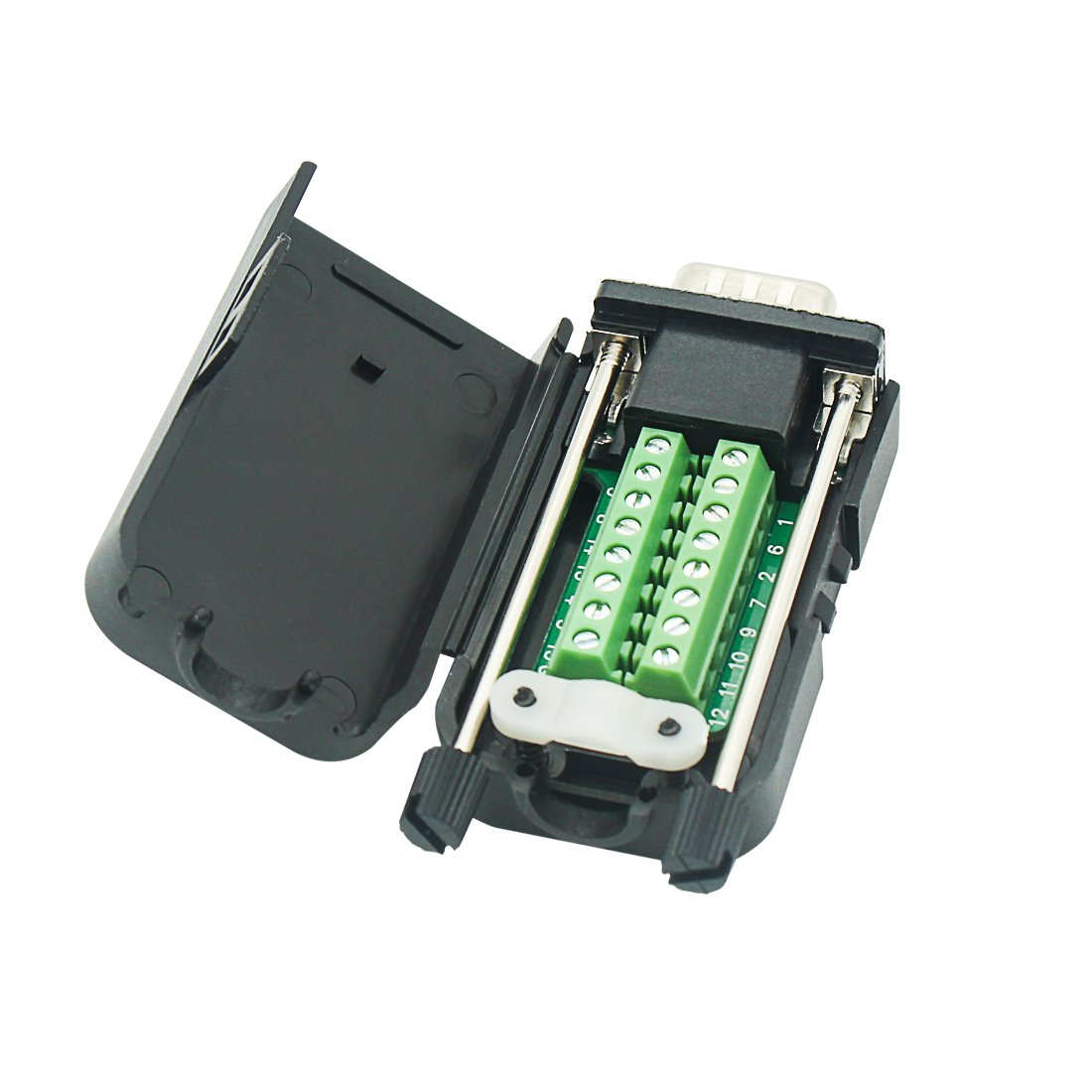

• With insulation case and all-copper base, contacted better and more anti-oxidation
• Cable Hole Dia. : 10mm / 0.4";Material : Metal,Electric Part

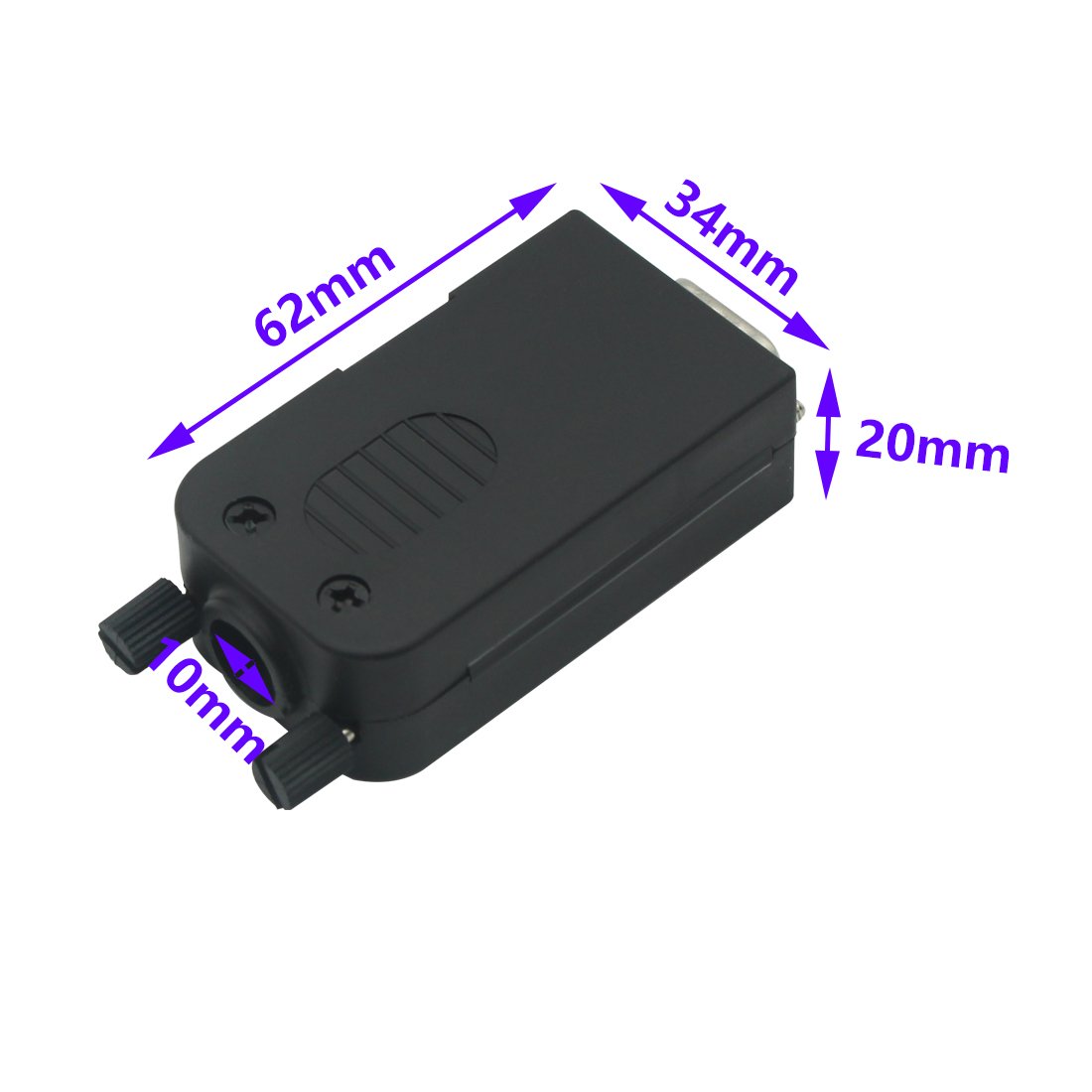

Product name : DB15 VGA Male adapter£¨3+9£; Total Size : 62 x 34 x 20mm/2.44" x 1.33" x 0.78"(L*w*h) Terminal hole diameter: 0.12''/3mm, terminal hole center distance : 0.2''/5mm Material : metal Nickel plated copper needle, electric part; color : black, Green Weight : 32G DB15 male / female connector to screw terminals. High quality RoHS compliant assembly. The Screw Terminal Block wire range is 24-12AWG, voltage 300v, current 10A, and the pitch is 5.08mm. Connect type: Female with Case DB15 male Adapter Plate Signal Module, RS232 Serial DB15 15-pin to dual 8Positions Screw Terminal Block. Connector DB15 adapter terminals to facilitate the project, site commissioning equipment. Suitable for VGA cable is 3+2 or 3+4 Material: Base: copper base and plastic part Torque: 0.2Nm (1.7Lb-In.) Pin header and cage: Brass Case: ABS + PC Package included: 1 x DB15 breakout board male adapter with case 1x cable pressing plate 2x Screws 2x Long bolts
