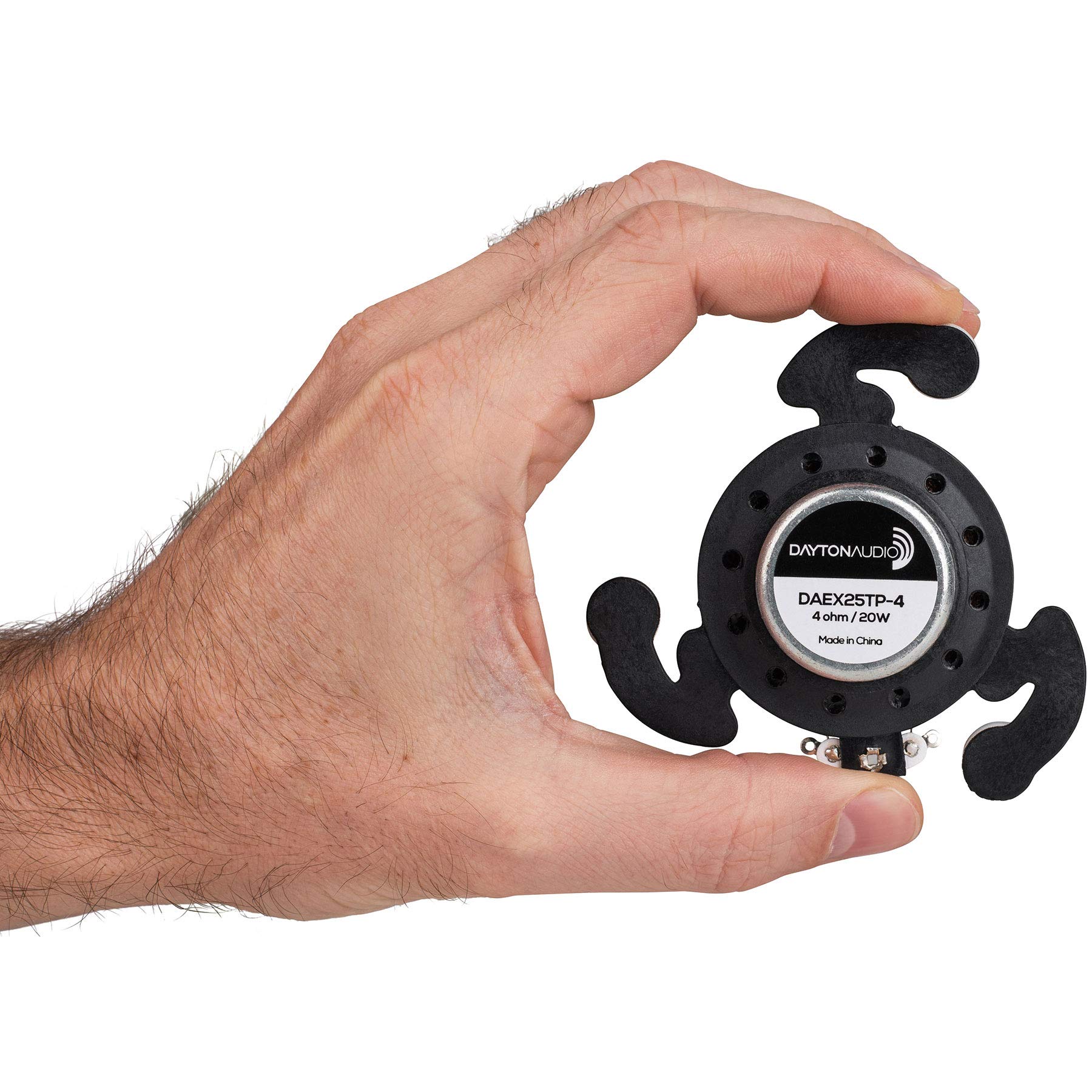

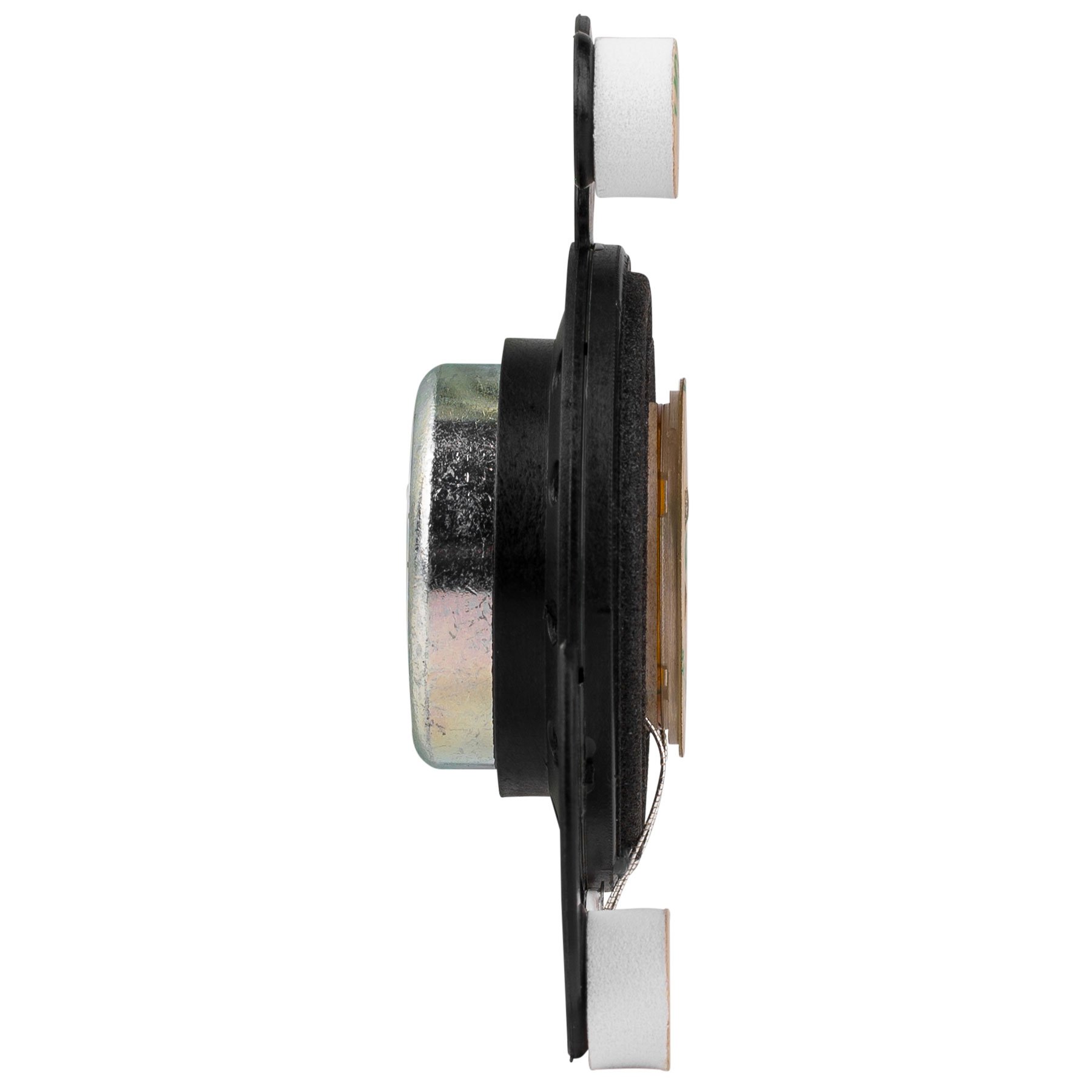

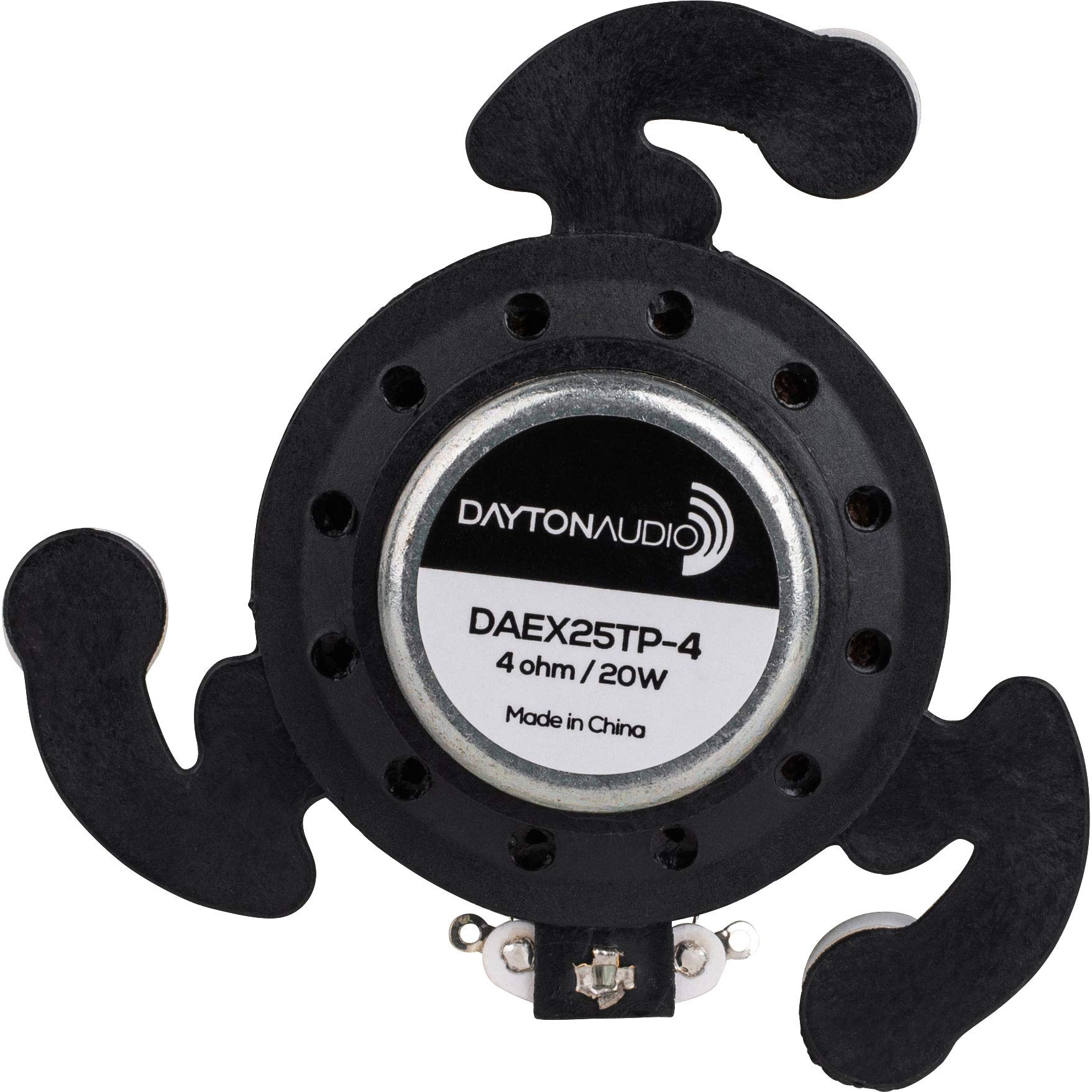

Dayton Audio DAEX25TP-4 Tripod 25mm Exciter 20W 4 Ohm

• Unique, three arm design for exciting a large surface

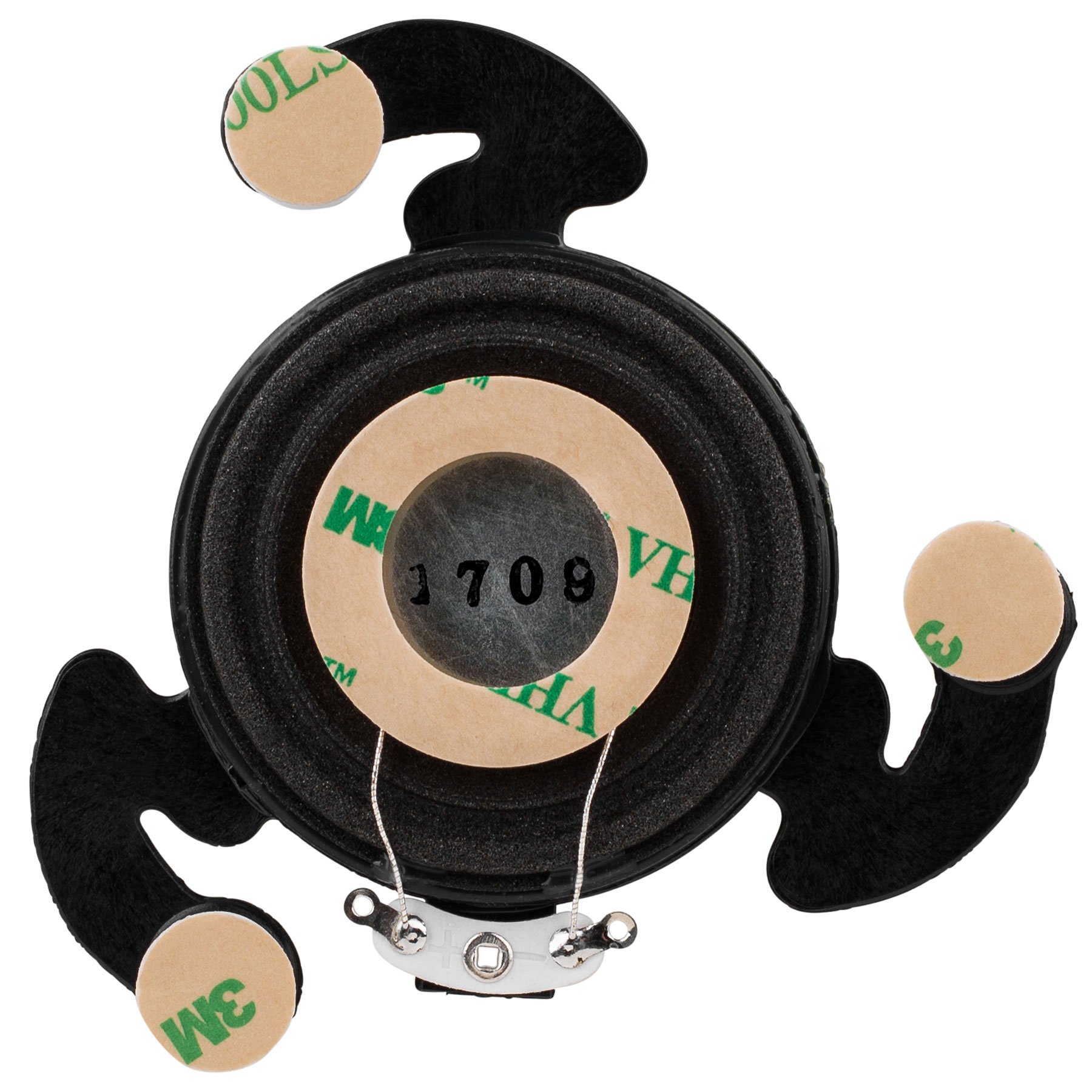

• Pre-applied 3M? VHB? adhesive for quick, secure installation
• Rare-earth neodymium motor and a proprietary voice coil
• 4-ohm impedance for use with small, Class D amplifiers
• 20 watt RMS power handling for high output

QUICK OVERVIEW: To turn larger surfaces into speakers and achieve more bass output, Dayton Audios DAEX25TP-4 features three extended arms. Cooling slots draw air over the propietary voice coil for higher load capacity. PRODUCT HIGHLIGHTS Unique three-arm design for an exciting large surface area. Pre-applied 3M™ VHB™ adhesive for fast, secure installation. Rare earth neodymium motor and a proprietary voice coil with 4 ohm impedance for use with small, class D amplifiers. 10 watts RMS power for high performance. Product Manuals/Datasheets/Downloads Dayton Audio DAEX25TP-4 Specification Sheet AddThis Shut. aring buttons Share to FacebookFacebook Share on Twitter Twitter Share them on moreAddThis 1 Product Description Dayton Audios DAEX25TP-4 Tripod Exciter is equipped with three arms that extend from the main exciter body, allowing this exciter sound to transfer sound to a much larger surface area for lower frequency response extension (more bass). A neodymium magnet is used to generate maximum magnetic flux around the proprietary voice coil to achieve increased sensitivity compared to similarly sized pathogens. This in turn reduces power consumption and allows the use of very small audio amplifiers without compromising overall performance. The 1-inch voice coil and cooling slots allow for more input power for higher output applications while maintaining a slim form factor. To ensure maximum acoustic energy transfer between the transducer and the surface it is attached to, the 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the three arms... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible. Note: The frequency response and sensitivity of the exciter are completely dependent on the surface designated by the pathogens. Thinner, smaller materials tend to be louder and produce a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but will result in a fuller sound range. To learn more about Exciter technology, here is a link to the Exciters Buyers Guide. Product Details: Speaker Series Exciters Model Number DAEX25TP-4 List Price $13.99 Color Black Unit of Measure per UPC 848791000935 Warranty - Parts 5 Year Warranty - Work 5 Years Product Shipping Weight (lbs) 0.2 Speaker Type Exciter Power Handling (RMS) 20 Watt Power (Max) -- continuous programperformance -- Impedance 4 ohm sensitivity -- Frequency response -- Voice coil diameter 25 mm Magnet weight -- DC resistance (Re) 4.2 ohm voice coil inductance (Le) 0.10 mH @ 1 kHz resonance (Fs) 23 3 Hz Mechanical Q (Qms) -- Electromagnetic Q (Qes) -- Total Q (Qts) 0.74 diaphragm Mass Mass Inc. Airload (Mms) 1.75 g Moving Mass Of Diaphragm (Mmd) -- Mechanical Compliance of Suspension (Cms) 0.0003 mm/N Surface Area Of Cone (Sd) -- Volume of Displacement (Vd) -- BL Product (BL) L) 3.86 TM Compliance Equivalence Volume (Vas) - Maximum Linear Alignment (Xmax) - Mechanism (Rms) - Input/Output Diameter - Surround Material - Voice Coil Wire Material - Voice Coil Shaper - Basket/Frame Material - Magnet Material - Overall Diameter 88.71mm Diameter Overall Depth: 21mm Record cutout diameter: mounting hole diameter: bolt circle diameter. Product weight:
