DAXGD Fiber Cleaver SKL-6C Cable Cutting Knife FTTT Fiber Optic Knife Tools Cutter High Precision Fiber Cleavers 16 Surface Blade

• Fiber cleaver is suit for cold joint and can meet the hot melt a multi-purpose optical fiber cutter.

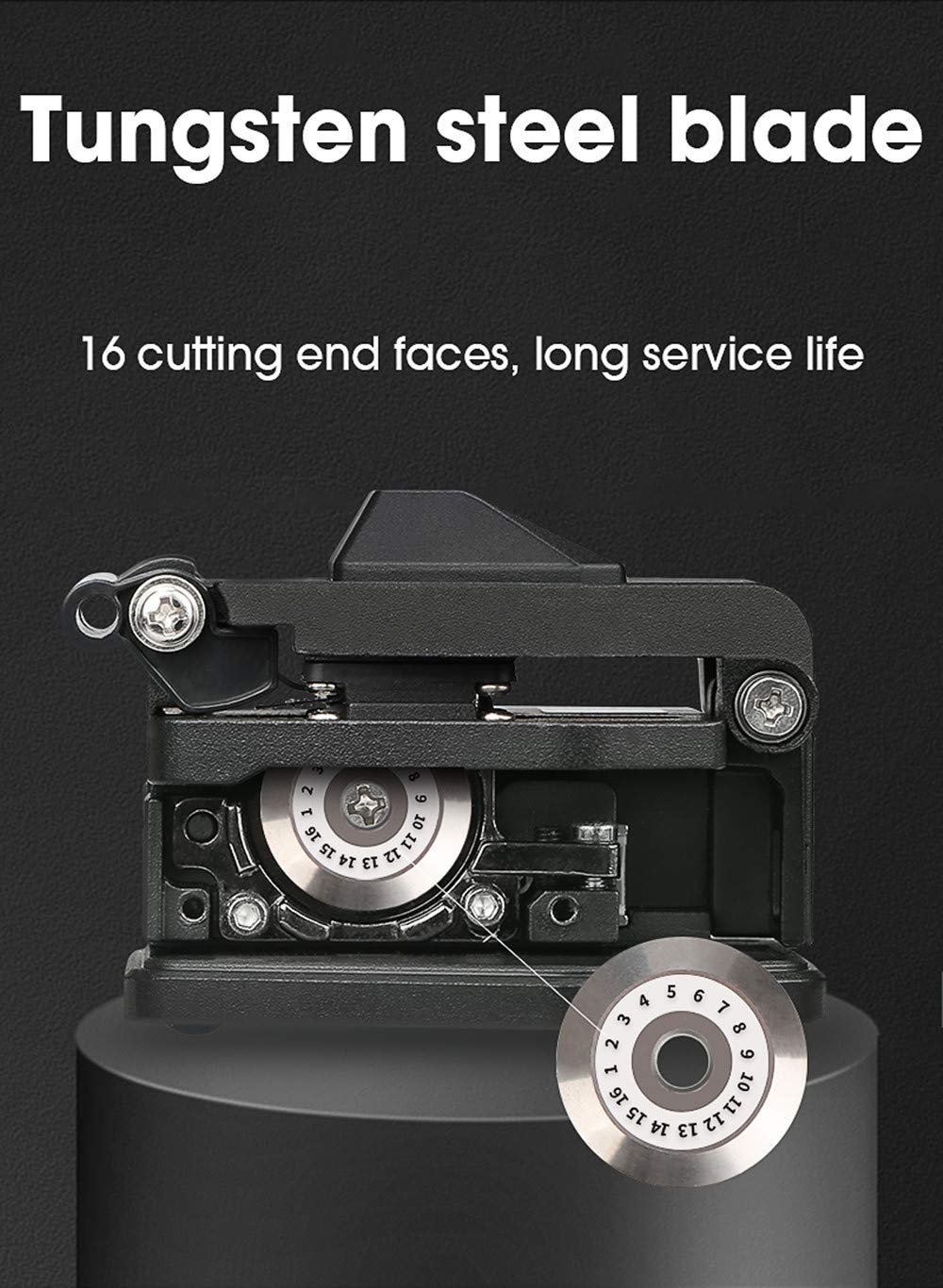

• The SKL-6C fiber cleaver uses the 16 bit planes in high strength blade.
• The SKL-6C fiber cleaver has longer life, comes with triple a fixture can flex, fiber and bare fiber cutting, automatic back knife slide.
• Easy to use. You only need to put good fiber cover the cap. Then to push, you can complete all the cutting work.
• 100% brand new.

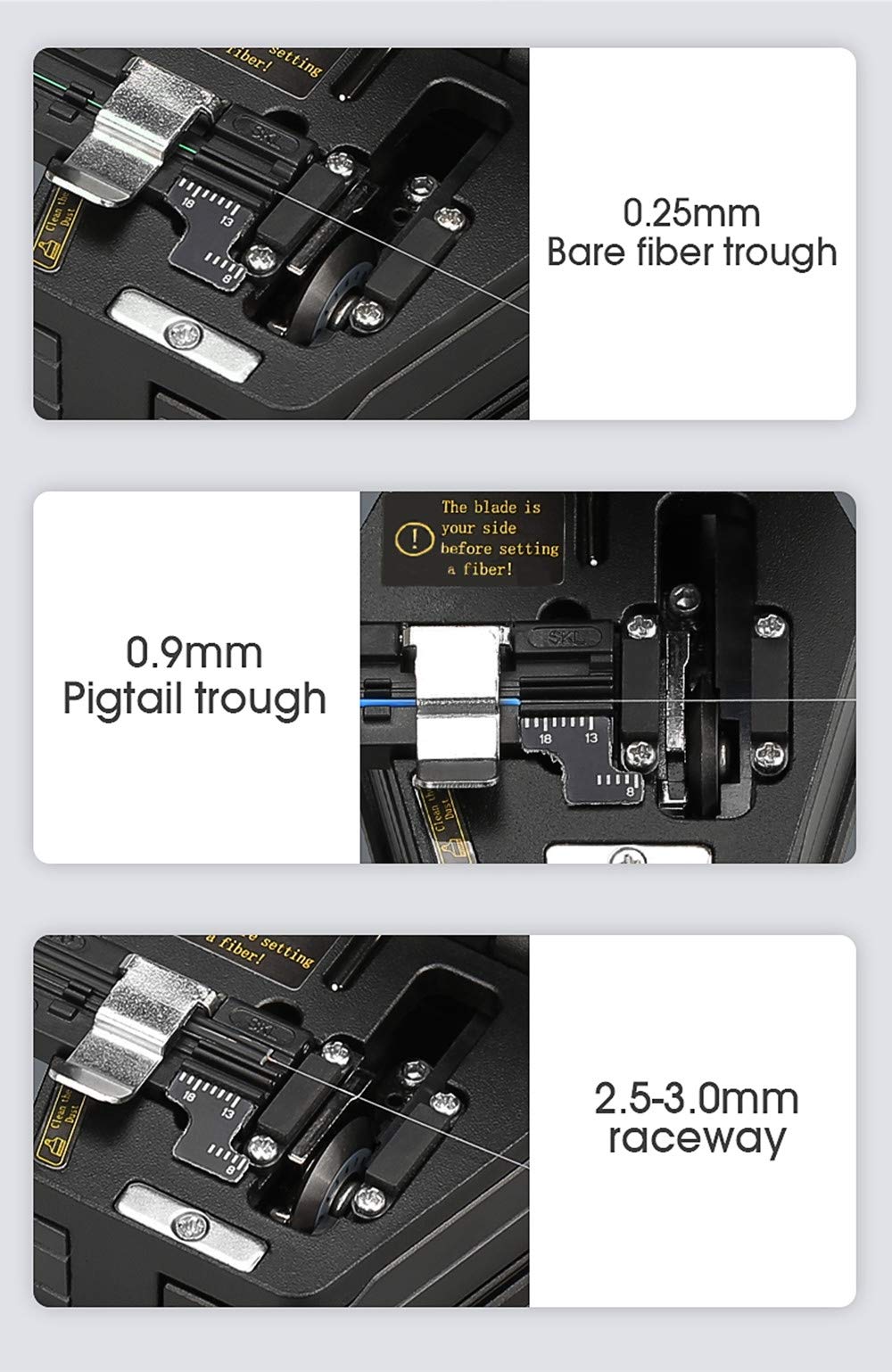

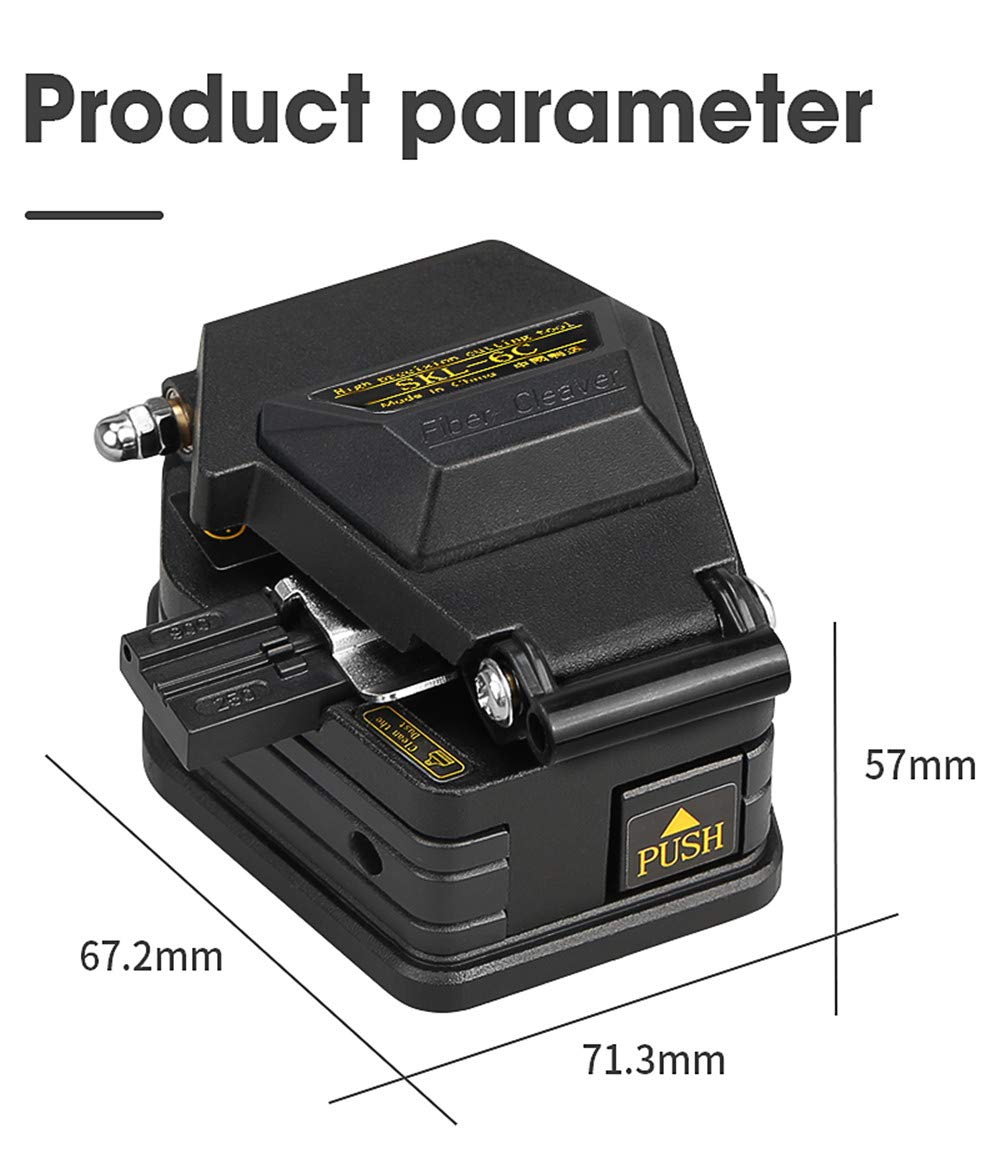

SKL-6C Fiber Cleaver Specification: Applicable diameter of bar fiber: 125μm Applicable quality of fiber core: Single core (0.25 & 0.9mm) - 12-core, ribbon fiber-2.5 covered wire. Cutting length for optical fiber: 18mm Demension: 71.3(W)* 67.2(D)* 51(H)mm Weight: 230g SKL-6C Fiber Cleaver Usage: 1. Please lift up the top lever of optical fiber cover. Open the cover clip of single-core fiber clamp. Confirm that the sliding bar of cutter at the front position. 2. Put the optical fiber into the groove of single-core fiber clamp. Align the coating line with the scale of proper cutting length of optical fiber. (For instance, if the cutting length is 18mm, align the coating line with the position of 18mm on the scale.) Then check the bare fiber whether it is straight. 3. The optical fiber and fiber chips are very tiny and sharp. If it is penetrated into the finger or eye, it will all cause the injury. It thus should be very careful during the operation. For the safe operation, the operator should wear the protective glasses. 4. Please throw the fiber chips into the special container that is separated from the general garbage. 5. The cutter installed on the machine is very sharp. Do not touch it by hands, otherwise it may hurt your hands. 6. Please be noted that if the top lever of optical fiber cover is impacted, it will also cause the failure. The damage top lever will reduce the performance of fiber cleaver. Warning: 1. When using the non-optical adjusting cutter for the replacement, it may be unable to replace and install the cutter or adjust the cutting force. 2. SKL-6C adopts the special cutter fixing screw and it is no need to adjust the height of cutter even turning the cutting adge. Package List: 1* SKL-6C Fiber Cleaver 1* Instruction Manual 1* Packing box
