DAOKAI USB Isolator Board - ADUM4160/ADUM3160 Driver-free Plug & Play, 12/1.5 Mbps with USB Cable

• Module Introduction: Compatible with USB 2.0, providing completely isolated 1.5 Mbps and 12 Mbps data rates, isolating 1500V voltage, no external power supply or driver.
• Advantage: Avoid the interference of the USB port by external strong power supply and strong signal, and protect the USB port and computer motherboard.

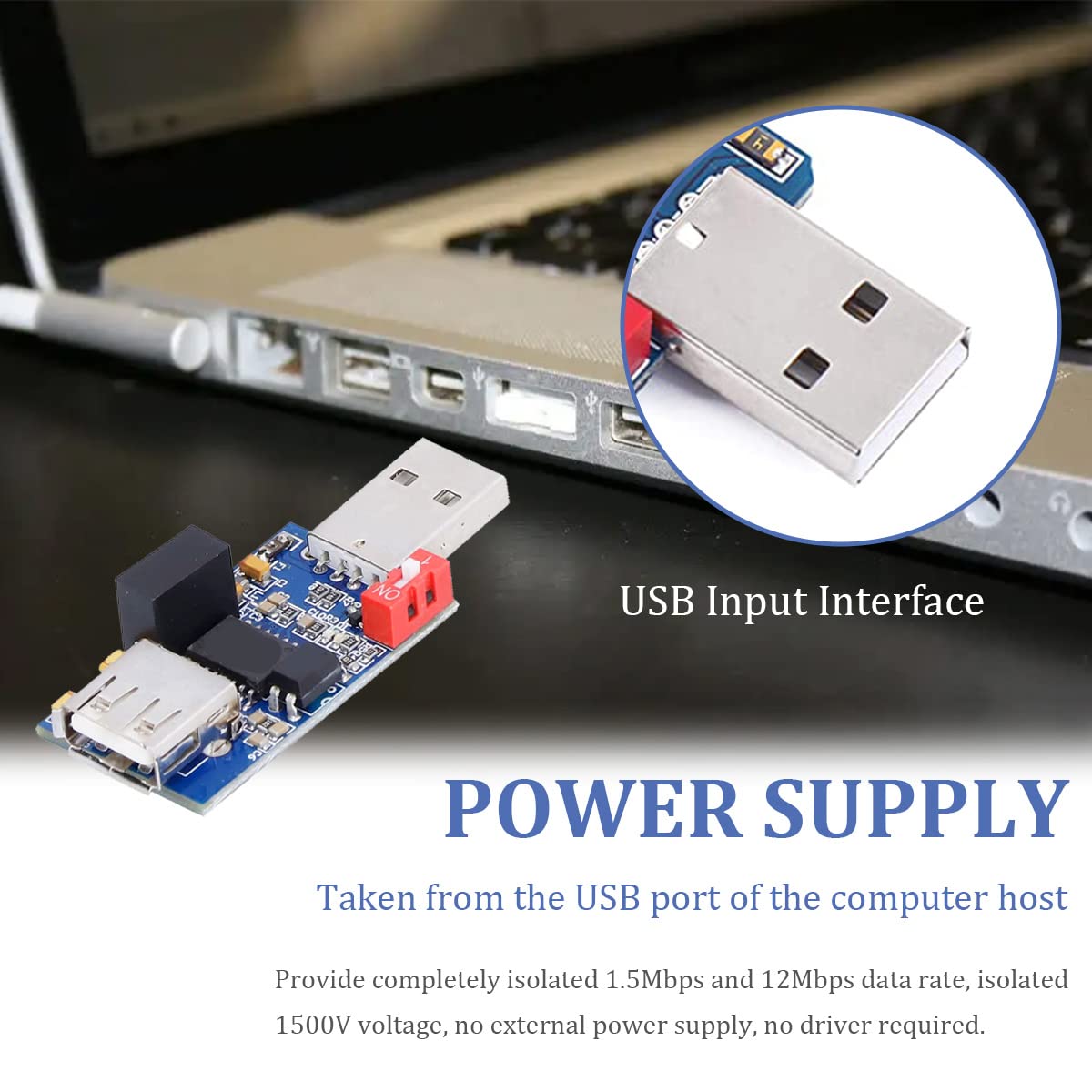

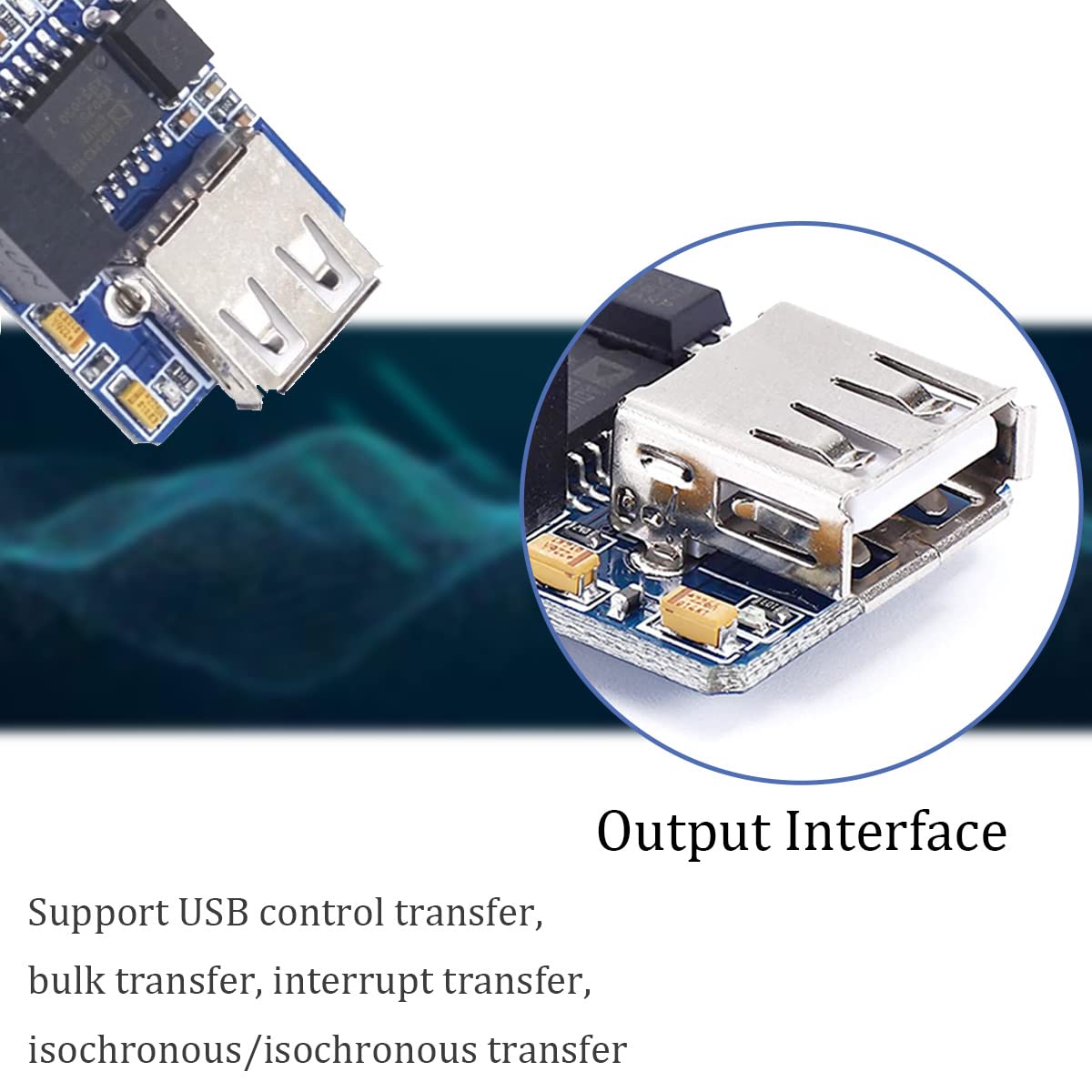

• Power supply: from the USB port to the PC host.Support USB control transfer, bulk transfer, interrupt transmission, synchronous transmission and etc.
• Wide Application: Suitable for strong electricity, strong interference work environment, noise sensitive fields, USB debugging equipment, various industrial control USB equipment, other common USB peripherals.
• Package includes: You will get 1 x USB to USB Isolator Board 1500V USB Isolation Module, 1 x 1.5m / 59.05in USB extension cable.

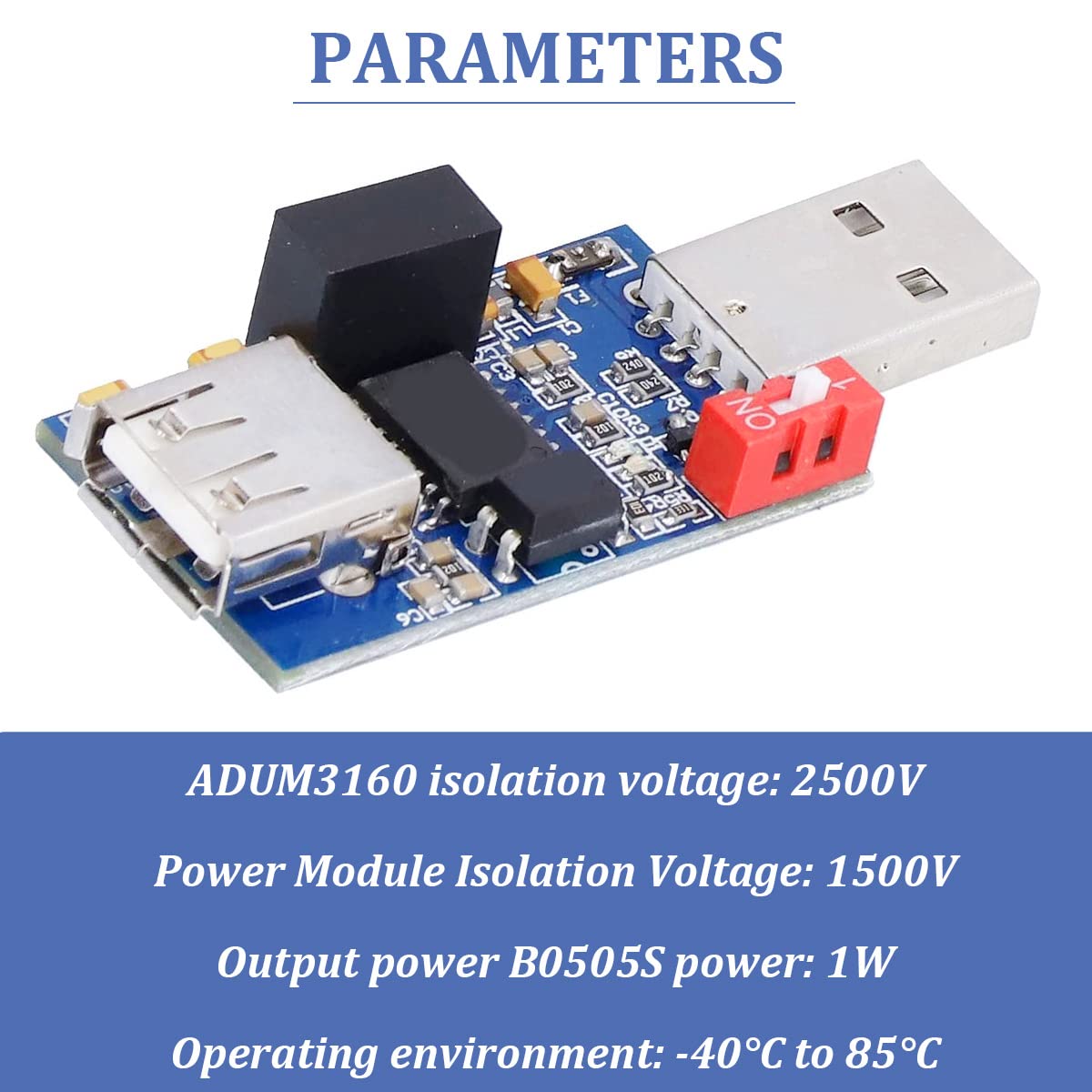

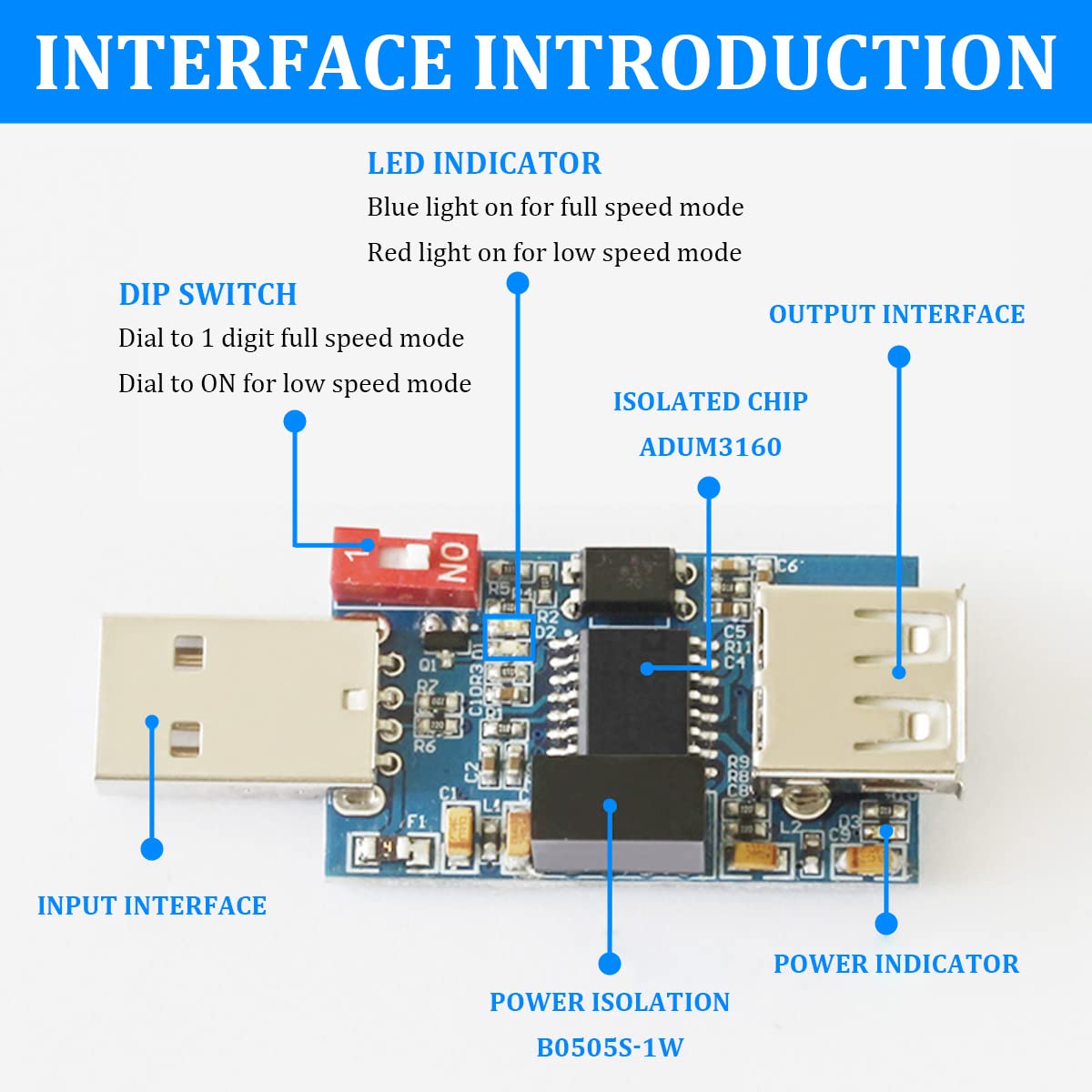

Parameters： Item Type: USB Isolator Module Compatible: USB2.0 Power Module Isolation Voltage: 1500V ADUM3160 Isolation Voltage: 2500V Output Power Supply B0505S Power: 1W Power Supply: Take from USB port of computer host Environment: -40℃ - 85℃ Support USB control transmission, bulk transfer, interrupt transmission, synchronization/isochronous transmission Support USB low speed 1.5Mbps and full speed 12Mbps, you can switch by DIP switch, do not support pure high speed equipment This product is suitable for the following users: 1. Contains strong electricity, strong interference with the working environment 2. Noise sensitive areas 3. USB debugging device 4. A variety of industrial USB devices 5. Other common USB peripherals, such as mouse, keyboard, USB sound card, USB flash drive, printer, digital camera, USB hub (HUB), USB camera. 6. Medical equipment. Supported Equipment: 1.Full-speed Equipment: USB flash drive, digital camera, card reader, mobile hard disk, U shield, USB hub, AVR-JTAG.AVRISP, AVRISPMKIL, S-Lab, Jet51.J-Link, FET430UIF, PICKIT2, XDS100, LPC-Link, ICD2, USB turn serial port (FT232, CP2102, PL2303, CH341 chip) 2.Low Speed Equipment: Keyboard, mouse, USBASP, USBHID device, USBCDC device 3.Unsupported Devices: USB wireless network card, some USB3.0 USB flash drive Package includes: 1 x USB to USB Isolator Board 1500V USB Isolation Module 1 x 1.5m/59.05in USB extension cable
