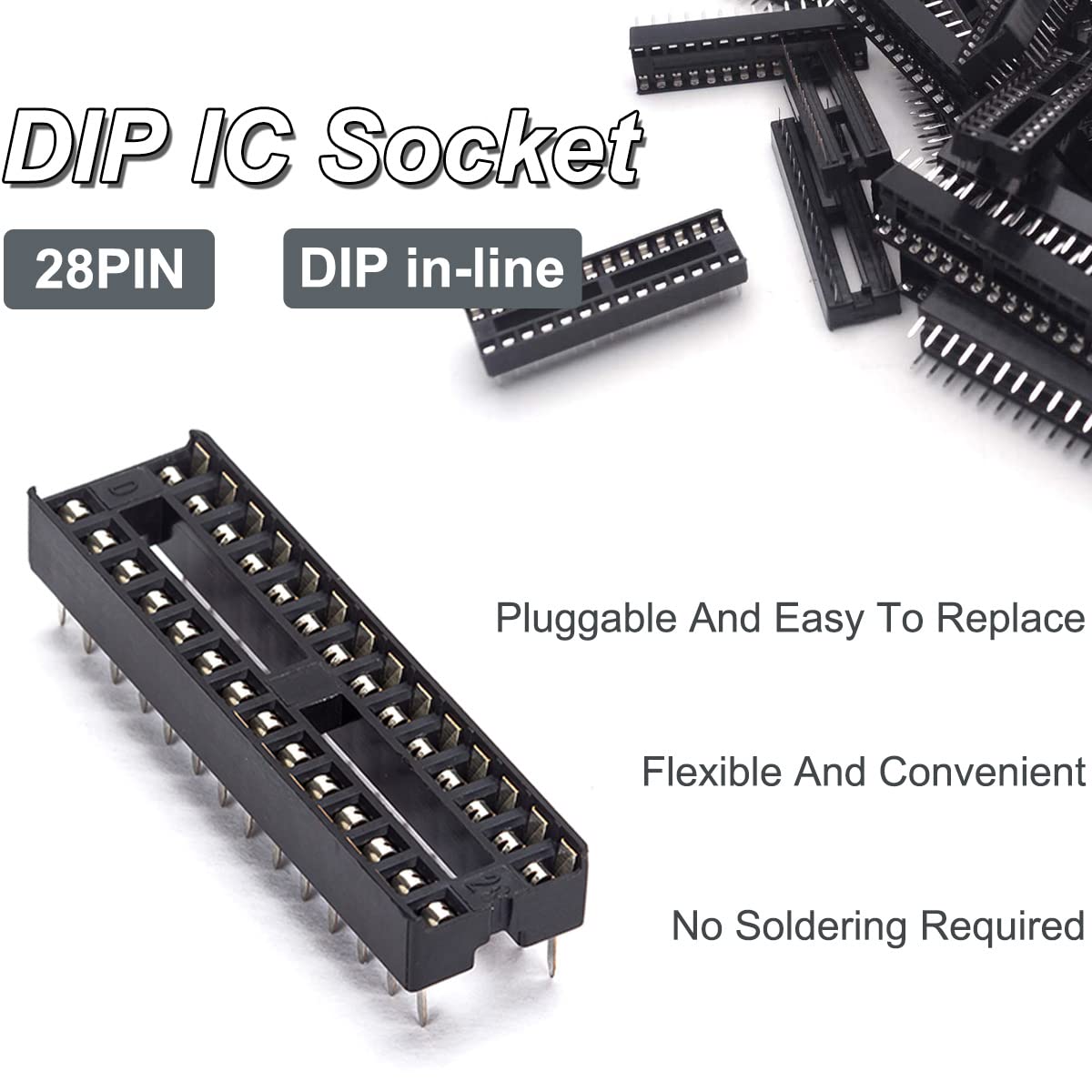

DAOKAI DIP IC Socket Adaptor 2.54mm Pitch Electronics Electrical Component PCB Mount Socket, Dual Row Flat Pins Soldering Integrated Circuit IC Sockets Connector(28Pin, 50PCS)

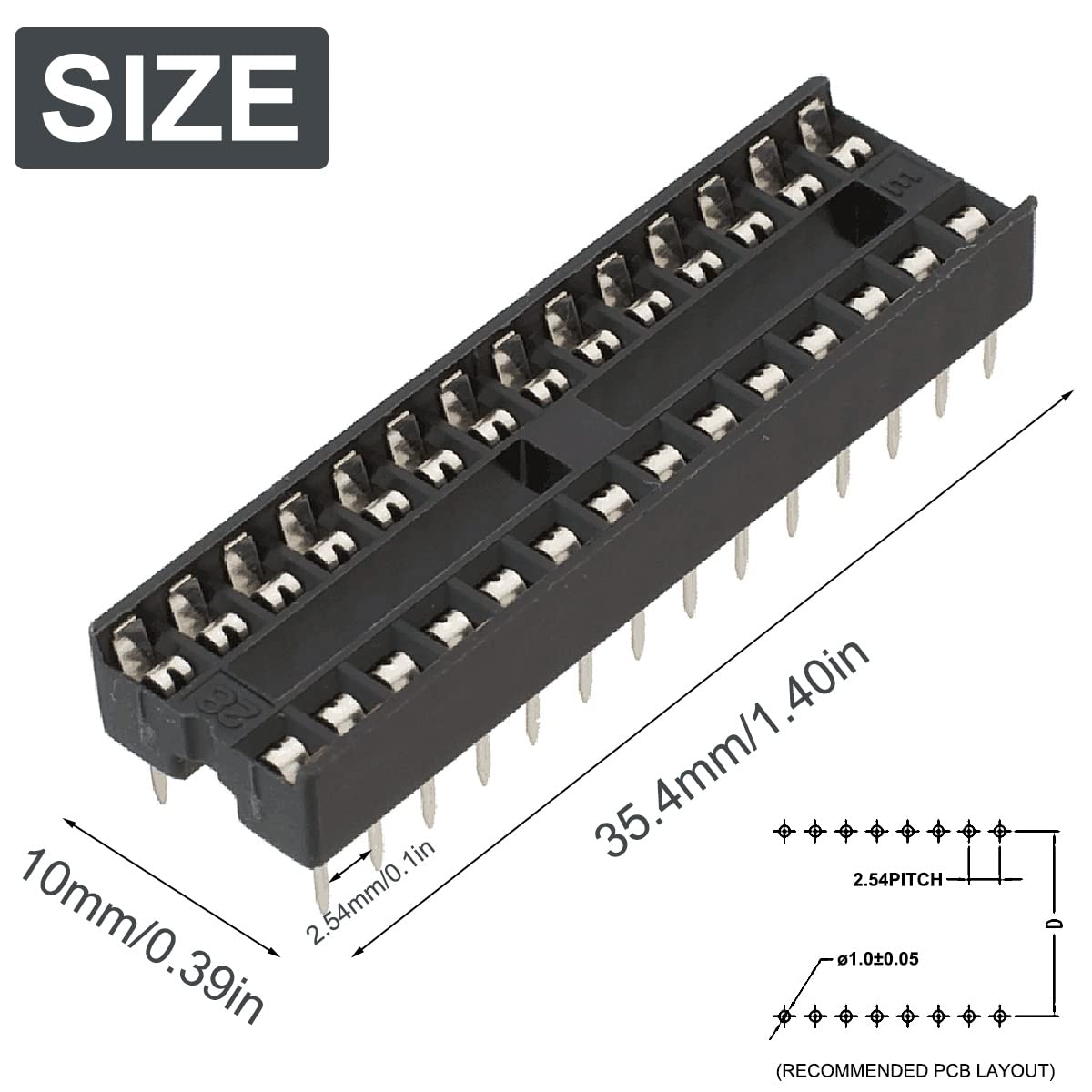

• Product: Product Name: DIP IC Socket; Type: dual row, Pitch: 2.54mm / 0.1in; Number of Pins: 28, Row to Row Distance(Approx.): 7.5mm / 0.295in, Each Size(Approx.): 35.4 x 10 x 8mm / 1.40 x 0.39 x 0.31in.

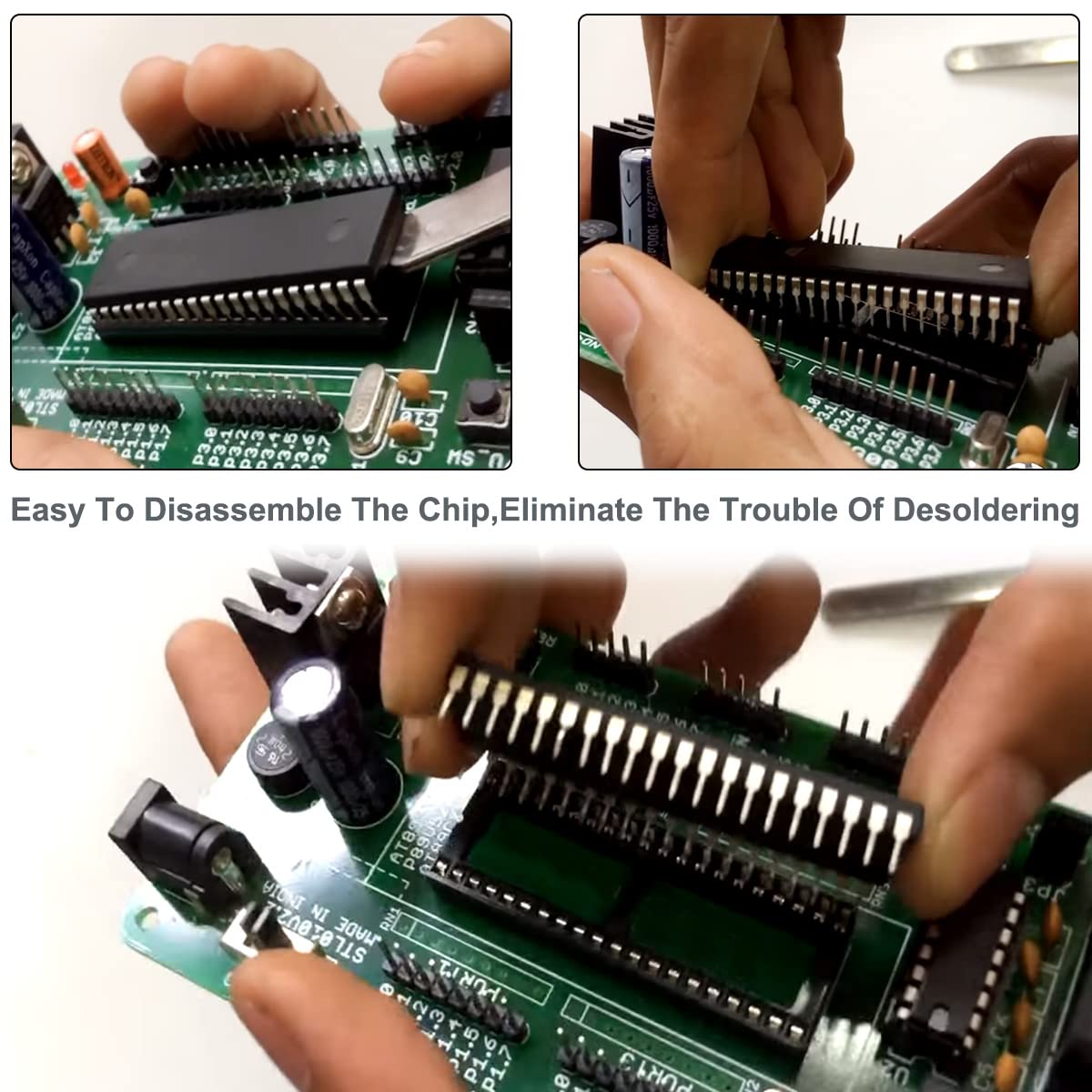

• Features: It is convenient to disassemble the chip. With the IC socket, the chip can be directly plugged in and out without the need for desoldering with a soldering iron, which is easy to replace.
• How to use: When installing, first solder the chip to the IC connector, and then solder the IC connector to the PCB board, when you need to install or replace the chip, directly remove the connection between the IC connector and the PCB board, without changing the chip and connector Connection.
• Application: This product is suitable for small experiments, research and development, and production requirements.
• Package includes: You will get 50 X 28Pin 2.54mm Pitch DIP IC Socket Adaptor(DIP in-line).

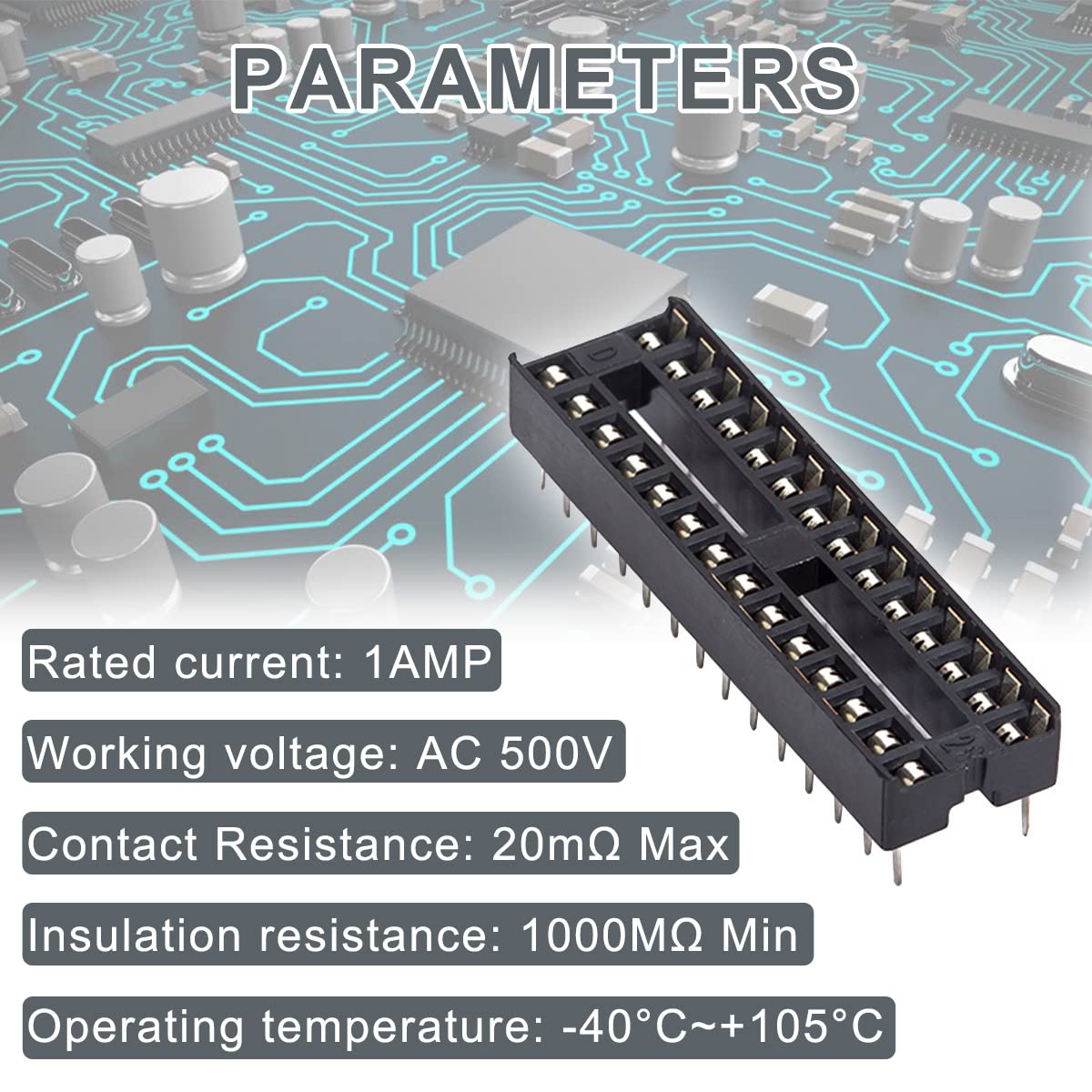

Specifications: Electrical properties Withstand voltage: 500VAC Contact resistance: initial maximum 20MΩ Environmental characteristics: Working temperature: -40~105° Storage temperature: -40~70° Description: A multi-pin integrated circuit is called an IC, and the foot that can be inserted into the IC is an integrated circuit socket, also called an IC socket. IC (Integrated Circuit) adopts a certain process to interconnect components such as transistors, resistors, capacitors and inductors and wiring required in a circuit on a small semiconductor wafer or dielectric substrate, and then package them in a tube case. into a miniature structure with the desired circuit functionality Package includes: 50 x 28Pin DIP IC Socket Adaptor 2.54mm Pitch
